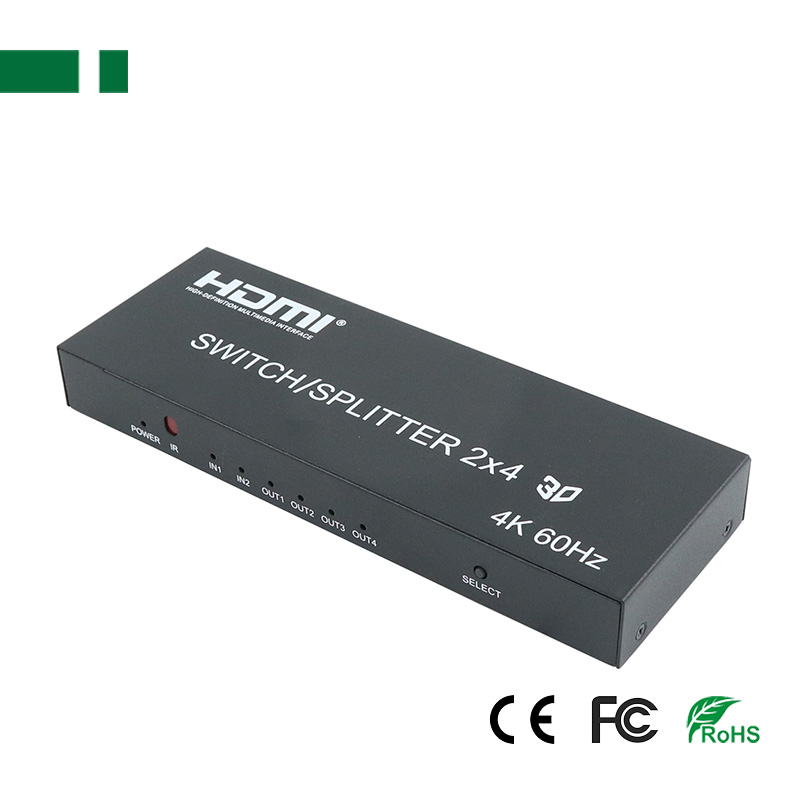

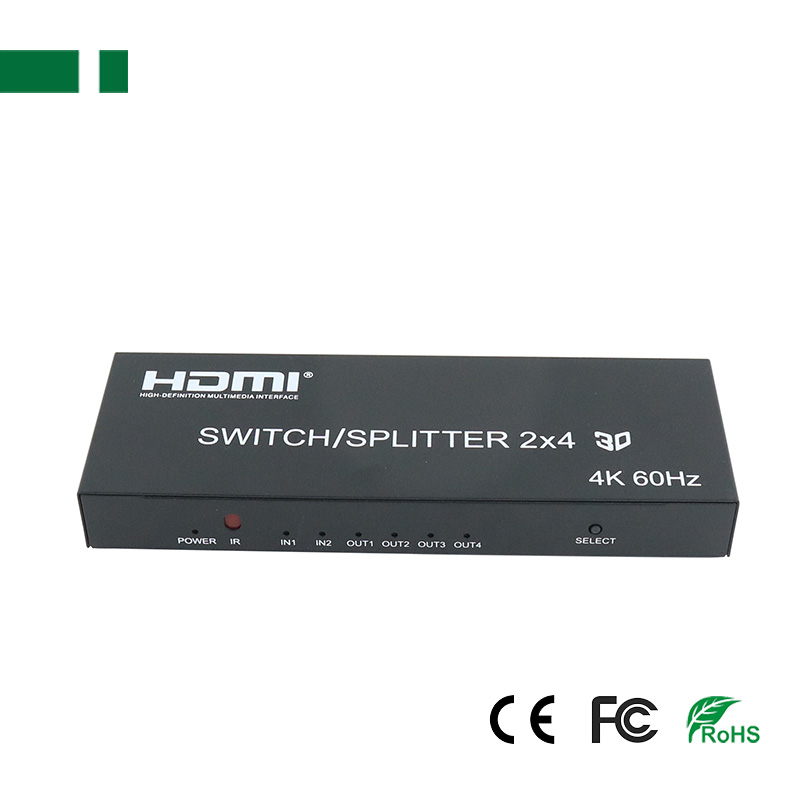

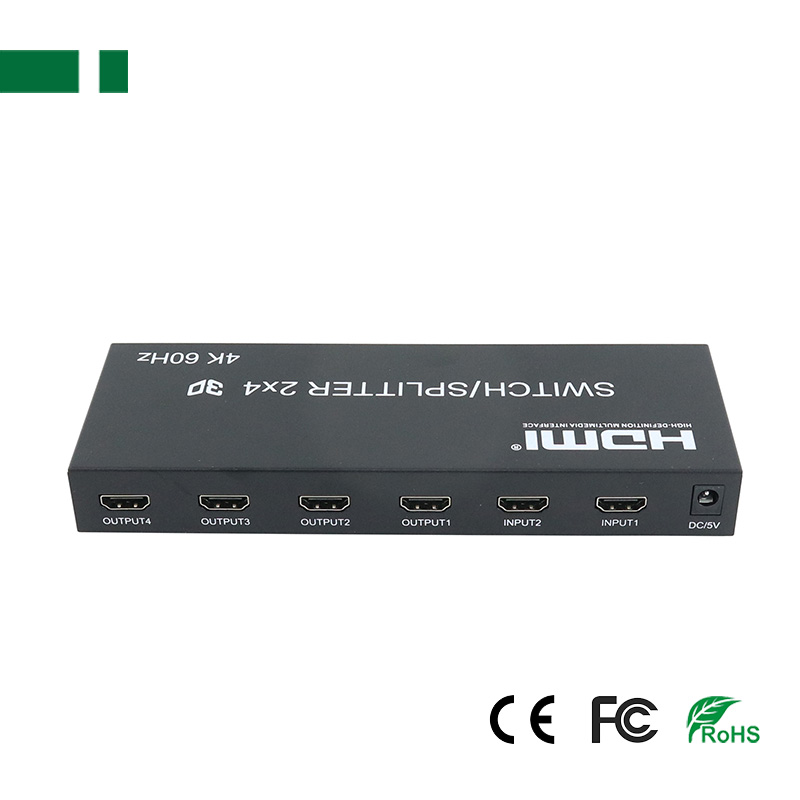

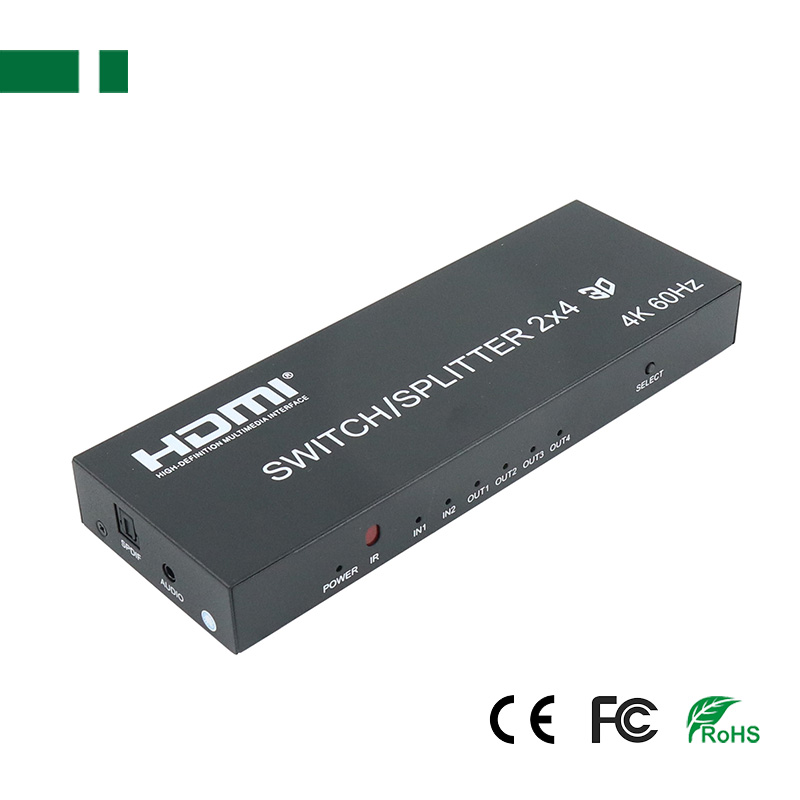

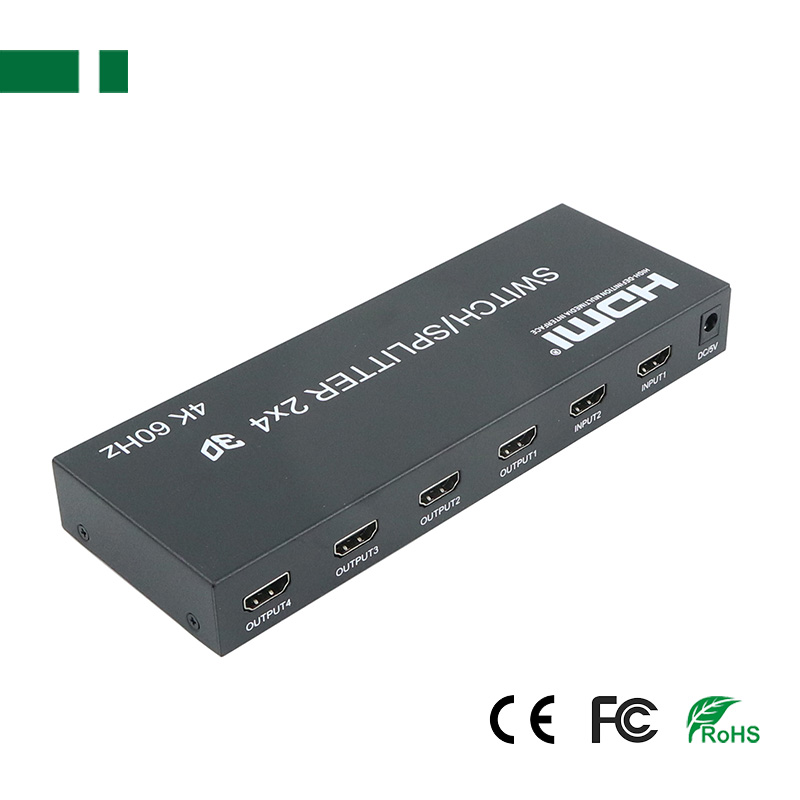

CHM-204-4K 2X4 HDMI Switch and Splitter

  • 2X4 HDMI Switch and Splitter
  • 4K*2K 60HZ
  • Product description: The 2x4 HDMI 2.0 switch splitter can connect 2 hd signal sources to 4 hd display terminals.
  • INQUIRY   EMAIL
Introduction:
The 2x4 HDMI 2.0 switch splitter can connect 2 HD signal sources to 4 HD display terminals. It can easily split the 2 HD signals generated by the 2 HD signal sources to 4 HD displayers or projectors.
In addition, when connect it to a HDMI output cable; it can amplify the HDMI signal. The 2 signal sources can be switched freely. The HDMI splitter can support all HD multichannel audio formats including 720p,1080i,1080p,2160p@30Hz,2160p@60Hz. It also supports the 3.5mm audio output and SPDIF audio output.

Features:
1. Downscaling (can output 4K and 1080p at the same time)
2. High Definition, it can support 4K/60Hz RGB/YUV 4:4:4
3. Transmission long distance, 4K/60Hz up to 10meters, 1080p up to 20meters

Specifications:
HDMI version...................................................................................................................................... HDMI 2.0a
HDMI resolution................................................................................................................ up to 3840*2160/60Hz
Support video color format................................................................................................. 8/10/12 bit deep color
Support audio format................................................................... DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Max bandwidth....................................................................................................................................... 600MHz
Max baud rate........................................................................................................................................... 6Gbps
Input cable distance.......................................................... 1080P≤20m, 4K≤10m, AWG26 HDMI standard cable
Output cable distance.................................................... 1080P≤20m, 4K≤10m, AWG26 HDMI standard cable
HDMI input port.................................................................................................................................................. 2
HDMI output port................................................................................................................................................ 2
Max working current.................................................................................................................................. 500mA
Power Adapter format..................................................... Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range................................................................................................... (-15℃ to +55℃)
Operating Humidity range.. ............................................................................... 5 to 90%RH (No Condensation)
Dimension (L x W x H)................................................................................................................ 200x70x25(mm)
Weight.......................................................................................................................................................... 280g

IR Remote Control:
1) Press the key 1 to switch to the input 1,”IN1” indicator turns red
2) Press the key 2 to switch to the input 2, “IN2”indicator turns blue

Channel switching operations:
Press the “Select” button of the switcher for around 5 seconds, can switch between 5.1 and 2.1 audio channel.

Connection and Operation:
1: Connect HDMI source device and HDMI Switch/Splitter input with two cables.
2: Connect displayer and HDMI Switch/Splitter output with four cables.
3: Connect 5V/1A power adapter to the HDMI Switch/Splitter.

The Package includes:
1. HDMI Switch/Splitter * 1PC
2. IR Remote Control * 1PC
3. 5V/1A Power adapter * 1PC
4. User Manual * 1PC
