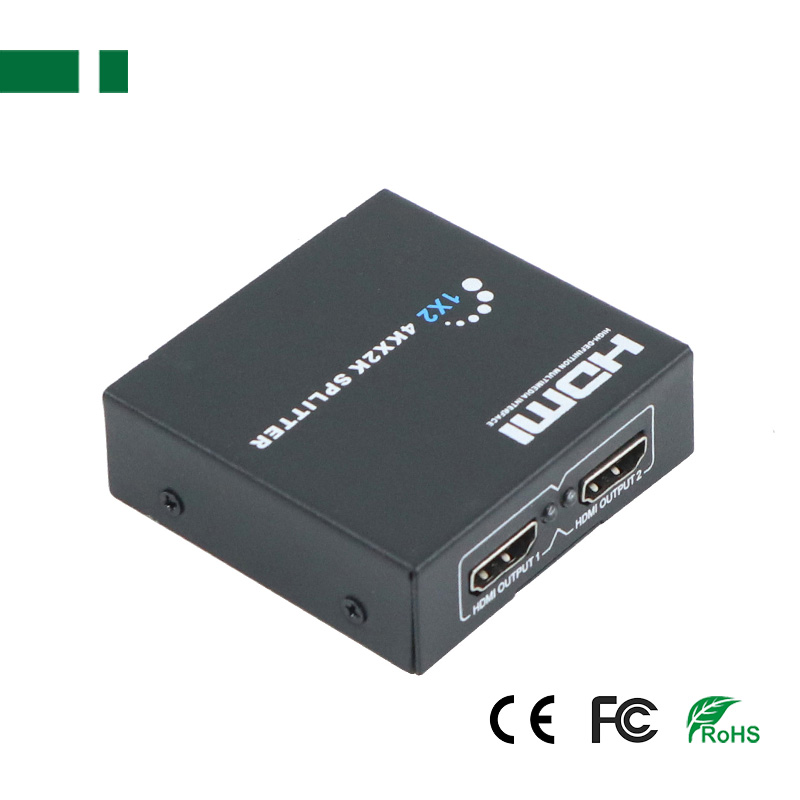

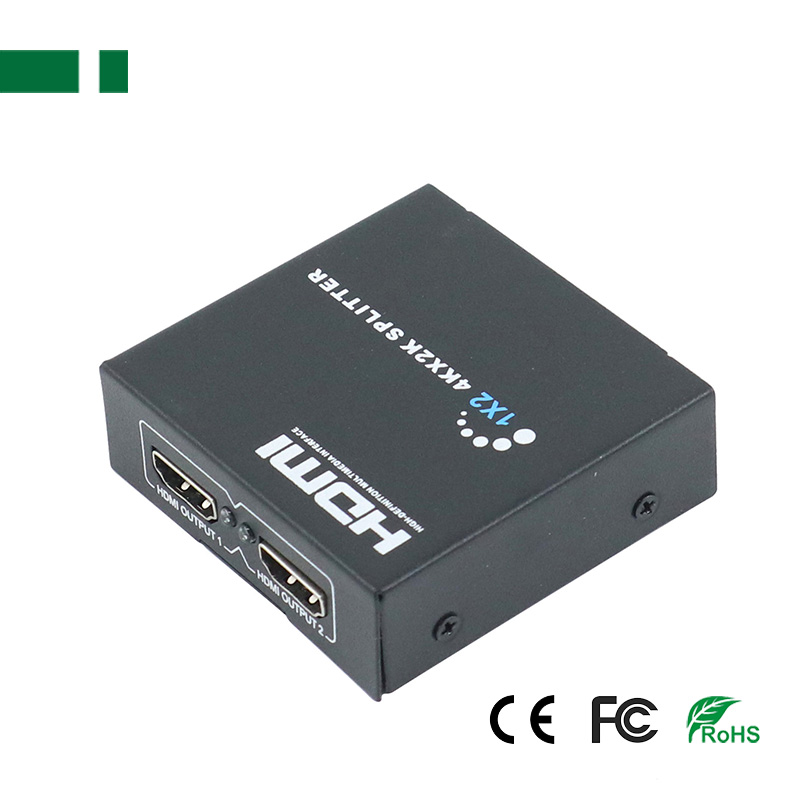

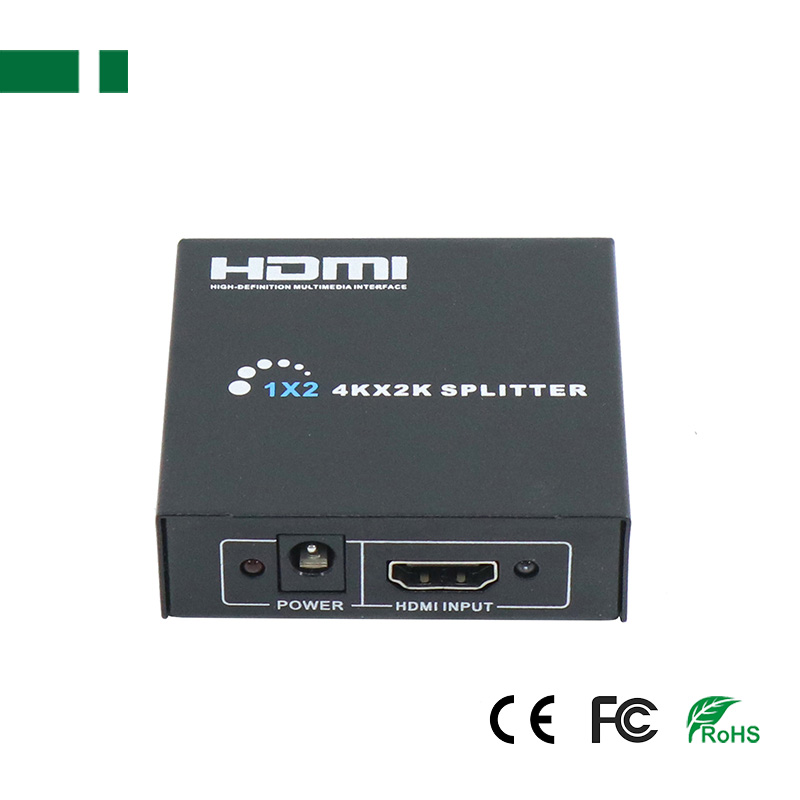

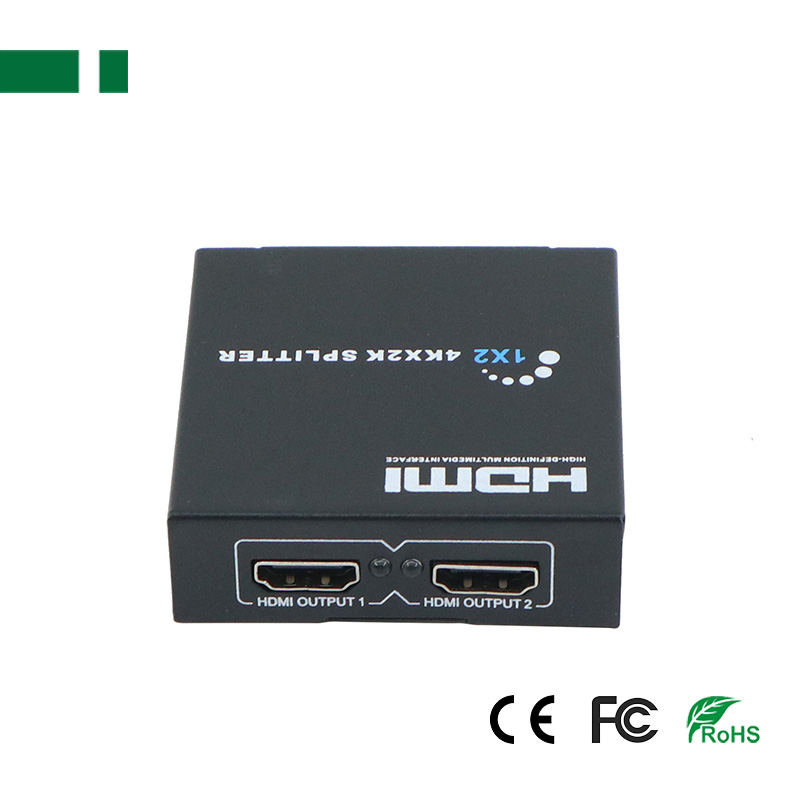

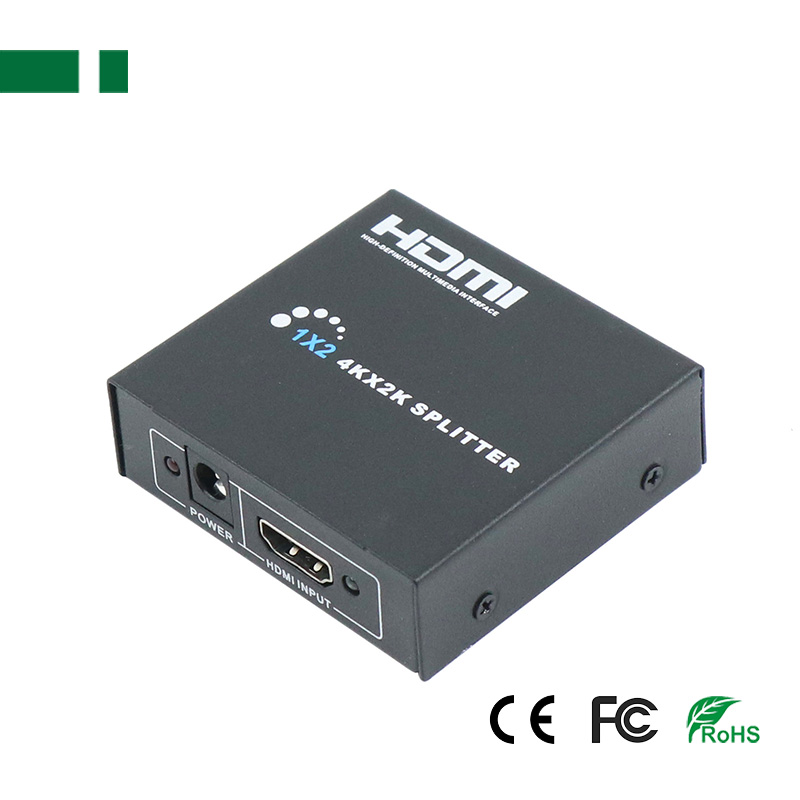

3D 4K@30Hz 1x2 HDMI Video Splitter
Resolution: 4K 30Hz
Support for HDMI 1.4b
Support HDCP1.3
4K*2k 1x2 HDMI 2 Port HDMI Video Splitter Audio Amplifier Repeater 3D 1080p 1 In to 2 Out 1x2 HDMI Splitter Converter HDTV
Description:
The HDMI Splitter Distributes HDMI input into 2 identical outputs, both outputs need to be the same pixels. The splitter supports 120HZ 3D projection conversion - only if your device supports 3D
Supports: 4K*2K@30Hz, 1080P@120Hz and 1080P 3D@60Hz HD video solution for supermarkets, shopping malls, HDTVs, STB, DVDs, projector factories, data control centers, information distribution, conference rooms presentation, education and training, corporation showrooms, home theaters and more.
Features:
1. HD 4K*2K@30Hz HDMI Splitter 1x2
2. Support Full HD, Full 3D (If your devices support 3D)
3. Support up to 3840x2160@30Hz
4. Support deep color 30bit, 36bit
5. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
6. Digital audio format, as DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/HD(HBR)
7. Support signal Retiming
8. Support AWG26 HDMI standart cable: input up to 12 meter, output up to 20 meters. (When the resolution is 4K, input up to 8 meters; output up to 8 meters)
9. No loss of quality
Specifications:
| Model | CHM-1002-4K | CHM-1012-4K | CHM-1022-4K | CHM-1004-4K | CHM-1014-4K | CHM-1008-4K | CHM-1018-4K | CHM-1016-4K |
| <span style="color: black; font-size: 14px;" font-size:14px;"="">Signal Input | 1ch HDMI input | 1ch HDMI input | 1ch HDMI input | 1ch HDMI input | ||||
| Signal Output | 2chs HDMI output | 4chs HDMI output | 8chs HDMI output | 16chs HDMI output | ||||
| HDMI connector | 19-Pin HDMI Female Port | |||||||
| HDMI Version | HDMI 1.4V + HDCP 1.3 (compatible HDMI 1.3/ 1.2/ 1.1/ 1.0) | |||||||
| Support Video Format | DTV/HDTV: 480i/ 576i/ 480p/ 576p/ 720p/ 1080i/ 1080p/ 3D/ 3840x2160 Video | |||||||
| Support Audio Format | DTS-HD Master Audio, Dolby true-HD etc. | |||||||
| Color Format | Xv-YCC/ Deep Color up to 48bit | |||||||
| Max baud rate | 10.2Gbps | |||||||
| Operating Frequency | Up to 340MHz | |||||||
| Max. Cable Extension | 15 meters by 28AWG HDMI Cable; 20 meters by 26AWG HDMI Cable | |||||||
| Power consumption | 10 watts (Maximum) | |||||||
| Input/output DDC Signal | 5 volts p-p (TTL) | |||||||
| Input/Output TMDS Signal | 0.5~1.5 Volts p-p | |||||||
| Max Working Current | 1.4A | |||||||
| Power Adapter | DC5V input | DC5V input | DC5V input | DC12V input | ||||
| Operating Temperature | (- 15 to + 55 Celsius degree) | |||||||
| Operating Humidity | 5% to 90% RH (No Condensation) | |||||||
| Material | Polished iron | ABS Plastic | Polished iron | Polished iron | ||||

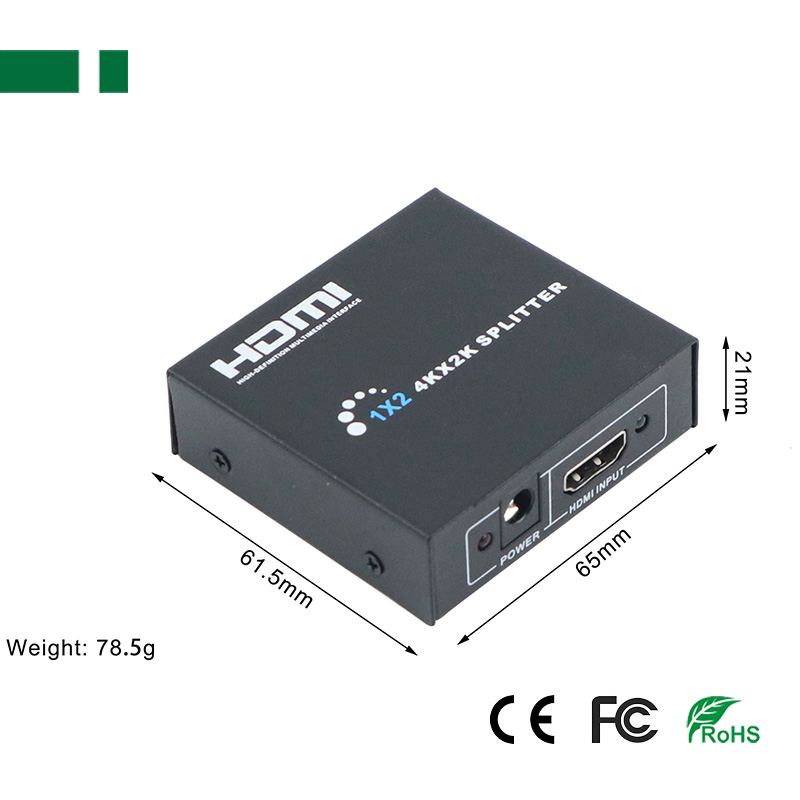

| Dimension | 65*60*20mm | 62*50*12mm | 106*51*20mm | 180*68*22mm | 95*60*20mm | 277*110*25mm | 256*80*18mm | 490*250*60mm |
| Weight | 80g | 45g | 125g | 245g | 112g | 550g | 480g | 1600g |
