Video & Audio Splitter

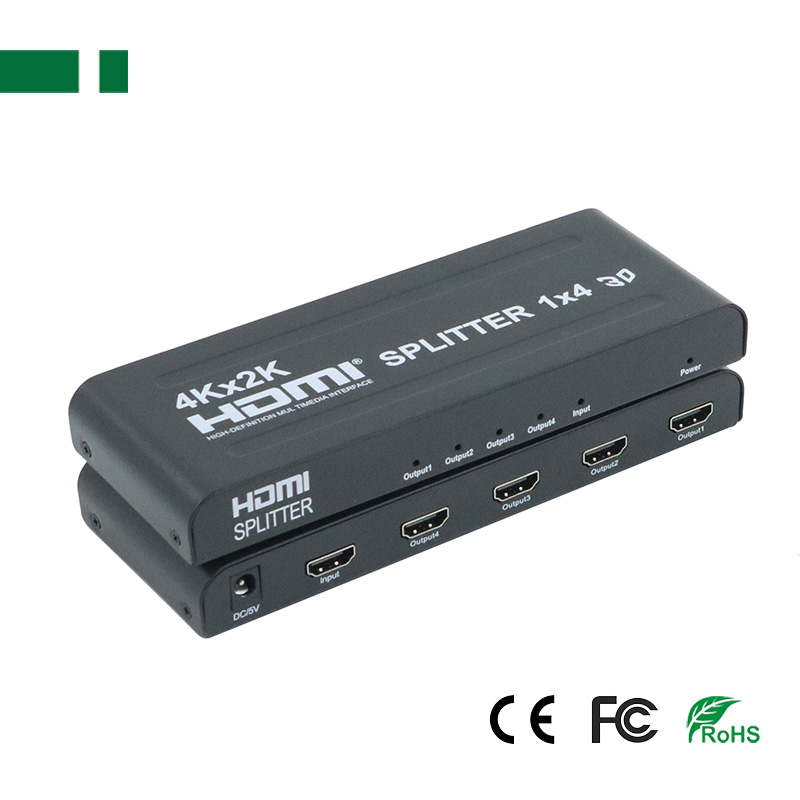

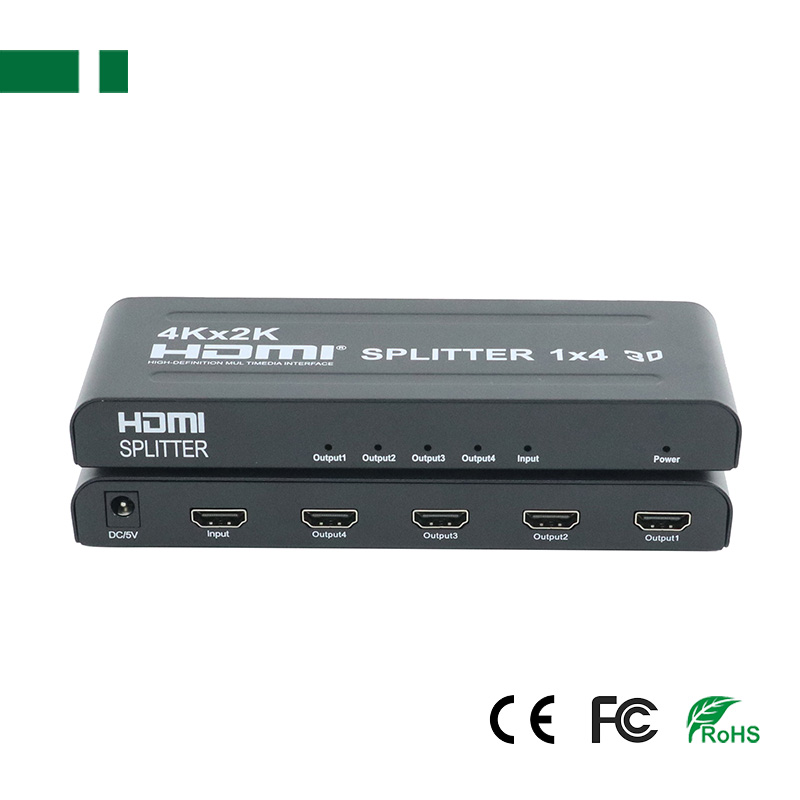

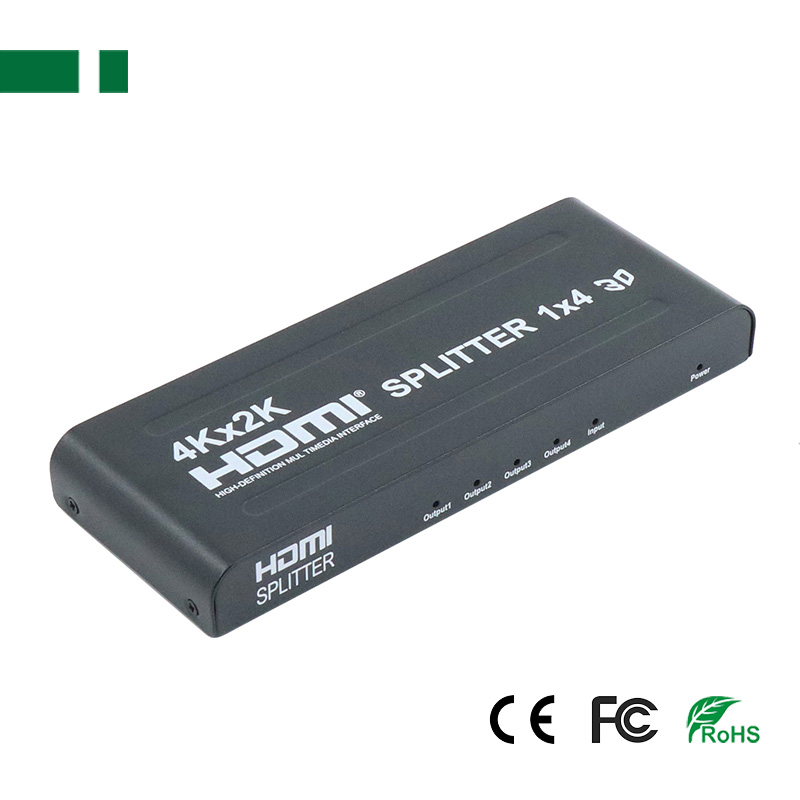

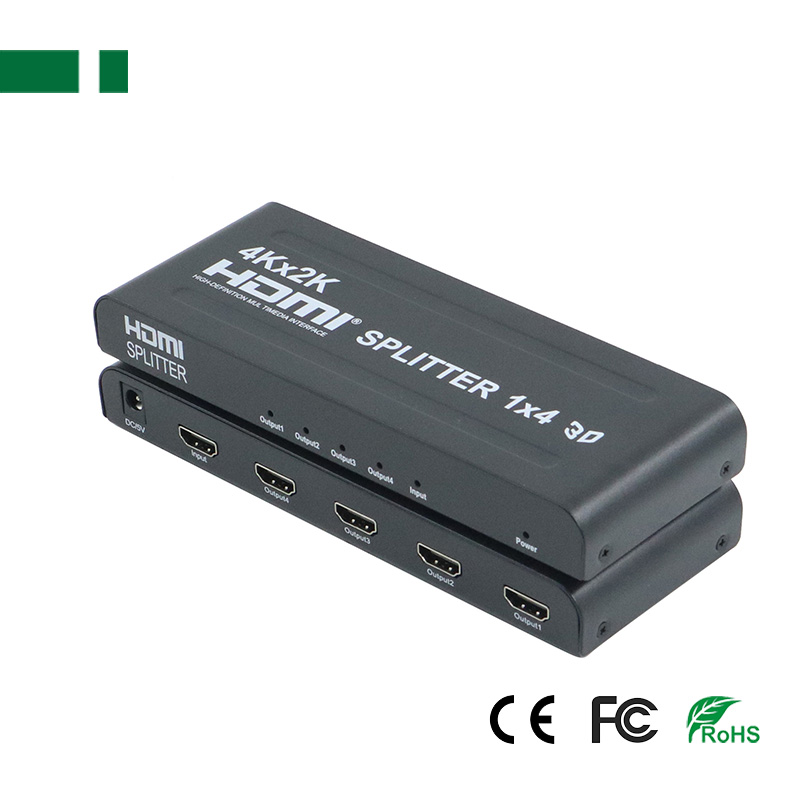

CHM-1004-4K 4K@30Hz 1x4 HDMI Splitter

4K@30Hz 1 In 4 Out HDMI Splitter
HDMI 1.4 version
Single link range: 3840 x 2160
DC 5V Power Supply
Product description: Distributes HDMI input into 4 identical outputs. Supports: 4K x 2K @30 Hz, 1080P @ 120 Hz and 1080P 3D @ 60Hz
INQUIRY EMAIL

Features:
1. Distributes HDMI input into 4 identical outputs, both outputs need to be the same pixels
2. The splitter supports 120HZ 3D projection conversion - only if your device supports 3D
3. Supports: 4K x 2K @30 Hz, 1080P @ 120 Hz and 1080P 3D @ 60Hz
4. The splitter supports compressed and uncompressed digital audio foRMAts including DTS-HD/Dolby- true-HD/LPCM 7.1/DTS/Dolby-AC3/DSD.
5. The splitter supports: Xbox 360, Xbox One, PS3, PS4, HDTV, STB, Blu-Ray, DVD, Beamer, DVB Receiver, TFT Monitor, etc.
6. The splitter can achieve long distance transmission for up to 15 meters (45 feet)
7. Supports deep color 30 bit, 36bit, 48 bit pixel

Specifications:
Type: HDMI 4 connector splitter
Input Interface: 1 x 19Pin HDMI Female Port
Output interface: 4 x 19Pin HDMI female connectors
HDMI 1.4 version, compatible with V1.2 V1.1 V1.0
Supports Audio: LPCM, Dolby-AC3, DTS7.1, DSD / Dolby True HD / DTS-HD Master Audio
Supported video: 480i / 576i / 480p / 576p / 720p / 1080i / 1080P / 4k
Supports bandwidth up to 225Mhz
Vertical frequency range 85HZ
HDCP compliant: Yes
Device port LED: 6
Single link range: 3840 x 2160
Video band width: up to 4.95GHz
DC 5V Power Supply
Shell material: Polished iron

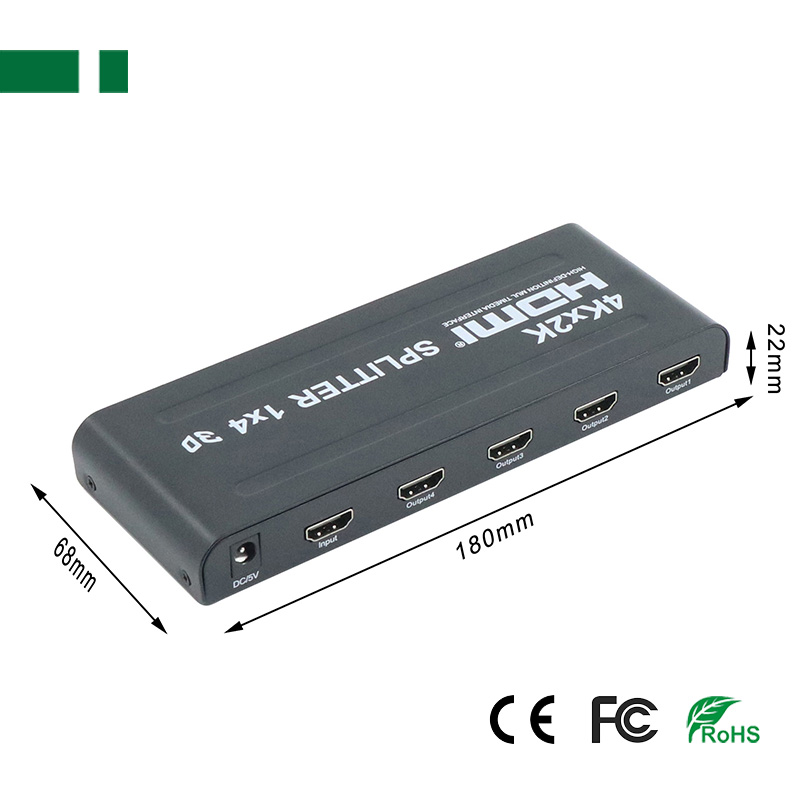

Dimensions: approx. 180*68*22mm

Included:
1 x HDMI Splitter
1 x Power Adapter
1 x Manual
