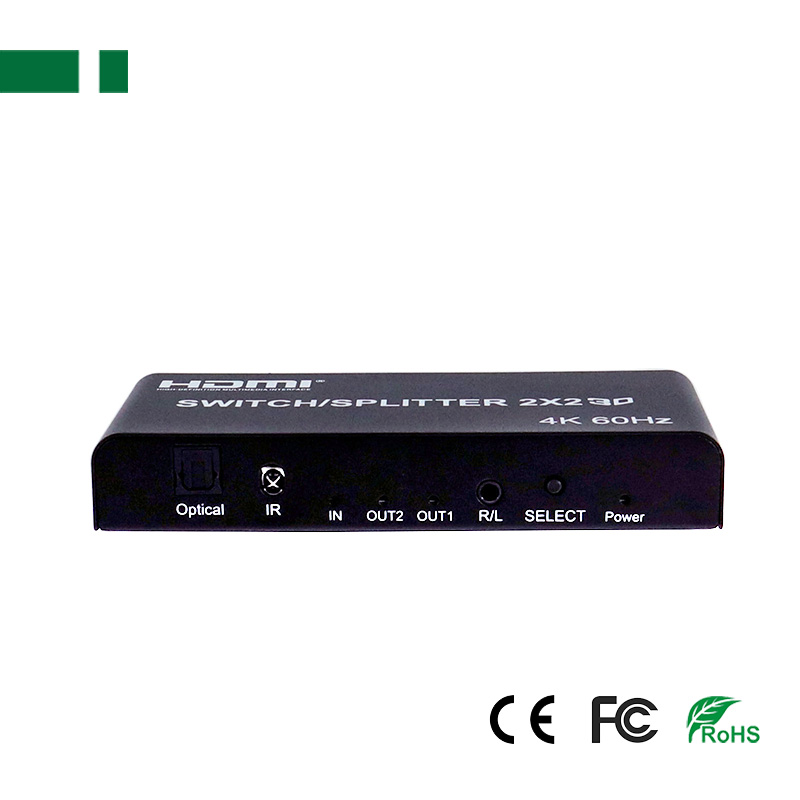

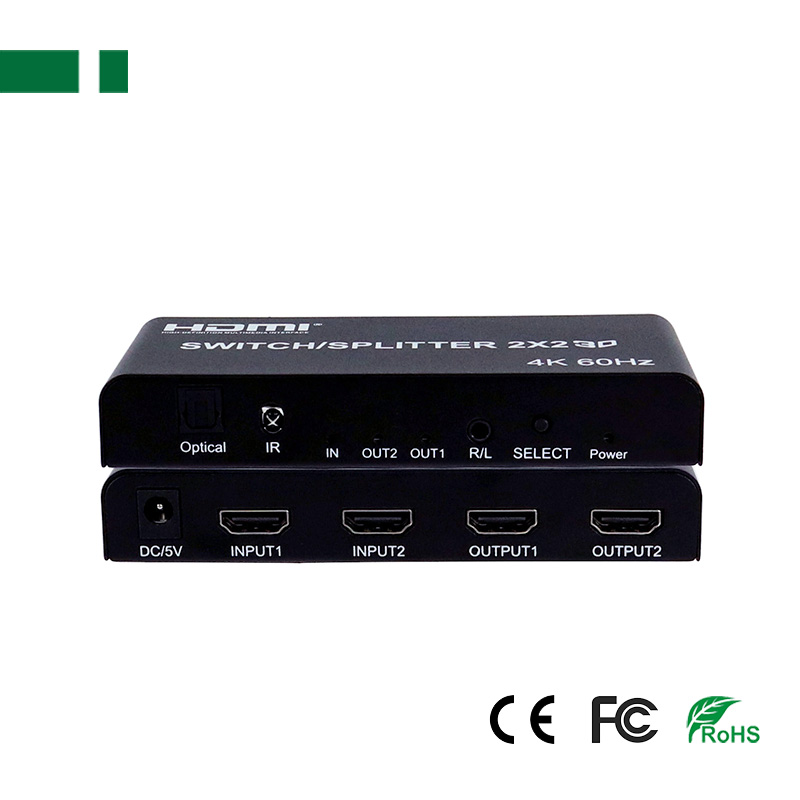

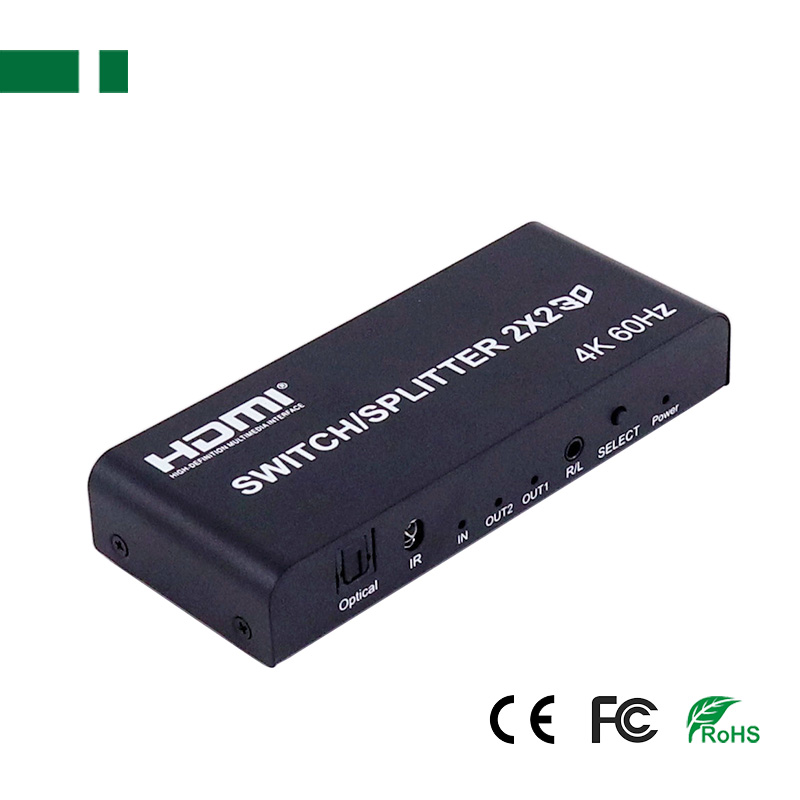

2X2 HDMI Switch and Splitter
4K*2K 60HZ
HDMI 2.0 switch splitter
The 2x2 HDMI 2.0 switch splitter can connect 2 HD signal sources to 2 HD display terminals
Introduction:
The 2x2 HDMI 2.0 switch splitter can connect 2 HD signal sources to 2 HD display terminals. It allows 2 HDMI signals to be split or switched to 2 HDMI compatible monitors or projectors. And it can amplify your HDMI signals at the same time.
The 2 signal sources can be switched freely via button or remote control. The HDMI Switcher/ Splitter 2*2 can support full HD video formats, highest resolution 3840*2160p@60Hz.
Features:
1. Down-scaling (can output 4K and 1080p at the same time)
2. High Definition, it can support 4K/60Hz RGB/YUV 4:4:4
3. Transmission long distance, 4K/60Hz up to 10meters,1080p up to 20meters
Specifications:
HDMI version............................................................................................................................ HDMI 2.0a
HDMI resolution...................................................................................................... up to 3840*2160/60Hz
Support video color format....................................................................................... 8/10/12 bit deep color
Support audio format......................................................... DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Max bandwidth............................................................................................................................. 600MHz
Max baud rate................................................................................................................................. 6Gbps
Input cable distance................................................ 1080P≤20m, 4K≤10m, AWG26 HDMI standard cable
Output cable distance.......................................... 1080P≤20m, 4K≤10m, AWG26 HDMI standard cable
HDMI input port........................................................................................................................................ 2
HDMI output port...................................................................................................................................... 2
Max working current........................................................................................................................ 300mA
Power Adapter format............................................... Input: AC(50HZ,60HZ)100V-240V;Output:DC5V/1A
Operating Temperature range......................................................................................... (-15℃ to +55℃)
Operating Humidity range.. ..................................................................... 5 to 90%RH (No Condensation)
Dimension (L x W x H)...................................................................................................... 128x53x20(mm)
Weight................................................................................................................................................ 140g
IR Remote Control:
1) Press the key 1 to switch to the input 1,”IN1” indicator turns red
2) Press the key 2 to switch to the input 2, “IN2”indicator turns blue
Connection and Operation:
1: Connect HDMI source device and HDMI Switch/Splitter input with two cables.
2: Connect displayer and HDMI Switch/Splitter output with four cables.
3: Connect 5V/1A power adapter to the HDMI Switch/Splitter.
The Package includes:
1. HDMI Switch/Splitter * 1PC
2. IR Remote Control * 1PC
3. 5V/1A Power adapter * 1PC
4. User Manual * 1PC
