Wireless Extender

  • CWE-1202
  • CWE-1202
  • CWE-1202
  • CWE-1202
  • CWE-1202
CWE-1202CWE-1202CWE-1202CWE-1202CWE-1202

CWE-1202

  • 4* 2dBi External Antennas
  • 2* 10/100Mbps WAN/ LAN auto port
  • Complies with IEEE802.11ac/a and IEEE802.11n/g/b
  • Provide work mode: Repeater
  • Product description: 1200Mbps 2.4G/5.8G Dual Band WiFi Range Extender, 360 degree high-speed connection for happy Surfing HD video and online game.
  • INQUIRY   EMAIL
This Dual Band Range Extender works with any standard Wi-Fi router and runs on dual bands at a combined speed of up to 1200Mbps, including 867Mbps on its 5GHz channel and 300Mbps on its 2.4GHz channel. 360 degree high-speed connection for happy Surfing HD video and online game.

Feature:
1. 1200Mbps 2.4G/5.8G Dual Band WiFi Range Extender;
2. 4* 2dBi External Antennas;

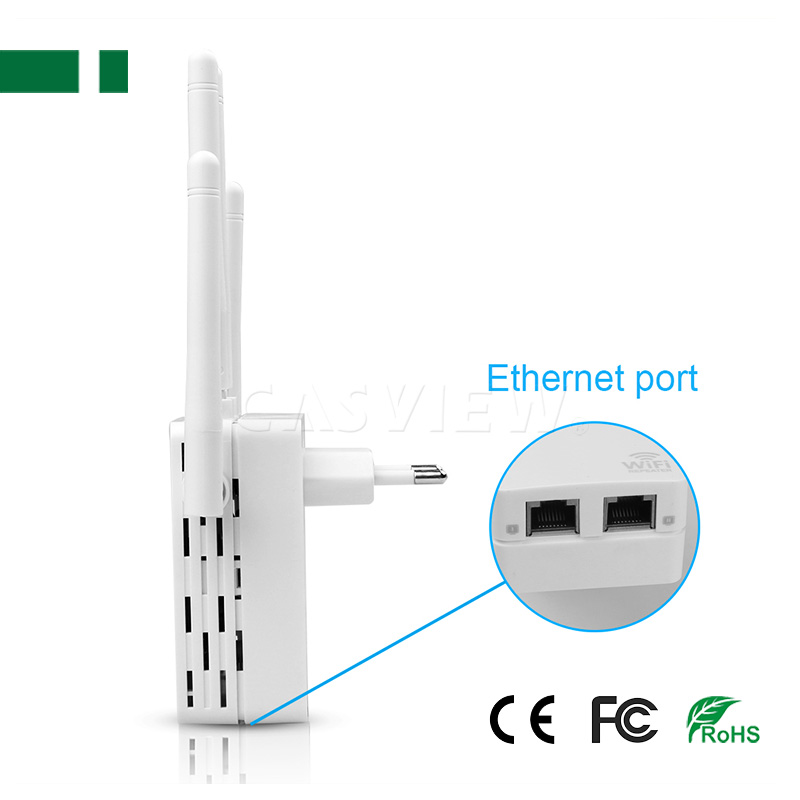

3. Provides 2* 10/100Mbps Port (WAN*1 + LAN*1);
4. Complies with IEEE802.11ac/a and IEEE802.11n/g/b standards;
5.  Wireless Signal Rates:
     5.8G: IEEE802.11ac: up to 867Mbps (dynamic);
     5.8G:  IEEE802.11a: up to 54Mbps (dynamic);
     2.4G:  IEEE802.11n: up to 300Mbps (dynamic);
     2.4G:  IEEE802.11g: up to 54Mbps (dynamic);
     2.4G:   IEEE802.11b: up to 11Mbps (dynamic);
6. Easy setup assistant provides quick & hassle free installation;
7. Provide work mode: Repeater;
8. Supports remote/local web management and web upgrade;
9. Suitable for Home, Office, Hotel, Coffee shop and Library etc.

Specification:
Chipset-------------------------------------------RTL8197+8812
Interface------------------------------------------2* 10/100Mbps Port (WAN*1 + LAN*1);
Wireless speed-----------------------------------802.11n: up to 300Mbps, 802.11ac:867Mbps
Frequency range---------------------------------2.4-2.484GHz, 11ac:5.15~5.25Ghz, 5.725~5.850Ghz
Wireless transmit power-------------------------20dBm(max EIRP)
Antenna-----------------------------------------4* 2dBi External Antennas
Work mode-------------------------------------Repeater
Wireless security--------------------------------64/128 Bits WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Power supply-----------------------------------AC100-240V input
Operating Temperature-------------------------20℃ to 70℃
Storage Temperature---------------------------40℃ to 90℃
Operating Humidity-----------------------------10% to 95% (non-condensing)
Storage  Humidity-------------------------------5% to 95% (non-condensing)
Support operating system----------------------Windows XP/ Vista/ Linnux/ Win 7/ Win 8 / Win8.1 / Win10 / Mac OS
Dimensions (H*W*D)----------------------------172*90*70mm

Packing list:
1* 1200Mbps 2.4G/5G Dual Band WiFi Range Extender
1* Quick Installation Guide

Notes:
1. WiFi Range Extender(Repeater):  Extend WiFi coverage of an existing wireless network;
2. Wireless Access Point(AP):  Covert a wired network to a wireless network;
3. Wireless Router:  Create an instant private wireless network, also can as a router function.
