Wireless Extender

  • CWE-3102
  • CWE-3102
  • CWE-3102
  • CWE-3102
  • CWE-3102
CWE-3102CWE-3102CWE-3102CWE-3102CWE-3102

CWE-3102

  • 2* 2dBi External Antennas
  • 1* 10/100Mbps WAN/ LAN auto port
  • Complies with IEEE802.11n/g/b
  • Work mode: Repeater/ AP
  • Product description: The Wireless Mini AP supports 802.11 N wireless transmission standards, and is backward compatible with IEEE802.11 n/b/g standards. It supports data rate up to 300 Mbps.
  • INQUIRY   EMAIL
The Wireless Mini AP supports 802.11 N wireless transmission standards, and is backward compatible with IEEE802.11 b/g standards. It supports data rate up to 300 Mbps. The Wireless Mini AP is Mainly used for providing free WIFI service in big area such as factory, community, street or etc. It supports WEP, WPS and WPA/WPA2 of personal and enterprise encryption standards.

Feature:
1. 300Mbps 2.4G WiFi Range Extender;
2. 2* 2dBi External Antennas;
3. Provides 1* 10/100Mbps WAN/ LAN auto port;
4. Complies with IEEE802.11n/g/b standards;
5.  Wireless Signal Rates:
     2.4G:  IEEE802.11n: up to 300Mbps (dynamic);
     2.4G:  IEEE802.11g: up to 54Mbps (dynamic);
     2.4G:   IEEE802.11b: up to 11Mbps (dynamic);
6. Easy setup assistant provides quick & hassle free installation;
7. Provide work mode: Repeater/ AP;
8. Supports remote/local web management and web upgrade;
9. Suitable for Home, Office, Hotel, Coffee shop and Library etc.

Specification:
Chipset-------------------------------------------MT7628KN
Interface------------------------------------------1* 10/100Mbps WAN/ LAN auto port;
Wireless speed-----------------------------------802.11n: up to 300Mbps
Frequency range---------------------------------2.4-2.484GHz
Wireless transmit power-------------------------20dBm(max EIRP)
Antenna-----------------------------------------2* 2dBi External Antennas
Work mode-------------------------------------Repeater/ AP
Wireless security--------------------------------64/128 Bits WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Power supply-----------------------------------AC100-240V input
Operating Temperature-------------------------20℃ to 70℃
Storage Temperature---------------------------40℃ to 90℃
Operating Humidity-----------------------------10% to 95% (non-condensing)
Storage  Humidity-------------------------------5% to 95% (non-condensing)
Support operating system----------------------Windows XP/ Vista/ Linnux/ Win 7/ Win 8 / Win8.1 / Win10 / Mac OS

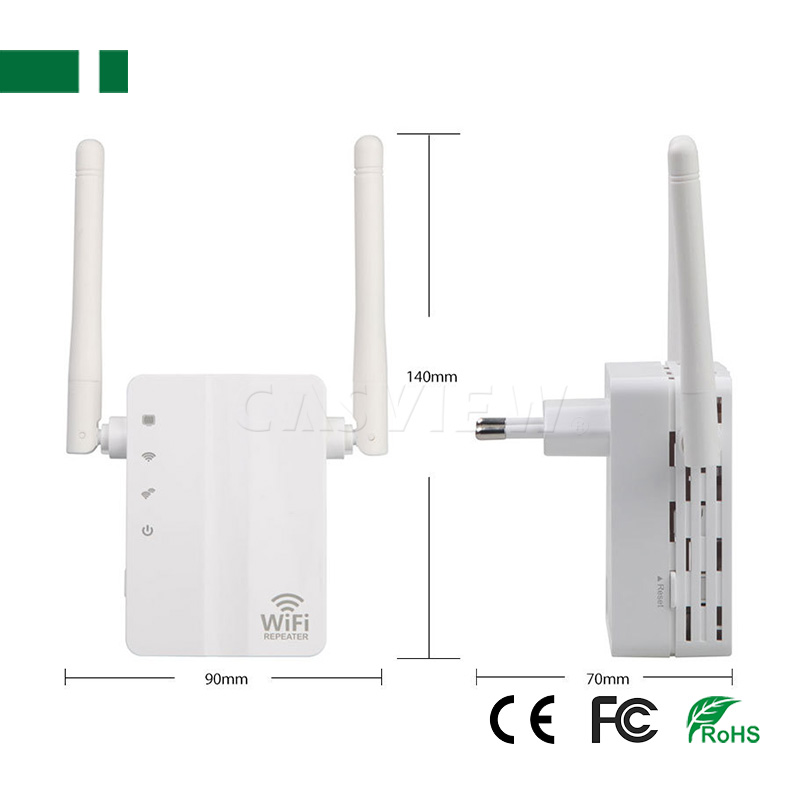

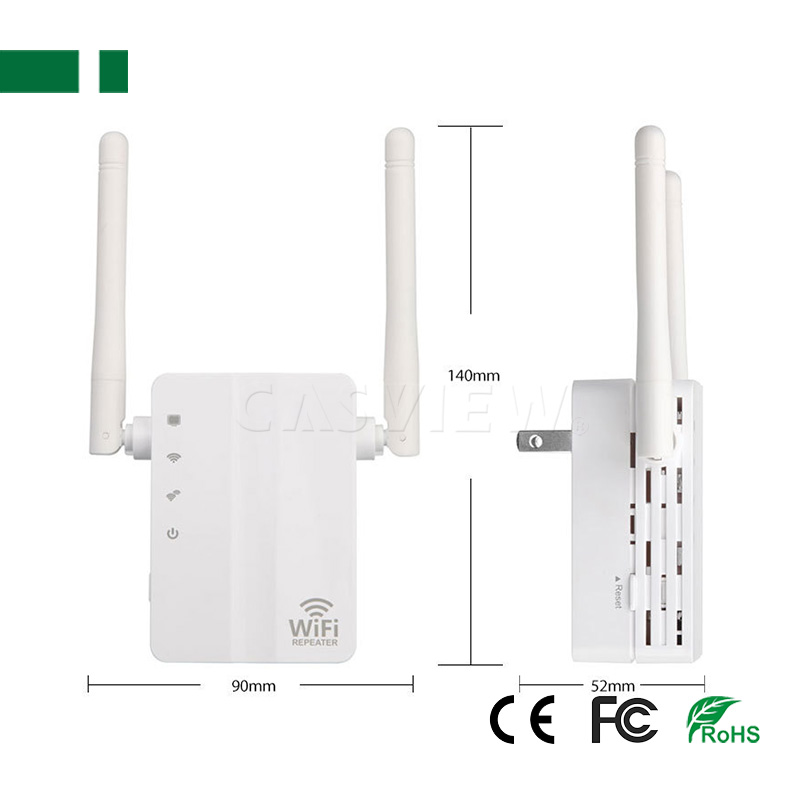

Dimensions (H*W*D)----------------------------172*90*70mm

Packing list:
1* 300Mbps 2.4G WiFi Range Extender
1* Quick Installation Guide

Notes:
1. WiFi Range Extender(Repeater):  Extend WiFi coverage of an existing wireless network;
2. Wireless Access Point(AP):  Covert a wired network to a wireless network;
3. Wireless Router:  Create an instant private wireless network, also can as a router function.
