Video Multi-Viewer

  • CVM-801 8 in 1 out Quad Processor
  • CVM-801 8 in 1 out Quad Processor
  • CVM-801 8 in 1 out Quad Processor
  • CVM-801 8 in 1 out Quad Processor
  • CVM-801 8 in 1 out Quad Processor
CVM-801 8 in 1 out Quad ProcessorCVM-801 8 in 1 out Quad ProcessorCVM-801 8 in 1 out Quad ProcessorCVM-801 8 in 1 out Quad ProcessorCVM-801 8 in 1 out Quad Processor

CVM-801 8 in 1 out Quad Processor

  • Quad Processor
  • High definition: PAL: 720X576@50Hz, NTSC: 720X480@60Hz.
  • Video lost warning ,touch and start mode, moving detection warning
  • Remote Control, Buttons control
  • Product description: Connect the 1-8 channels video Signal of camera and brightness, saturation, contrast, HUE and sharpness.
  • INQUIRY   EMAIL

System Features:

1. Connect the 1-8 channels video Signal of camera and brightness, saturation, contrast, HUE and sharpness.

2. High definition: PAL: 720X576@50Hz, NTSC: 720X480@60Hz.

3. Multiple display modes : 8 pictures, 4 pictures, 2 pictures,1 picture ,PIP(picture eight picture) automatic inverting mode.

4. High performance picture frozen function: Glitter picture catch.

5. High performance picture amplifying function: The area to be zooming in can be selected.

6. The various fonts folded information: The title of camera, real time display and warning date/ video/ moving Detecting information.

7. The four pictures and single picture mode recycle.

8. There are multiple modes: Warning input, video loss detection, moving detection can keep over 60 reports, built in buzzer.


Specification:

Model CVM-801 CVM-801V
Video System 25fps (PAL), 30fps (NTSC)
Definition PAL: 720X576, NTSC: 720X480

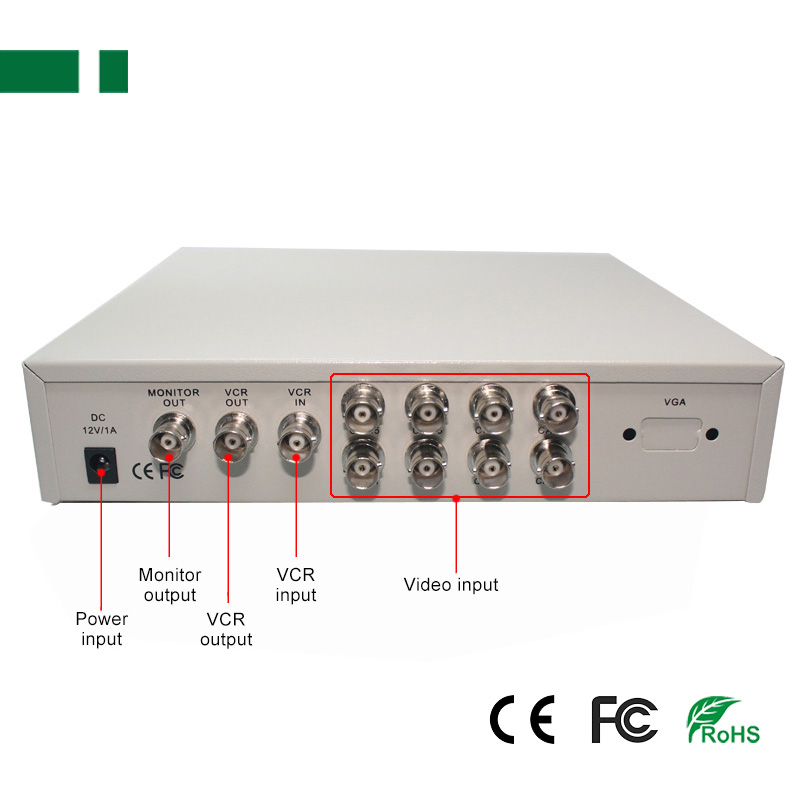

Video input 8 x BNC, 1.0Vp-p75Ω input
Input / Output Voltage 1.0Vp-p
Input / Output Impedance 75Ω
Monitor output 1 x BNC, 1.0Vp-p75Ω output
VGA output NO VGA×1 (1024×768)
Alarm mode Video lost warning ,touch and start mode, moving detection warning
Video input mode Full screen, electronic amplifying, 8 pictures, 4 pictures, PIP and automatic
Video output mode Single picture, dual-picture, PIP, POP and 8-picture,4-picture, support auto switch

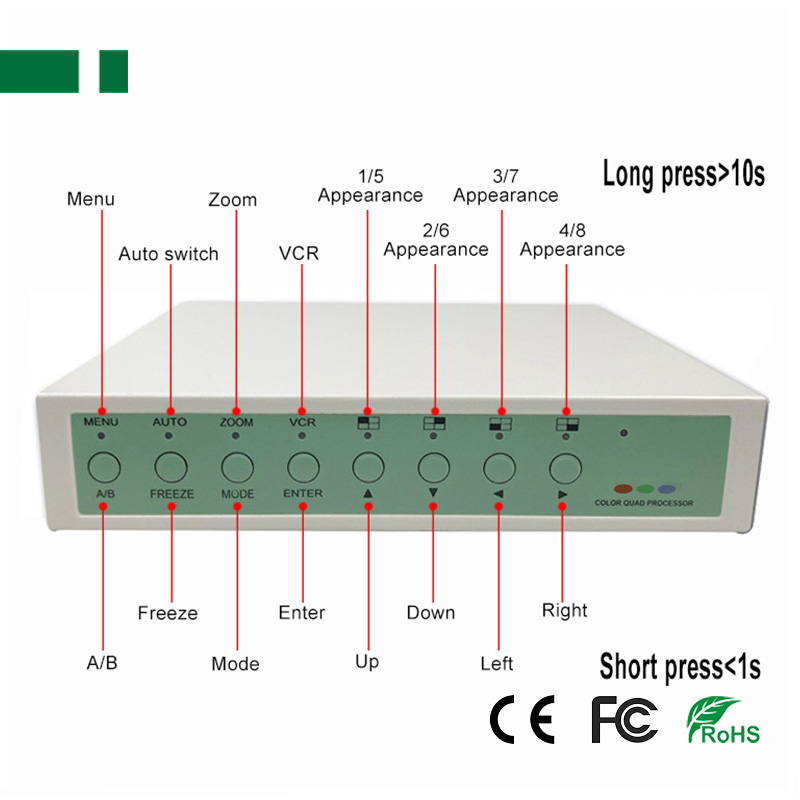

Switching Mode Remote Control, Buttons
Power supply DC12V/1A

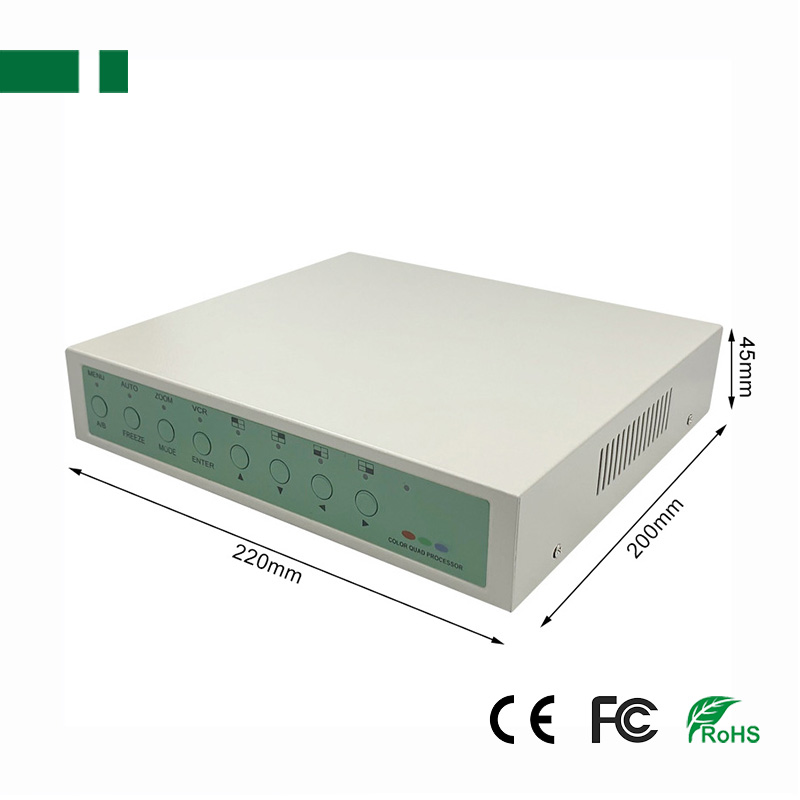

Dimension 220x200x45mm
G.W. 1KG
Environmental temperature -30°C-60°C

Package Content (User manual is not provided):

1x Quad Processor
1x Power Supply
1x Remote Controller (Battery not included)
