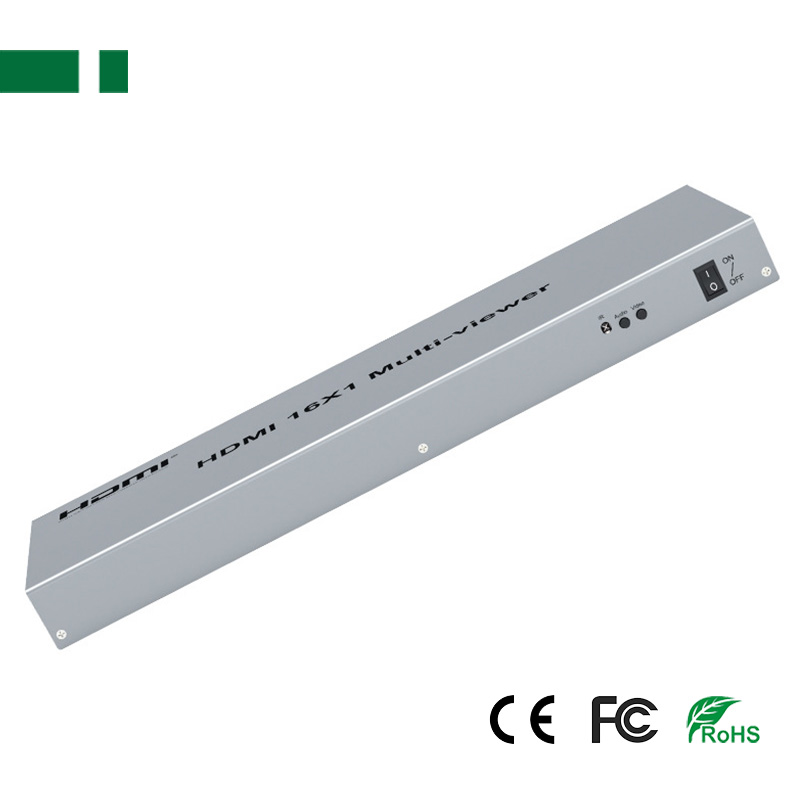

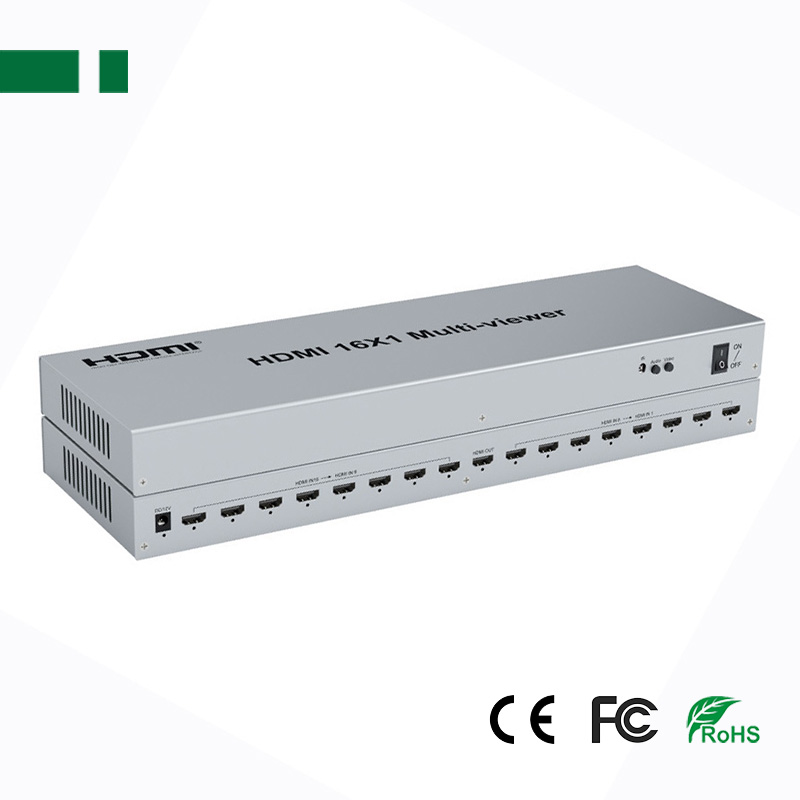

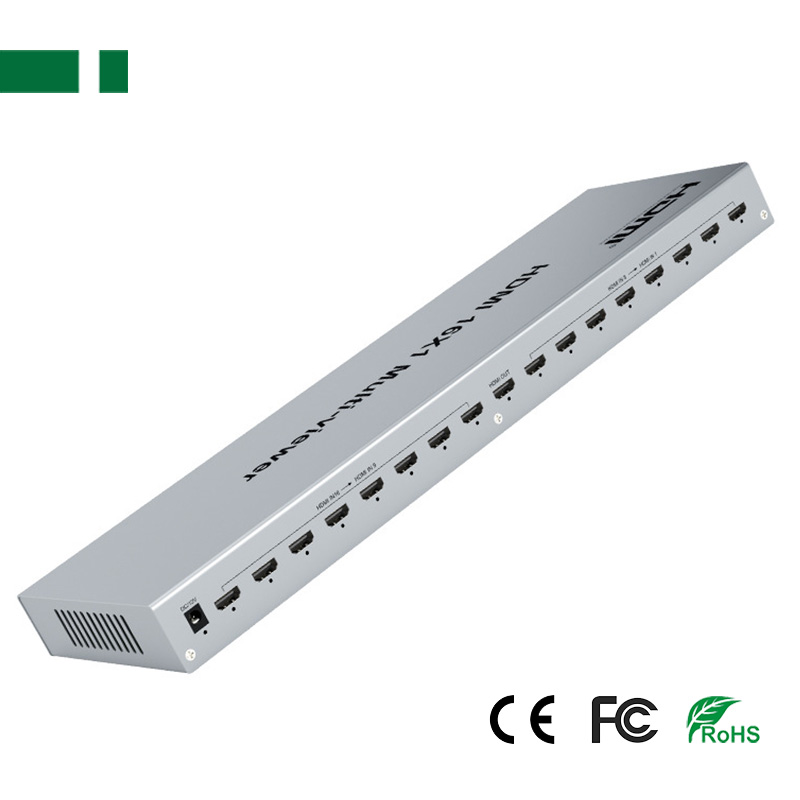

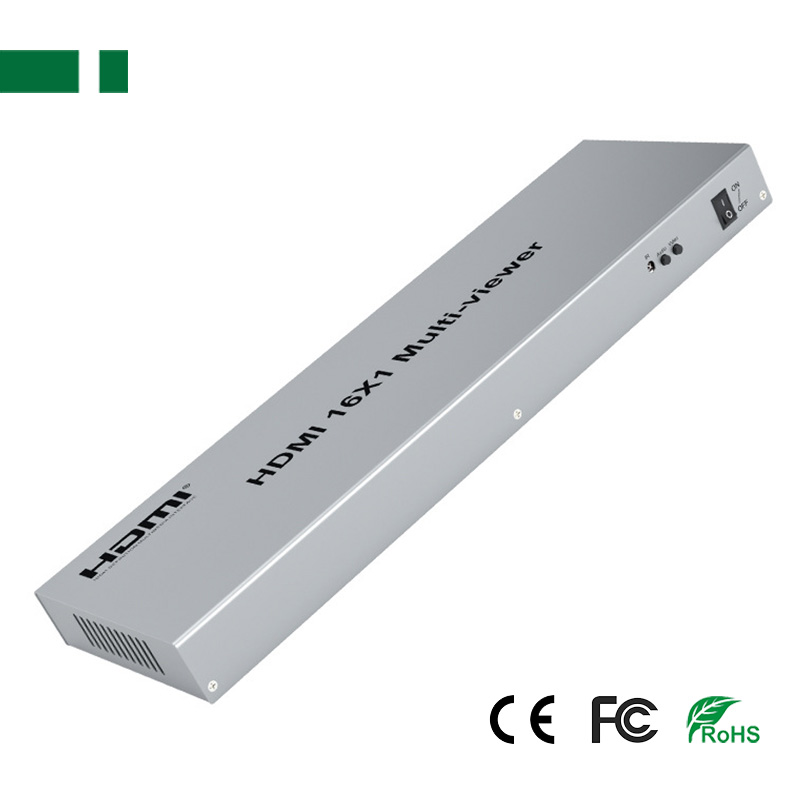

1080P@60Hz HDMI 16x1 Multi-Viewer
Compatible HDMI1.4, HDCP1.4 and DVI1.0 version
Input resolution: 16-chs * 1080P
Output resolution: 1-ch * 1080P@60Hz, 3840x2160@30Hz
HDMI 16x1 Multi-viewer is a high performance product with 16 HD screen segmentation and seamless switching output. It can display 16 HD digital video signal on the same screen.
1080P@60hz 16x1 HDMI USB KVM Multi-viewer for Mouse Keyboard 16 Way HDMI Seamless Switch Multiviewer 6 8 16 Multi Screen Divider
Introduction:
HDMI 16x1 Multi-viewer is a high performance product with 16 HD screen segmentation and seamless switching output. It can display 16 HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 16 HD input signal synchronously. The control methods of the Multi-viewer is flexible, it can be switched via button and IR control. It’s a very practical and stable multi-viewer and easy to install, can be used in the major projects, meeting halls and other places.
| 4/8/16*1 HDMI Video Multi-viewer | |||
| Model | CHM-V401 | CHM-V801 | CHM-V1601 |
| HDMI Input | 4-CH | 8-CH | 16-CH |
| Input resolution | 1080P,720P,1080i,1024*768,1360*768 etc. | ||
| HDMI output | 1080P@60Hz *1-CH | 3840*2160@30Hz *1-CH | 1080P@60Hz *1-CH |
| Version | HDMI1.3a, HDCP1.2 | HDMI 1.4, HDCP 1.4, DVI 1.0 | HDMI1.3a, HDCP1.2 |
| Cable Distance | Input and Output Cable Distance: ≤15M AWG26 HDMI Standard Cable | ||
| Power Supply | DC5V/2A, EU/US/UK | DC12V/2A, EU/US/UK | DC12V/2A, EU/US/UK |
| Dimension | 190*90*23mm | 252*105*25mm | 460*150*40mm |
| Weight | 350g | 792g | 1683g |
Features

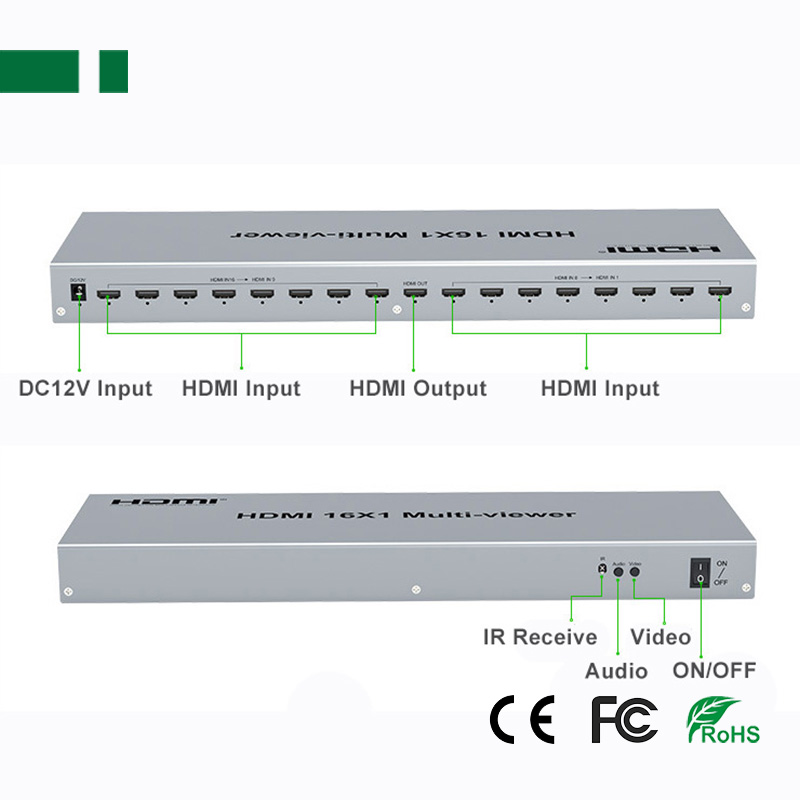

Support 16 HDMI inputs, one HDMI output;
Support 16 HDMI signal screen segmentation;
Support 16 HDMI signal seamless switching;
Supports 1 way mouse and keyboard to control 16 ways PC host ;
Support IR remote control;
Package:
HDMI 16x1 multi-viewer
12V Power Adapter
A type USB extension cable
Remote control(without battery)
manual
