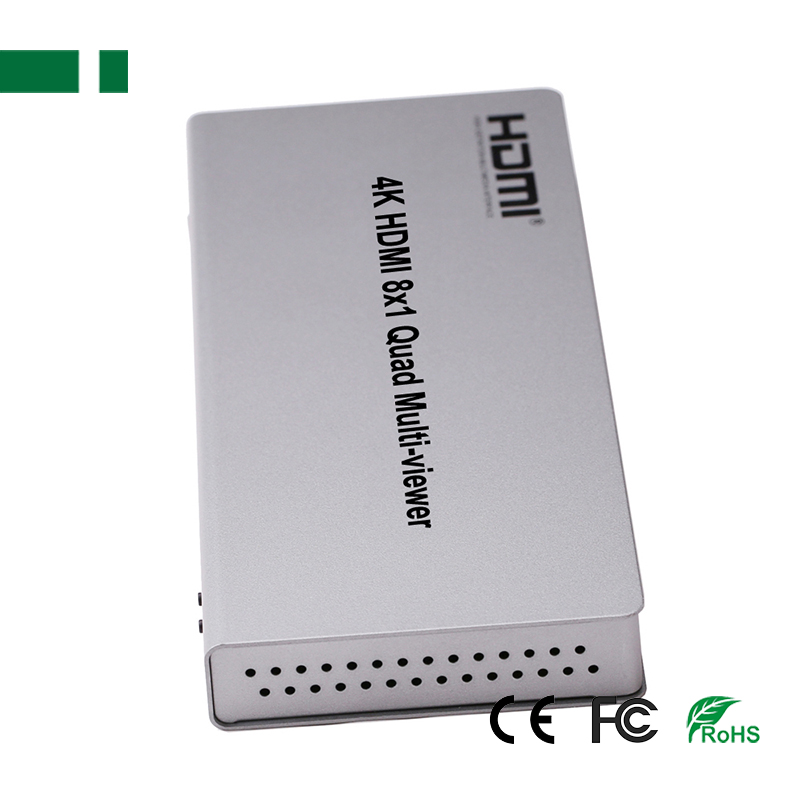

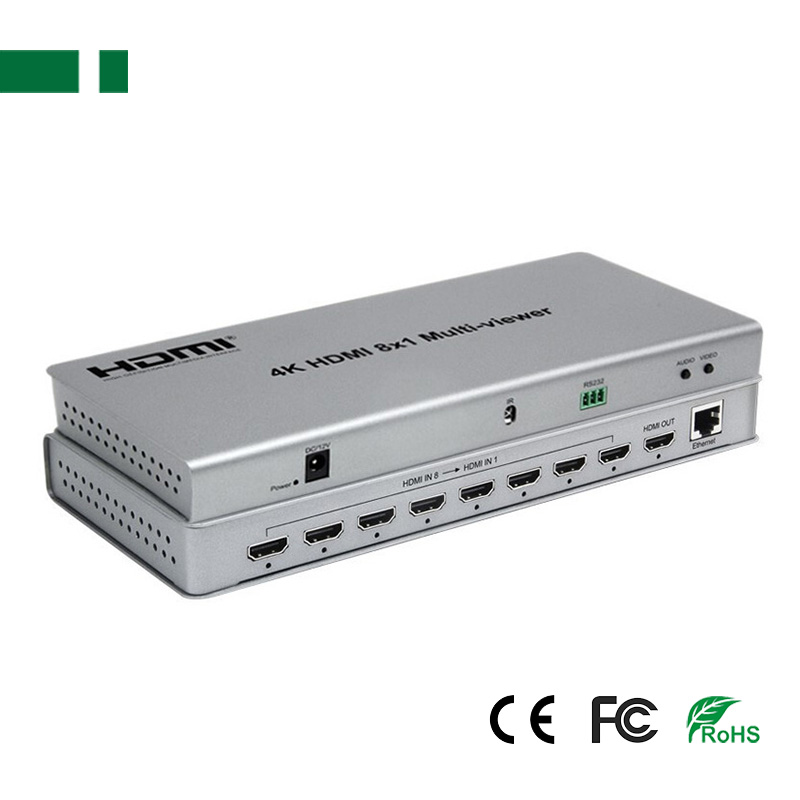

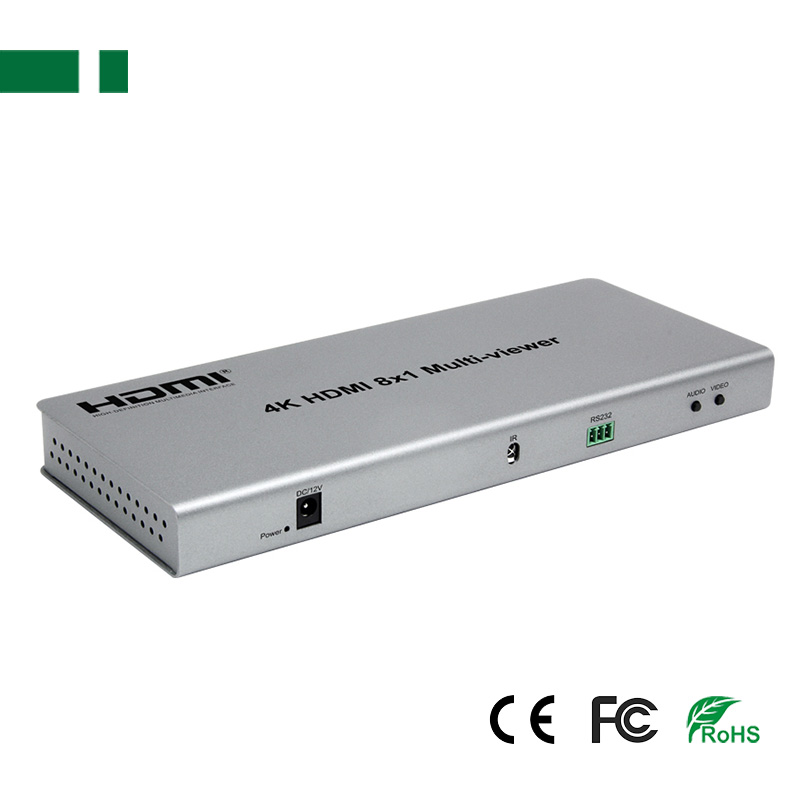

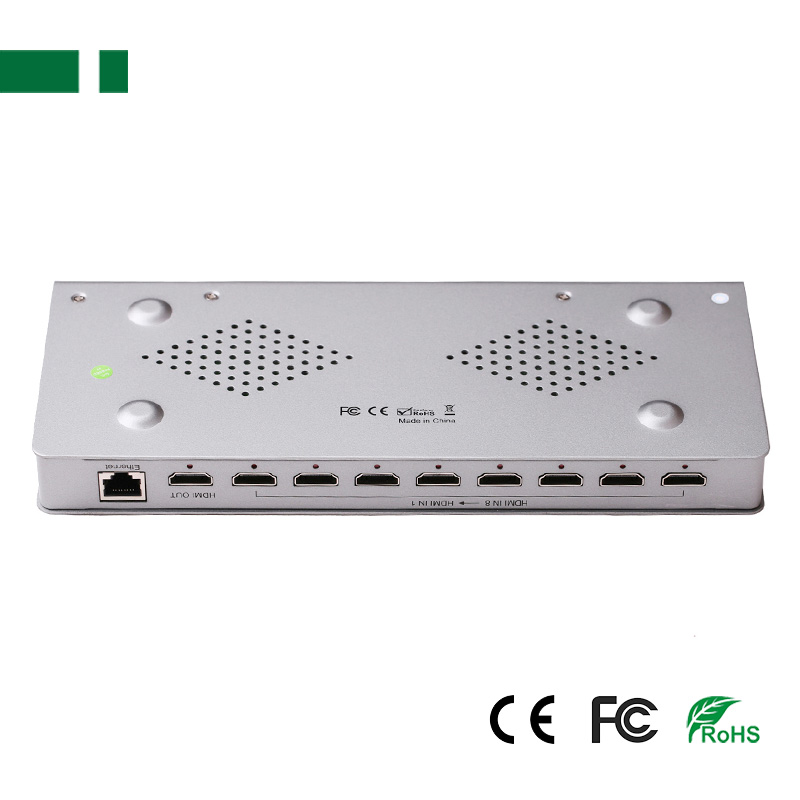

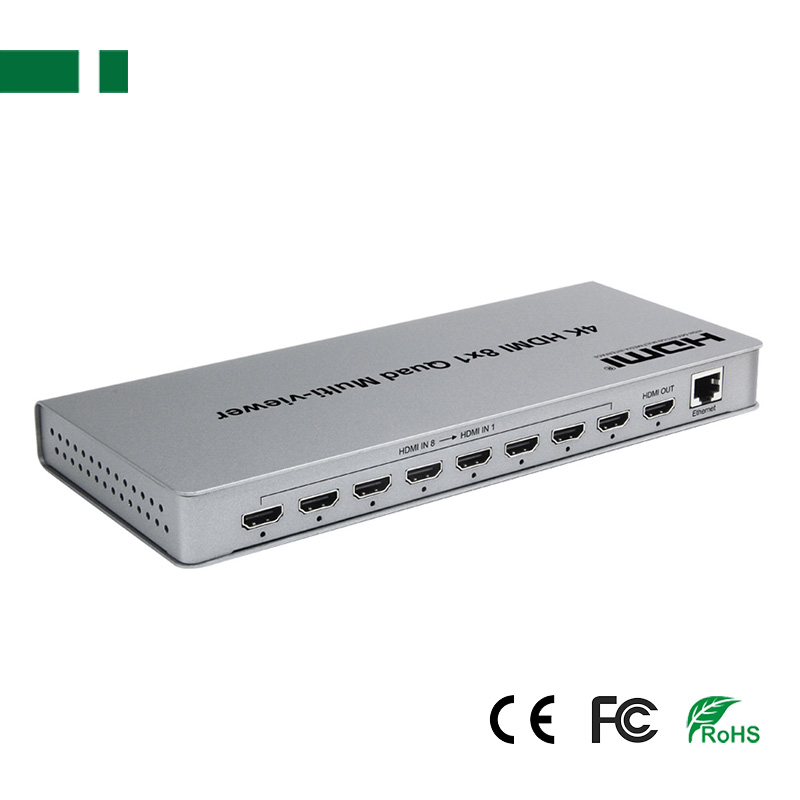

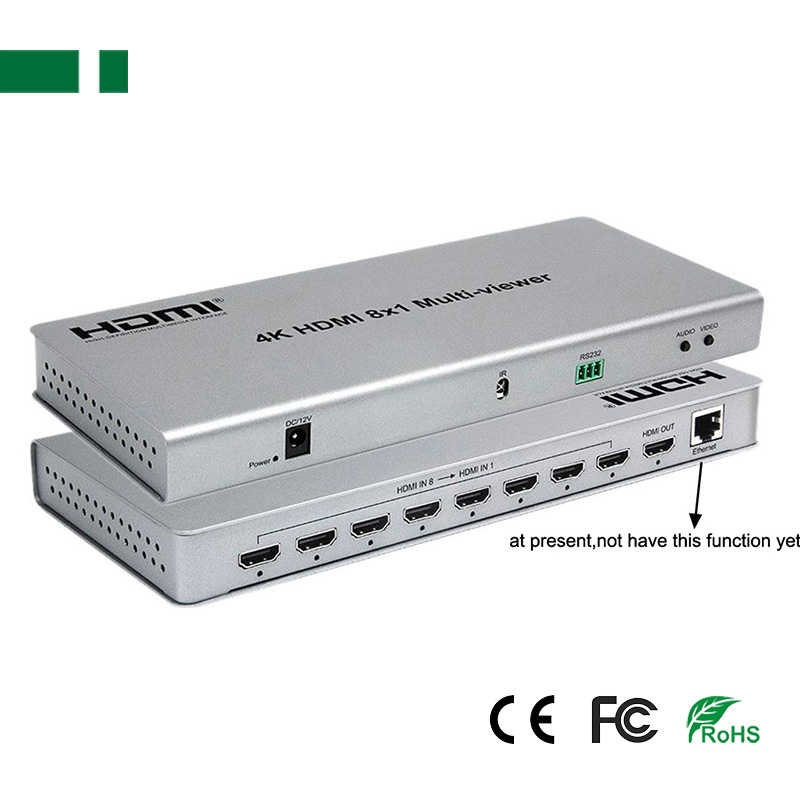

4K@30Hz HDMI 8x1 Multi-viewer
Compatible HDMI1.4, HDCP1.4 and DVI1.0 version
Input resolution: 8-chs * 1080P
Output resolution: 1-ch * 1080P@60Hz, 3840x2160@30Hz
This 4K HDMI 8x1 Multi-viewer is a high performance with eight HD screen segmentation and seamless switching output switch. It can display 8 HD digital video signal on the same screen
Introduction:
4K HDMI 8x1 Multi-viewer is a high performance with eight HD screen segmentation and seamless switching output switch. It can display 8 HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 8 HD input signal synchronously.
The control methods of the switch is flexible, it can be switched via button and IR control. It's a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.
4/8/16*1 HDMI Video Multi-viewer
Model
CHM-V401
CHM-V801
CHM-V1601
HDMI Input
4-CH
8-CH
16-CH
Input resolution
1080P,720P,1080i,1024*768,1360*768 etc.
HDMI output
1080P@60Hz *1-CH
3840*2160@30Hz *1-CH
1080P@60Hz *1-CH
Version
HDMI1.3a, HDCP1.2
HDMI 1.4, HDCP 1.4, DVI 1.0
HDMI1.3a, HDCP1.2
Cable Distance
Input and Output Cable Distance: ≤15M AWG26 HDMI Standard Cable
Power Supply
DC5V/2A, EU/US/UK
DC12V/2A, EU/US/UK
DC12V/2A, EU/US/UK
Dimension
190*90*23mm
252*105*25mm
460*150*40mm
Weight
350g
792g
1683g
Features:
1. Support 8 HDMI inputs, one HDMI output;
2. Support 8 HDMI signal screen segmentation;
3. Support 8 HDMI signal seamless switching;
4. Support IR control;
5. Compatible HDMI 1.4, HDCP 1.4, and DVI 1.0 version;
6. The input resolution support 1080P, 720P, 1080i, 1024x768, 1360x768 etc.;
7. The output resolution support 1080P@60Hz, 2560*1600@60Hz, 2560*1440@60Hz, 3840x2160@30Hz;
8. Support audio and video superposition;
9. More clearer subtitles;
10. HDMI input and output transmission distance:high speed HDMI Cable can reach 15M;
11. Power: DC12V/1A;
12. Net weight: approx. 792 g;
13. Size: approx. 252(L)*105(W)*25(H)mm;
Package Include:
1. 8x1 HDMI Multi-viewer * 1
2. Remote Control * 1
3. DC12V Power Adapter * 1
4. User manual * 1
