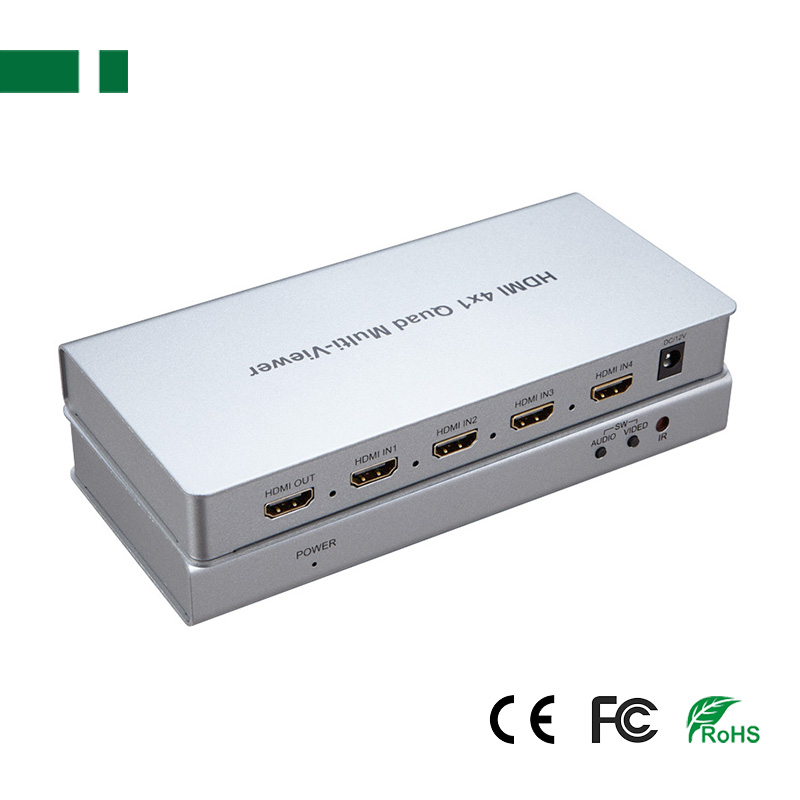

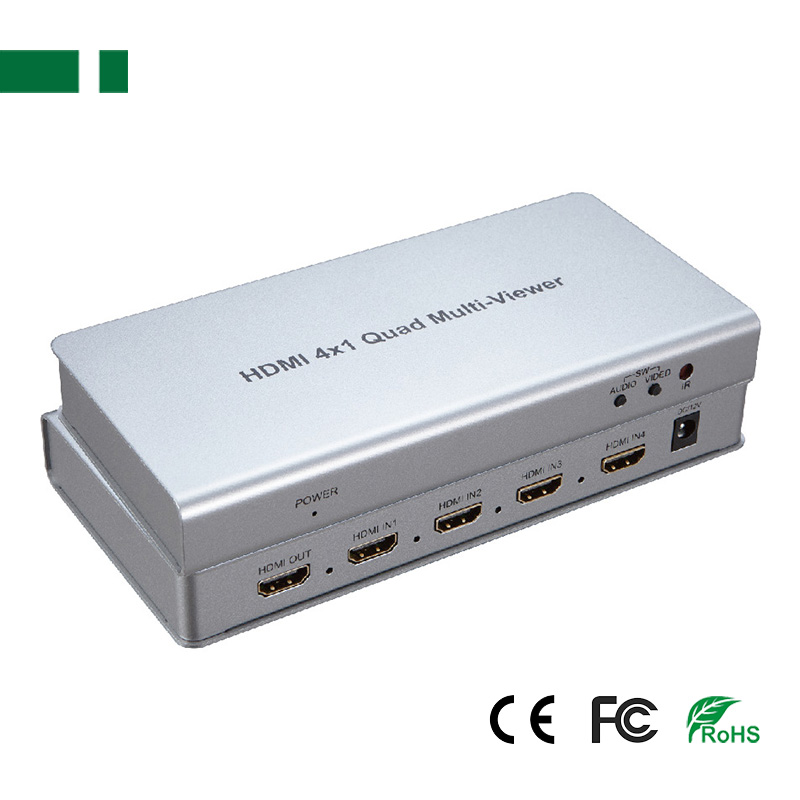

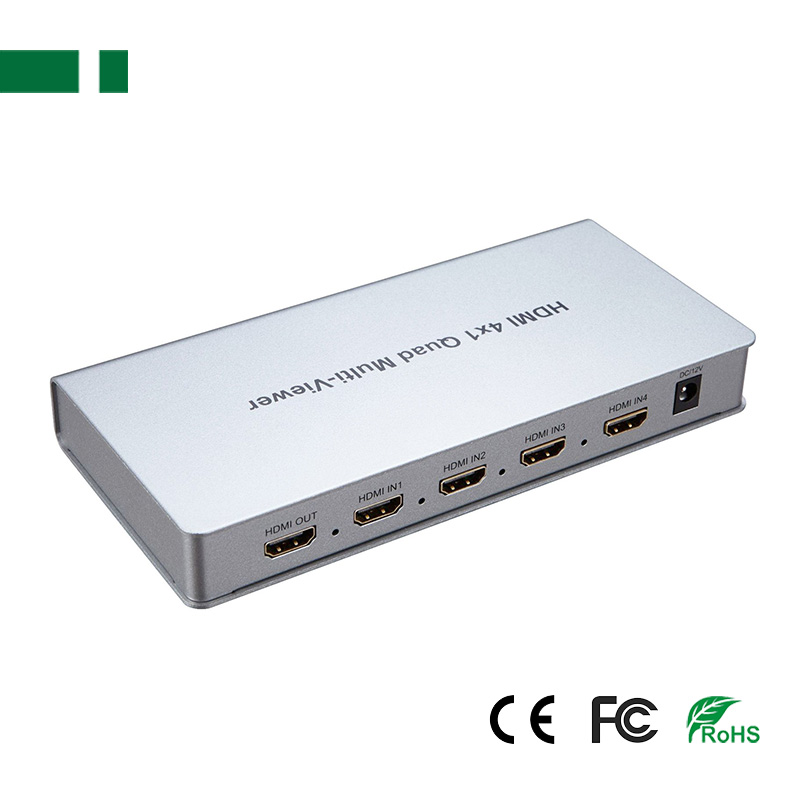

1080P@60Hz HDMI 4x1 Quad Multi-viewer
Compatible HDMI1.3a, HDCP1.2
Input resolution: 4-chs * 1080P
Output resolution: 1-ch * 1080P@60Hz
This HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switching output switch.
Full HD 1080P 4x1 HDMI Multi-viewer Support Seamless Switch Function
Introduction:

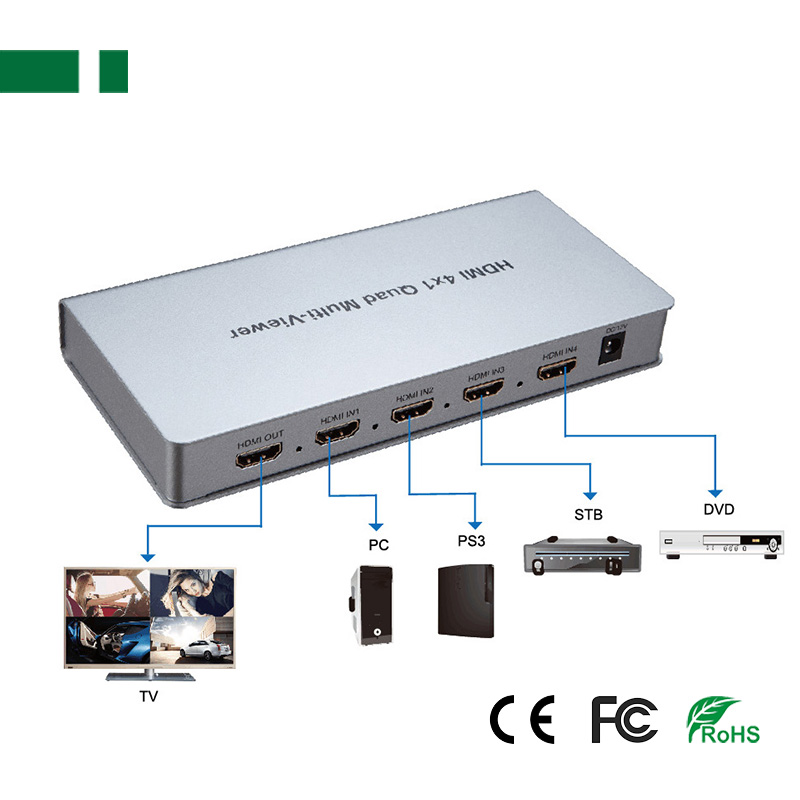

HDMI 4x1 Quad Multi-viewer is a high performance with four HD screen segmentation and seamless switching output switch. It can display 4HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 4 HD input signals synchronously.
The control methods of the switch is flexible, it can be switched via button and IR control. It's a very practical and stable switch and easy to install, can be used in the major projects, meeting halls and other places.
| 4/8/16*1 HDMI Video Multi-viewer | |||
| Model | CHM-V401 | CHM-V801 | CHM-V1601 |
| HDMI Input | 4-CH | 8-CH | 16-CH |
| Input resolution | 1080P,720P,1080i,1024*768,1360*768 etc. | ||
| HDMI output | 1080P@60Hz *1-CH | 3840*2160@30Hz *1-CH | 1080P@60Hz *1-CH |
| Version | HDMI1.3a, HDCP1.2 | HDMI 1.4, HDCP 1.4, DVI 1.0 | HDMI1.3a, HDCP1.2 |
| Cable Distance | Input and Output Cable Distance: ≤15M AWG26 HDMI Standard Cable | ||
| Power Supply | DC5V/2A, EU/US/UK | DC12V/2A, EU/US/UK | DC12V/2A, EU/US/UK |
| Dimension | 190*90*23mm | 252*105*25mm | 460*150*40mm |
| Weight | 350g | 792g | 1683g |
Features:

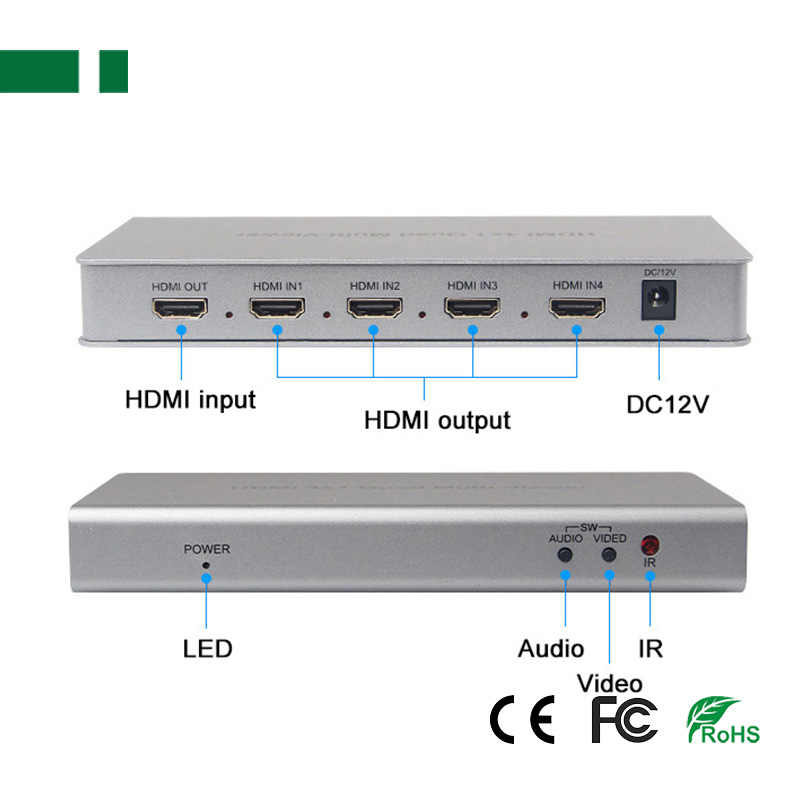

1. Support 4 HDMI input, 1 HDMI output;
2. Support 4 channels HDMI signal screen segmentation;
3. Support 4 channels HDMI signal seamless switching;
4. Support highest resolution up to 1080P@60Hz;
5. Support IR control;
6. Compatible HDMI1.3a, HDCP1.2;
7. Support resolution: 1080P, 720P, 1080i, 1024X768, 1360X768 and so on;
8. Support audio output format: PCM2.0
9. Support standard AWG26 cable, input up to 15 metres, output up to 15 metres
10. DC5V/2A Power Adapter

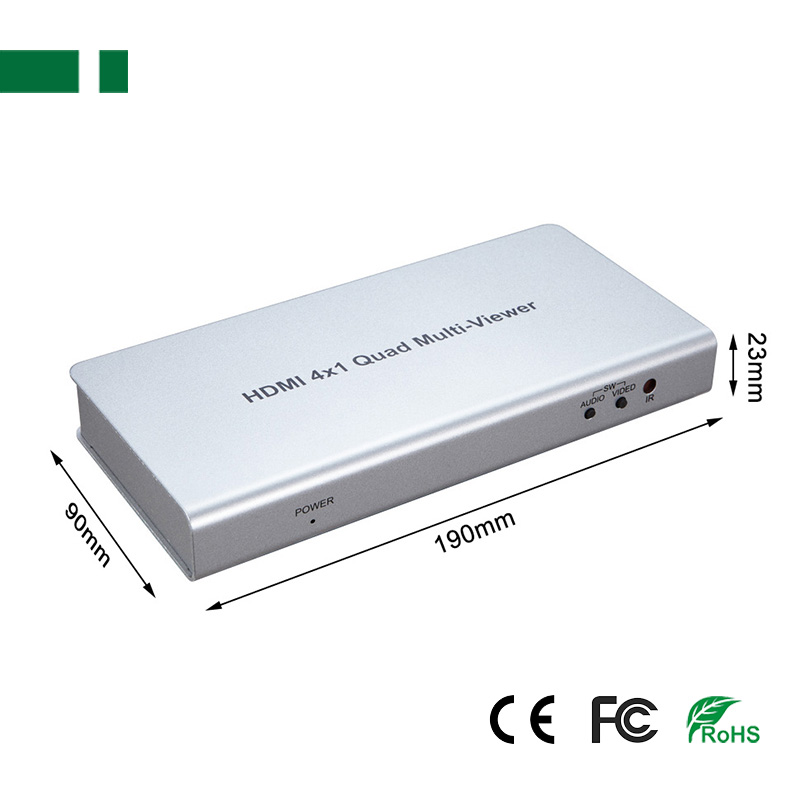

11. Dimension: 190(L)*90(W)*23(H)mm, 350g.
Package includes:
1. HDMI 4x1 Quad Multi-viewer * 1
2. Remote controller * 1
3. User Manual * 1
4. DC5V Power Adapter * 1
