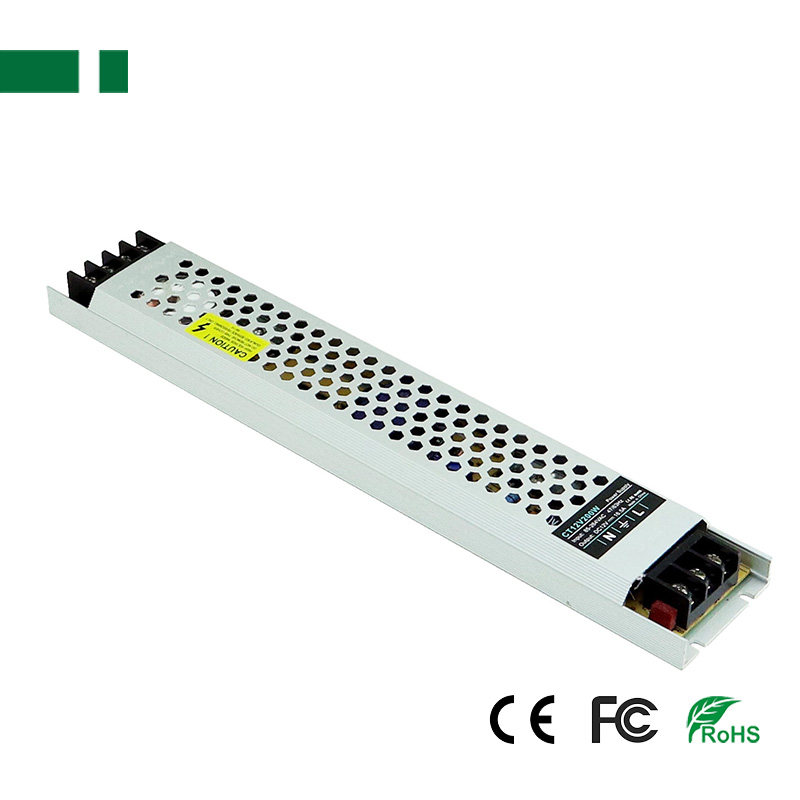

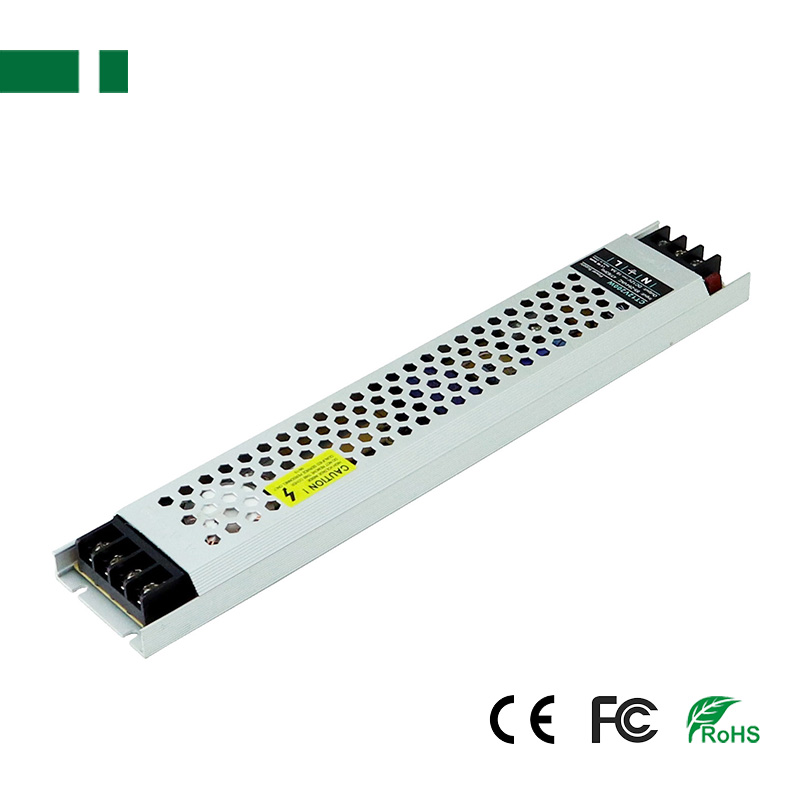

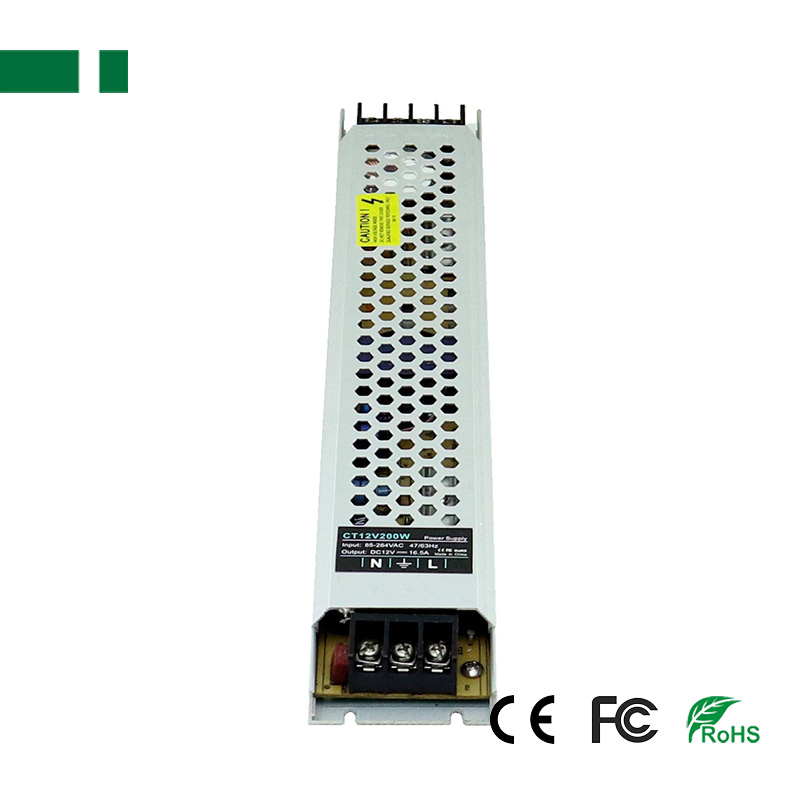

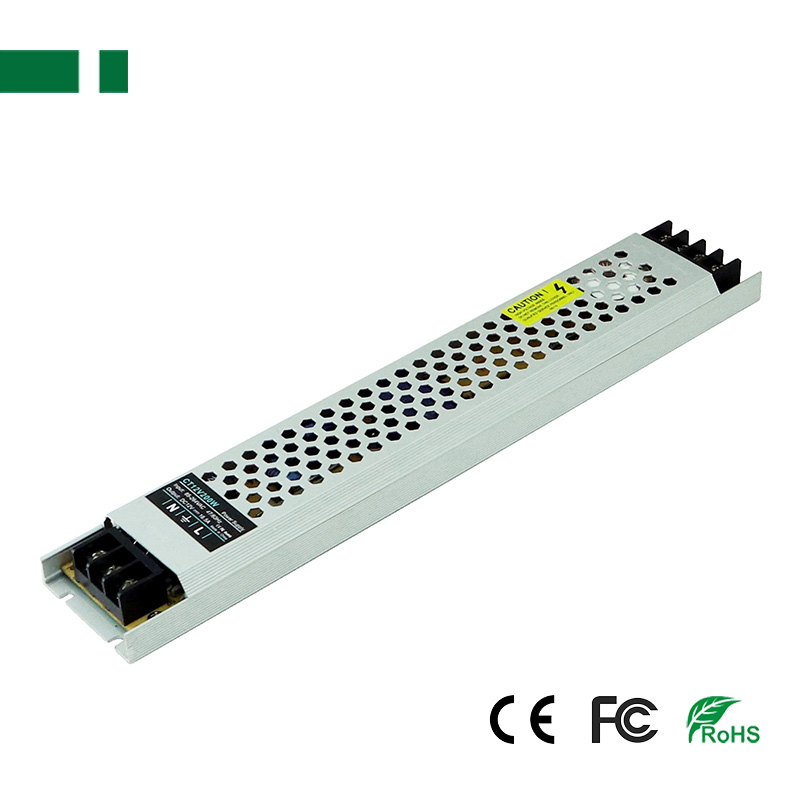

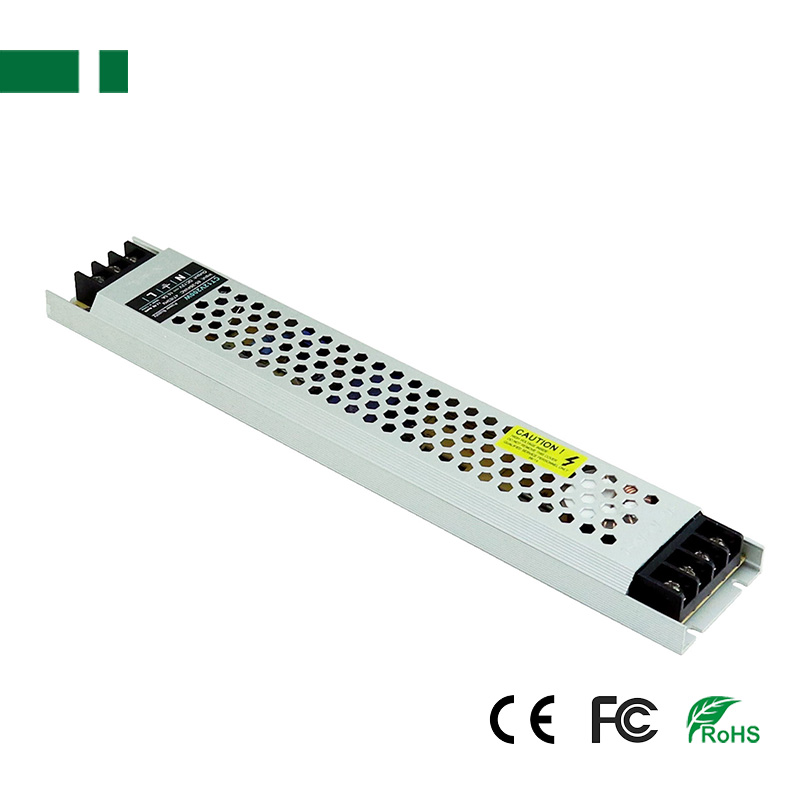

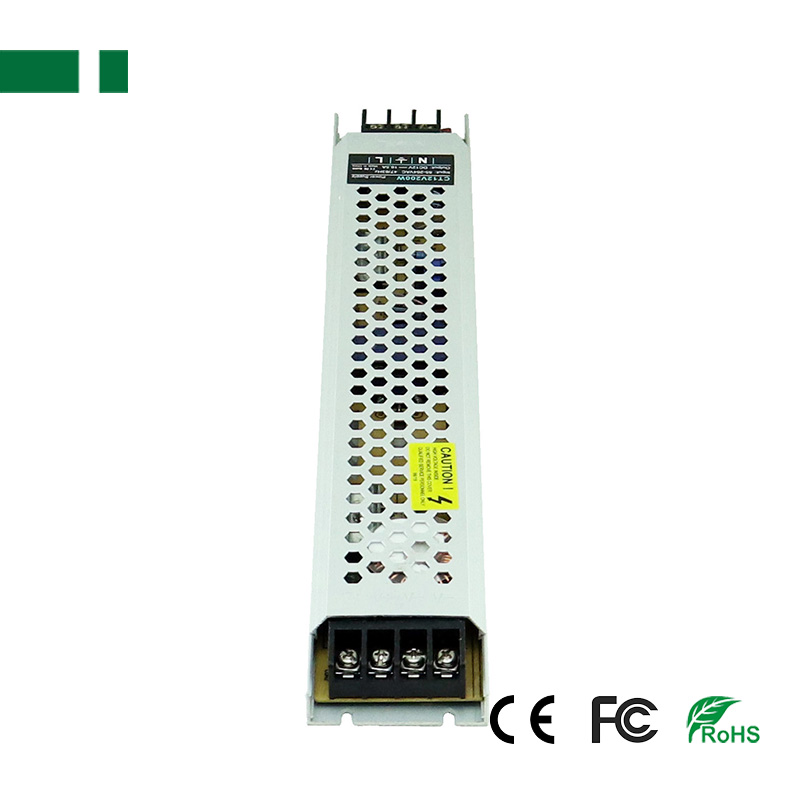

200W Thin Power Supply for LED Lightbox
DC12V 16.5A
100% full load burn-in test
DC24V optional
◆ Built in EMI filter with tiny ripple ◆ 100% full load burn-in test ◆ Protection: Short circuit/ Overload/ Over voltage/ Over temperature
Features:
1. 200W Output Ultra-thin Power Supply
2. Output voltage & current: DC12V 16.5A
3. Input voltage range: 85~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
| DC12V-DC24V Thin Switching Power Supply for Lightbox | |||||
| More Model | DC Output | Input Voltage | Input Current | Dimension | Weight |
| CT12V60W | DC12V 5A 60W | 85~264VAC | 0.54A/ 115V, 0.27A/ 230V | 146*53*22mm | 150g |
| CT12V100W | DC12V 8.3A 100W | 85~264VAC | 0.88A/ 115V, 0.44A/ 230V | 167*53*22mm | 170g |
| CT12V150W | DC12V 12.5A 150W | 85~264VAC | 1.4A/115V, 0.7A/230V | 235*53*20mm | 225g |
| CT12V200W | DC12V 16.5A 200W | 85~264VAC | 1.8A/115V, 0.9A/230V | 310*53*22mm | 315g |
| CT12V300W | DC12V 25A 300W | 85~264VAC | 2.7A/115V, 1.35A/230V | 310*53*22mm | 336g |
Specification:
| Model | CT12V200W | CT24V200W | |
| Output | DC output Voltage | 12V±10% | 24V±10% |
| Output Current Range | 0-16.5A | 0-8.25A | |
| Wave and Noise | 120mVp-p | ||
| DC output Power | 200W | ||
| Efficiency | 0.85 | ||
| DC Voltage Adjustable Scope | （at full load）≦0.5% | ||
| Input | Voltage Range | 85~264VAC 47-63Hz | |
| Input Current | 1.8A/115V, 0.9A/230V | ||
| Leakage Current | <1mA/ 240VAC | ||
| Inrush Current | Cold start 20A/120VAC, 40A/230VAC | ||
| Protection | Over-load | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed | |
| Over-voltage | 105%---150% Rated Voltage, Protection type: Shut off | ||
| High-temperature | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) | ||
| Environment | Working temperature and humidity | -10°C~+50°C, 20~90%RH | |
| Store temperature and humidity | -20°C~+85°C, 10~95%RH | ||
| Temperature coefficient | ±0.03%°C(0~50°C) | ||
| Vibration | 10~500Hz, 2G 10min. /1cycle, Period for 60min, EACH AXES | ||
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC | |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
| Standard | CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 | |
| CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | ||
| ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | ||
| Other | Dimension | 310*53*22mm (L*W*H) | |
| Weight | 315g | ||
| Notes | 1.
All parameters NOT specially mentioned are measured at 230VAC input, rated
load and 25℃ of ambient
temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure. | ||
