200W Thin Power Supply for LED Lightbox
Input voltage range: 110~240VAC
Adopts durable aluminum housing and honeycomb style
DC12V and DC24V optional

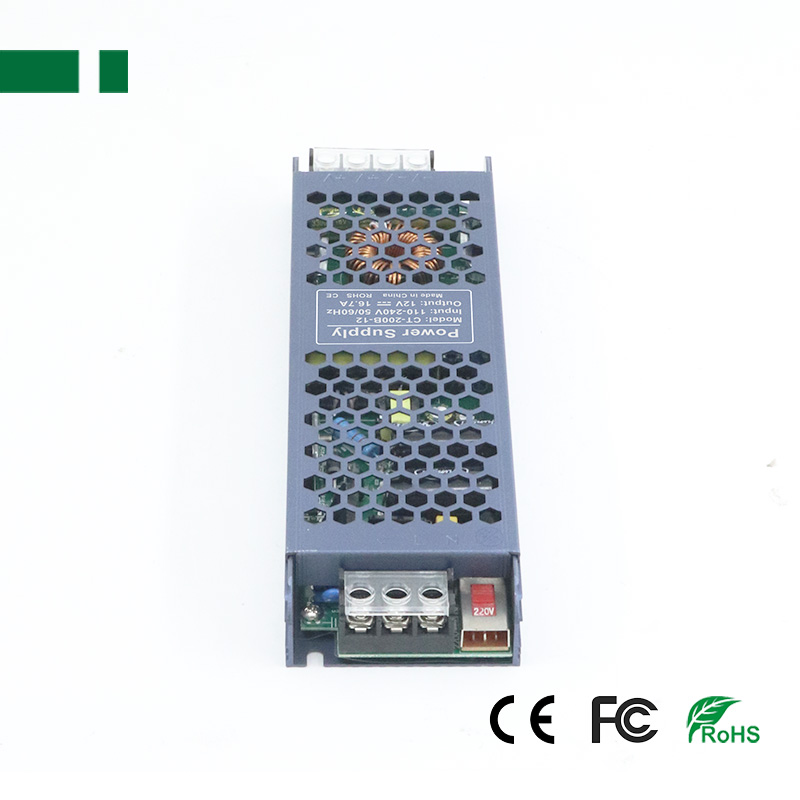

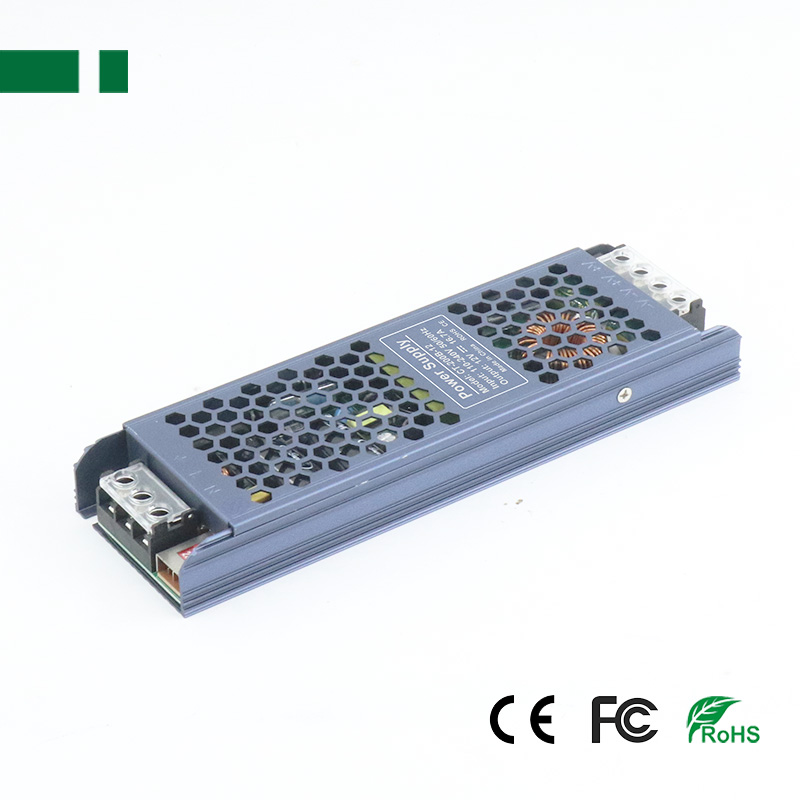

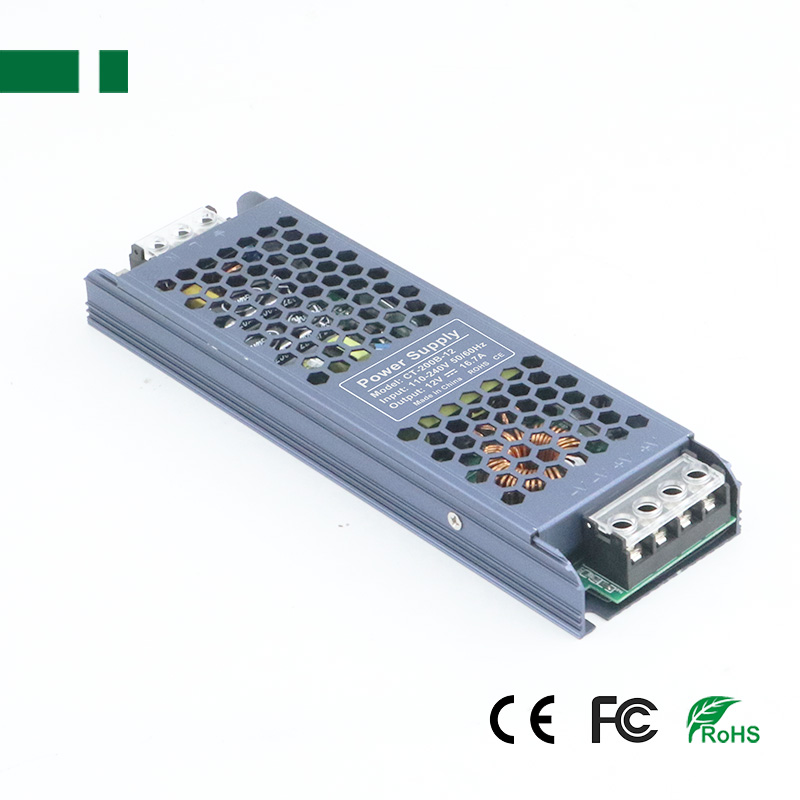

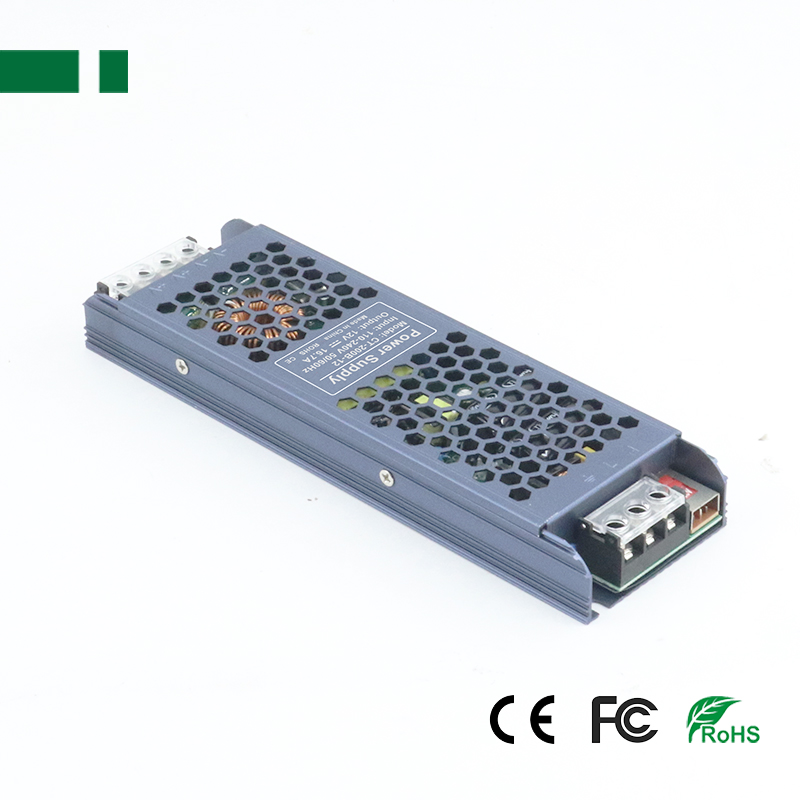

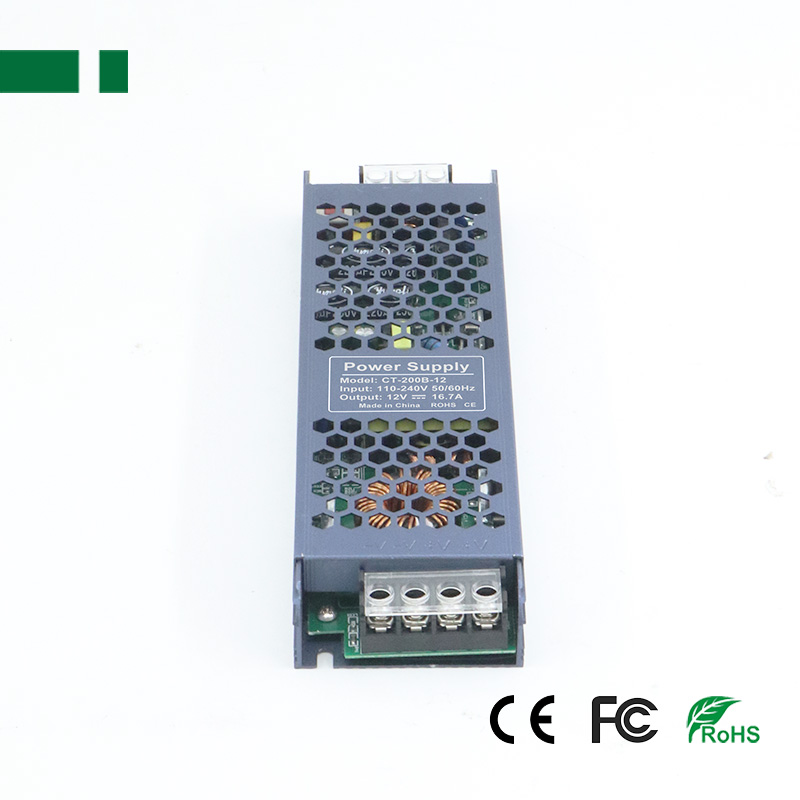

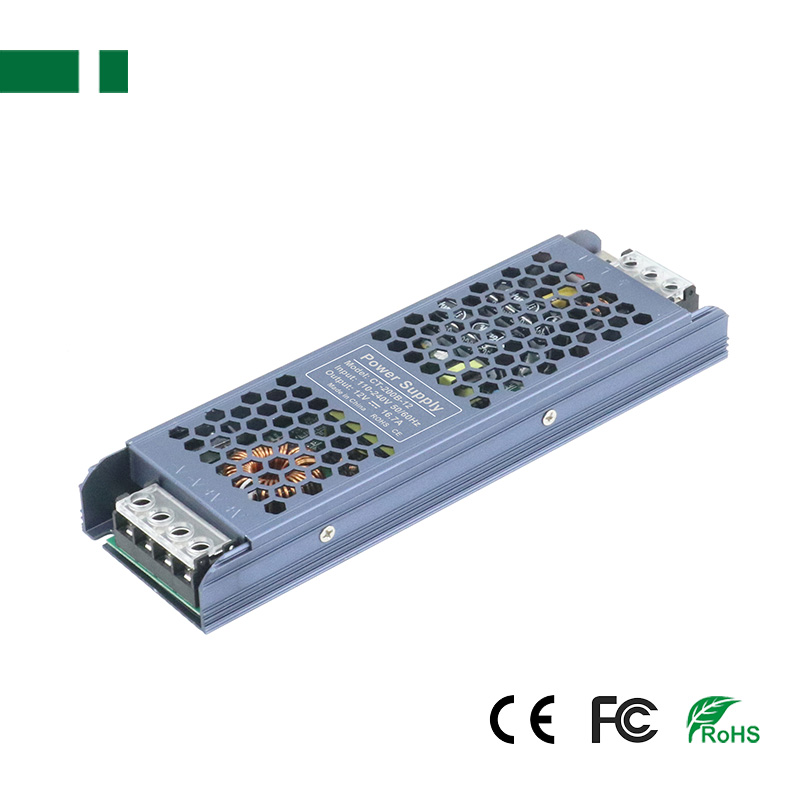

The DC12V-DC24V Ultra-thin Power Supply driver adopts durable aluminum housing and honeycomb style, for easy heat dissipation and natural air cooling.
Description:
The DC12V-DC24V Ultra-thin Power Supply driver adopts durable aluminum Housing and honeycomb style, for easy heat dissipation and natural air cooling. It is IP20 rated . It has output over-voltage, over-current, short circuit and other safety protections, long service life, high reliability.
Features:
1. 200W Output Ultra-thin Power Supply
2. Output voltage & current: DC12V 16.5A
3. Input voltage range: 110~240VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
| DC12V-DC24V Ultra-thin Power Supply for LED Lightbox | |||||
| More Model | DC Output | Input Voltage | Input Current | Dimension | Weight |
| CT-60B-12 | DC12V 5A 60W | 110~240VAC | 0.54A/ 115V, 0.27A/ 230V | 146*53*22mm | 150g |
| CT-100B-12 | DC12V 8.3A 100W | 110~240VAC | 0.88A/ 115V, 0.44A/ 230V | 167*53*22mm | 170g |
| CT-150B-12 | DC12V 12.5A 150W | 110~240VAC | 1.4A/115V, 0.7A/230V | 235*53*20mm | 225g |
| CT-200B-12 | DC12V 16.5A 200W | 110~240VAC | 1.8A/115V, 0.9A/230V | 310*53*22mm | 315g |
| CT-300B-12 | DC12V 25A 300W | 110~220VAC | 2.7A/115V, 1.35A/230V | 310*53*22mm | 336g |
| CT-400B-12 | DC12V 33.3A 400W | 110~220VAC | 3.6A/115V, 1.8A/230V | 255*76*36mm | 1220g |
Specification:
| Model | CT-200B-12 | CT-200B-24 | |
| Output | DC output Voltage | 12V±10% | 24V±10% |
| Output Current Range | 0-16.5A | 0-8.25A | |
| Wave and Noise | 120mVp-p | ||
| DC output Power | 200W | ||
| Efficiency | 0.85 | ||
| DC Voltage Adjustable Scope | （at full load）≦0.5% | ||
| Input | Voltage Range | 110~240VAC 47-63Hz | |
| Input Current | 1.8A/115V, 0.9A/230V | ||
| Leakage Current | <1mA/ 240VAC | ||
| Inrush Current | Cold start 20A/120VAC, 40A/230VAC | ||
| Protection | Over-load | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed | |
| Over-voltage | 105%---150% Rated Voltage, Protection type: Shut off | ||
| High-temperature | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) | ||
| Environment | Working temperature and humidity | -10°C~+50°C, 20~90%RH | |
| Store temperature and humidity | -20°C~+85°C, 10~95%RH | ||
| Temperature coefficient | ±0.03%°C(0~50°C) | ||
| Vibration | 10~500Hz, 2G 10min. /1cycle, Period for 60min, EACH AXES | ||
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC | |
| Isolation resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC | ||
| Standard | CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 | |
| CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | ||
| ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | ||
| Other | Dimension | 310*53*22mm (L*W*H) | |
| Weight | 315g | ||
| Notes | 1.
All parameters NOT specially mentioned are measured at 230VAC input, rated
load and 25℃ of ambient
temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure. | ||
