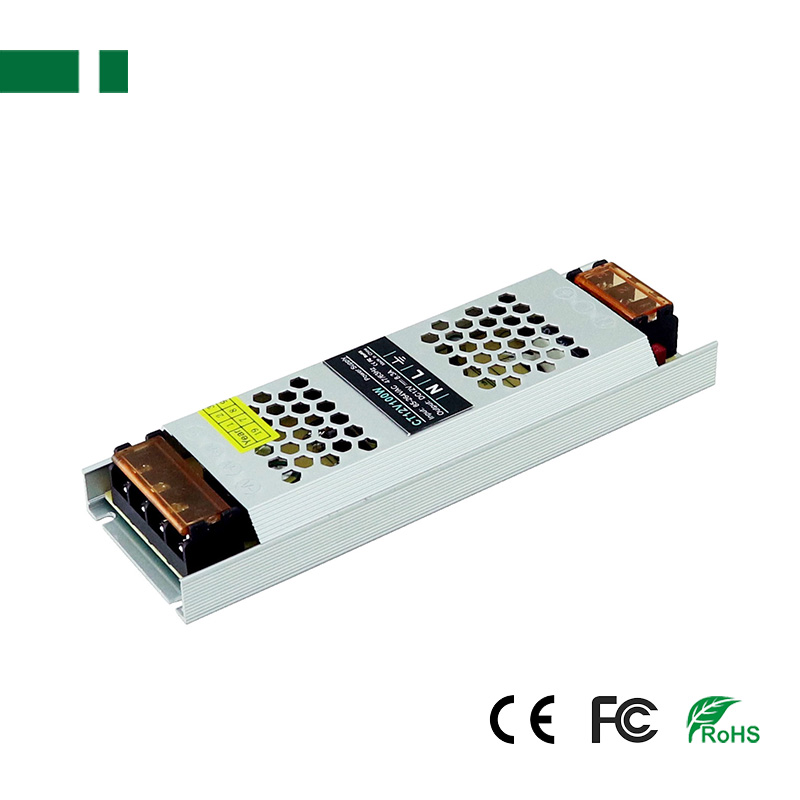

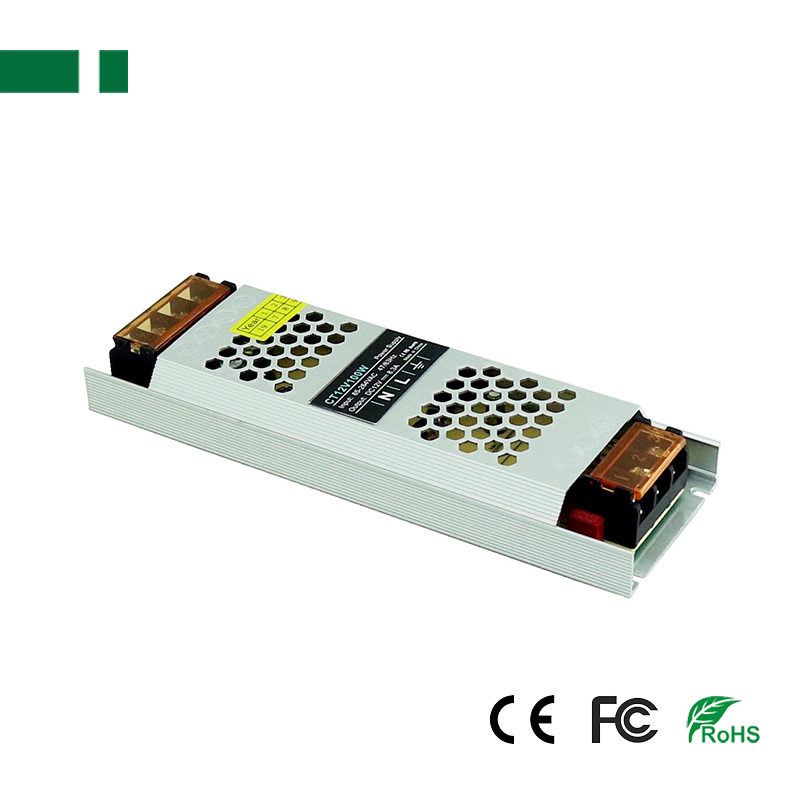

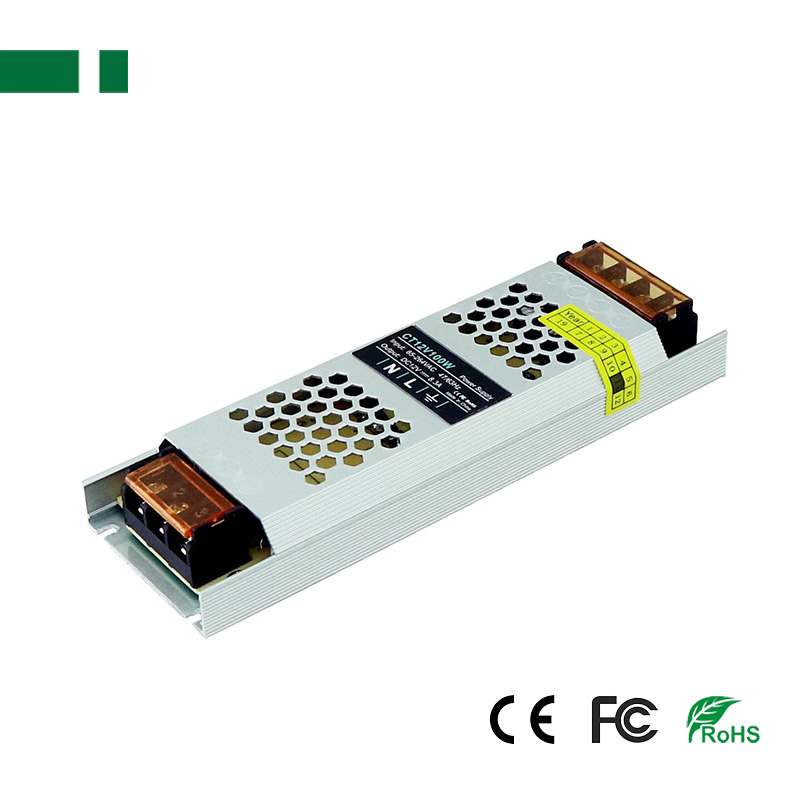

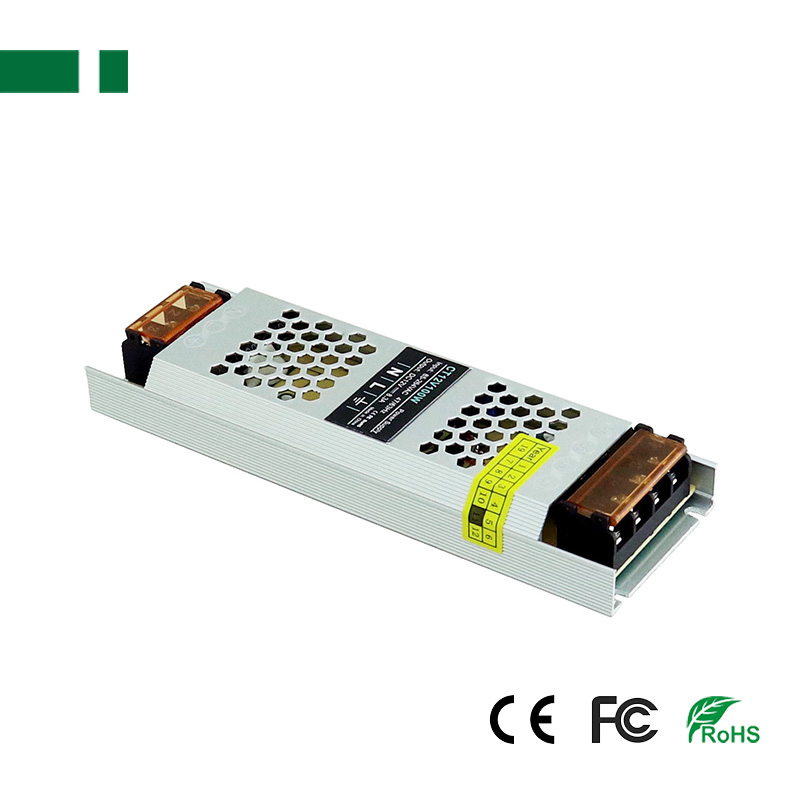

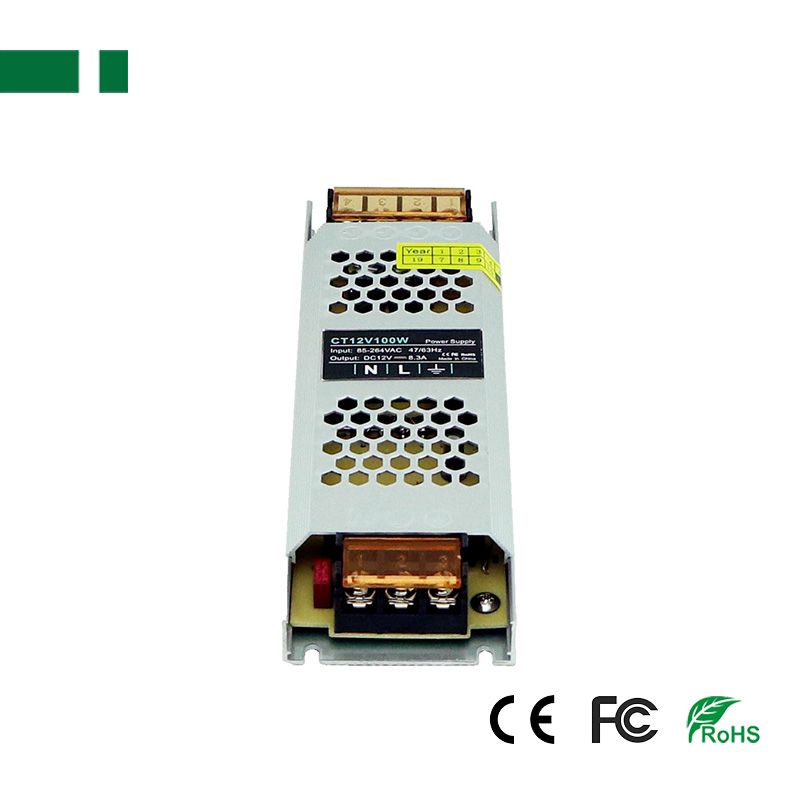

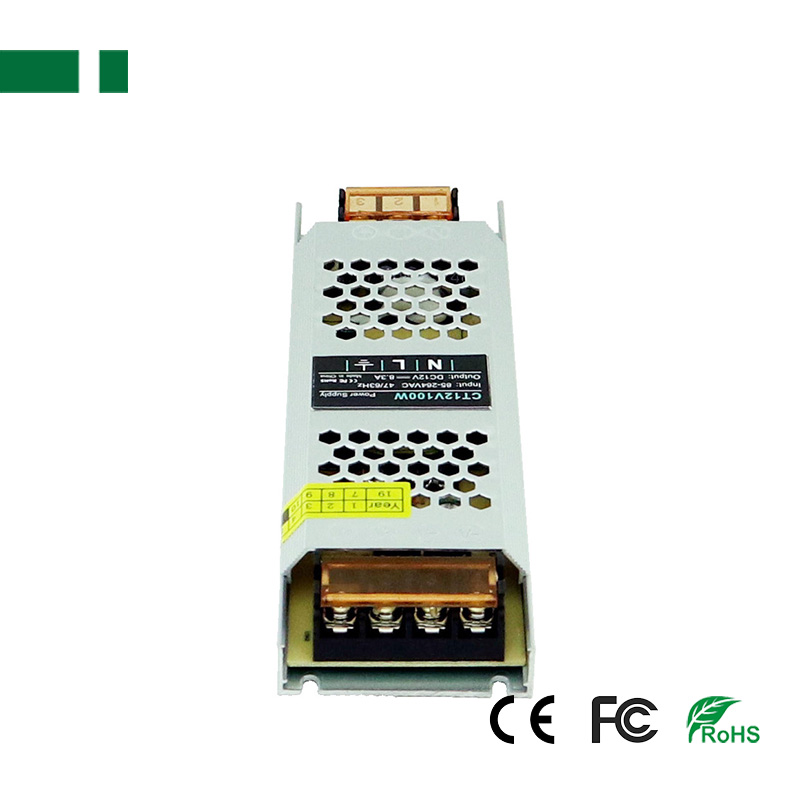

DC12V 8.3A 100W Ultra-thin Switching Power Supply
DC12V 8.3A
100% full load burn-in test
DC24V optional
◆ Built in EMI filter with tiny ripple ◆ 100% full load burn-in test ◆ Protection: Short circuit/ Overload/ Over voltage/ Over temperature
Features:
1. 100W Output Ultra-thin Power Supply
2. Output voltage & current: DC12V 8.3A
3. Input voltage range: 85~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
| DC12V-DC24V Thin Switching Power Supply for Lightbox | |||||
| More Model | DC Output | Input Voltage | Input Current | Dimension | Weight |
| CT12V60W | DC12V 5A 60W | 85~264VAC | 0.54A/ 115V, 0.27A/ 230V | 146*53*22mm | 150g |
| CT12V100W | DC12V 8.3A 100W | 85~264VAC | 0.88A/ 115V, 0.44A/ 230V | 167*53*22mm | 170g |
| CT12V150W | DC12V 12.5A 150W | 85~264VAC | 1.4A/115V, 0.7A/230V | 235*53*20mm | 225g |
| CT12V200W | DC12V 16.5A 200W | 85~264VAC | 1.8A/115V, 0.9A/230V | 310*53*22mm | 315g |
| CT12V300W | DC12V 25A 300W | 85~264VAC | 2.7A/115V, 1.35A/230V | 310*53*22mm | 336g |
Specification: Model
CT12V100W
CT24V100W
Output
DC
output Voltage
12V±10%
24V±10%
Output Current Range
0-8.3A
0-4.15A
Wave and Noise
120mVp-p
DC output Power
100W
Efficiency
0.85
DC Voltage Adjustable Scope
（at
full load）≦0.5%
Input
Voltage
Range
85~264VAC
47-63Hz
Input Current
0.88A/115V, 0.44A/230V
Leakage Current
<1mA/ 240VAC
Inrush Current
Cold start 20A/120VAC, 40A/230VAC
Protection
Over-load
105%~135%, Protection type: Constant current
limiting, recovers automatically after fault condition is removed
Over-voltage
105%---150% Rated Voltage, Protection type:
Shut off
High-temperature
RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C
Cut off output(5~15V)
Environment
Working
temperature and humidity
-10°C~+50°C, 20~90%RH
Store temperature and humidity
-20°C~+85°C, 10~95%RH
Temperature coefficient
±0.03%°C(0~50°C)
Vibration
10~500Hz, 2G 10min./1cycle, Period for 60min,
EACH AXES
Safety
Withstand
voltage
I/P-O/P:
1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Isolation resistance
I/P-O/P,
I/P-FG, O/P-FG: 100M Ohms/500VDC
Standard
CE
EMC Standard
EN55015:2013+A1:2015, EN61547:2009,
EN61000-3-2:2014, EN61000-3-33:2013
CE LVD Standard
EN61347-2-13:2014+A1:2017, EB61347-1:2015
ROHS Standard
IEC 62321: 2013, EPA3050B:1996, EN1122:2001,
EPA3052:1996, EPA3060A, etc.
Other
Dimension
167*53*22mm (L*W*H)
Weight
170g
Notes
1.
All parameters NOT specially mentioned are measured at 230VAC input, rated
load and 25℃ of ambient
temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a
12" twisted pair-wire terminated with a 0.1uf & 47uf parallel
capacitor.
3. Tolerance: includes set up tolerance, line regulation and load
regulation.
4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG:
Output and enclosure.
