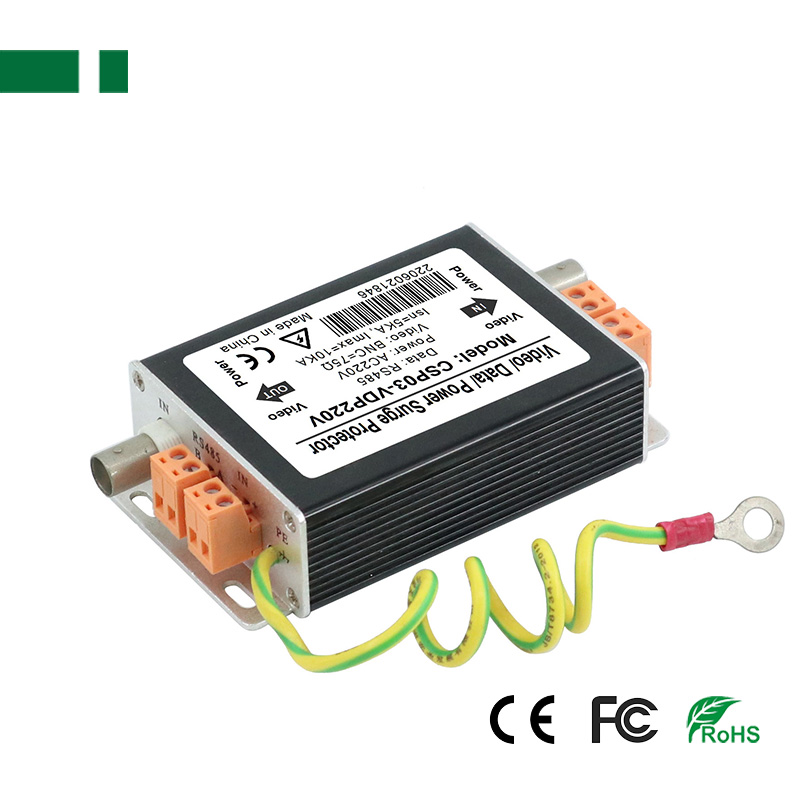

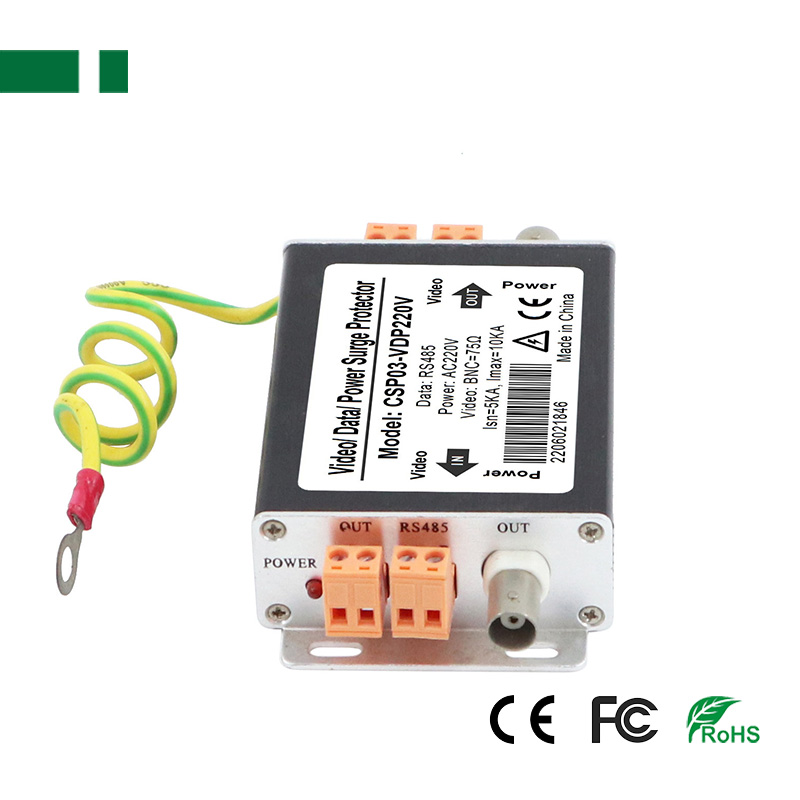

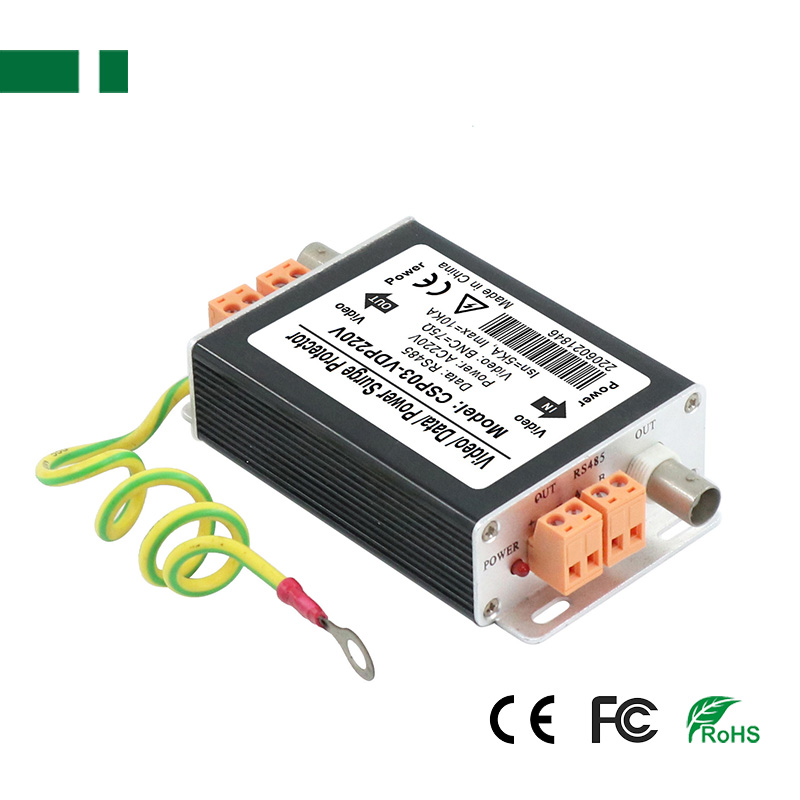

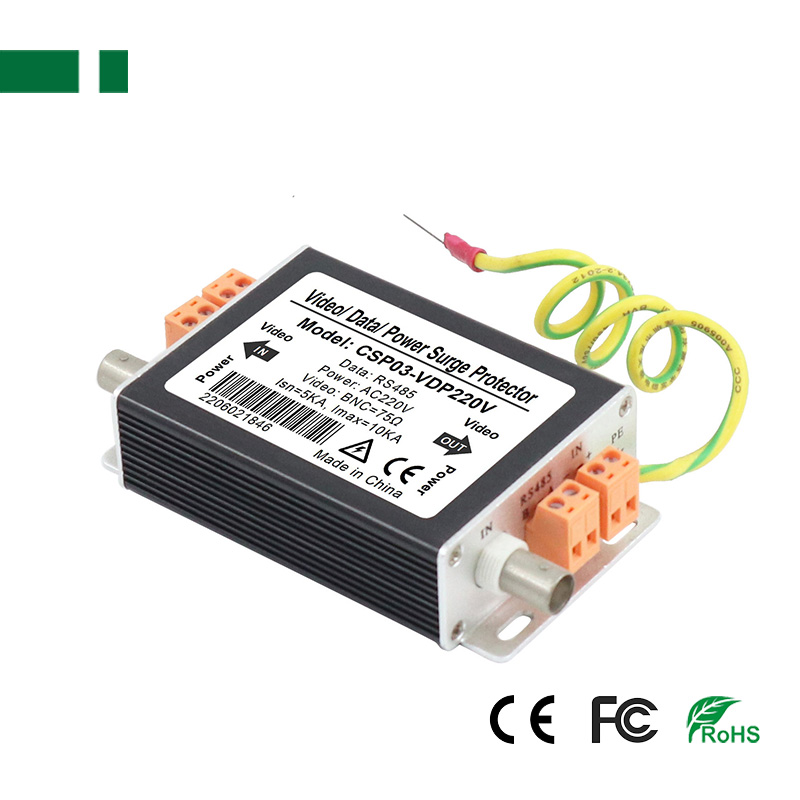

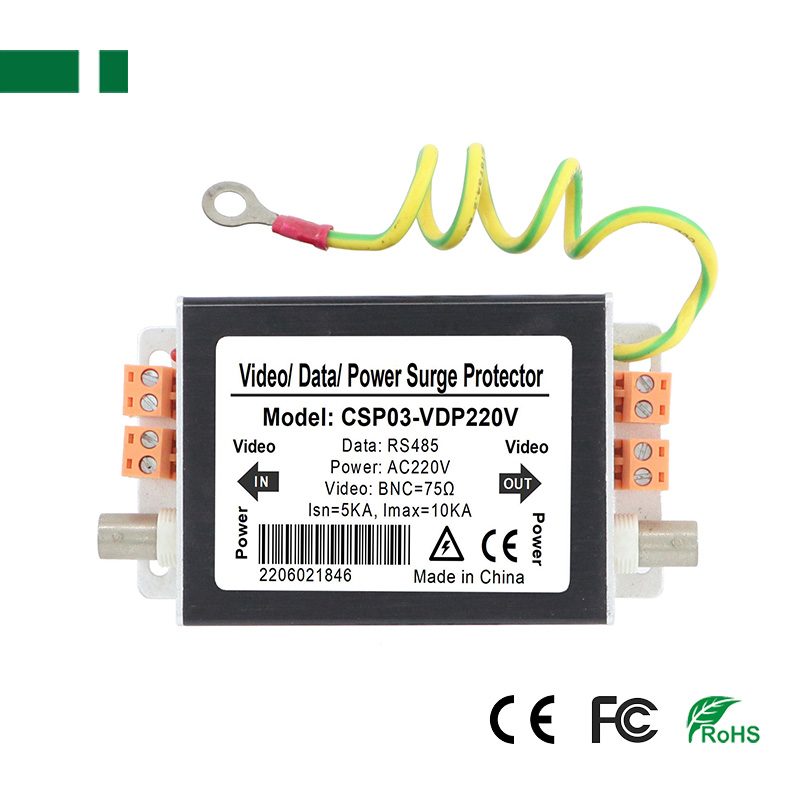

CSP03-VDP220V Video-Data-220V Power Supply Surge Protector 3 in 1

  • Video Surge Protector
  • AC220V Power Surge Protector
  • Data Surge Protector
  • Larger flow capacity
  • Product description: Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or i
  • INQUIRY   EMAIL
Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. However, lightning and utility power anomalies only account for 20% of transient surges. The remaining 80% of surge activity is produced internally. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility.

Feature:
1. Protection video signal, Data Signal and AC220V Power Supply;
2. Function Multi-level over voltage protection large capacity discharge current low limiting voltage;
3. Quick reacting time low inserting loss;
4. Grounding Mode Extending Line to ground;
5. Outlook design Clear mark easily recognized;
6. Aluminum shell delicate size simple installation;

Specification:
Video Signal, Data Signal & Power Supply Surge Protector
Model CSP03-VDP12V CSP03-VDP24V CSP03-VDP220V
Video Rated operation voltage DC5V
Max continuous operating voltage DC6V
Nominal discharge current in(8/20µs) 5KA
Max discharge current(8/20µs) 10KA
Voltage protection level(10/700μs) <20V
Reacting time 0.5ns
Inserting loss 0.2dB
Inserting resistance
Signal Bandwidth 10MHz
Power Nominal working voltage DC12V DC/ AC 24V AC220V
Max continuous operating voltage DC18V DC/ AC47V AC470V
Nominal discharge current(8/20μs) 2.5KA
Max discharge current (8/20μs) 5KA
RLA 3A
Leakage Current 5μA
Reacting Time 25ns
Data Nominal working voltage DC5V
Max continuous operating voltage DC8.8V
Nominal discharge current(8/20μs) 5KA
Max discharge current (8/20μs) 10KA
Leakage Current 0.5A
Reacting Time 1ns
Data transmit rate vs 10Mbps
Signal Bandwidth 20MHz
Other Connector type BNC & Grip
Working temperature -20°C to +50°C / 0 to 95%
MTBF >30000hrs

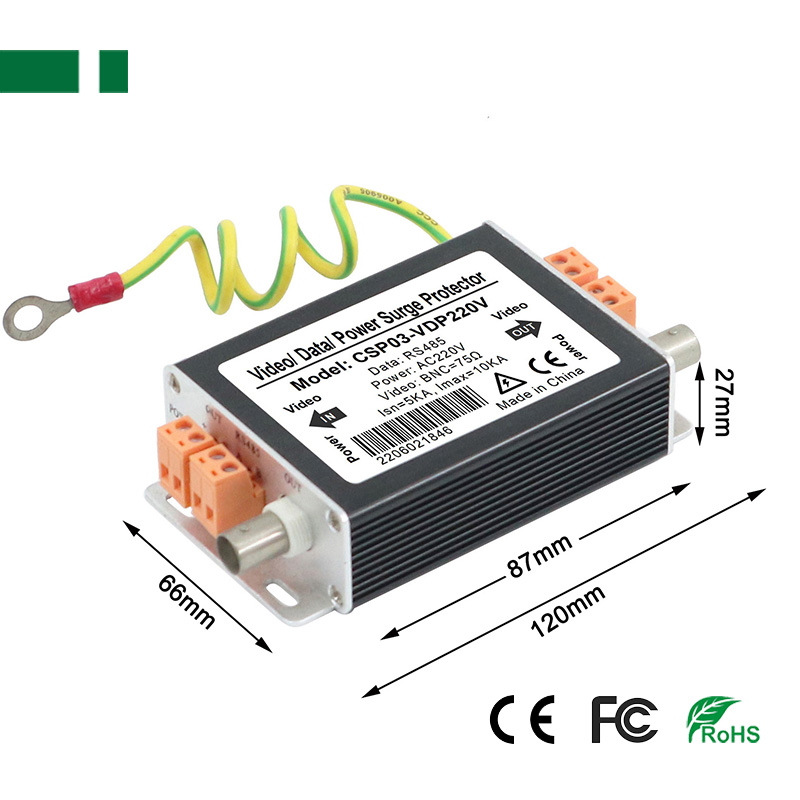

Dimension 120*65*28mm / 143g
Test standard IEC61643-21 : 2000
