▪ Cool Thermostat normally open;
▪ Control temperature range: 0~60°C;
▪ Sensor element：Thermostatic bimetal;
▪ Contact type：snap-action contact;
▪ Service life：> 100,000 cycles;

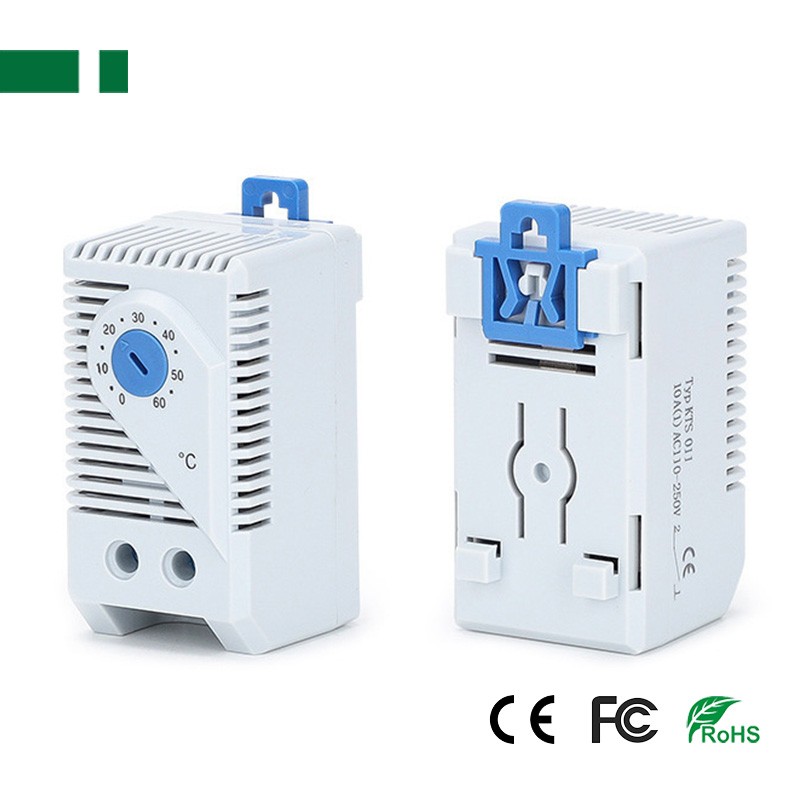

▪ Mounting：clip for 35mm DIN rail;
▪ Protection type：IP20;

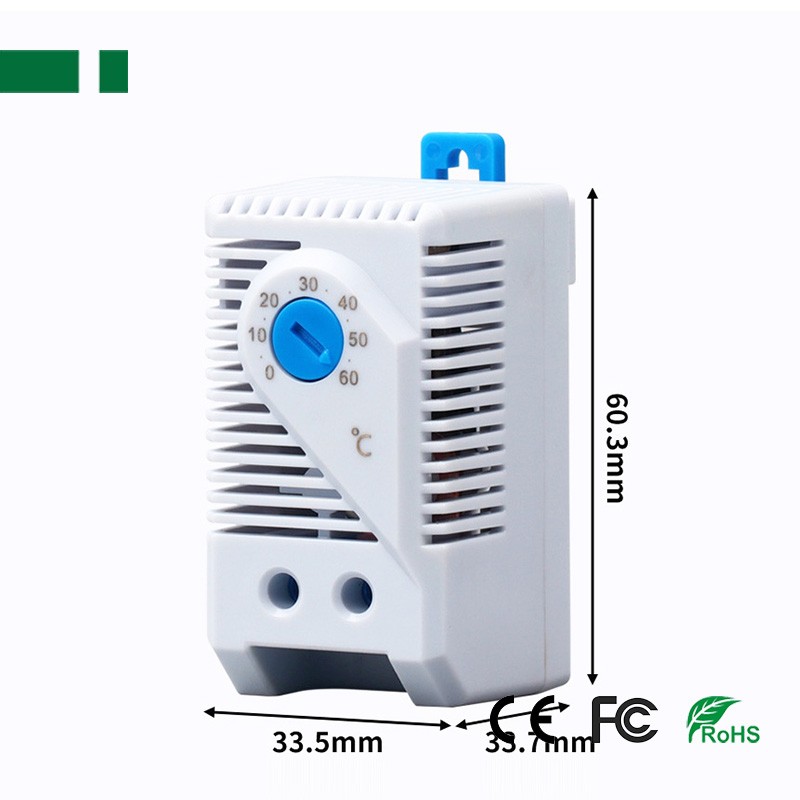

▪ Dimension: 33*43*60mm (L*W*H);

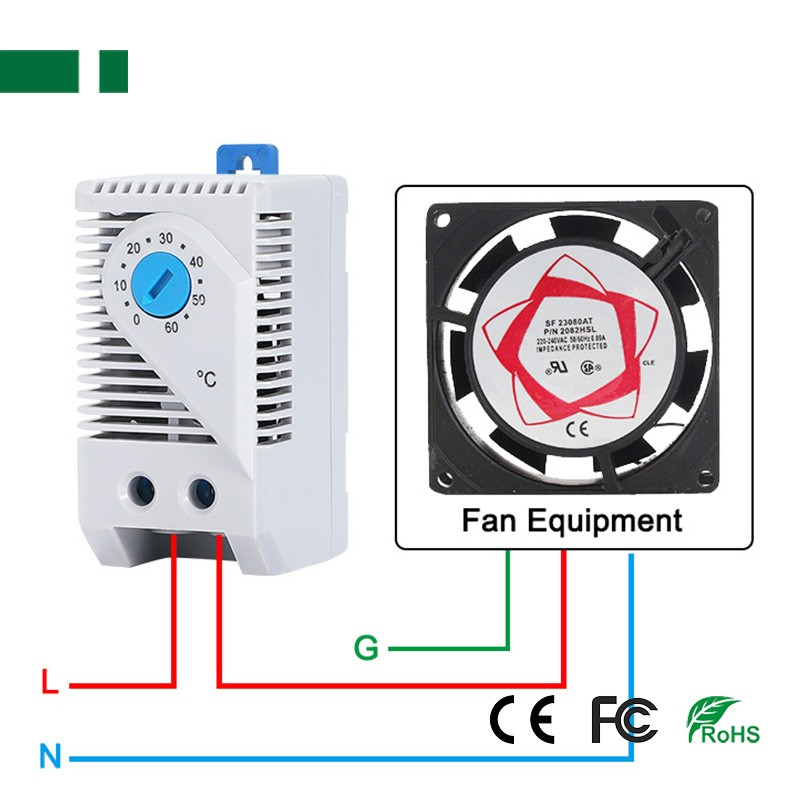

▪ Cool Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.
Description:
The small mechanical temperature regulators are used to control electric heaters or cooling filter fans in electric Cabinets, which are accidents caused by temperature factors. In addition, they can also be used as switching contacts for signal devices used as low-or high-temperature alarms. It can automatically start electric heaters and fans, produce condensed water droplets, maintain a good working environment, and protect components.
Feature:
▪ Cool Thermostat normally open;
▪ Switch temperature difference: 7K (± 4K tolerance);
▪ Control temperature range: 0~60°C;
▪ Service life：> 100,000 cycles;
▪ Connection：clamping torque 0.5Nm max., rigid wire 2.5mm;
▪ Mounting：clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series);
▪ Protection type：IP20;
▪ Dimension: 33*43*60mm (L*W*H);
▪ Application: Contact maker for regulating of filter fans and heat exchangers or for switching signal devised when temperature limit has been exceeded.
Specification:

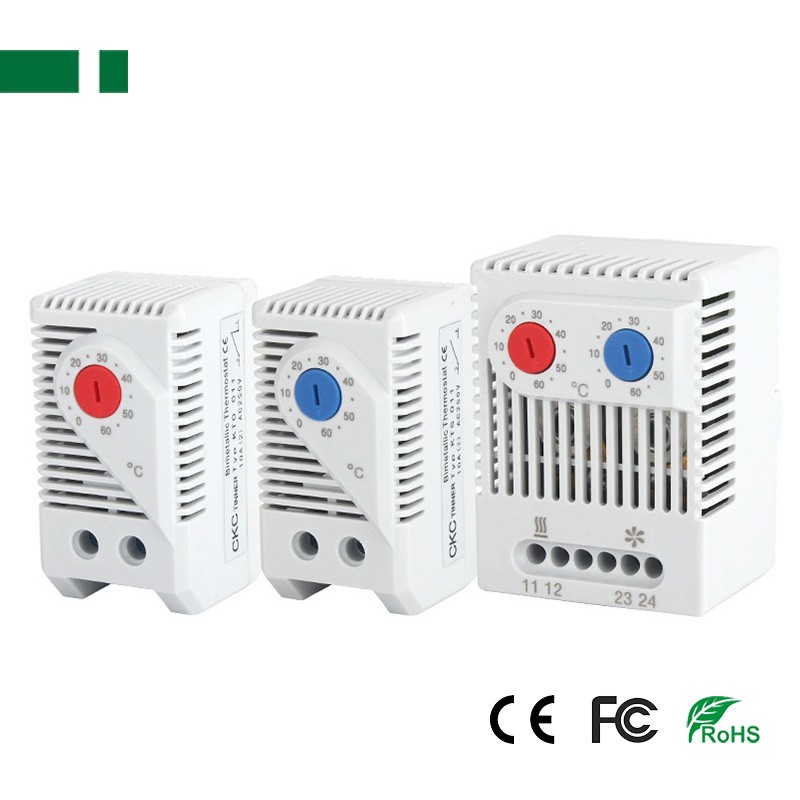

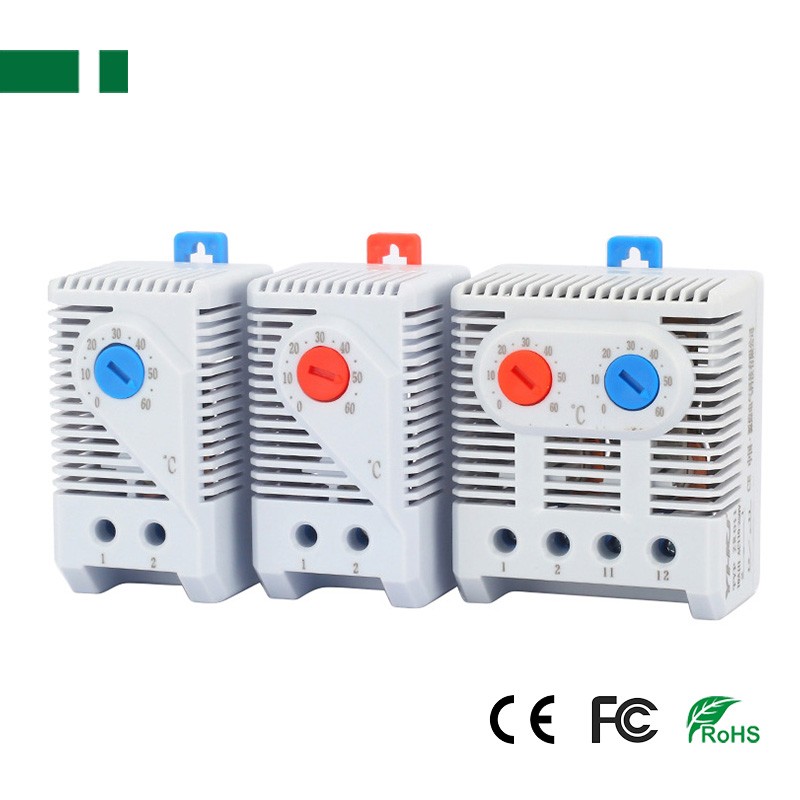

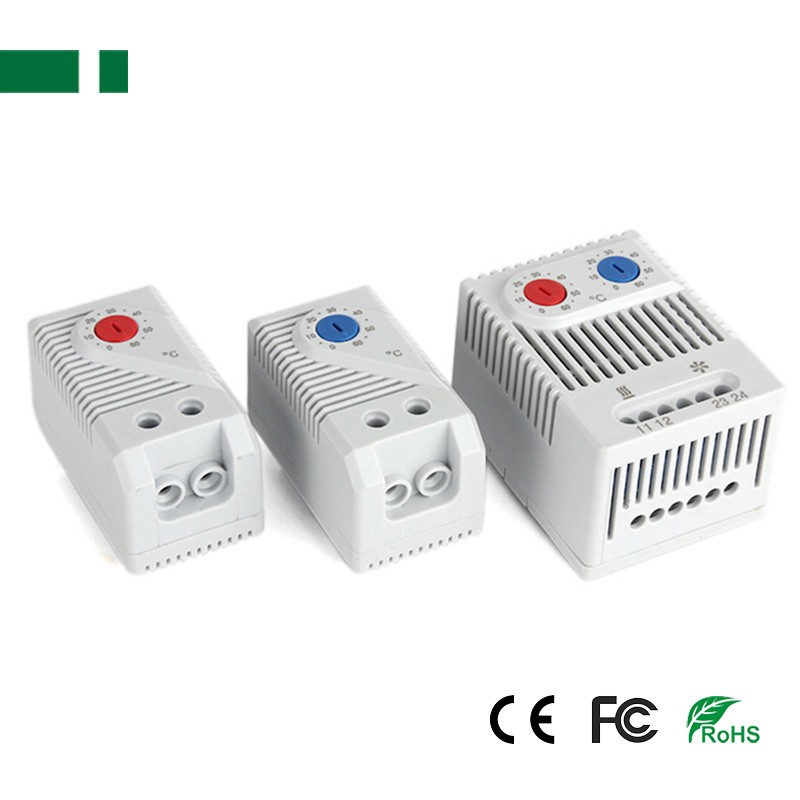

| Model | KTS011 | KTO011 | ZRO011 |
| Item | Cool Thermostat | Heat Thermostat | Heat and Cool Combined |
| Switch Temperature Difference | 7K(±4K tolerance) (K=Kelvin) | ||
| Control temperature range | 0~60°C | ||
| Sensing Element | Thermostatic bimetal | ||
| Type of Contact | Snap-action Contact | ||
| Contact Resistance | <10mΩ | ||
| Installation Method | 35mm DlN rail | ||
| Installation Direction | Any direction | ||
| Shell Material | Plastic UL94 standard VO fire rating | ||
| Wiring | Clamping torque 0.5Nm max., Rigid wire 2.5mm² | ||
| Maximum switching capacity | 250VAC,10(2)A: 120VAC, 15(2)A: DC30W | ||
| Temperature | Operating / Storage: -20℃ to +80℃ | ||
| Humidity | Operating / Storage：max. 90 % RH (non-condensing) | ||
| Dimension | 43*33*60mm(L*W*H) | 43*33*60mm(L*W*H) | 50*46*67mm(L*W*H) |
