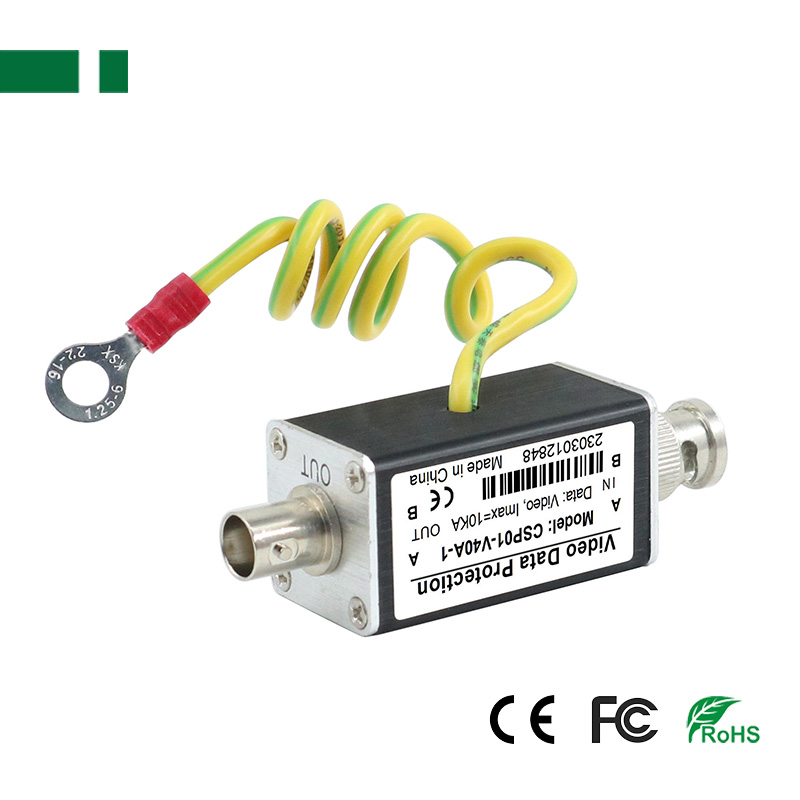

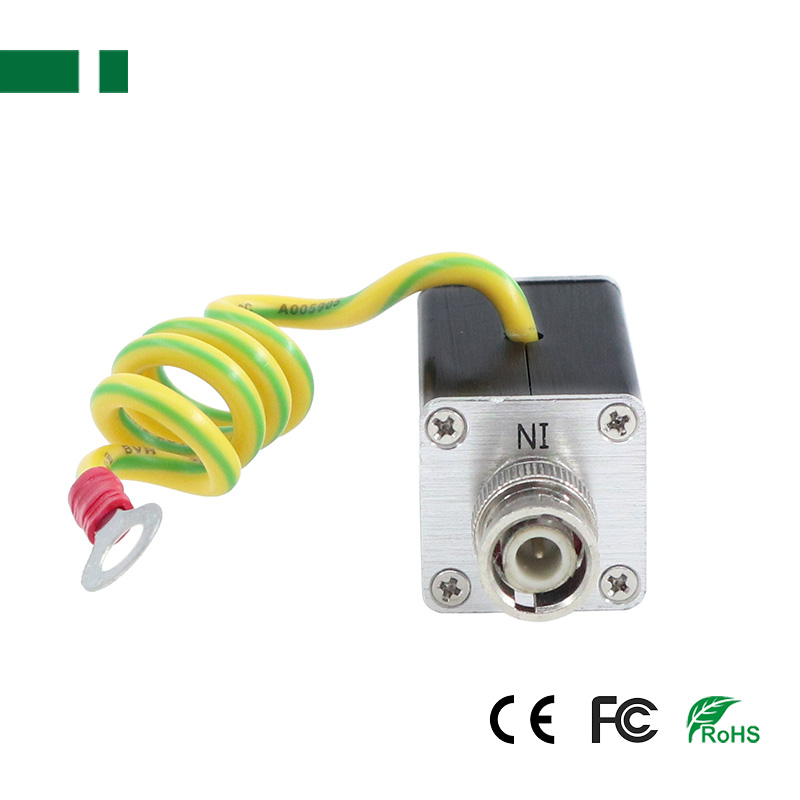

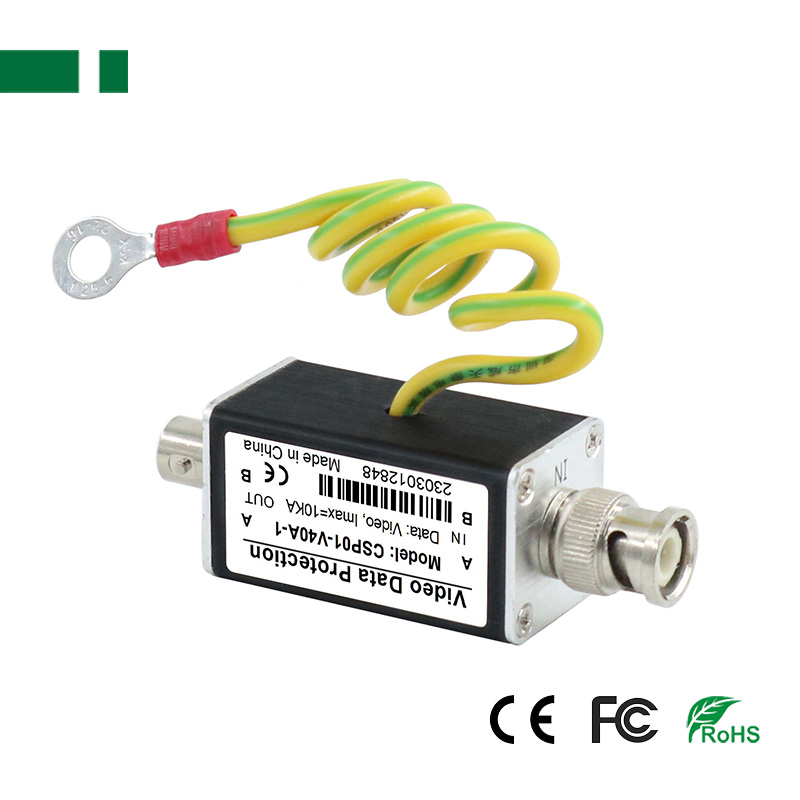

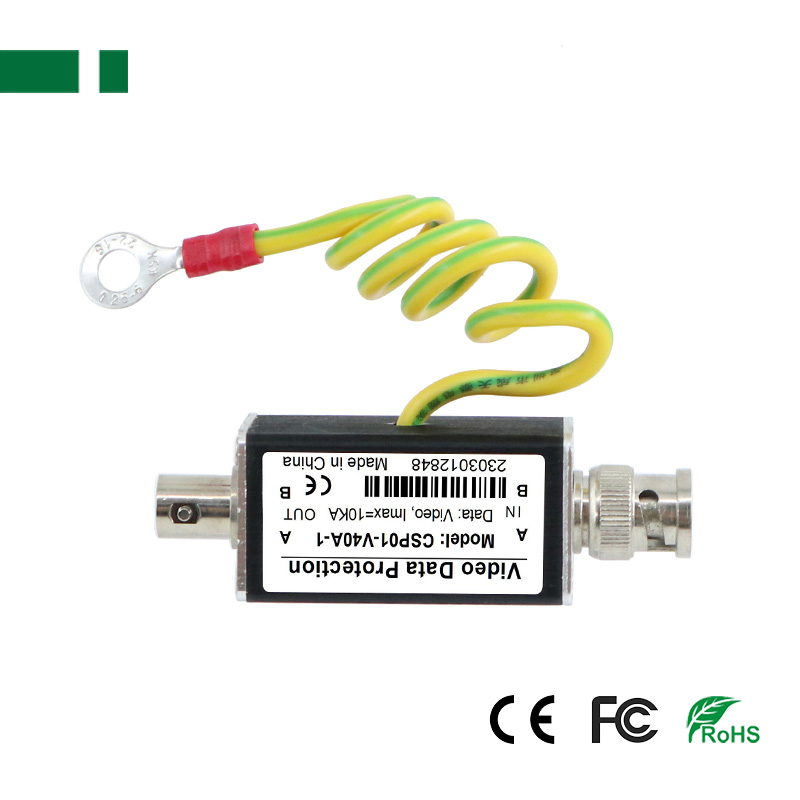

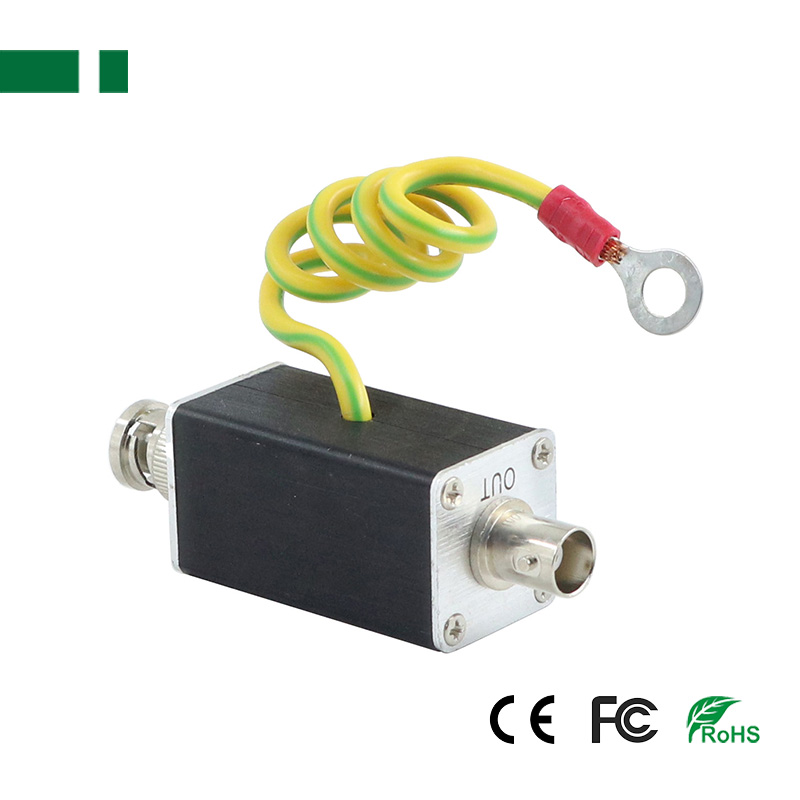

▪ 1 channel video Surge Protector;
▪ Function Multi-level over voltage protection large capacity discharge current low limiting voltage;
▪ Quick reacting time low inserting loss;
▪ Grounding Mode Extending Line to ground;
▪ Outlook design Clear mark easily recognized;

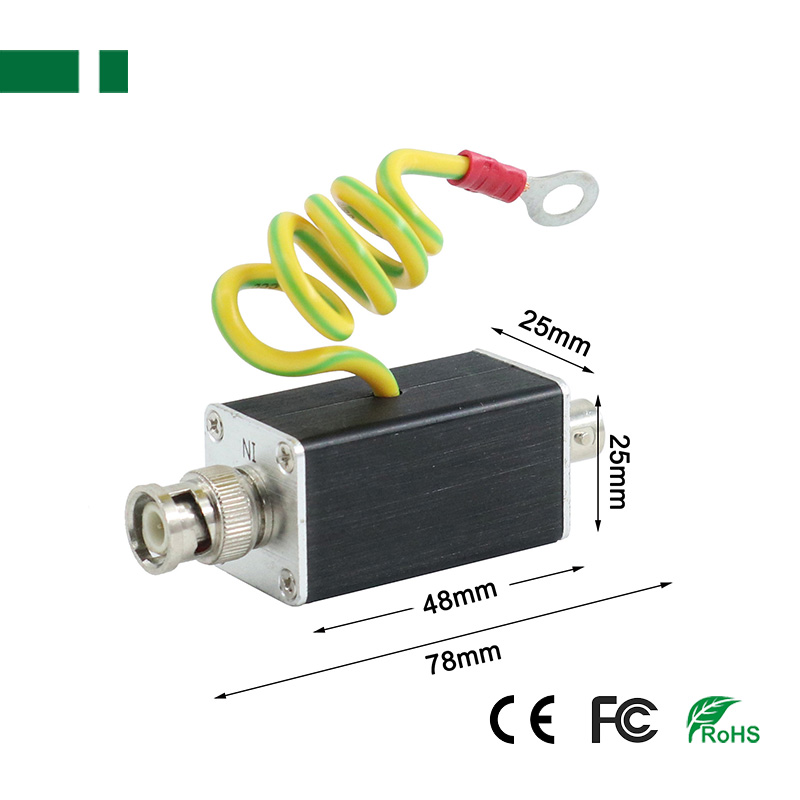

▪ Aluminum shell delicate size simple installation;
▪ Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure.
Description:
Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. However, lightning and utility power anomalies only account for 20% of transient surges. The remaining 80% of surge activity is produced internally. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility.
Feature:
▪ 1 channel video Surge Protector;
▪ Function Multi-level over voltage protection large capacity discharge current low limiting voltage;
▪ Quick reacting time low inserting loss;
▪ Grounding Mode Extending Line to ground;
▪ Outlook design Clear mark easily recognized;
▪ Aluminum shell delicate size simple installation;
Specification:
| Model | CSP01-V40A-1 | CSP01-V40A-2 | CSP01-04V | CSP01-04VW | CSP01-08V | CSP01-08VW | CSP01-16V |
| Input | BNC Female *1-ch | BNC Male *1-ch | BNC Female *4-ch | BNC Male *4-ch | BNC Female *8-ch | BNC Male *8-ch | BNC Female *16-ch |
| Output | BNC Female *1-ch | BNC Female *1-ch | BNC Female *4-ch | BNC Female *4-ch | BNC Female *8-ch | BNC Female *8-ch | BNC Female *16-ch |
| Rated Operation Voltage | 5V | ||||||
| Continuous Operation Voltage | Max. 6V | Max. 10V | |||||
| Nominal Discharge Current | 5KA (8/20μs) | ||||||
| Max Discharge Current | 10KA (8/20μs) | ||||||
| Voltage Protection | <20V (10/700μs) | ||||||
| Reacting Time | ≤1ns | ||||||
| Inserting Loss | ≤0.2dB | ≤0.5dB | ≤0.5dB | ≤0.5dB | |||
| Inserting Resistance | ≤1Ω | ≥0.4MΩ | ≥0.4MΩ | ≥0.4MΩ | |||
| Signal Bandwidth | 10MHz | 10MHz | 10MHz | 10MHz | |||
| Temperature | Working: -20°C to +50°C, Storage: -40°C to +70°C | ||||||
| Humidity | 0 to 95% | ||||||
| MTBF | >30000hrs | ||||||
