Surge Protector

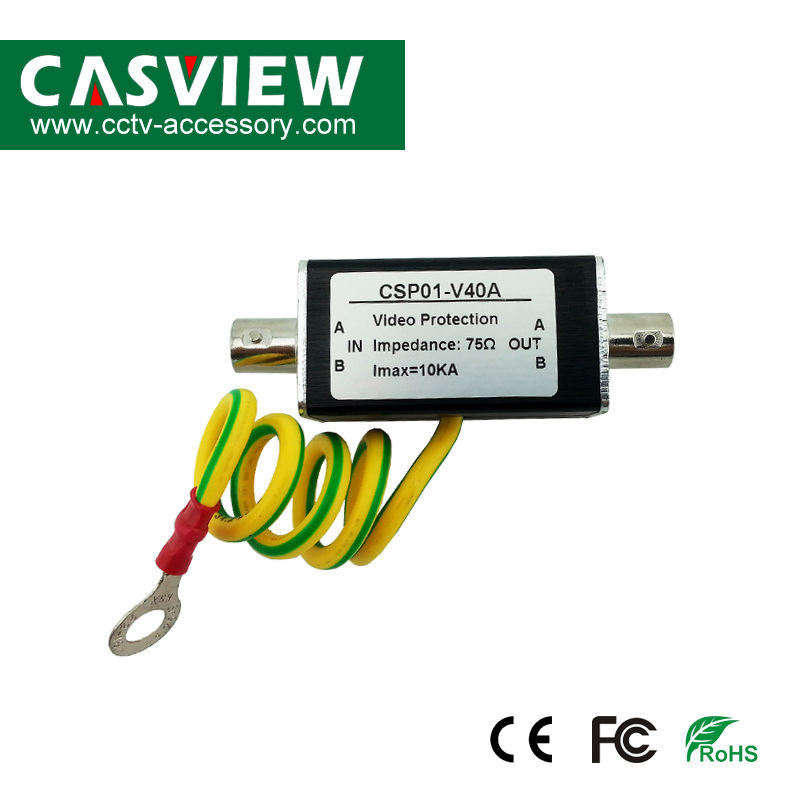

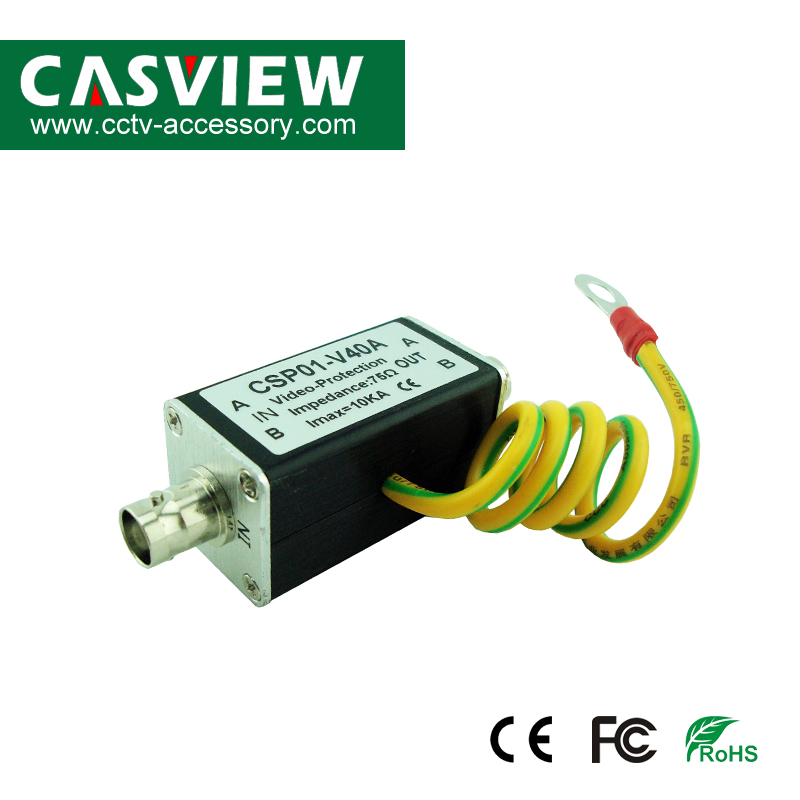

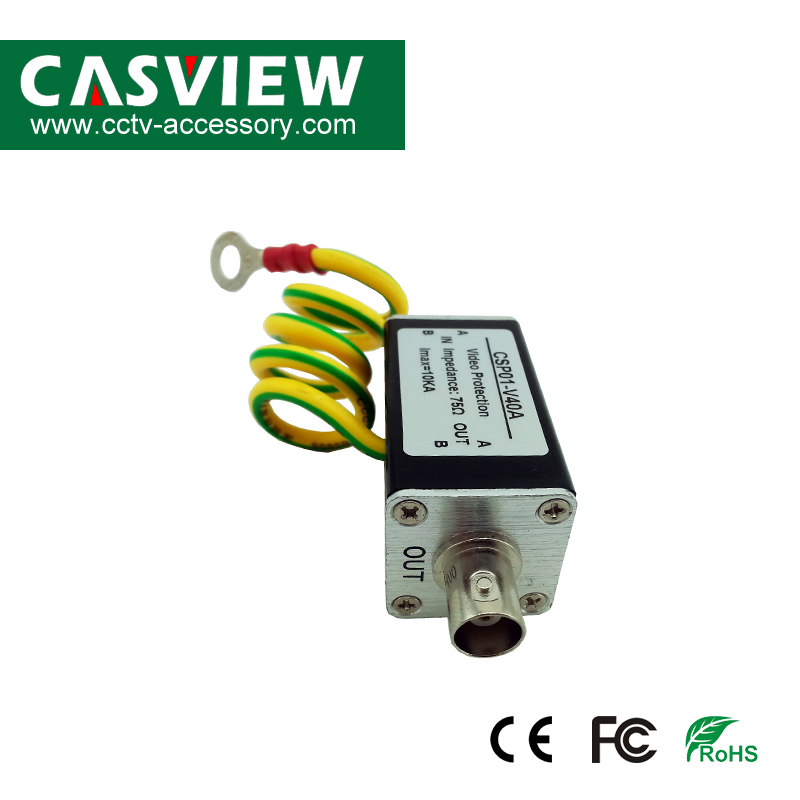

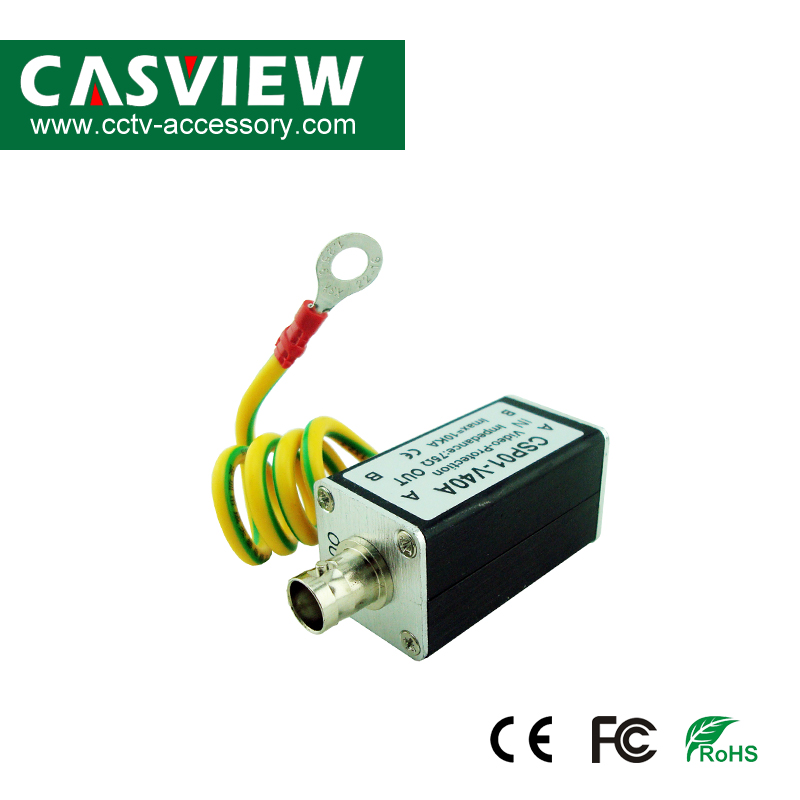

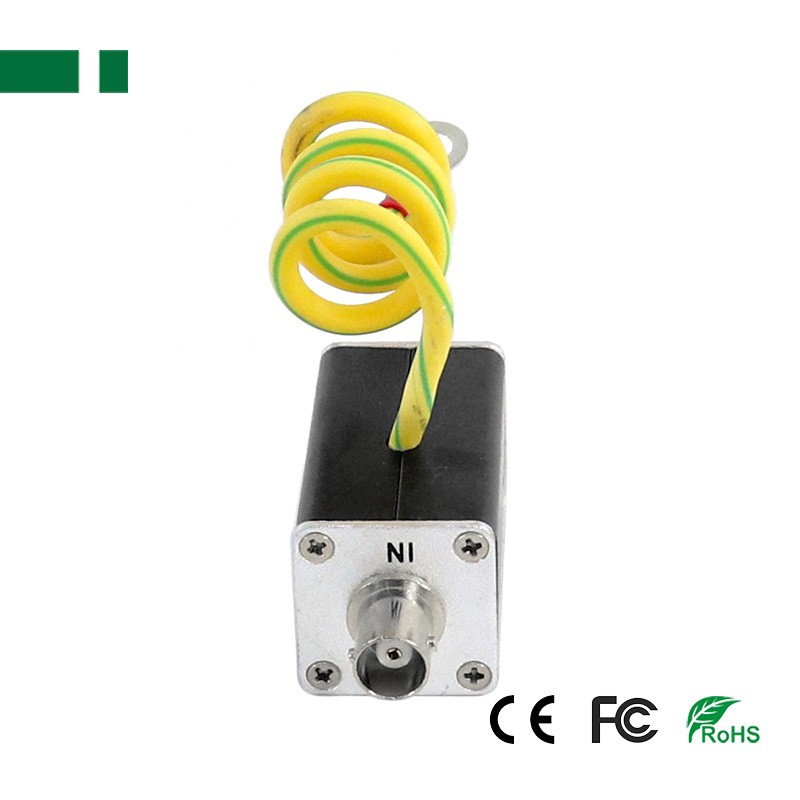

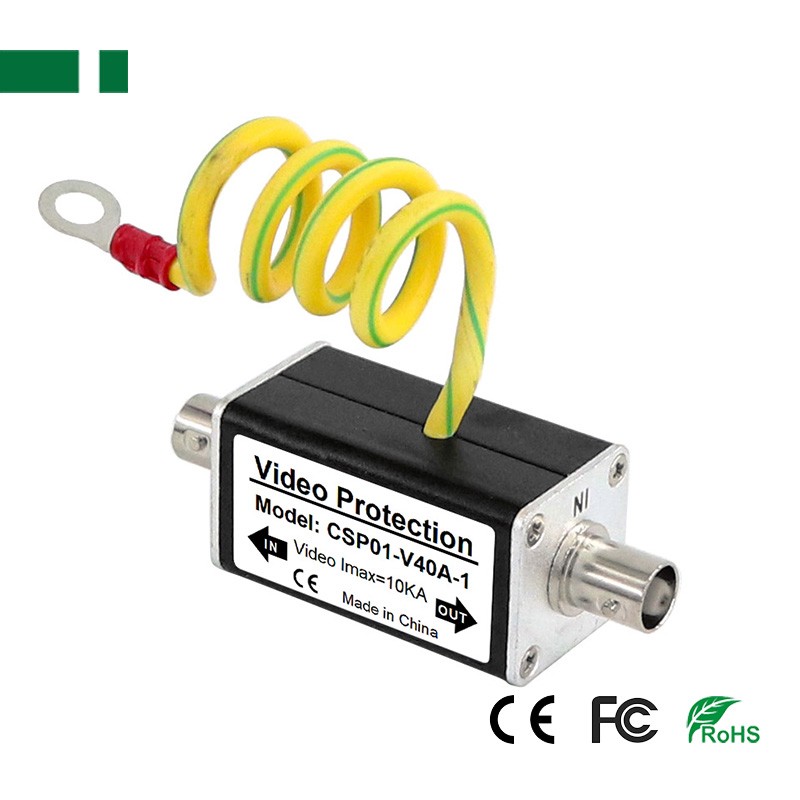

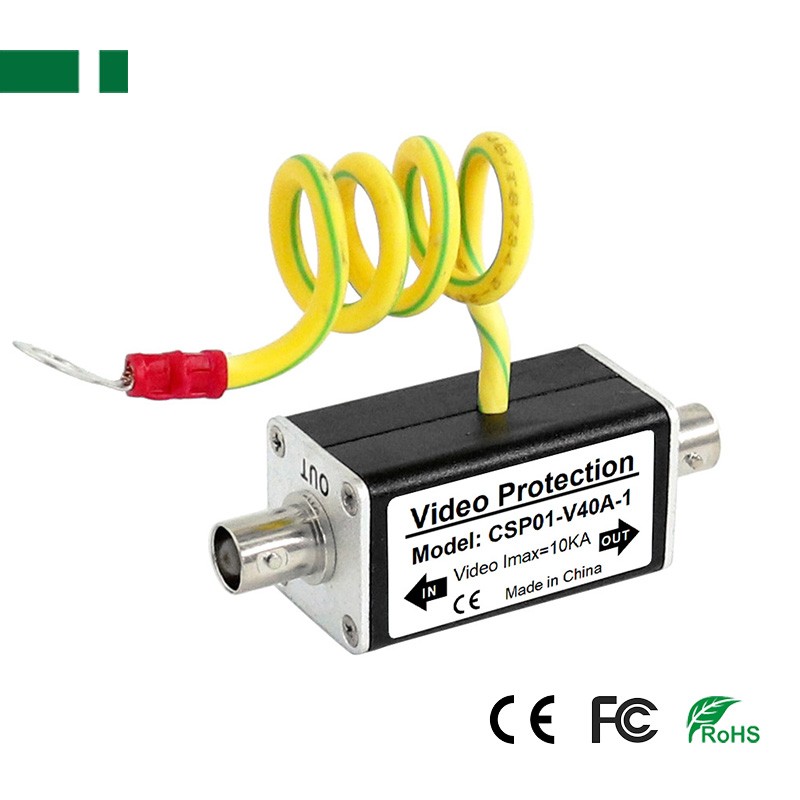

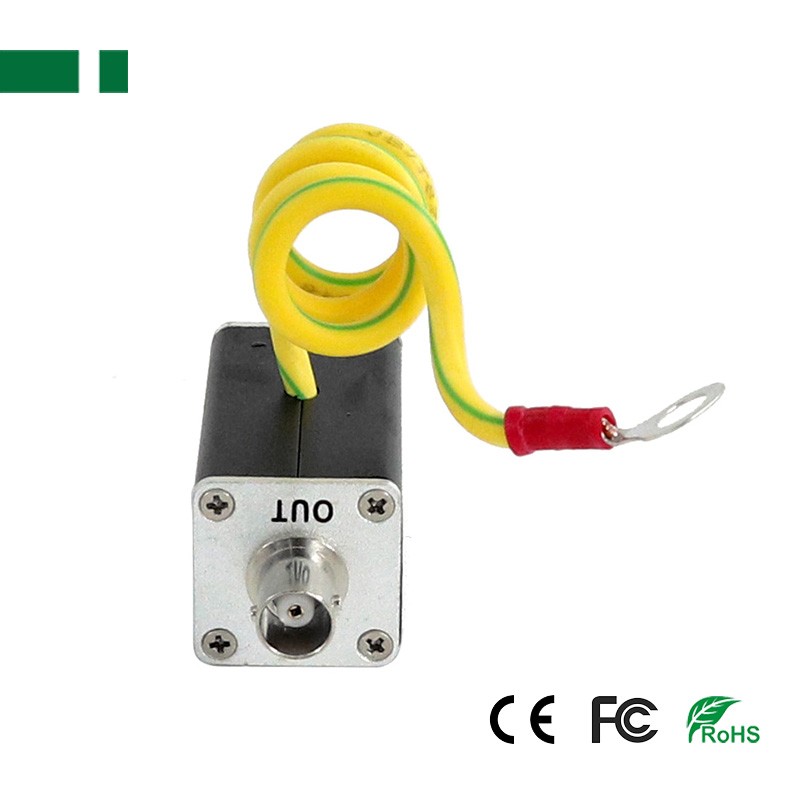

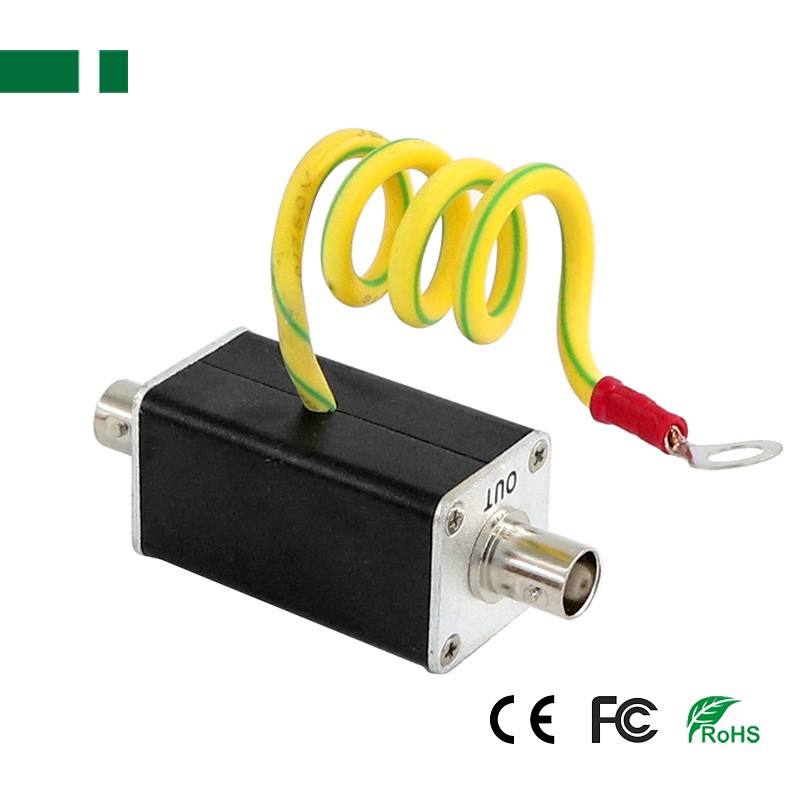

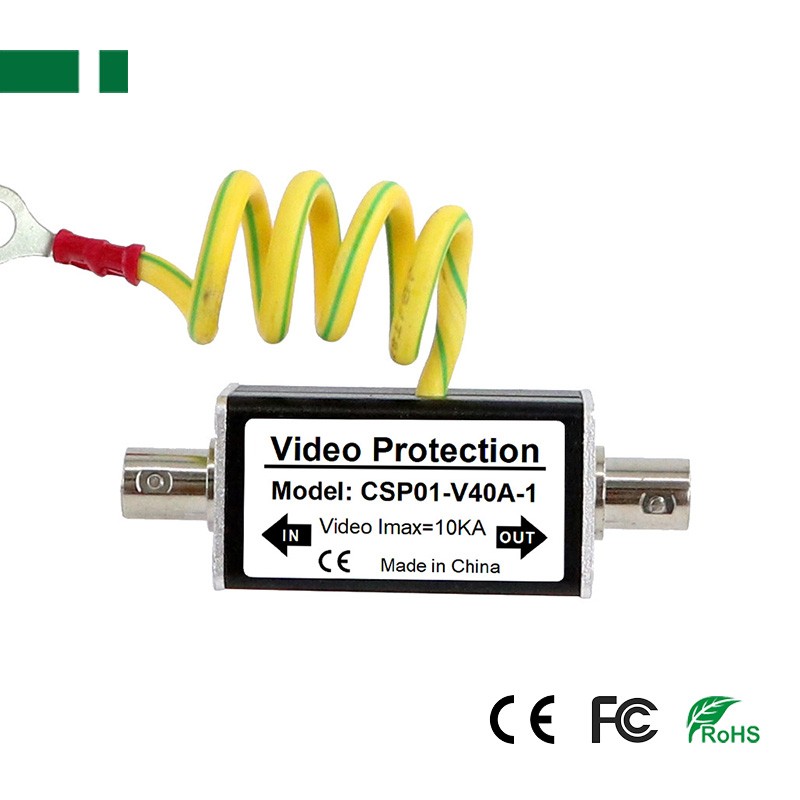

CSP01-V40A-1 Video Surge Protector
- Video Surge Protector
- High transmission rate
- Multi-level protection
- Larger flow capacity
- Product description: CASVIEW technology concentrating on switching power supply, power adapter, solar LED lights & cctv accessories etc. email: info@casview.com
Specification:
| 1 channel Video Surge Protector | |
| Model | CSP01-V40A |
| Rated operation voltage | 5V |
| Max continuous operating voltage | 6V |
| Nominal discharge current in(8/20μs) | 5KA |
| Max discharge current(8/20μs) | 10KA |
| Voltage protection level(10/700μs) | <20V |
| Reacting time | ≤1ns |
| Inserting loss | ≤0.2dB |
| Inserting resistance | ≤1Ω |
| Signal Bandwidth | 10MHz |
| Port | BNC Female |
| Working temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 0 to 95% |
| MTBF | >30000hrs |
