Ethernet and DC12V Power Supply Surge Protector
High transmission rate
Multi-level protection
Larger flow capacity
A surge protector is a special component that curbs these sudden, high voltages. As the power starts to spike, the protector kicks in, and any excessive charge is routed through the ground connection so it never has chance to cause damage. Each surge protector has a pre-set level that is deemed to be the maximum voltage allowed.
A Surge Protector is a special component that curbs these sudden, high voltages. As the power starts to spike, the protector kicks in, and any excessive charge is routed through the ground connection so it never has chance to cause damage. Each surge protector has a pre-set level that is deemed to be the maximum voltage allowed.
Feature:
● Protection Ethernet signal and DC12V/ DC(AC)24V/ AC220V power supply;
● Function Multi-level over voltage protection, large capacity discharge current, low limiting voltage, quick reacting time, low inserting loss;
● Grounding Mode Extending Line to ground;
● Outlook design Clear mark, easily recognized, aluminum shell, delicate size, simple installation.
Specification:
| Model | CSP02-EP12V | CSP02-EP24V | CSP02-EP220V | |
| Video parameters | Rated operation voltage | DC5V | ||
| Max continuous operating voltage | DC6V | |||
| Nominal discharge current in(8/20μs) | 3KA | |||
| Max discharge current(8/20μs) | 5KA | |||
| Voltage protection level(10/700μs) | <15V | |||
| Reacting time | ≤1ns | |||
| Inserting loss | ≤0.2dB | |||
| Data transmission rate Vs | 100Mbps | |||
| Signal Bandwidth | 10MHz | |||
| Power parameters | Nominal working voltage | DC12V | DC/ AC 24V | AC220V |
| Max continuous operating voltage | DC18V | DC/ AC47V | DC470V | |
| Nominal discharge current(8/20μs) | 5KA | |||
| Max discharge current (8/20μs) | 10KA | |||
| RLA | ≤10A | |||
| Leakage Current | ≤5μA | |||
| Reacting Time | ≤25ns | |||
| Connector type | RJ45 & Grip | |||
| Environment parameters | Working temperature | -20°C to +50°C | ||
| Storage Temperature | -40°C to +70°C | |||
| Humidity | 0 to 95% | |||
| MTBF | >30000hrs | |||

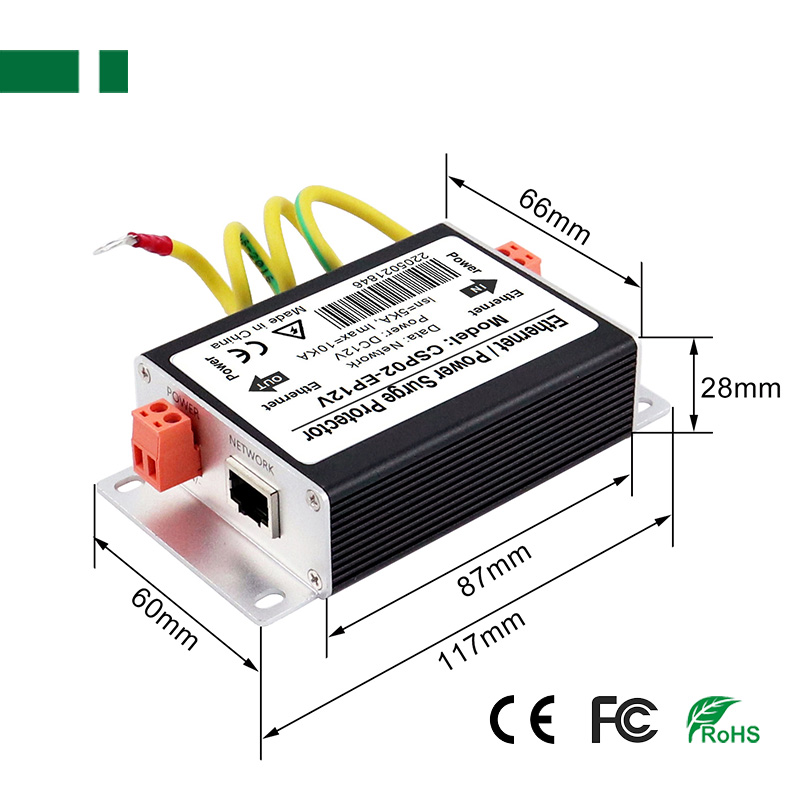

| Other parameters | Dimension | 120*65*28mm, 140g | ||
| Test standard | IEC61643-21 : 2000 | |||
