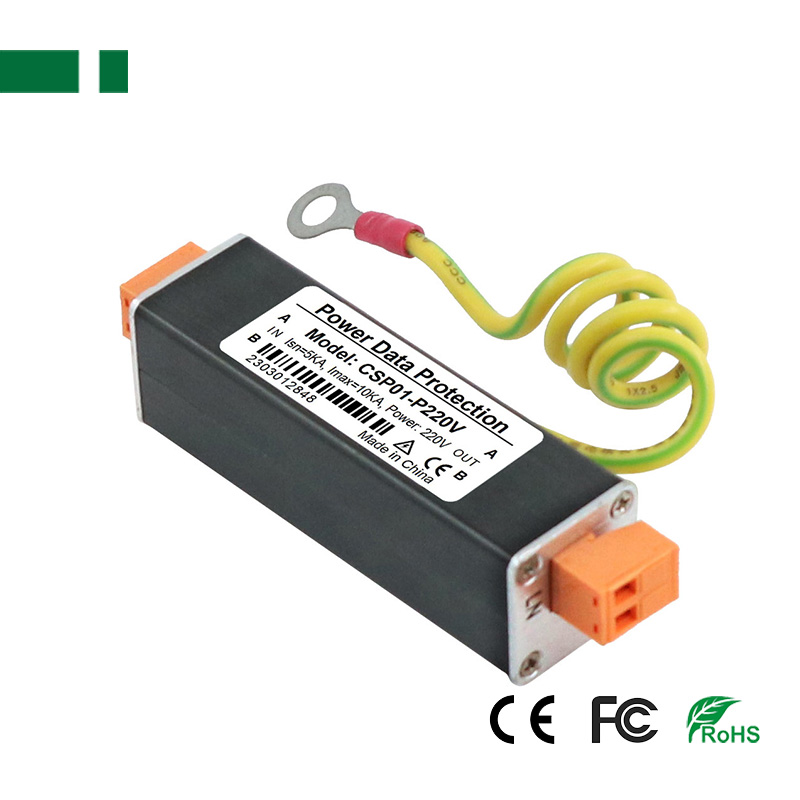

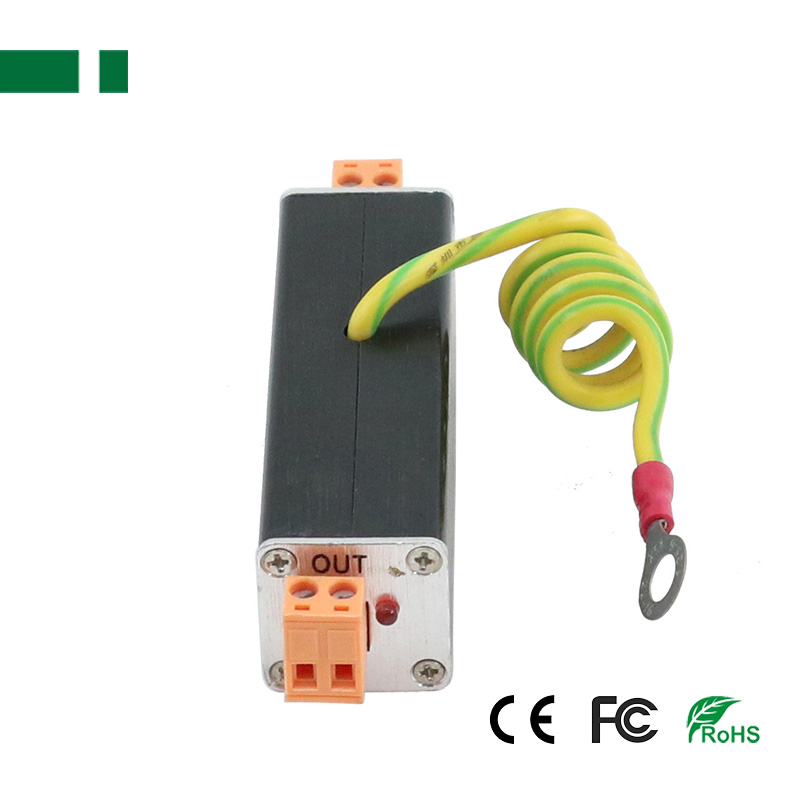

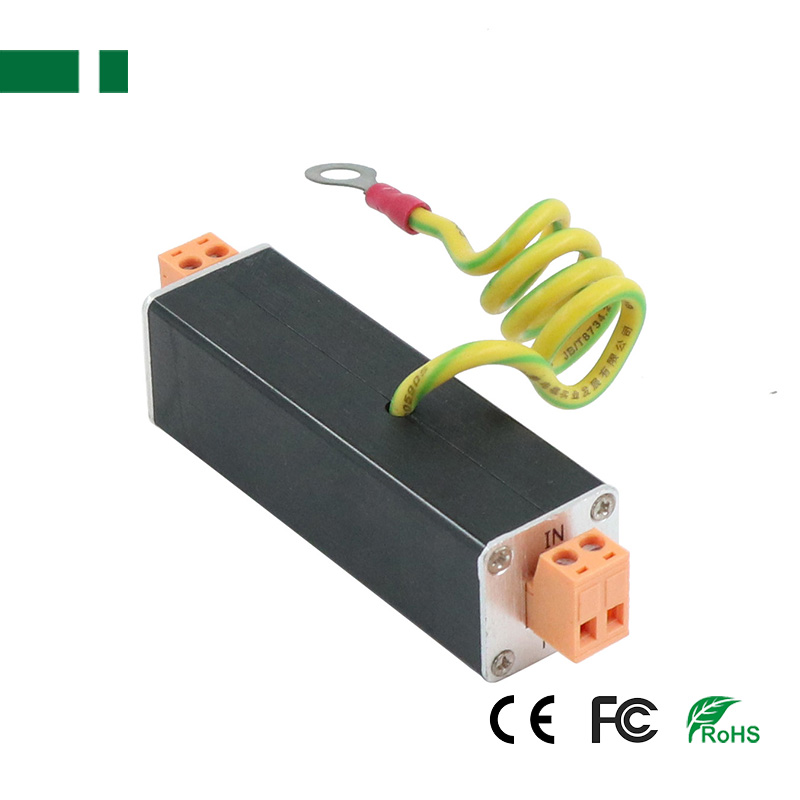

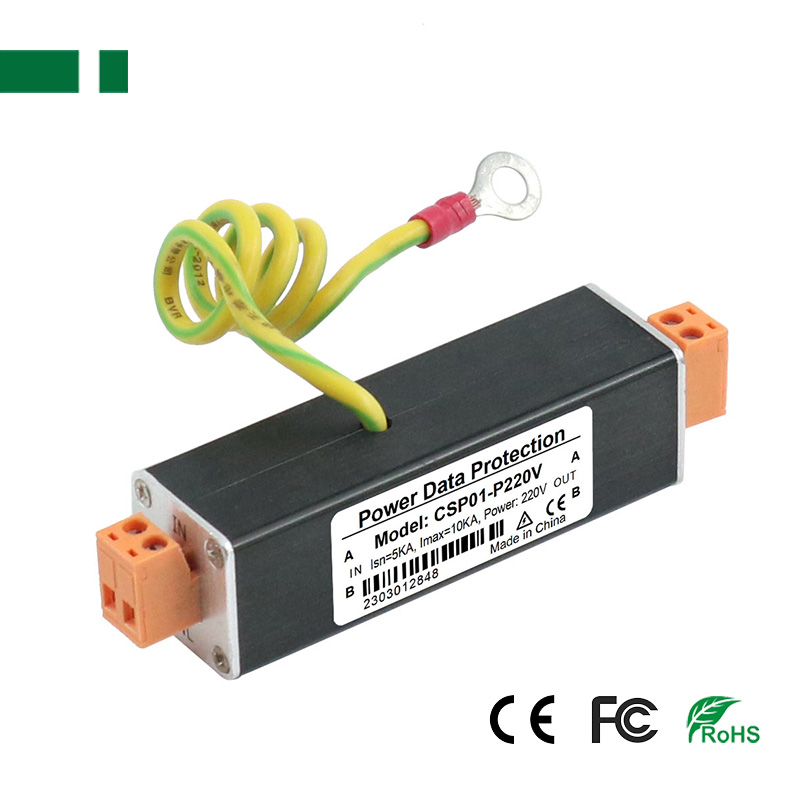

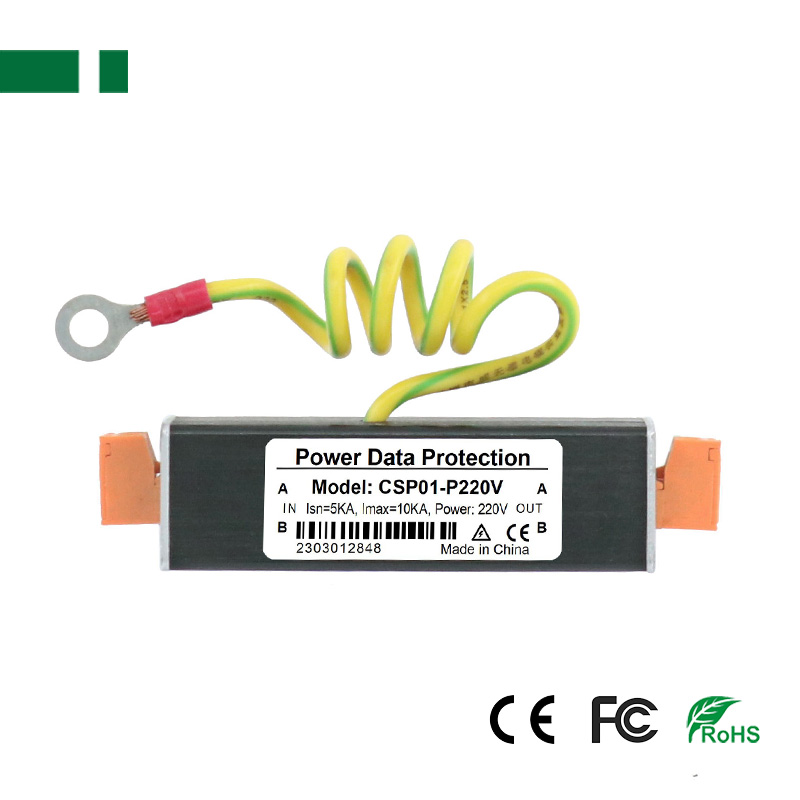

CSP01-P220V AC220V Power Surge Protector

  • AC220V Power Surge Protector
  • High transmission rate
  • Multi-level protection
  • Larger flow capacity
  • Product description: Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or i
  • INQUIRY   EMAIL
Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. However, lightning and utility power anomalies only account for 20% of transient surges. The remaining 80% of surge activity is produced internally. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility.

Features:
1. Protection DC12V/ DC(AC)24V/ AC220V power;
2. Function Multi-level over voltage protection, large capacity discharge current, low limiting voltage, quick reacting time, low inserting loss,
3. Grounding Mode Extending Line to ground,
4. Outlook design Clear mark, easily recognized, aluminum shell, delicate size, simple installation;

Specification:

DC12V/ DC(AC)24V/ AC220V Power Supply Surge Protector
Model CSP01-P12V CSP01-P24V CSP01-P220V
Rated work voltage DC12V DC/ AC 24V AC220V
Max. work voltage Max. DC18V Max. DC47V Max. AC470V
Nominal current 2.5KA  ( 8/20µs )
Max. current 5KA  ( 8/20µs )
Voltage protect level <75V ( 10/700µs ) <120V ( 10/700µs ) <600V ( 10/700µs )
Reacting time ≤25ns
RLA ≤3A
Leakage current ≤5µA
Connector type Grip
Dimension 70*25*25mm 105*25*25mm
Weight 52g 76g
Test standard IEC61643-21: 2000
