Surge Protector

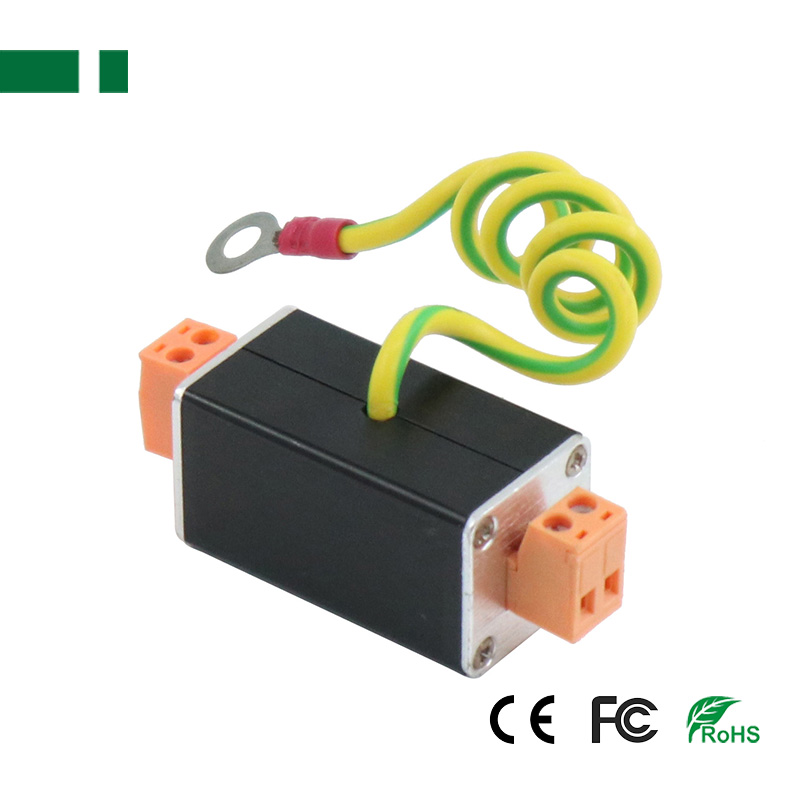

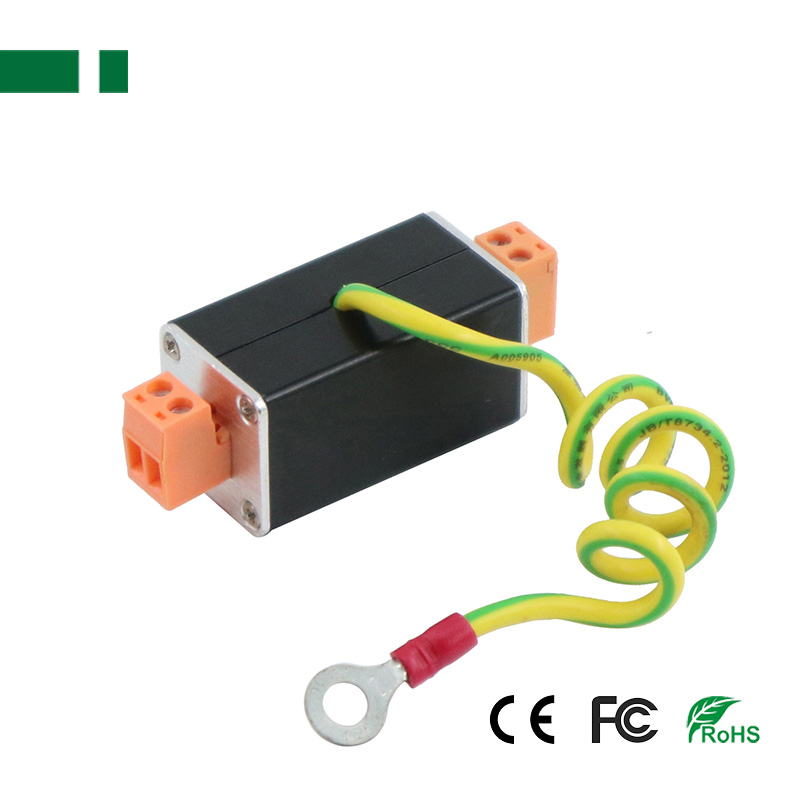

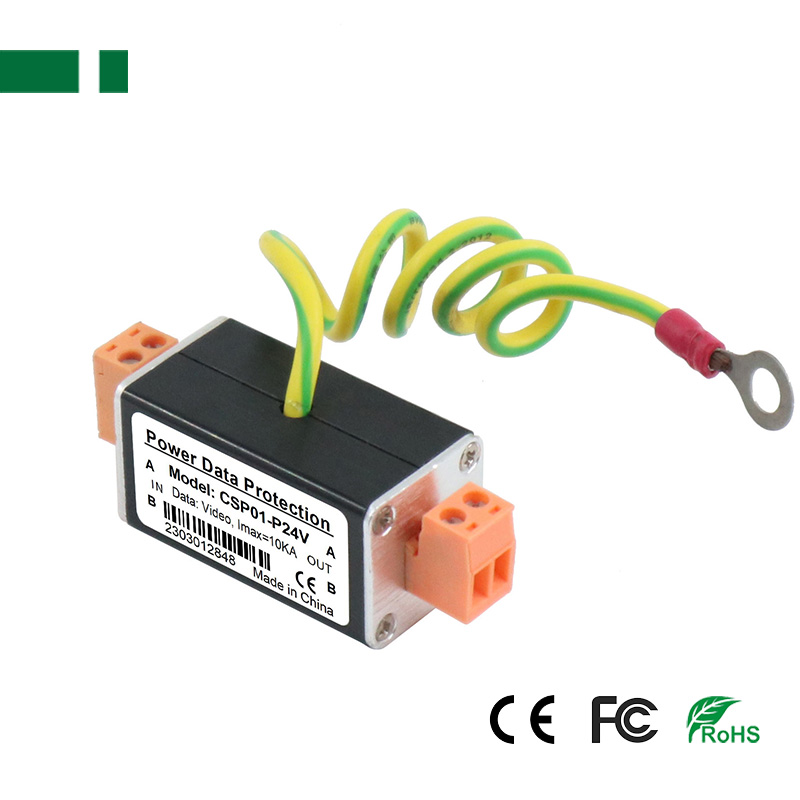

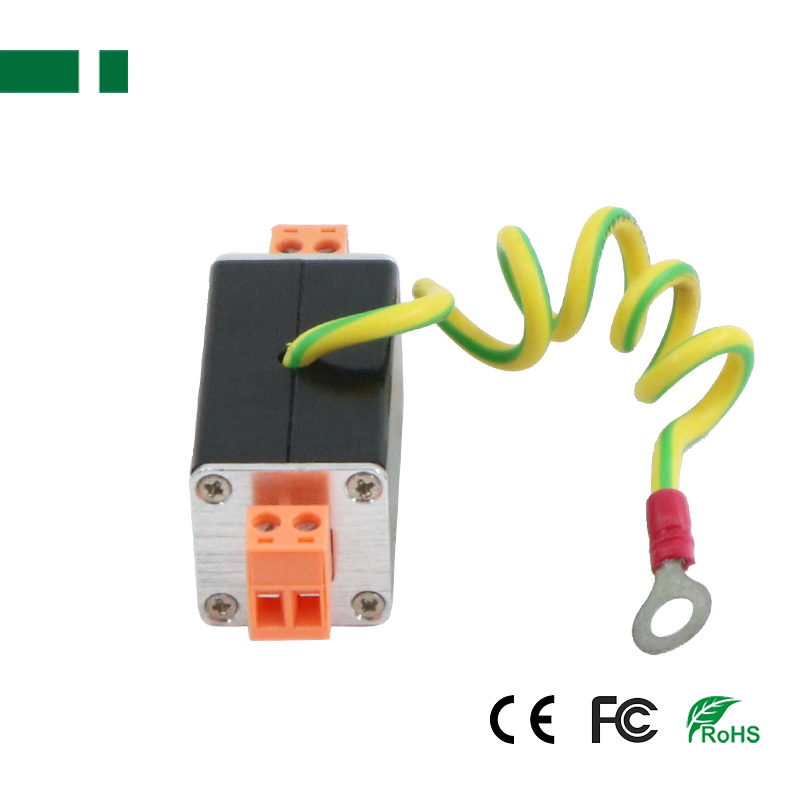

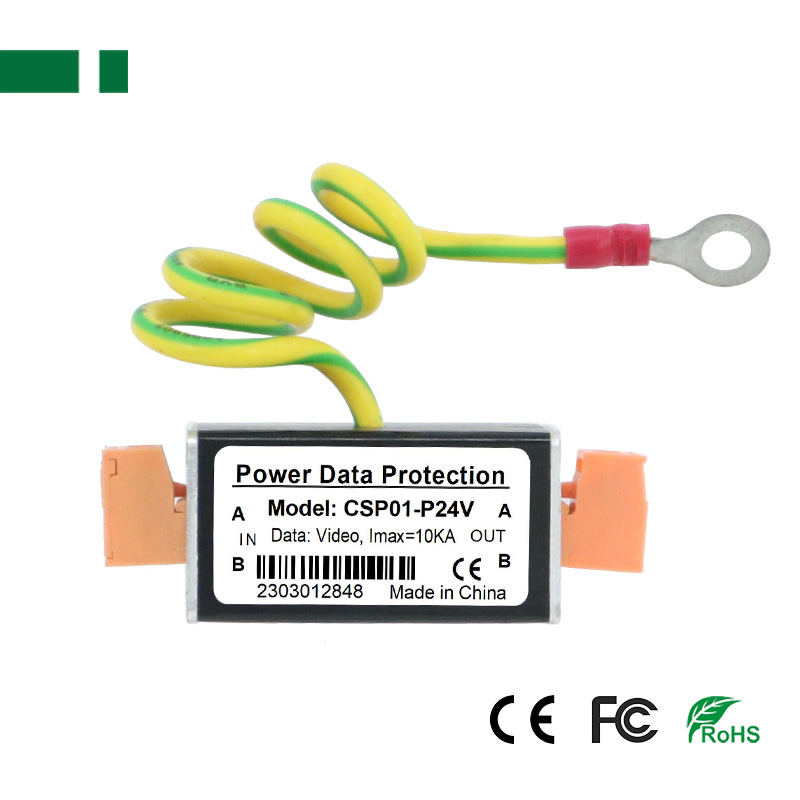

CSP01-P24V DC24V & AC24V Power Surge Protector

DC24V & AC24V Power Surge Protector
High transmission rate
Multi-level protection
Larger flow capacity
Product description: Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or i
INQUIRY EMAIL

Surge Protective Devices are designed to protect against transient surge conditions. Large single surge events, such as lightning, can reach hundreds of thousands of volts and can cause immediate or intermittent equipment failure. However, lightning and utility power anomalies only account for 20% of transient surges. The remaining 80% of surge activity is produced internally. Although these surges may be smaller in magnitude, they occur more frequently and with continuous exposure can degrade sensitive electronic equipment within the facility.

Features:
1. Protection DC12V/ DC(AC)24V/ AC220V power;
2. Function Multi-level over voltage protection, large capacity discharge current, low limiting voltage, quick reacting time, low inserting loss，
3. Grounding Mode Extending Line to ground，
4. Outlook design Clear mark, easily recognized, aluminum shell, delicate size, simple installation；

Specification:

DC12V/ DC(AC)24V/ AC220V Power Supply Surge Protector
Model	CSP01-P12V	CSP01-P24V	CSP01-P220V
Rated work voltage	DC12V	DC/ AC 24V	AC220V
Max. work voltage	Max. DC18V	Max. DC47V	Max. AC470V
Nominal current	2.5KA ( 8/20µs )
Max. current	5KA ( 8/20µs )
Voltage protect level	<75V ( 10/700µs )	<120V ( 10/700µs )	<600V ( 10/700µs )
Reacting time	≤25ns
RLA	≤3A
Leakage current	≤5µA
Connector type	Grip

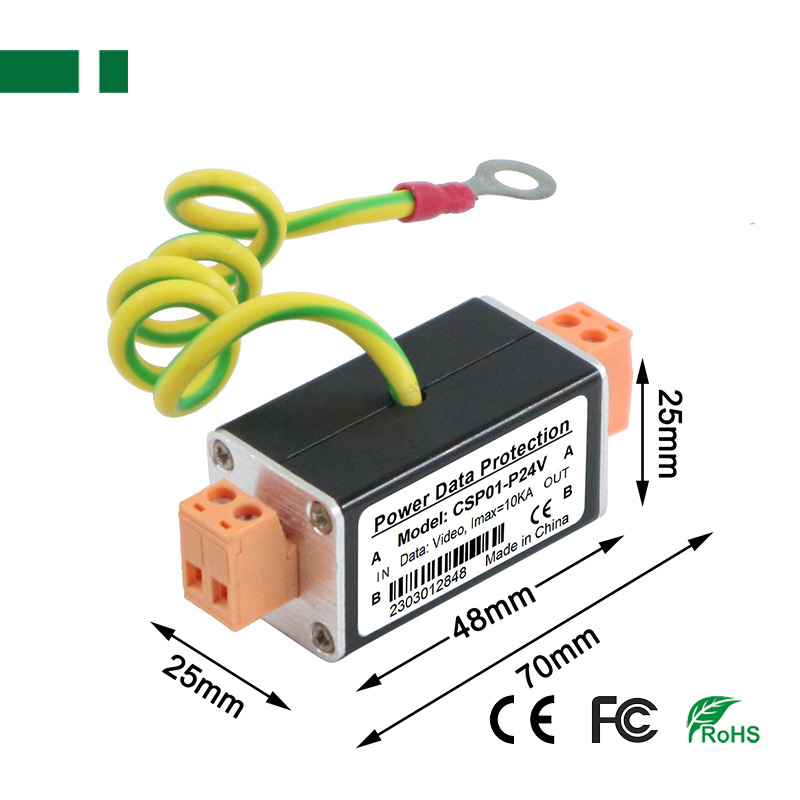

Dimension	702525mm		1052525mm
Weight	52g		76g
Test standard	IEC61643-21: 2000
