HD Passive Video Balun

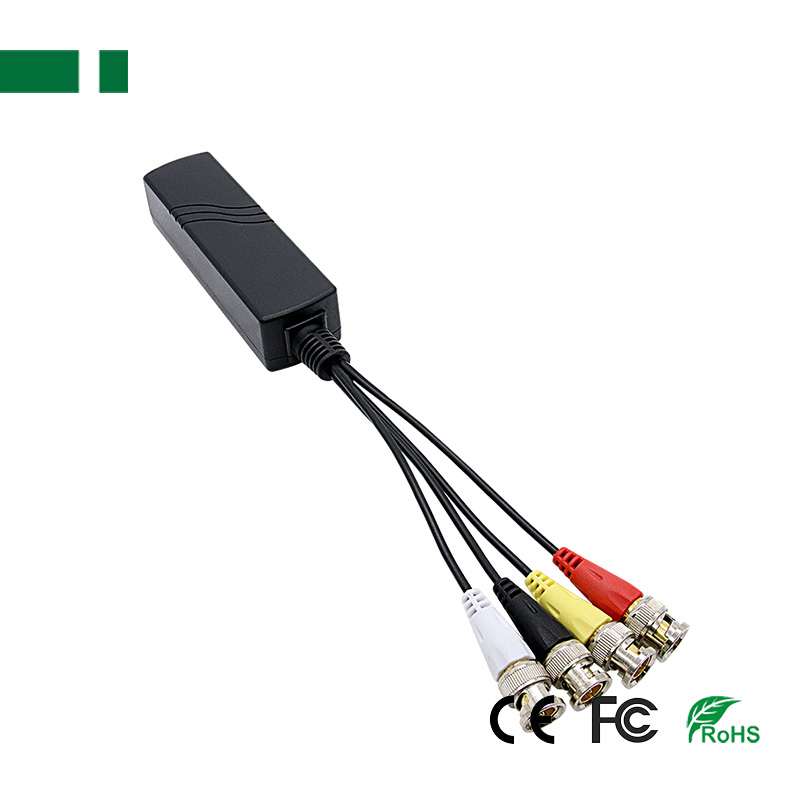

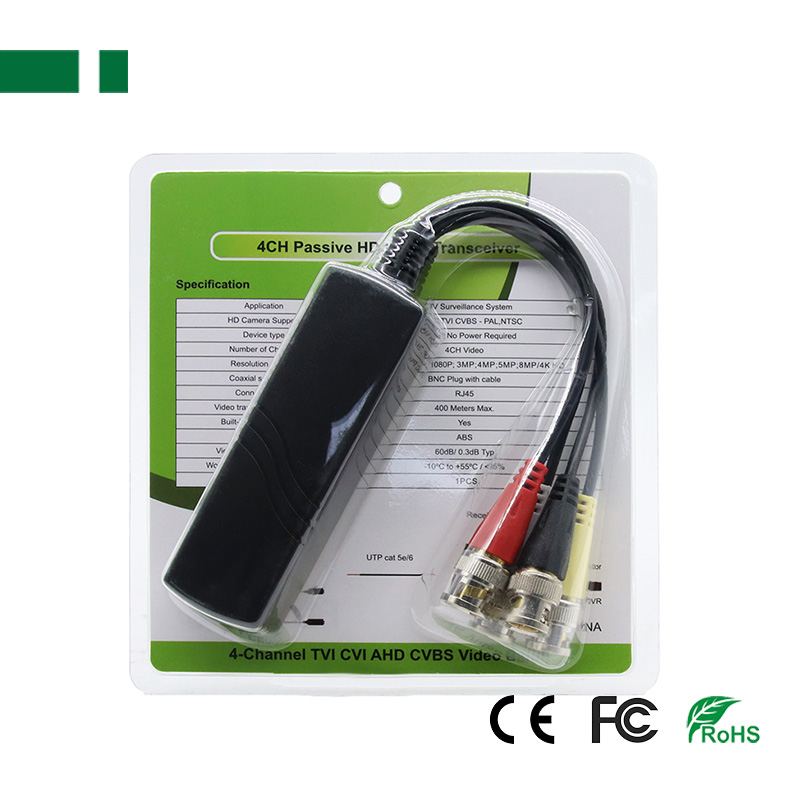

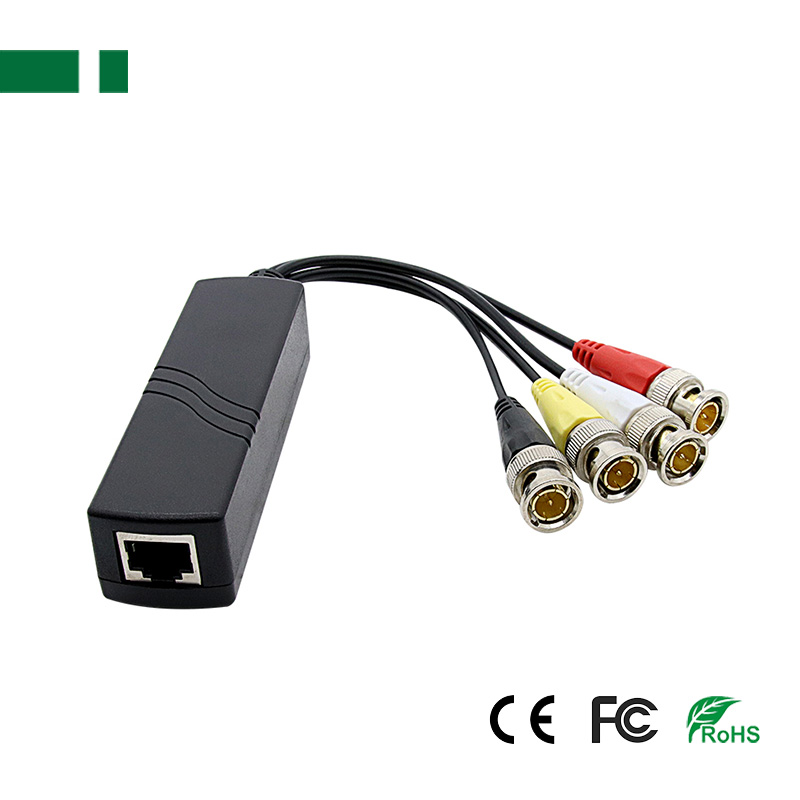

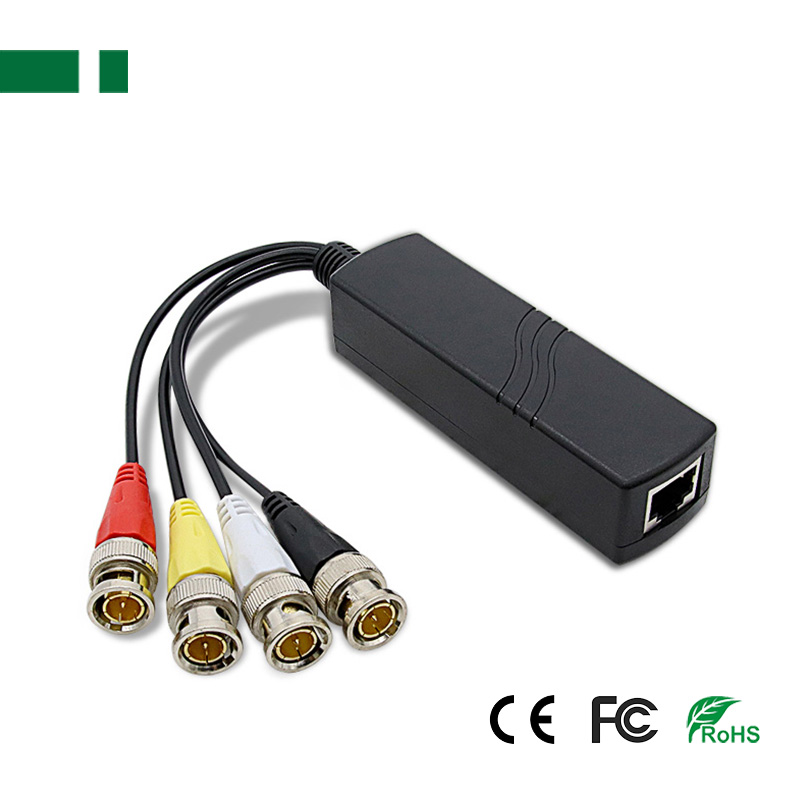

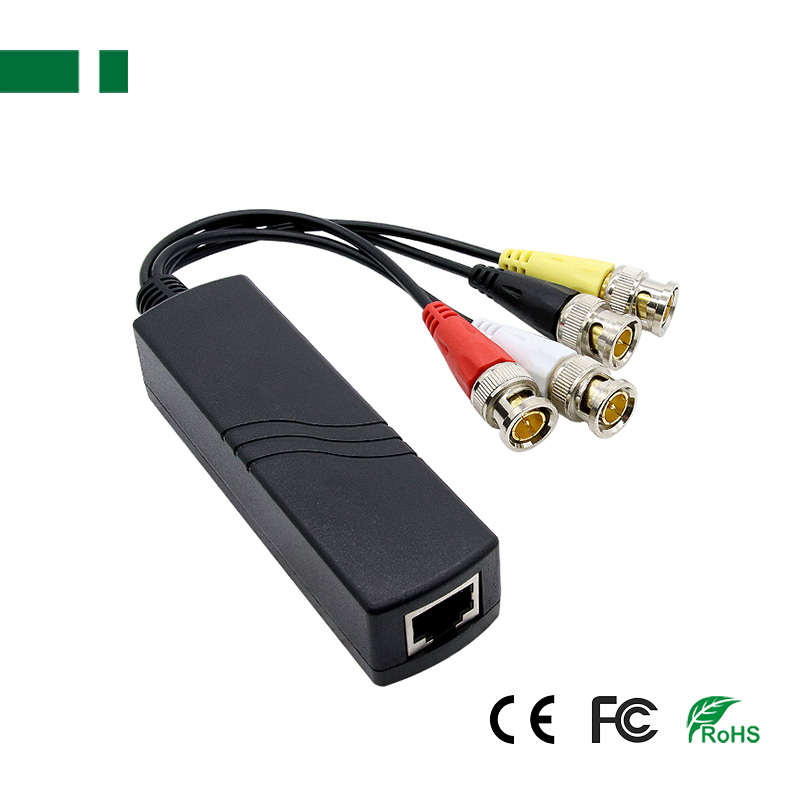

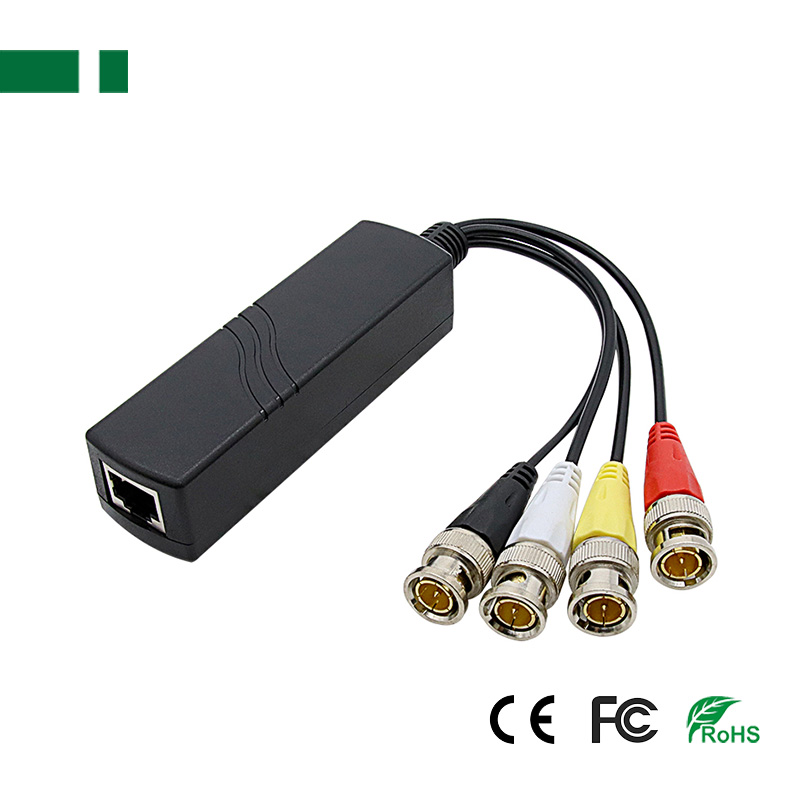

CPB-H405C 4 channels HD-TVI-AHD-CVI Video Balun

CPB-H405C 4 channels HD-TVI-AHD-CVI Video Balun

4 channels HD-TVI-AHD-CVI Video Balun
1080P/3MP/4MP/5MP/8MP
Lightning protection design
Real-time transmission over UTP Cat5e/6
Product description: 4chs 8MP Passive HD Video Transceiver; Support HD TVI/ CVI/ AHD & CVBS, Support 720P, 960P, 1080P, 3MP/5MP, 8MP/4K
INQUIRY EMAIL

Features:
4chs 8MP Passive HD Video Transceiver;
1. Support HD TVI/ CVI/ AHD & CVBS;
2. Support 720P, 960P, 1080P, 3MP/5MP, 8MP/4K;
3. Video transmission distance: 400M Max.;
4. Built-in Surge Protection;
5. Material: ABS (shell).

Specification:

Model	CPB-H405C
Balun Type	Passive
Video transmitting distance	Up to 450m for 720P CVI Cameras Up to 250m for 1080P/ 3MP/ 4MP/ 5MP CVI Cameras Up to 250m for 720P/ 1080P/ 3MP/ 4MP/ 5MP TVI Cameras Up to 350m for 720P/ 960P AHD Cameras Up to 250m for 1080P/ 3MP/ 4MP/ 5MP AHD Cameras
Video Formats	NTSC, PAL, SECAM
Crosstalk & noise immunity	60dB
Surge protection	4KV, ESD:8KV
Frequency Response	DC to 60Mhz
Wire Type	Unshielded Cat-5 or above twisted pair wire
Impedance	BNC:75 ohms; Terminal: 100 ohms
Working temperature	-10°C to +70°C
Storage Temperature	-10°C to +70°C
Humidity	0 to 95%
Material	ABS engineering plastic
