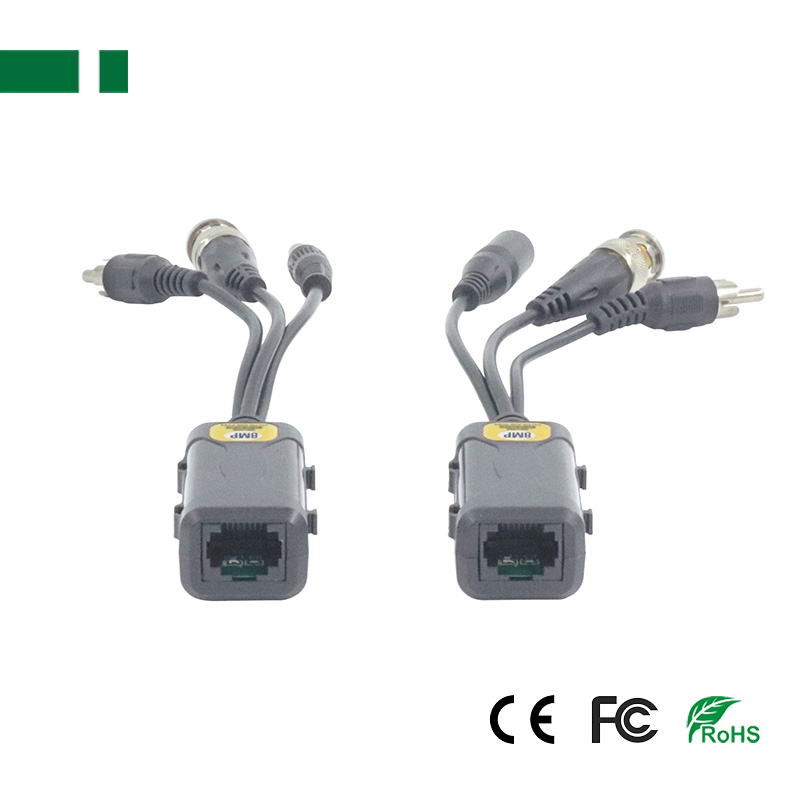

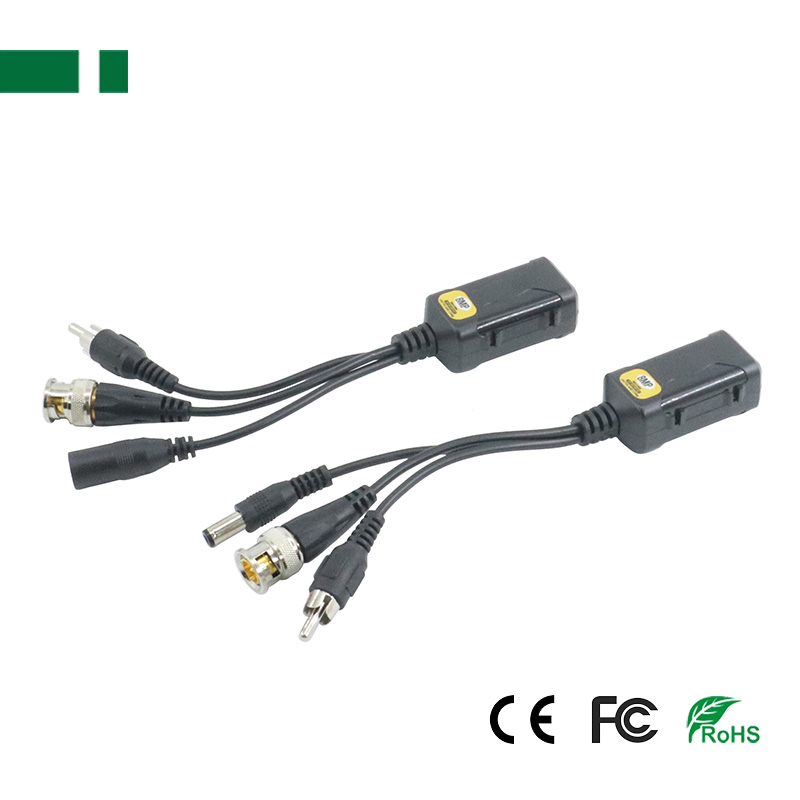

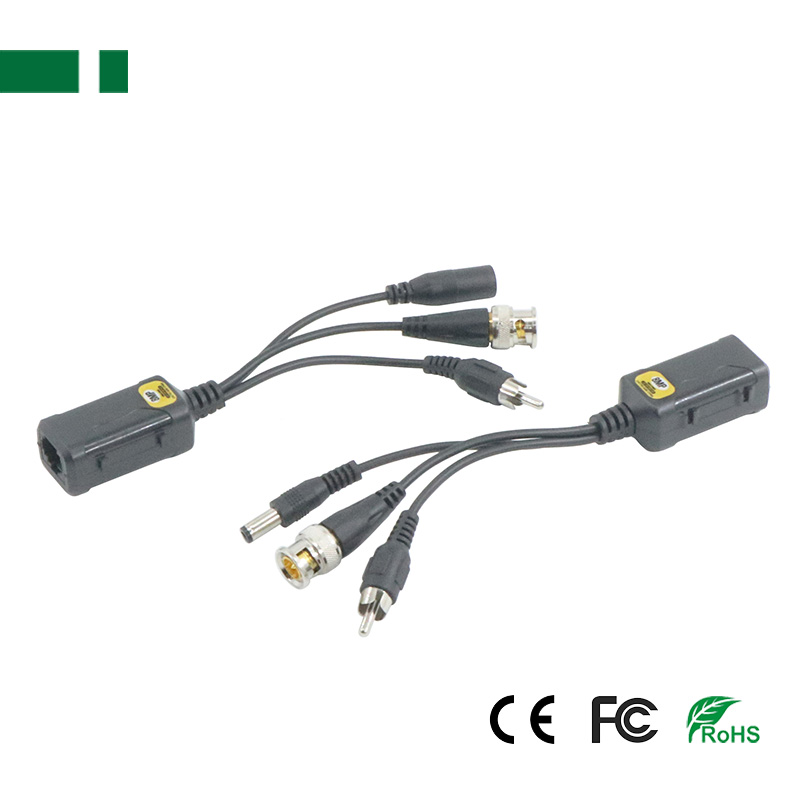

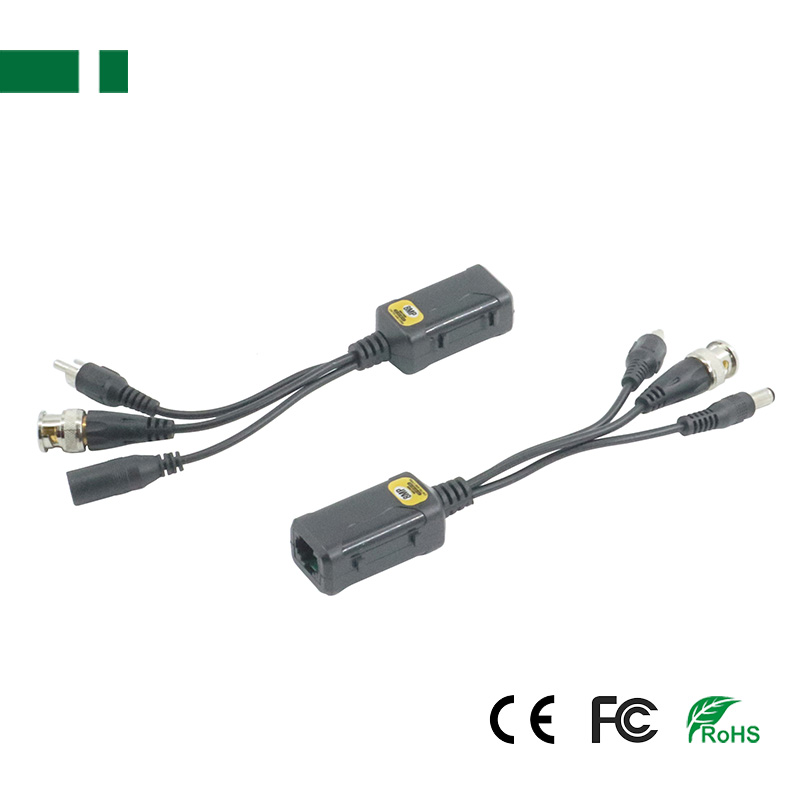

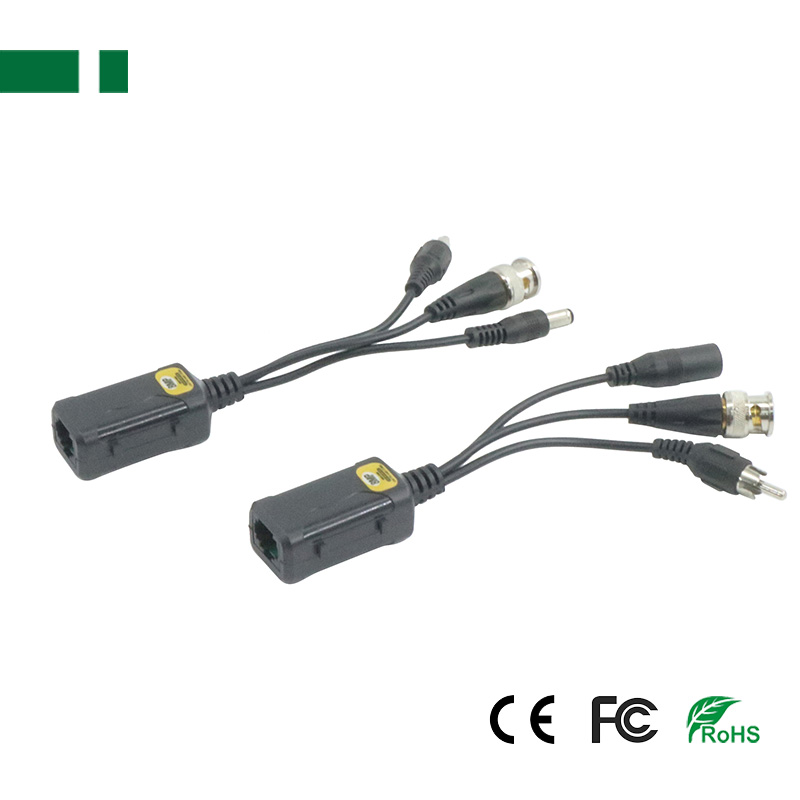

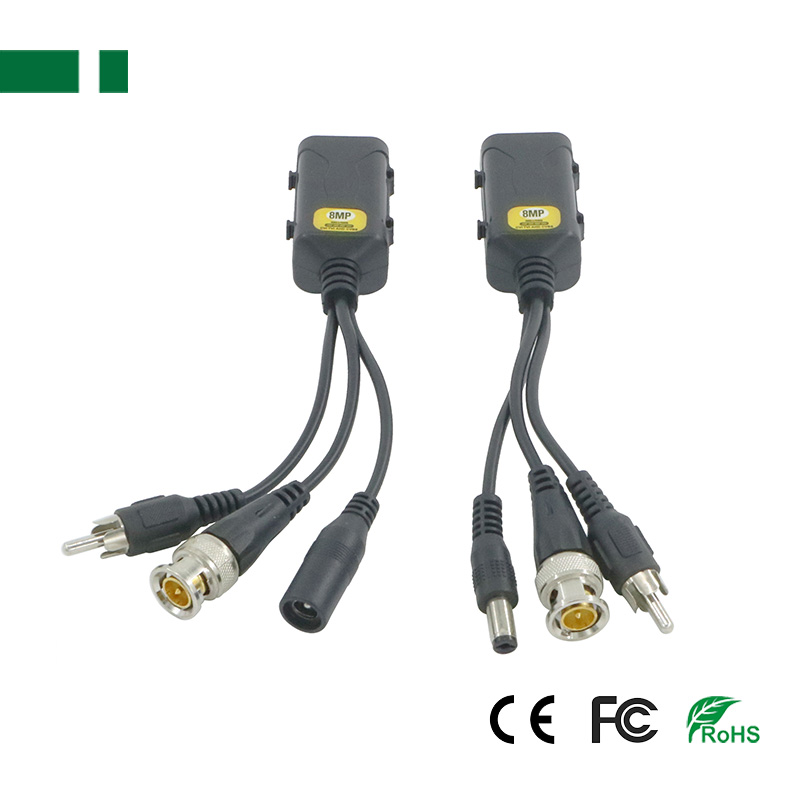

CPB-H307PA HD Video, DC Power and Audio Transmission

  • HD-CVI/TVI/AHD & CVBS
  • 1080P/3MP/4MP/5MP/8MP
  • Lightning protection design
  • Real-time transmission over UTP Cat5e/6
  • Product description: Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS, Compatible with 720P/960P/1080P/3MP/4MP/5MP/8MP.
  • INQUIRY   EMAIL
Features:
1. Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS
2. Compatible with 720P/960P/1080P/3MP/4MP/5MP/8MP
3. Built in solid state TVS (Transient voltage suppressor) for surge protection
4. No power required
5. stackable  for Neat installtion
6. ABS engineering plastic Housing
7. 60dB crosstalk and noise immunity
8. Lightning protection design grade:III
9. Wave Filter design, Anti-statit design
10. Real-time transmission over UTP Cat5e/6

Specification:
Model CPB-H307P CPB-H307PA
Connector BNC(Video) + DC(Power) 2-in-1 BNC(Video) + DC(Power) + RCA(Audio) 3-in-1
Balun Type Passive
Video transmitting distance
Up to 450m for 720P CVI Cameras
Up to 250m for 1080P/ 3MP/ 4MP/ 5MP CVI Cameras
Up to 250m for 720P/ 1080P/ 3MP/ 4MP/ 5MP TVI Cameras
Up to 350m for 720P/ 960P AHD Cameras
Up to 250m for 1080P/ 3MP/ 4MP/ 5MP AHD Cameras
Video Formats NTSC, PAL, SECAM
Crosstalk & noise immunity 60dB
Surge protection 4KV, ESD:8KV
Frequency Response DC to 60Mhz
Wire Type Unshielded Cat-5 or above twisted pair wire
Impedance BNC:75 ohms; Terminal: 100 ohms
Working temperature -10°C to +70°C
Storage Temperature -10°C to +70°C
Humidity 0 to 95%
Material ABS engineering plastic
