▪ Water-proof HD-CVI-TVI-AHD-CVBS Video Balun
▪ 1080P/3MP/4MP/5MP/8MP
▪ Lightning protection design
▪ Real-time transmission over UTP Cat5e/6
▪ A video balun is a wire connector device that allows UTP cable (such as CAT5) to transmit the video signal from CCTV cameras instead of using coaxial cable such as RG59.

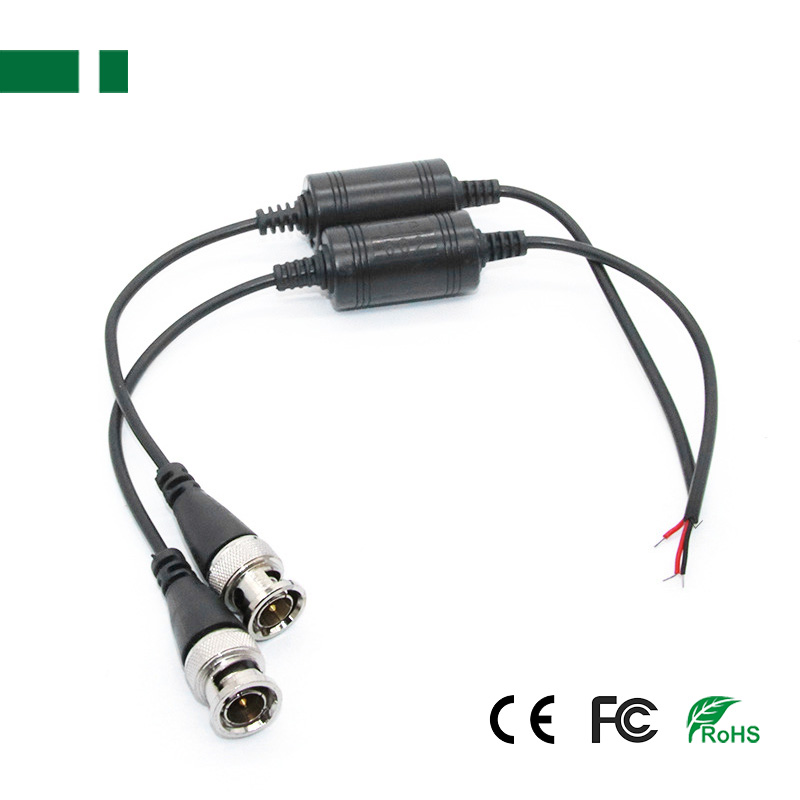

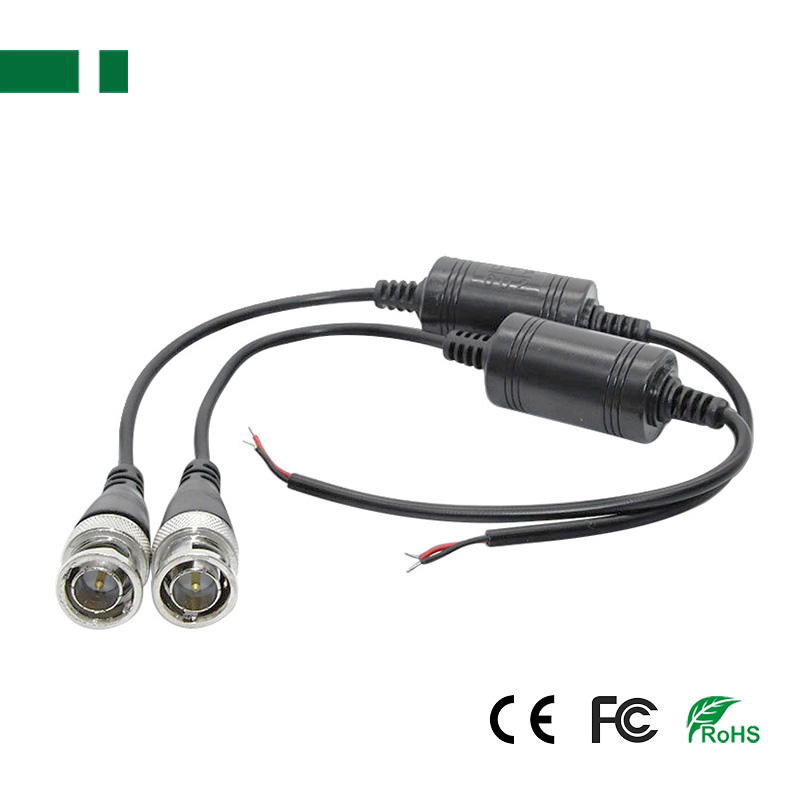

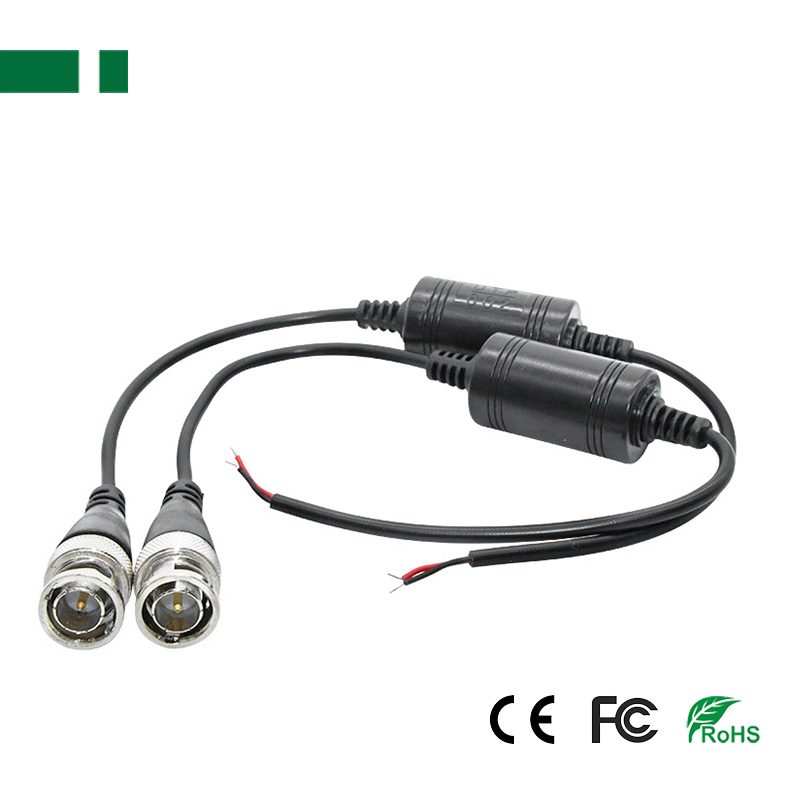

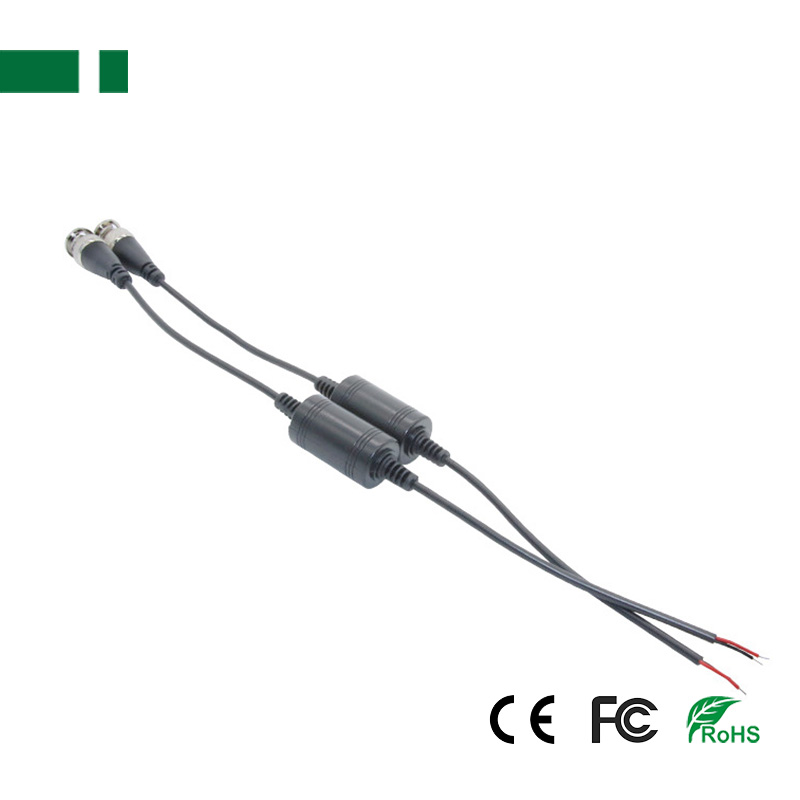

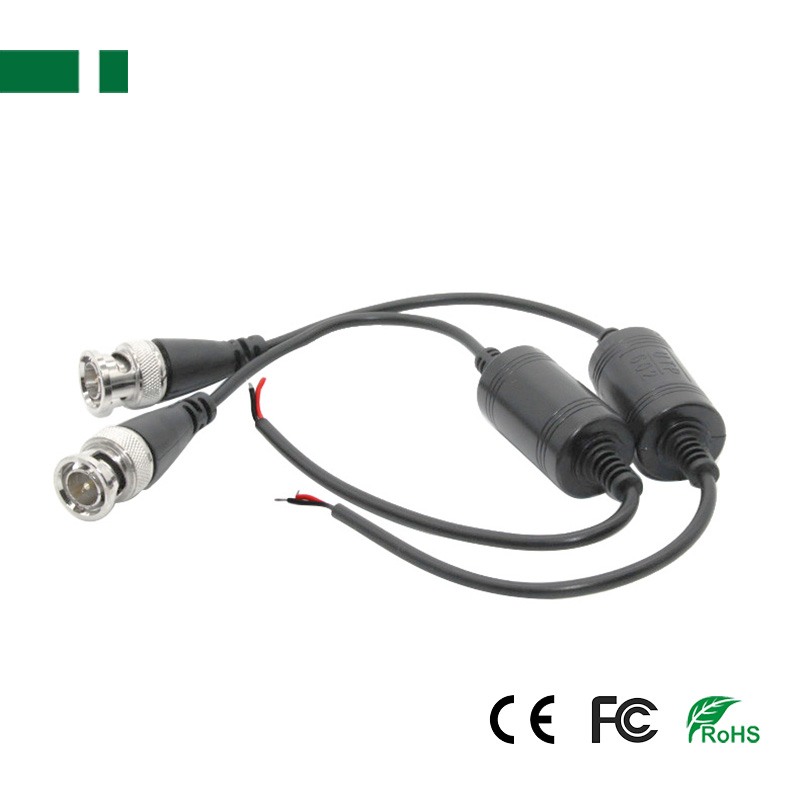

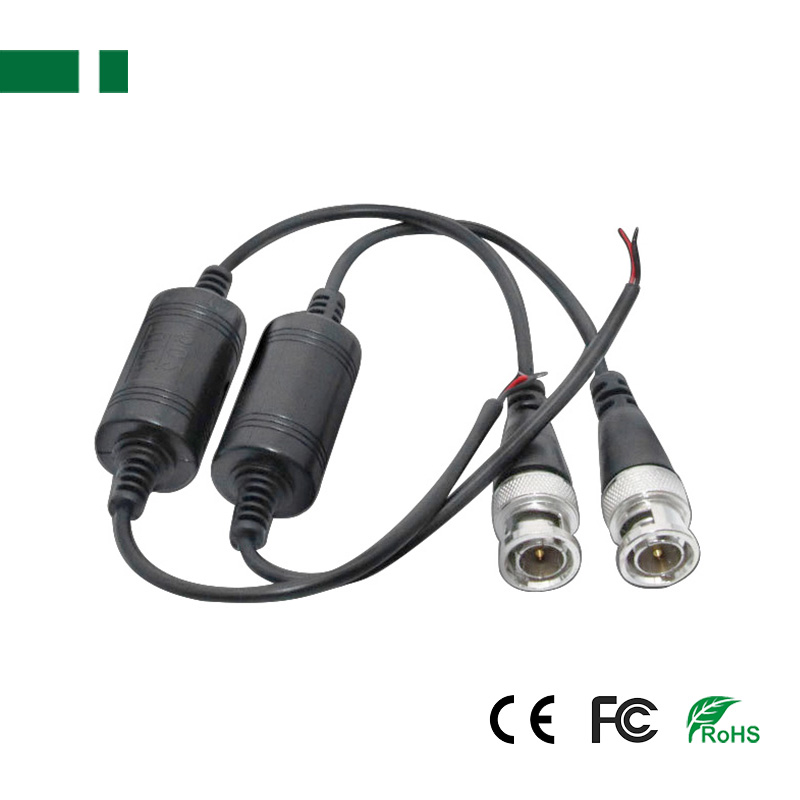

Single channel Water-proof HD AHD/CVI/TVI/CVBS Video Balun
Features:
1. Water-proof HD Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS
2. Compatible with 720P/960P/1080P/3MP/4MP/5MP/8MP
3. Built in solid state TVS (Transient voltage suppressor) for surge protection
4. No power required
5. stackable for neat installation
6. ABS engineering plastic Housing
7. 60dB crosstalk and noise immunity
8. Lightning protection design grade: III
9. Wave Filter design, Anti-statit design
10. Real-time transmission over UTP Cat5e/6
Specification:
| Model | CPB-H231 | CPB-H232C |
| Connector | BNC Male to Bare wire Connection | |
| Balun Type | 1-CH Passive type | |
| Video Formats | HD-TVI, HD-CVI, AHD and CVBS | |
| Resolution | 720P/ 960P/ 1080P/ 3MP/ 4MP/ 5MP/ 8MP | |
| Ant-interference | >60dB | |
| ESD | 1a contact discharge electricity level 3, 1b air discharge electricity level 3 | |
| Surge Protection | 2KV (different-code), 2KV (common-code), Per: IEC61000-4-5 | |
| Wire Type | UTP CAT5e/ 6 (R<100Ω/100M) Twisted Pair Wire | |
| Impedance | BNC Male:75 ohms; UTP Cable: 100 ohms | |
| MTBF | >10000h | |
| Temperature | Working: -10°C to +70°C, Storage: -20°C to +90°C | |
| Humidity | 0 to 95% (non-condensing) | |
| Material | ABS Engineering Plastic | |
| HD-TVI, HD-CVI, HD-AHD and CVBS Video transmitting Distance | |||
| Camera Type | HD-TVI | HD-CVI | HD-AHD |
| 720P Camera | Max. 350M (1148ft) | Max. 400M (1312ft) | Max. 450M (1476ft) |
| 960P Camera | / | / | Max. 350M (1148ft) |
| 1080P Camera | Max. 250M (820ft) | Max. 250M (820ft) | Max. 250M (820ft) |
| 3MP Camera | Max. 250M (820ft) | Max. 250M (820ft) | Max. 250M (820ft) |
| 4MP Camera | Max. 210M (689ft) | Max. 210M (689ft) | Max. 200M (656ft) |
| 5MP Camera | Max. 210M (689ft) | Max. 210M (689ft) | Max. 190M (623ft) |
| 8MP Camera | Max. 200M (656ft) | Max. 200M (656ft) | Max. 190M (623ft) |
| CVBS Camera | Max. 400M (1312ft) | ||
