HD Passive Video Balun

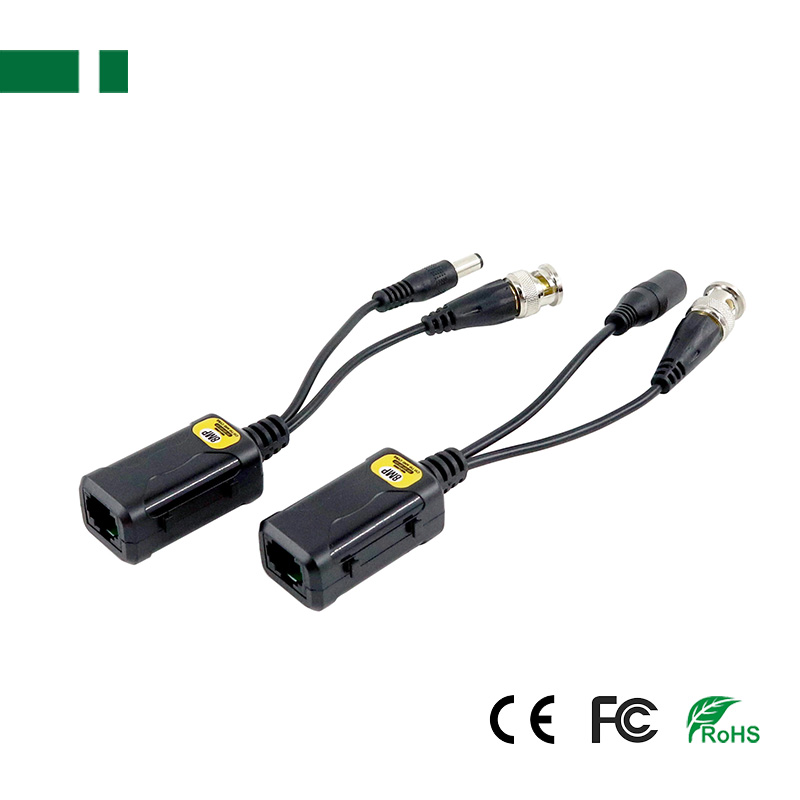

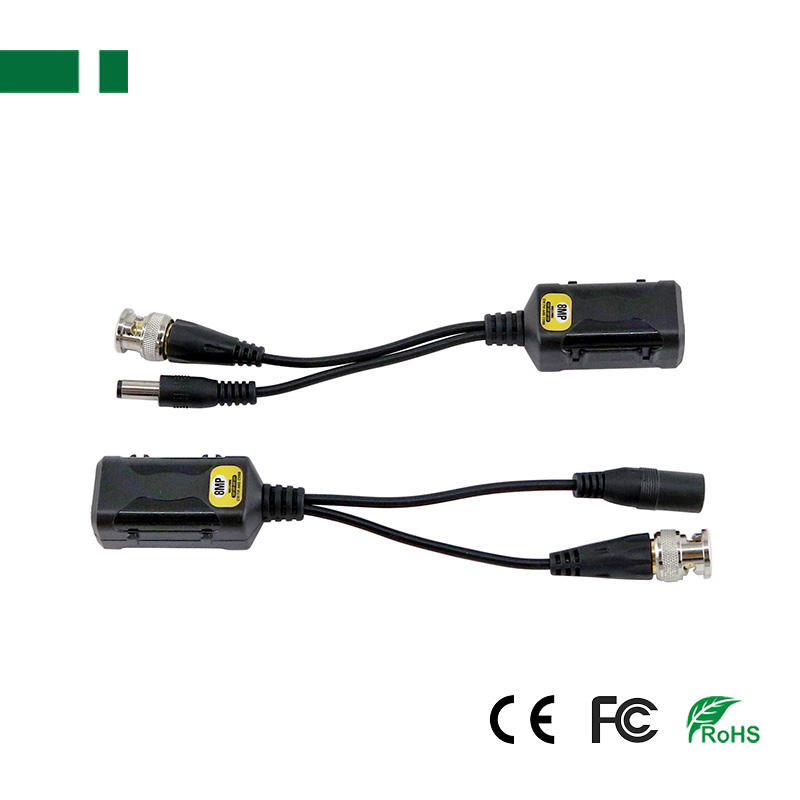

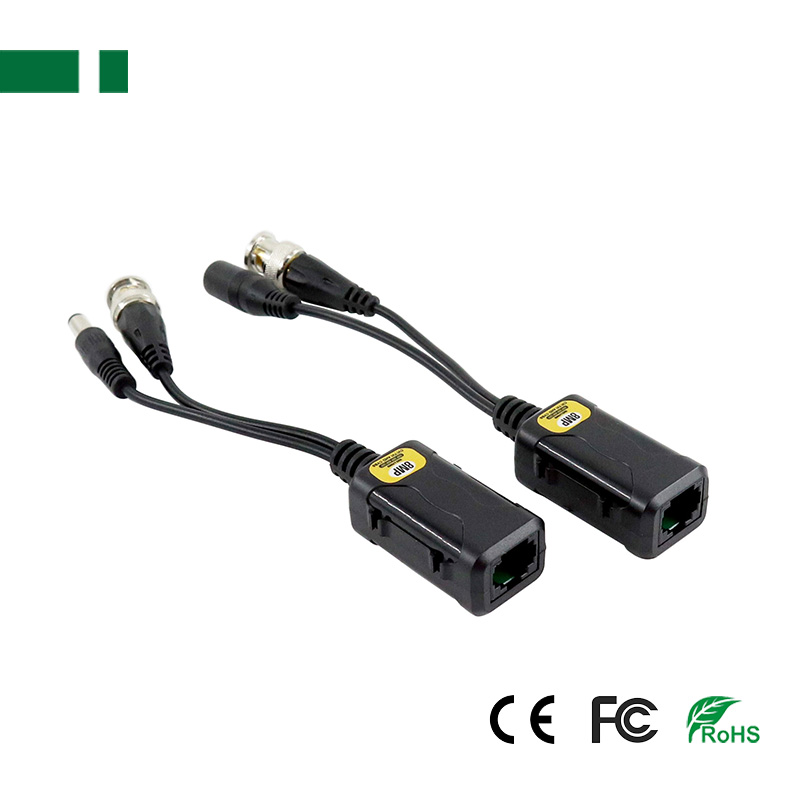

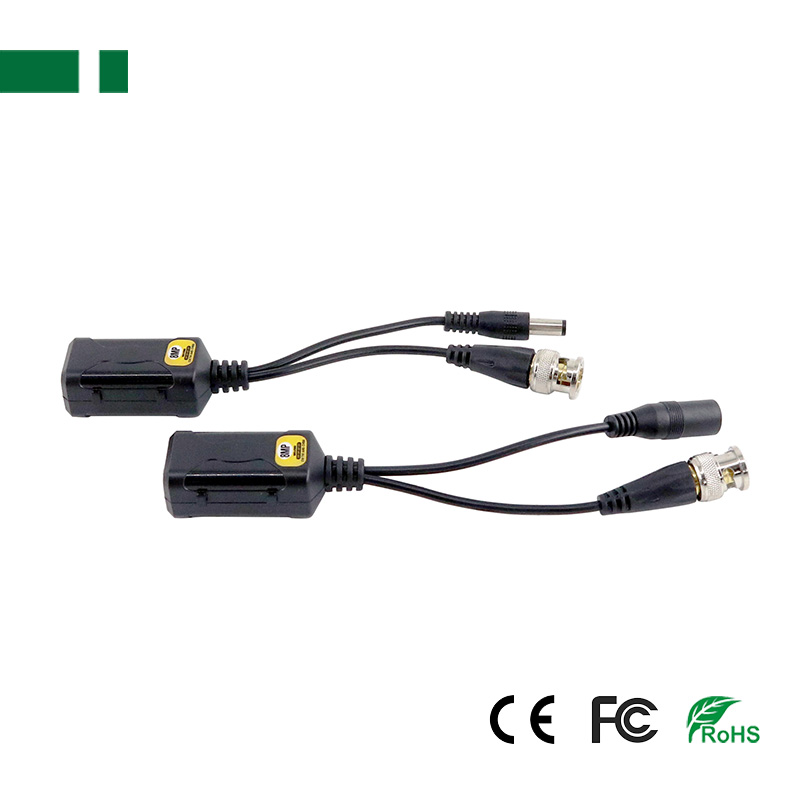

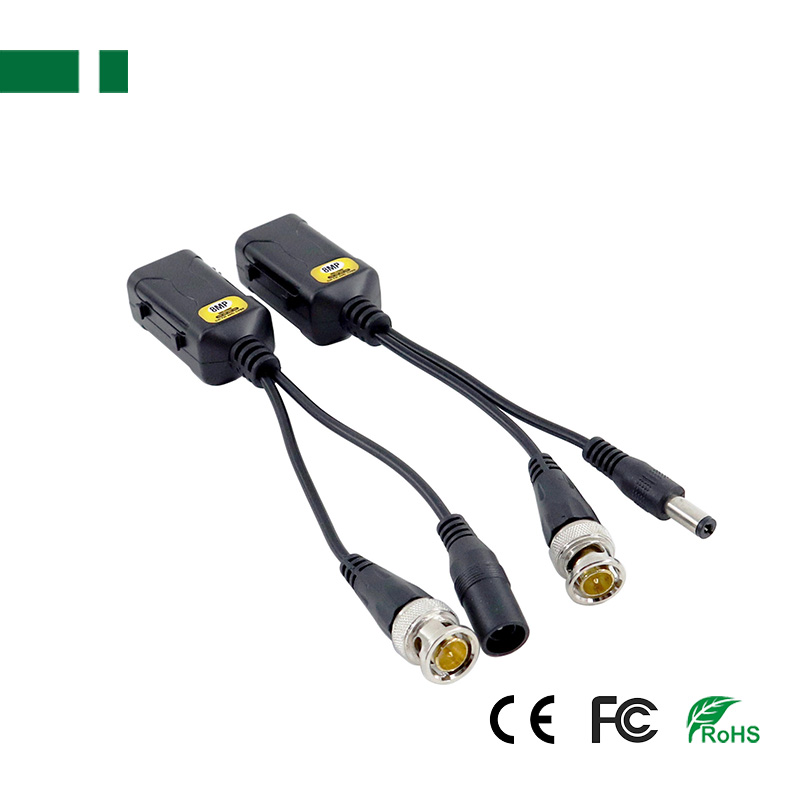

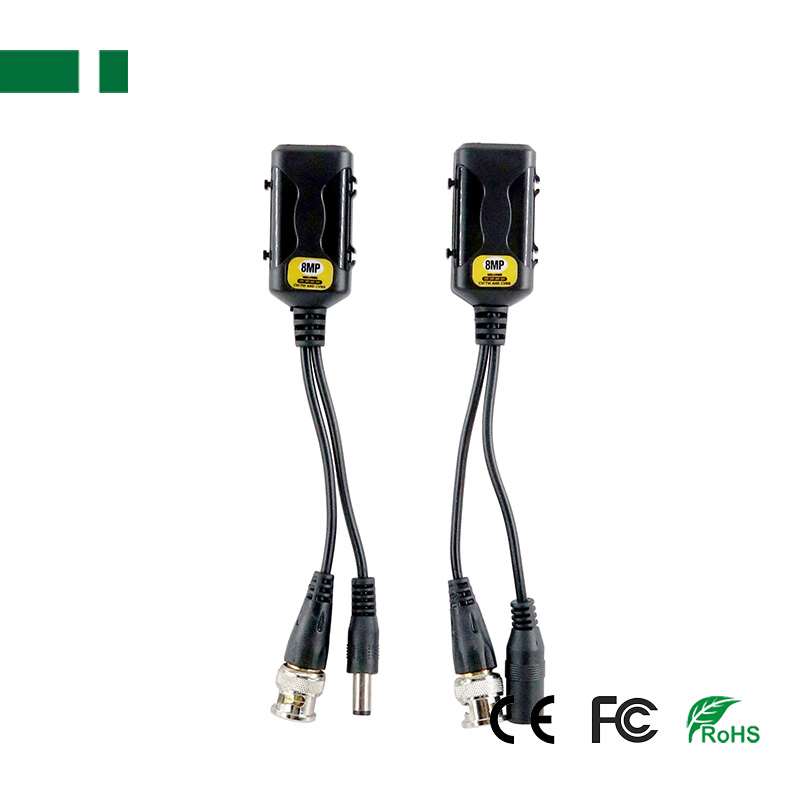

CPB-H307P 8MP 2-in-1 HD Video Balun with Surge Protector

CPB-H307P 8MP 2-in-1 HD Video Balun with Surge Protector

8MP 2-in-1 HD Video Balun with Surge Protector
Resolution: 720P/ 960P/ 1080P/ 3MP/ 4MP/ 5MP/ 8MP
Built-in solid state TVS for surge protection
ABS Engineering Plastic Housing
Product description: The HD Video Balun is a passive device that allows the transmission of real-time CCTV HD Video Signal and power via cost-effective UTP cable
INQUIRY EMAIL

Description:
The HD Video Balun is a passive device that allows the transmission of real-time CCTV HD Video Signal and power via cost-effective Unshielded Twisted Paired (UTP) cable.

Feature:
1. Real-time transmission Video Signals over UTP CAT5e/6;
2. Compatible with HD-TVI, HD-CVI, HD-AHD and CVBS Analog Camera;
3. Compatible with 720P/ 960P/ 1080P/ 3MP/ 4MP/ 5MP/ 8MP;
4. 2-in-1 Male BNC and DC Power Connector to RJ45 Connector;
5. Low crosstalk and noise suppressions;
6. Built-in solid state TVS(Transient Voltage Suppressor) for surge protection;
7. Wave Filter Design, Anti-Static Design;
8. 60dB crosstalk and noise immunity;
9. Exceptional interference rejection;
10. ABS Engineering Plastic Housing.

Specification:

Model	CPB-H307P	CPB-H308P	CPB-H307PA	CPB-H308PA
Connector	BNC Male + DC Power to RJ45 Connector		BNC Male + DC Power + RCA Audio to RJ45
Balun Type	Passive type
Video Formats	HD-TVI, HD-CVI, AHD and CVBS
Resolution	720P/ 960P/ 1080P/ 3MP/ 4MP/ 5MP/ 8MP
Ant-interference	>60dB
ESD	1a contact discharge electricity level 3, 1b air discharge electricity level 3
Surge Protection	2KV (different-code), 2KV (common-code), Per: IEC61000-4-5
Wire Type	UTP CAT5e/ 6 (R<100Ω/100M) Twisted Pair Wire
Impedance	BNC Male:75 ohms; UTP Cable: 100 ohms
MTBF	>10000h
Temperature	Working: -10°C to +70°C, Storage: -20°C to +90°C
Humidity	0 to 95% (non-condensing)
Material	ABS Engineering Plastic

HD-TVI, HD-CVI, HD-AHD and CVBS Video transmitting Distance
Camera Type	HD-TVI	HD-CVI	HD-AHD
720P Camera	Max. 350M (1148ft)	Max. 400M (1312ft)	Max. 450M (1476ft)
960P Camera	/	/	Max. 350M (1148ft)
1080P Camera	Max. 250M (820ft)	Max. 250M (820ft)	Max. 250M (820ft)
3MP Camera	Max. 250M (820ft)	Max. 250M (820ft)	Max. 250M (820ft)
4MP Camera	Max. 210M (689ft)	Max. 210M (689ft)	Max. 200M (656ft)
5MP Camera	Max. 210M (689ft)	Max. 210M (689ft)	Max. 190M (623ft)
8MP Camera	Max. 200M (656ft)	Max. 200M (656ft)	Max. 190M (623ft)
