DC26.5V 5A 120W UPS Power Supply Box
Max. output current: 5A
Max. charge current: 1.8A
AC input / DC output / charge / batttery low voltage LED indicators;
The UPS (Uninterruptible Power Supply) is a power supply control device. It is mainly suitable for applications such as burglar alarms, CCTV cameras, PTZ (Pan-Tilt-Zoom) devices, and access control systems.
Description:
The UPS (Uninterruptible Power Supply) is a power supply control device. It is mainly suitable for applications such as burglar alarms, CCTV cameras, PTZ (Pan-Tilt-Zoom) devices, and Access Control systems.

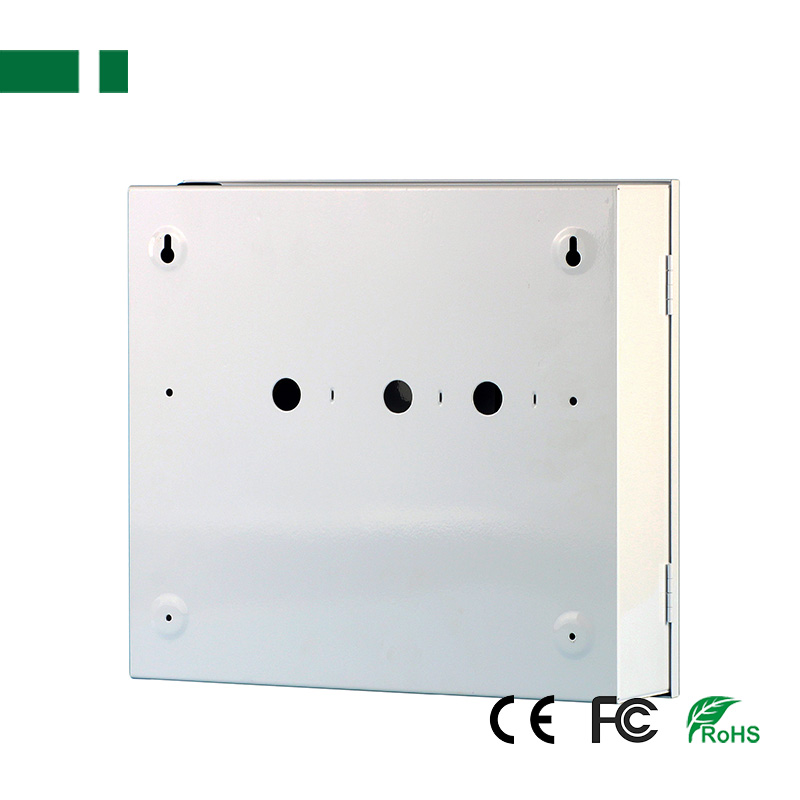

It features stable and adjustable voltage output and is housed in a metal boxed cabinet, providing reliable protection and heat dissipation. The device also includes a backup battery link function for providing alternative power during power outages.
Features:
1. 120W Output UPS Power Supply Box;
2. AC supply: 190-240 VAC @ 50-60Hz;
3. Nominal Output voltage: 26.5VDC;
4. Max. output current: 5A;
5. Max. charge current: 1.8A;

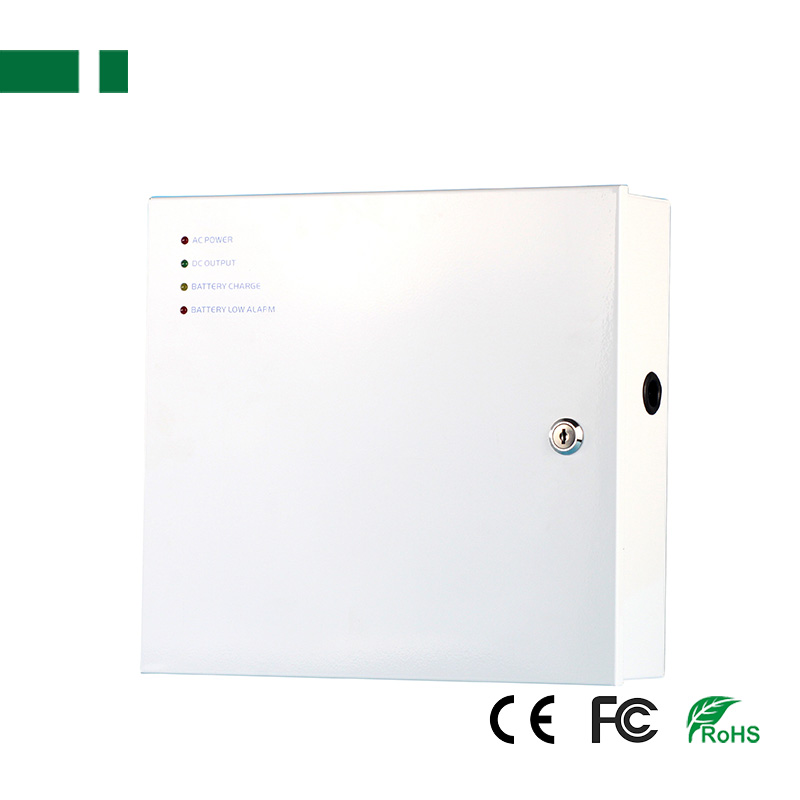

6. AC input / DC output / charge / batttery low voltage LED indicators;
7. Battery compartment: 2* 7Ah / 12V;
8. Built in EMI filter with tiny ripple;
9. Protection: Short circuit/ Overload/ Over voltage/ Over temperature.
| More UPS Power Supply Box Optional | ||
| Model | Specification | Battery Compartment |
| CP1215-3A-B | DC13.8V 3A 36W, without Battery. | 1pc*7Ah/12V |
| CP1215-5A-B | DC13.8V 5A 60W, without Battery. | 1pc*7Ah/12V |
| CP1215-10A-B | DC13.8V 10A 120W, without Battery. | 1pc*17Ah/12V |
| CP2415-2.5A-B | DC26.5V 2.5A 60W, without Battery. | 2pcs*4Ah/12V |
| CP2415-5A-B | DC26.5V 5A 120W, without Battery. | 2pcs*7Ah/12V |
Specification:
| Model | CP2415-2.5A-B | CP2415-5A-B | |
| Output | DC output Voltage | 26.5V±10% | |
| Output Current Range | 0-2.5A | 0-10A | |
| Charge Current Range | 0-0.8A | 0-1.8A | |
| Wave and Noise | 120mVp-p | ||
| DC output Power | 60W | 120W | |
| Efficiency | 0.85 | ||
| DC Voltage Adjustable Scope | （at full load）≦0.5% | ||
| Input | Voltage Range | 100~240VAC, 50-60Hz | 190~240VAC, 50Hz |
| Input Current | 0.54A/115V, 0.27A/230V | 1.1A/115V, 0.55A/230V | |
| Leakage Current | <1mA/ 240VAC | ||
| Inrush Current | Cold start 20A/120VAC, 40A/230VAC | ||
| Protection | Over-load | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed | |
| Over-voltage | 105%---150% Rated Voltage, Protection type: Shut off | ||
| High-temperature | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) | ||
| Environment | Working temperature and humidity | -10°C~+50°C, 20~90%RH | |
| Store temperature and humidity | -20°C~+85°C, 10~95%RH | ||
| Temperature coefficient | ±0.03%°C(0~50°C) | ||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | ||
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC | |
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC | ||
| Standard | CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 | |
| CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | ||
| ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | ||

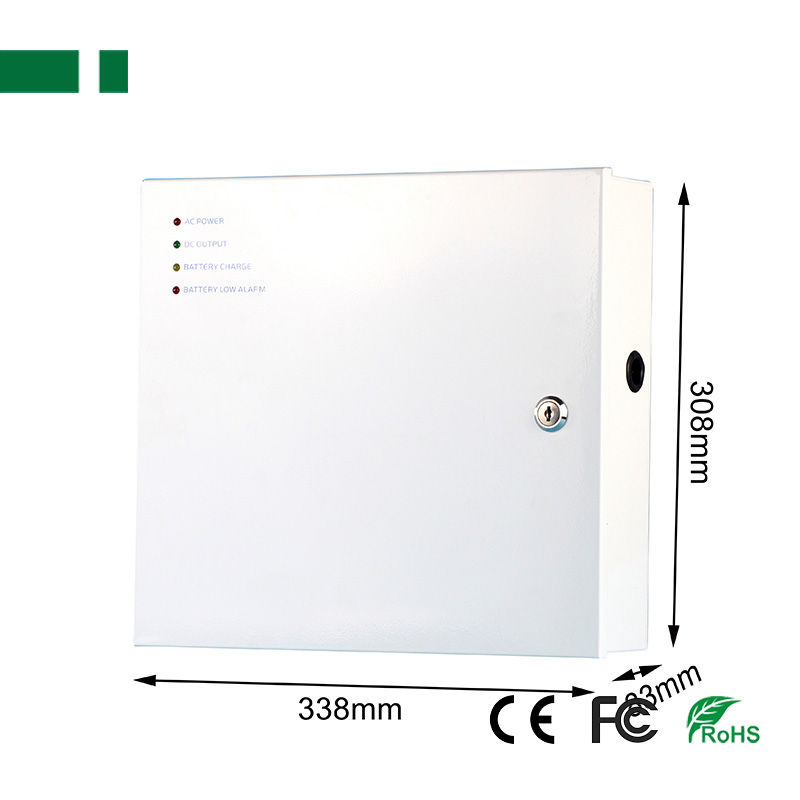

| Other | Dimension | 195*80*225mm (L*W*H) | 338*83*308mm (L*W*H) |
| Weight | 1.5kg | 3kg | |
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure | ||
