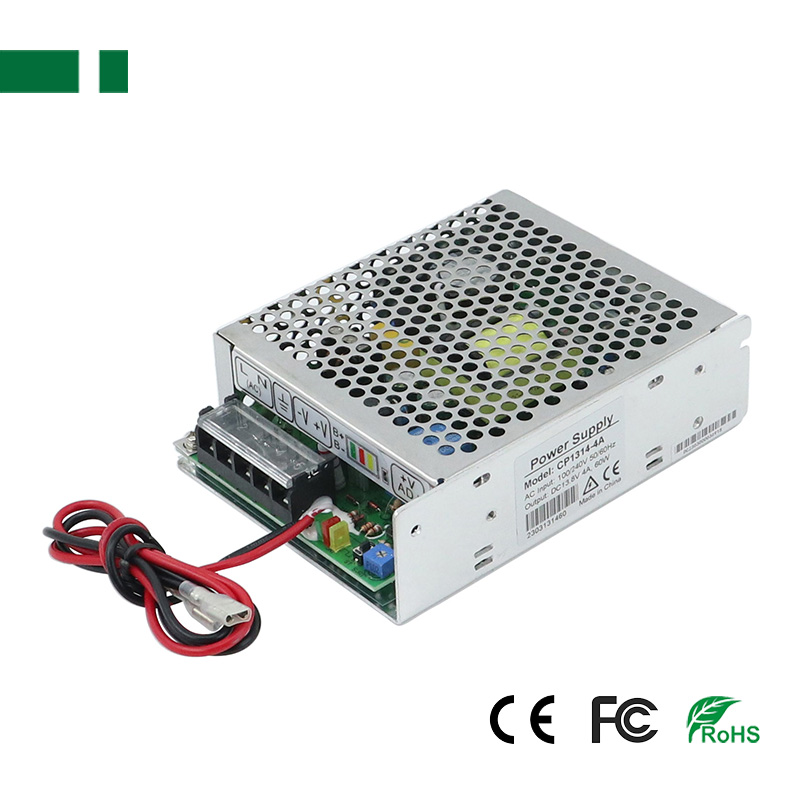

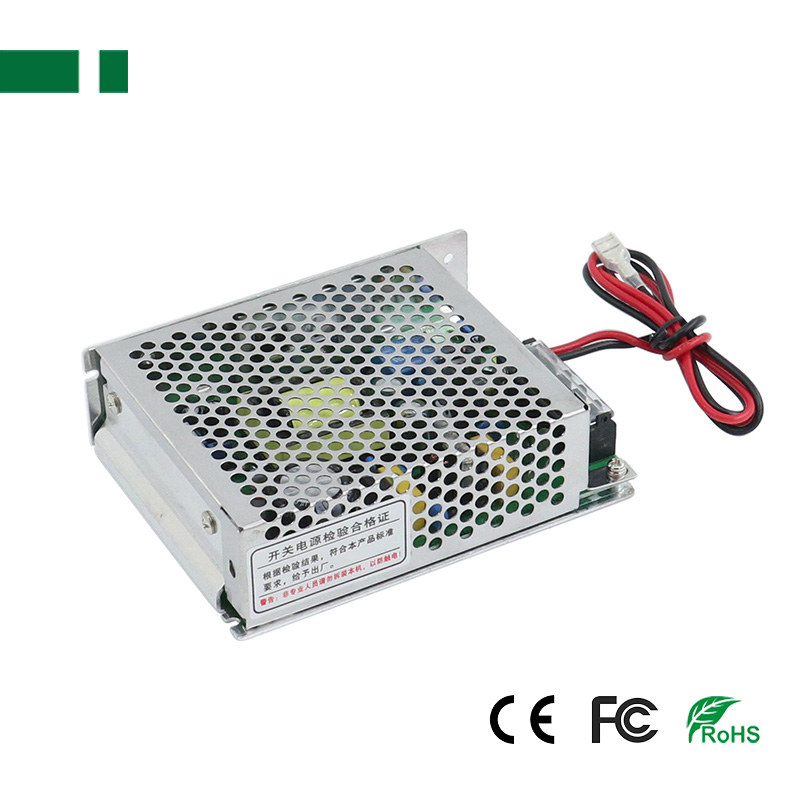

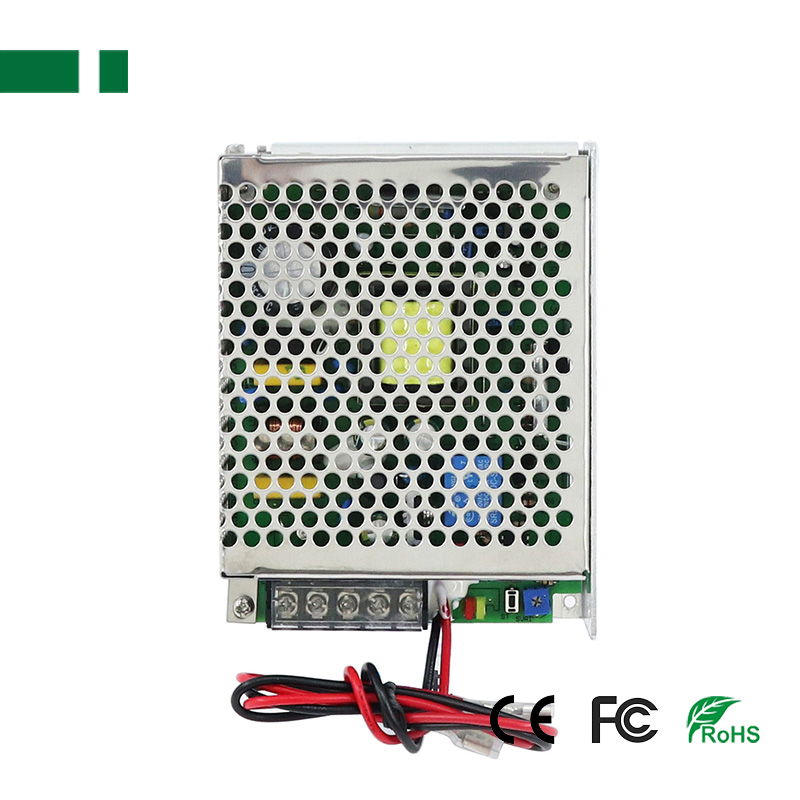

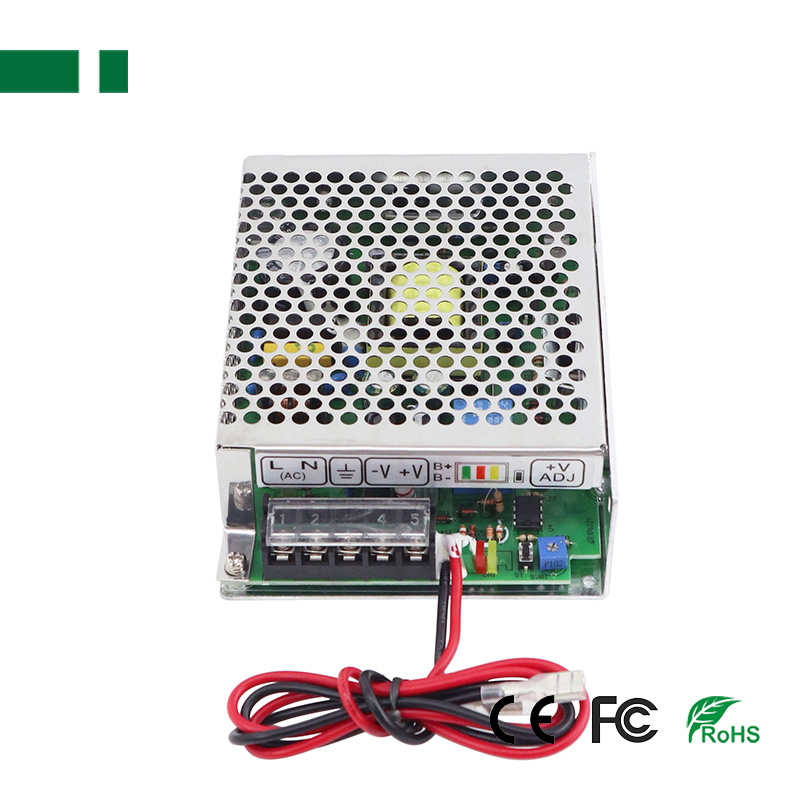

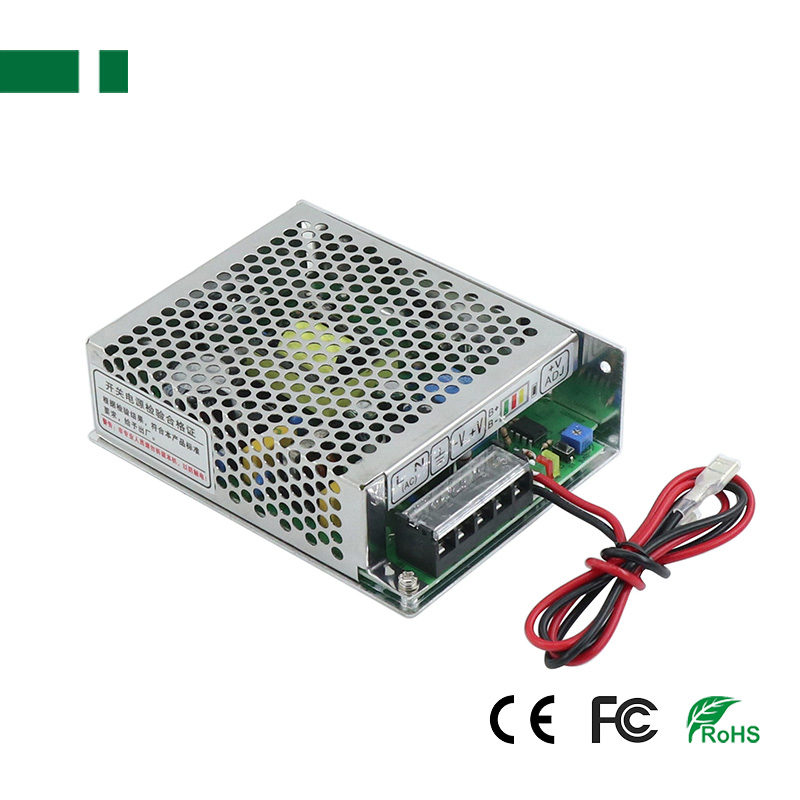

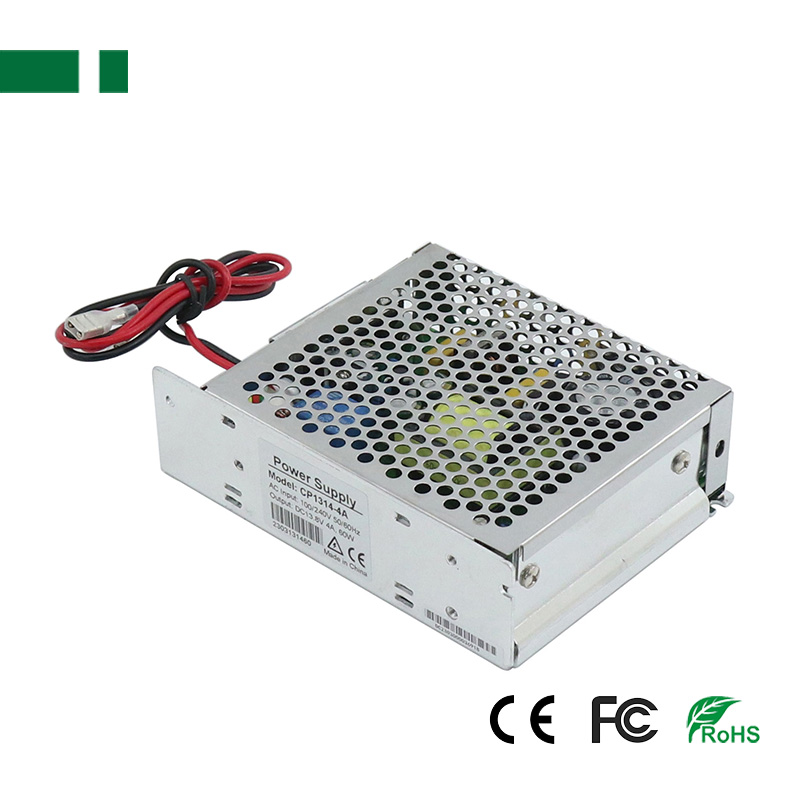

CP1314-4A

  • 60W Output Switching Power Supply
  • DC13.8V 4A 59.9W
  • DC27.6V 2A 61.8W
  • 100% full load burn-in test
  • Product description: DC13.8V 4A 60W Output UPS Power Supply Charging voltage & current: DC13.4V 0.35A Size: 129(L)*98(L)*38(H)mm, 520g
  • INQUIRY   EMAIL

60W Output UPS Power Supply

Features
1. 60W Output UPS Power Supply
2. Output voltage & current: DC13.8V  4A
3. Input voltage range: 90~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
8. Built-in constant current limiting circuit (C.C.+C.V.mode);


Specification:

Model CP1314-4A  CP2614-2A
Output DC output Voltage 13.8V±2% 27.6V±2%
Output Current Range 0-4A 0-2A
Start, Rise, Hold Time 800ms, 50ms, 80ms/230VAC; 1600ms, 50ms, 16ms/115VAC
Charging Voltage 13.4V 26.5V
Recharging Current 0.35A 0.25A
Wave and Noise 100mVp-p 100mVp-p
DC output Power 59.9W 61.8W
Efficiency 81% 83%
DC Voltage Adjustable Scope at full load)≦0.5%
Input Voltage Range 90~132VAC/ 180~264VAC      47-63Hz
Input Current 1.6A/115V, 0.8A/230V
Leakage Current <1mA/ 240VAC
Inrush Current Cold start 25A/120VAC, 45A/230VAC
Protection Over-load
105%~135%,  Protection type: Constant current limiting,
recovers automatically after fault condition is removed
Over-voltage 105%---150% Rated Voltage, Protection type: Shut off
High-temperature RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment Work temperature & humidity  -10°C~+50°C,   20~90%RH
Store temperature & humidity  -20°C~+85°C,   10~95%RH
Temperature coefficient ±0.03%°C(0~50°C)
Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Safety Withstand voltage  I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Isolation resistance  I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC
Standard CE EMC Standard EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
CE LVD Standard EN61347-2-13:2014+A1:2017, EB61347-1:2015
ROHS Standard IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.
Other Dimension 129*98*38mm (L*W*H)
Weight 0.52kg/45pcs/24kg/0.034m³
Notes
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. I/P-O/P: Input and output interval,  I/P-FG: Input and enclosure,  O/P-FG: Output and enclosure
