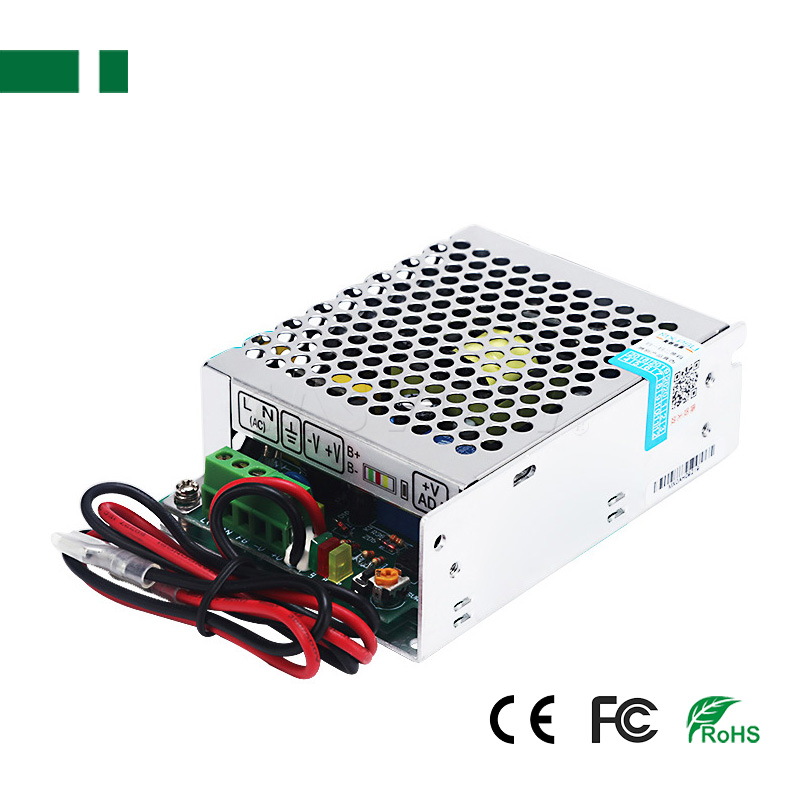

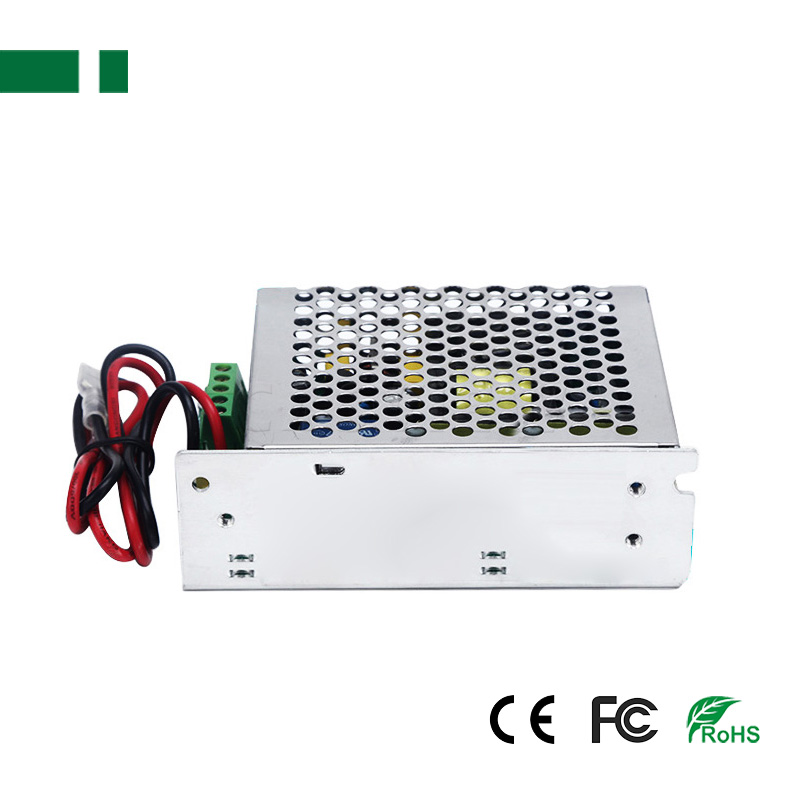

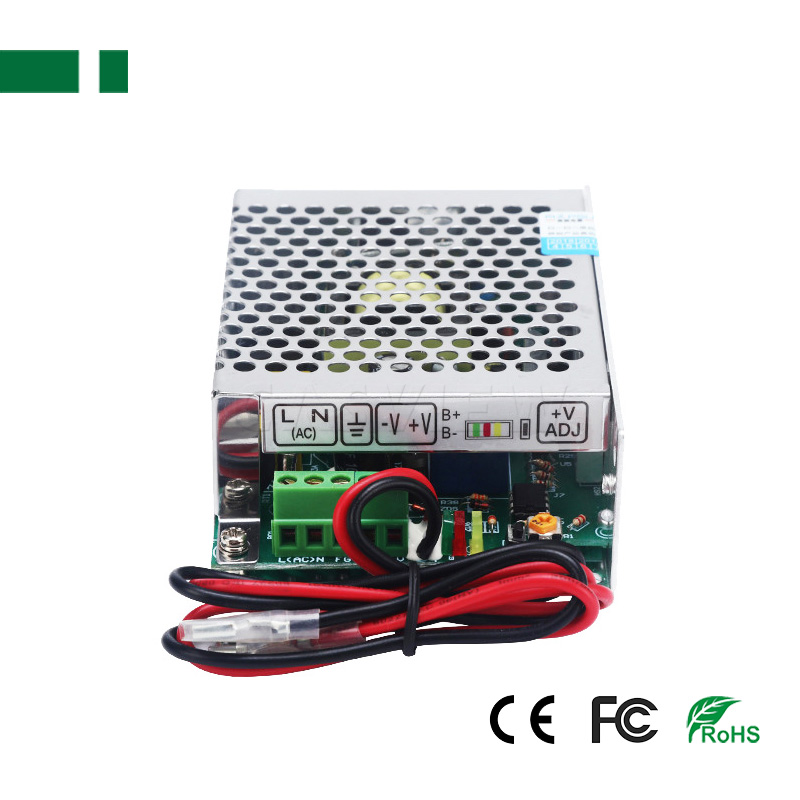

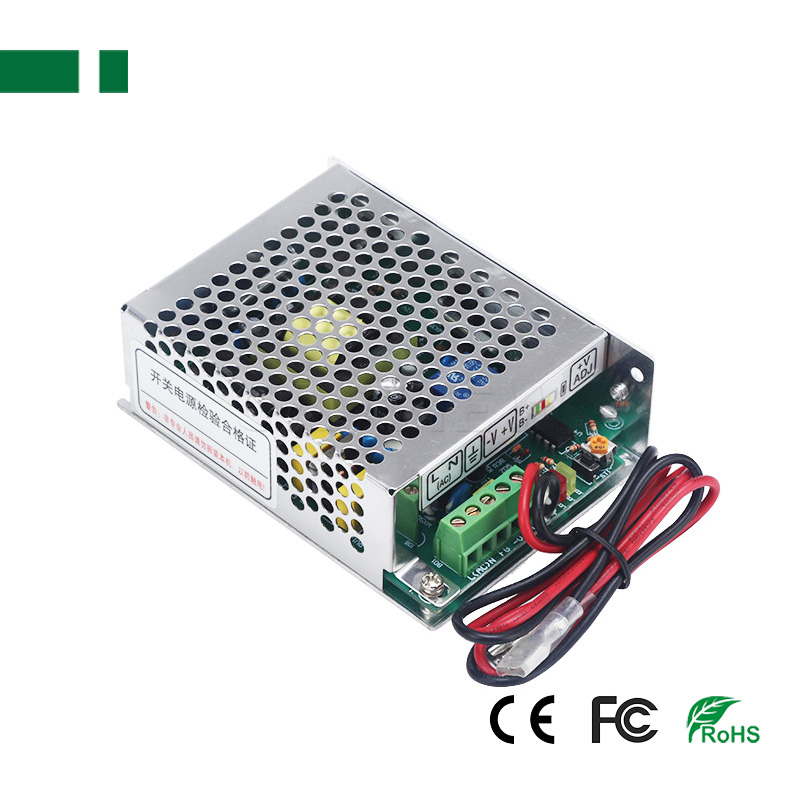

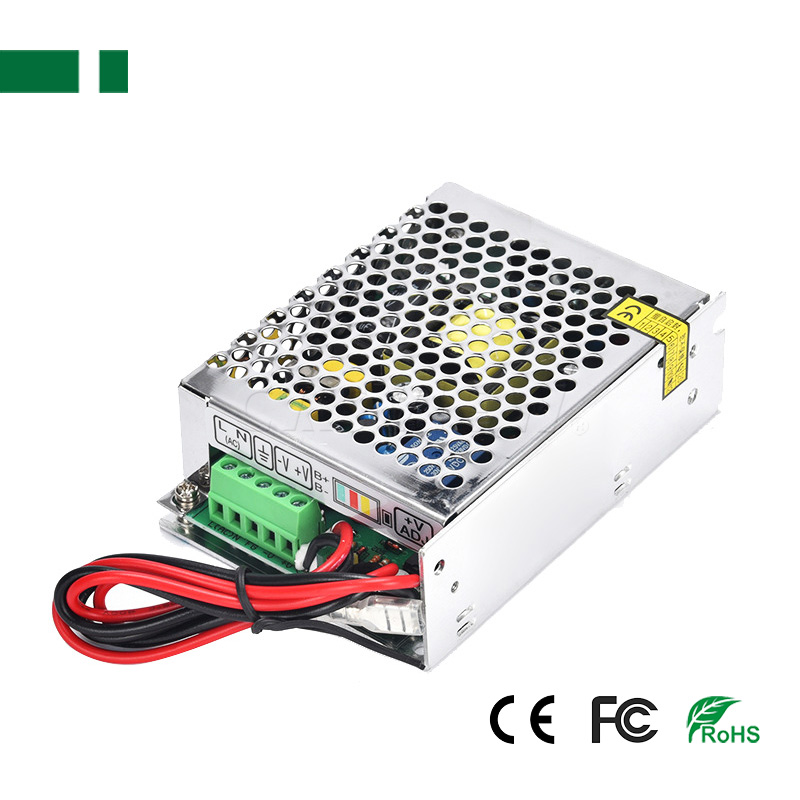

35W Output Switching Power Supply
DC13.8V 2A 34W
DC27.6V 1A 35W
100% full load burn-in test
DC13.8V 2A 35W Output UPS Power Supply Charging voltage & current: DC13.4V 0.5A Size: 111(L)*78(L)*36(H)mm, 250g
35W Output UPS Power Supply Features
1. 35W Output UPS Power Supply
2. Output voltage & current: DC13.8V 2A
3. Input voltage range: 90~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
8. Built-in constant current limiting circuit (C.C.+C.V.mode);
Specification:
| Model | CP1314-2A | CP2614-1A | |
| Output | DC output Voltage | 13.8V±2% | 27.6V±2% |
| Output Current Range | 0-2A | 0-1A | |
| Start, Rise, Hold Time | 800ms, 50ms, 80ms/230VAC; 1600ms, 50ms, 16ms/115VAC | ||
| Charging Voltage | 13.4V | 26.5V | |
| Recharging Current | 0.5A | 0.3A | |
| Wave and Noise | 120mVp-p | 150mVp-p | |
| DC output Power | 34.3W | 35.6W | |
| Efficiency | 81% | 83% | |
| DC Voltage Adjustable Scope | （at full load）≦0.5% | ||
| Input | Voltage Range | 90~132VAC/ 180~264VAC 47-63Hz | |
| Input Current | 0.9A/115V, 0.45A/230V | ||
| Leakage Current | <1mA/ 240VAC | ||
| Inrush Current | Cold start 25A/120VAC, 45A/230VAC | ||
| Protection | Over-load | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed | |
| Over-voltage | 105%---150% Rated Voltage, Protection type: Shut off | ||
| High-temperature | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) | ||
| Environment | Work temperature & humidity | -10°C~+50°C, 20~90%RH | |
| Store temperature & humidity | -20°C~+85°C, 10~95%RH | ||
| Temperature coefficient | ±0.03%°C(0~50°C) | ||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | ||
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC | |
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC | ||
| Standard | CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 | |
| CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | ||
| ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | ||
| Other | Dimension | 111*78*36mm (L*W*H) | |
| Weight | 0.25kg/64pcs/17.5kg | ||
| Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure | ||
