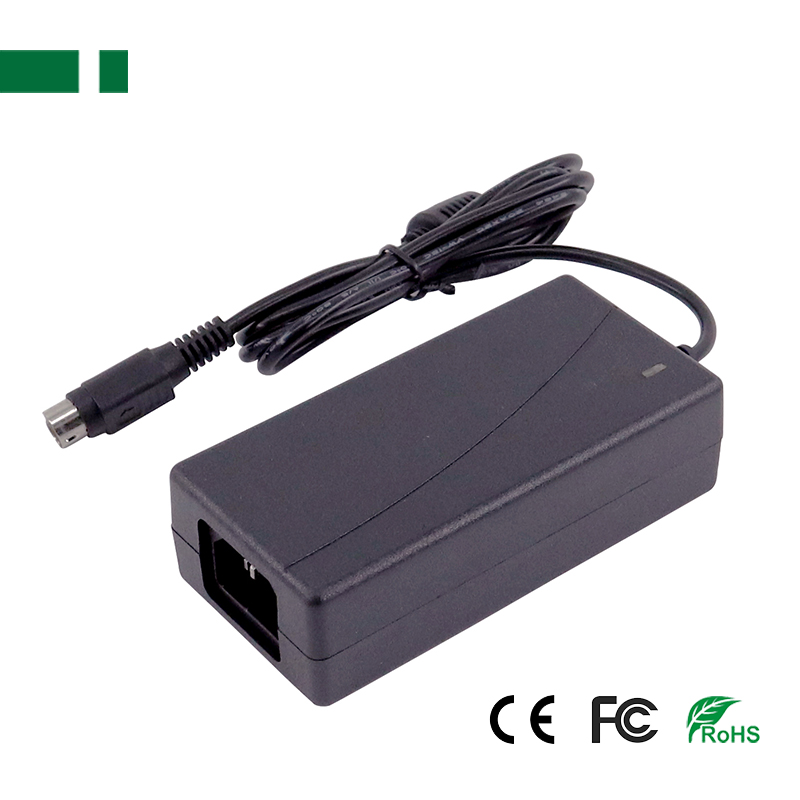

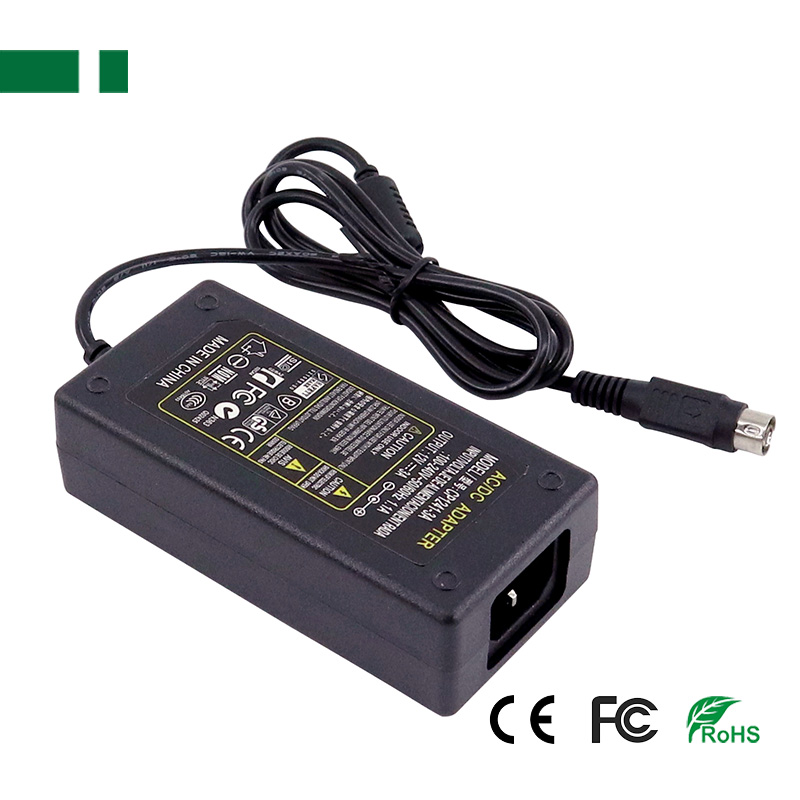

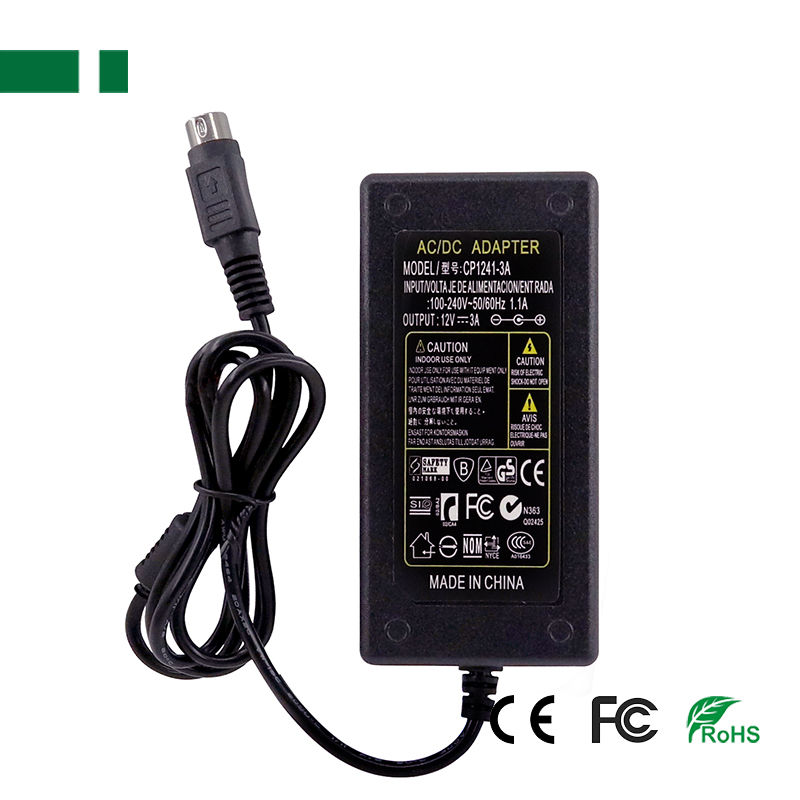

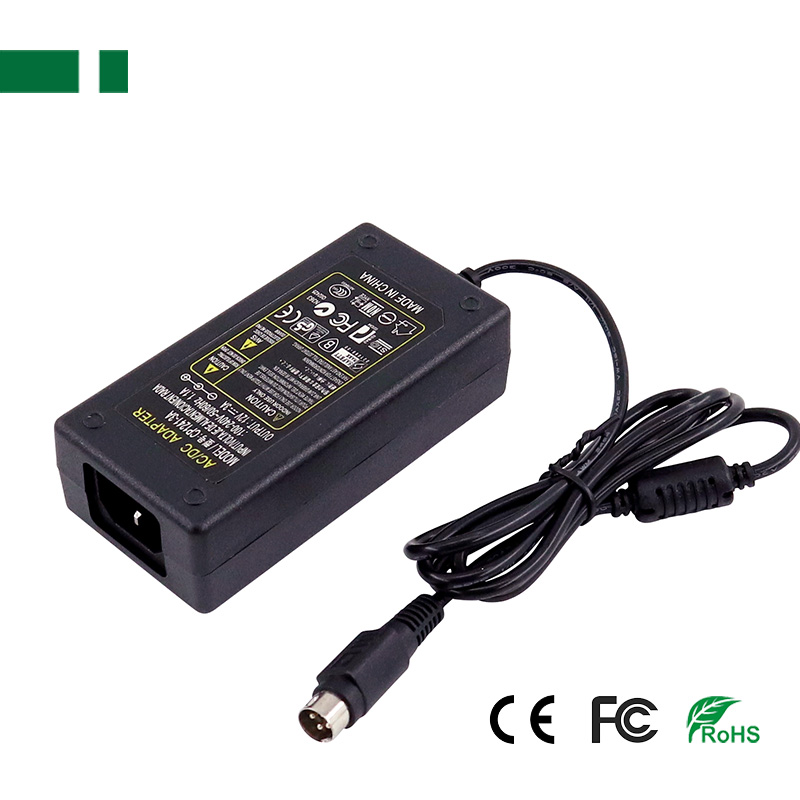

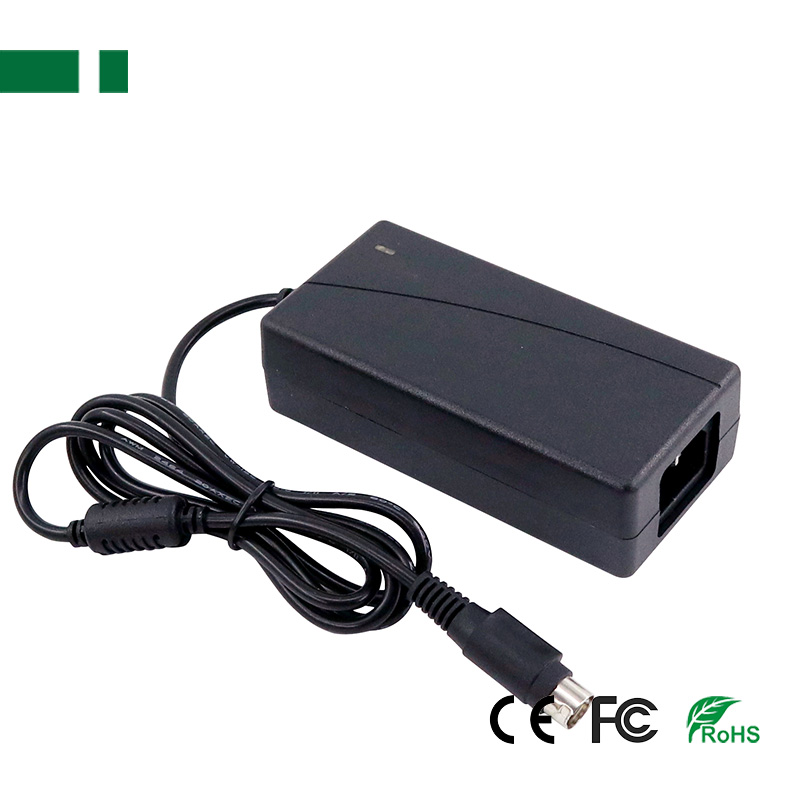

▪ DC12V 3A 36W Output Power Adapter
▪ Input voltage range: 85~264VAC
▪ 100% full load burn-in test
▪ Protection: Short circuit/ Overload/ Over voltage/ Over temperature
▪ An AC-DC power supply or adapter is an electrical device that obtains electricity from a grid-based power supply and converts it into a different current, frequency, and voltage. AC-DC power supplies are necessary to provide the right power that an electrical component needs.
Features:
1. 36W Output Power Adapter
2. Output voltage & current: DC12V 3A
3. Input voltage range: 85~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
Specification:
| Model | CP1241-3A | |
| Output | DC output Voltage | 12V±10% |
| Output Current Range | 0-3A | |
| Wave and Noise | 120mVp-p | |
| DC output Power | 36W | |
| Efficiency | 85% | |
| DC Voltage Adjustable Scope | （at full load）≦0.5% | |
| Input | Voltage Range | 85~264VAC 47-63Hz |
| Input Current | 0.14A/115V, 0.07A/230V | |
| Leakage Current | <1mA/ 240VAC | |
| Inrush Current | Cold start 20A/120VAC, 40A/230VAC | |
| Protection | Over-load | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| Over-voltage | 105%---150% Rated Voltage, Protection type: Shut off | |
| High-temperature | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) | |
| Environment | Temperature | Working: -10°C~+50°C, Store: -20°C~+85°C |
| Humidity | Working: 20~90%RH, Store: 10~95%RH | |
| Temperature coefficient | ±0.03%°C(0~50°C) | |
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | |
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC |
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC | |
| Standard | CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 |
| CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | |
| ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | |
| Other | Dimension | 70*39*31mm (L*W*H) |
| Weight | 0.058kg | |
| Note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure | |
