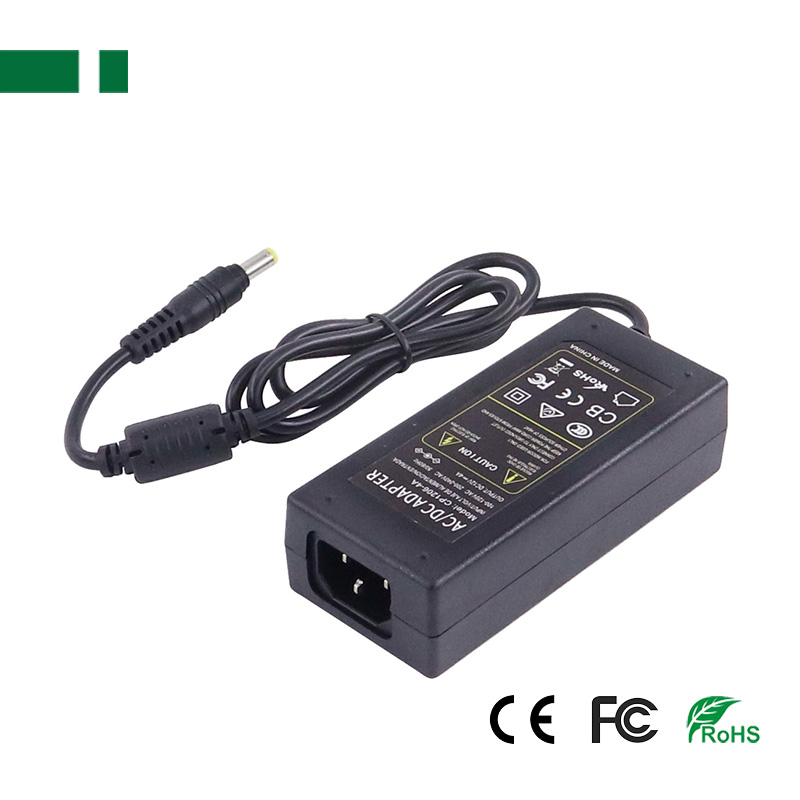

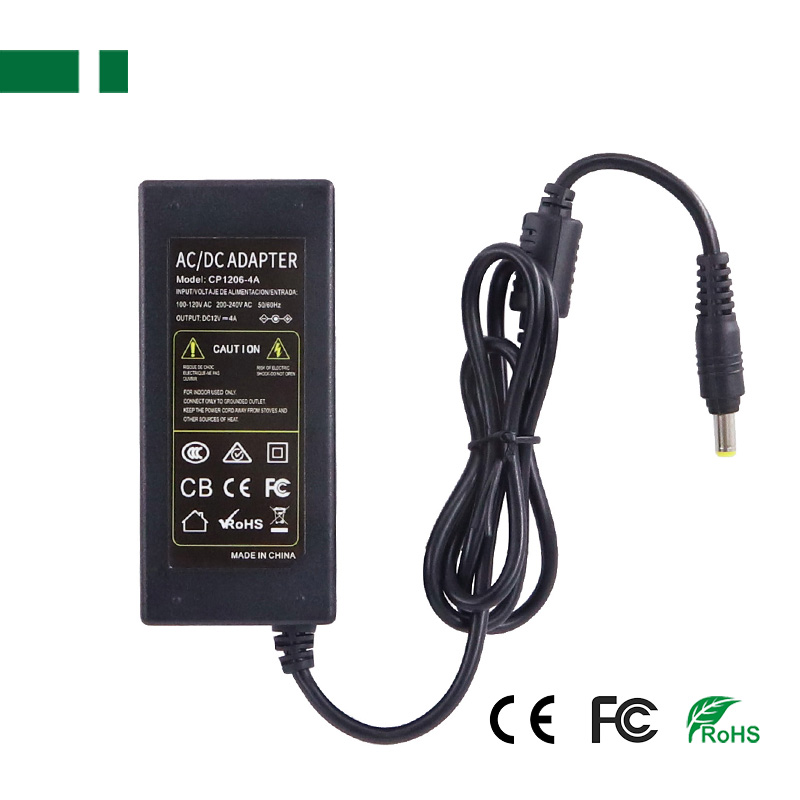

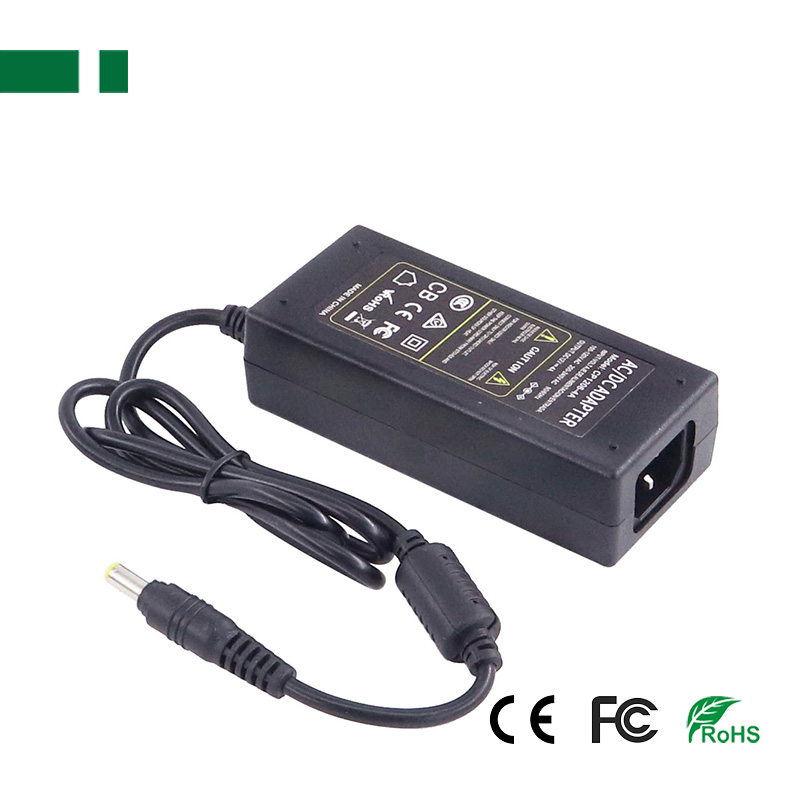

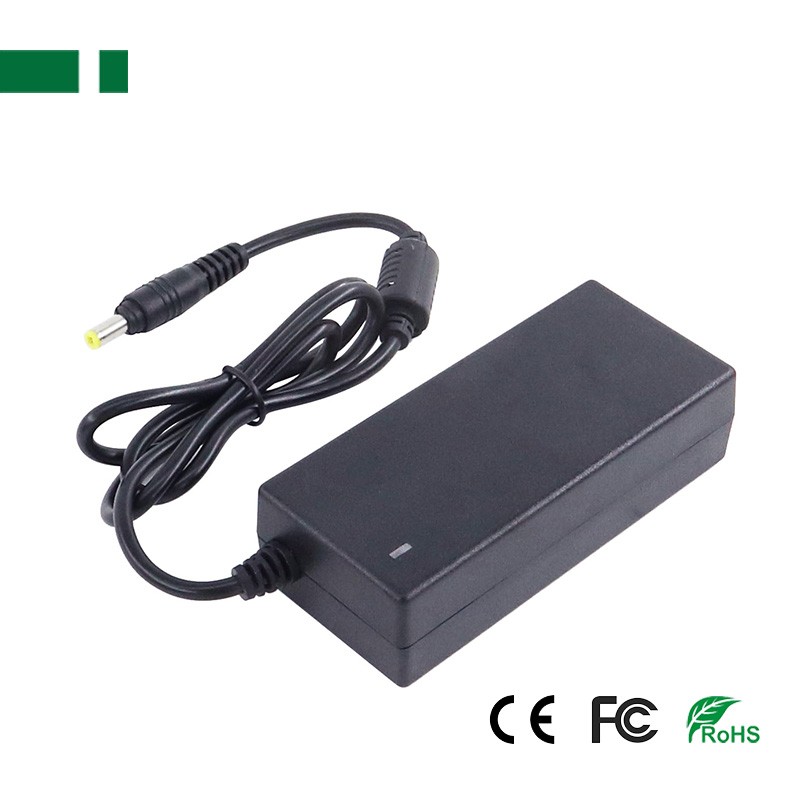

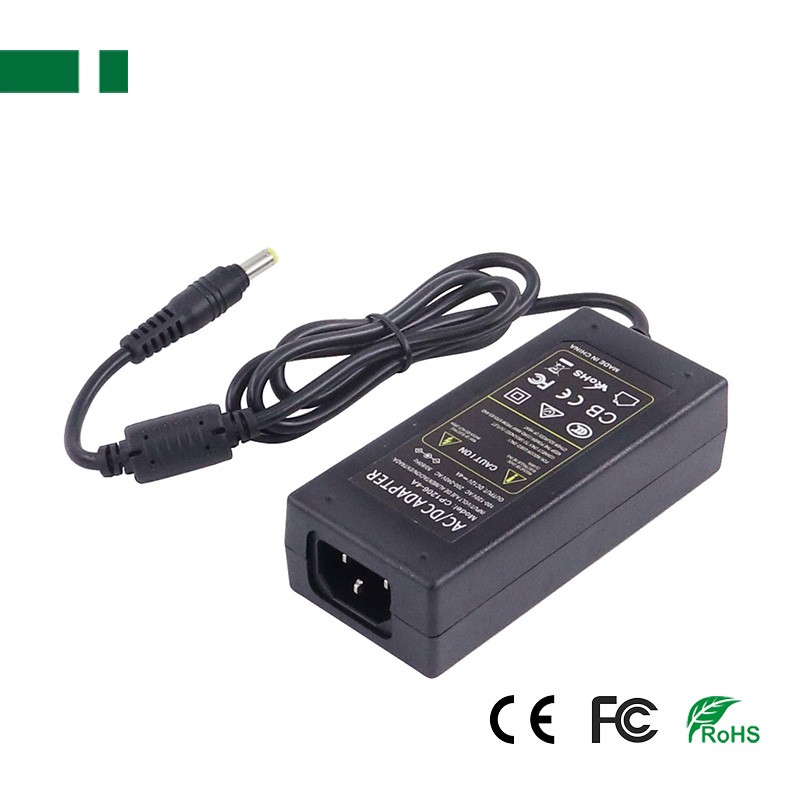

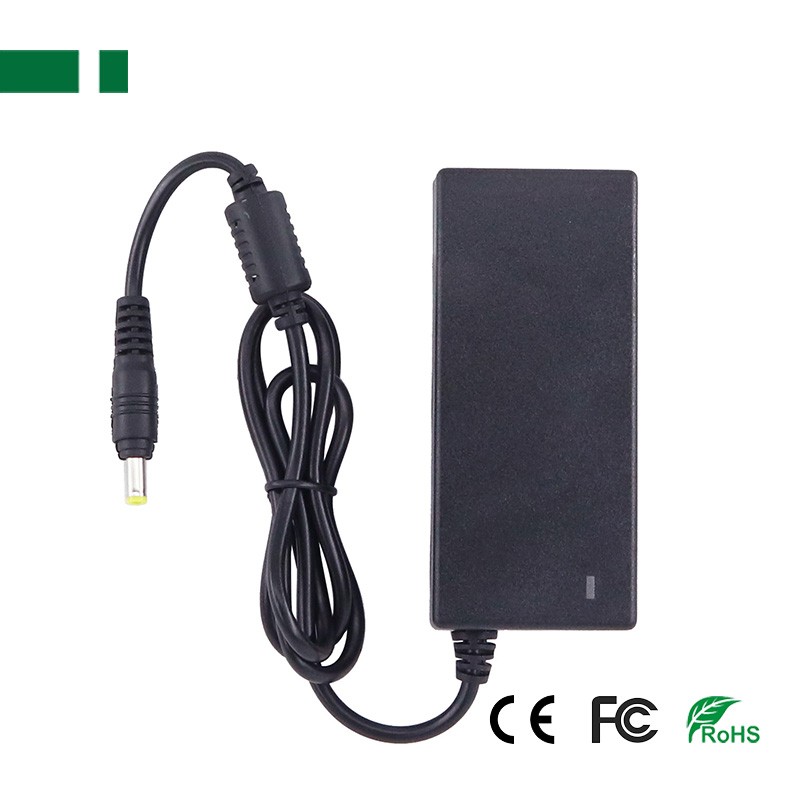

CP1206-4A DC12V 4A 48W Power adapter

  • 48W Output Power Adapter
  • DC12V 4A

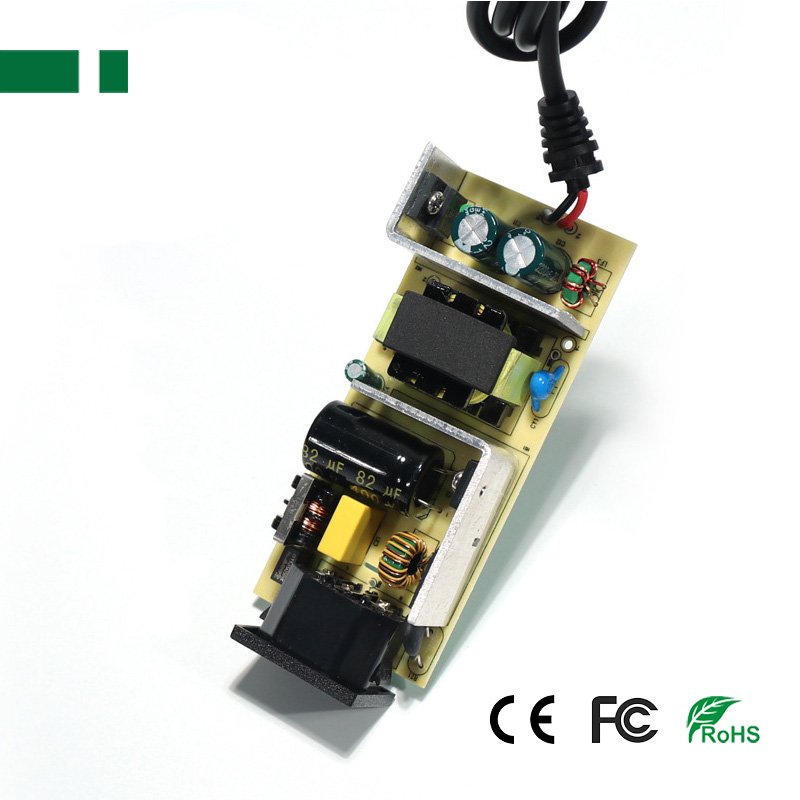

  • Built in EMI filter with tiny ripple
  • Protection: Short circuit/ Overload/ Over voltage/ Over temperature
  • Product description: An AC-DC power supply or adapter is an electrical device that obtains electricity from a grid-based power supply and converts it into a different current, frequency, and voltage. AC-DC power supplies
  • INQUIRY   EMAIL

Features:

1. 48W Output Power Adapter
2. Output voltage & current: DC12V  4A
3. Input voltage range: 85~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature


Specification:
Model CP1206-4A
Output DC output Voltage 12V±10%
Output Current Range 0-4A
Wave and Noise 120mVp-p
DC output Power 48W
Efficiency 85%
DC Voltage Adjustable Scope (at full load)≦0.5%
Input Voltage Range 85~264VAC      47-63Hz
Input Current 0.48A/115V, 0.24A/230V
Leakage Current <1mA/ 240VAC
Inrush Current Cold start 20A/120VAC, 40A/230VAC
Protection Over-load 105%~135%,  Protection type: Constant current limiting,
recovers automatically after fault condition is removed
Over-voltage 105%---150% Rated Voltage, Protection type: Shut off
High-temperature RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment Working temperature and humidity -10°C~+50°C,   20~90%RH
Store temperature and humidity -20°C~+85°C,   10~95%RH
Temperature coefficient ±0.03%°C(0~50°C)
Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Safety Withstand voltage I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Isolation resistance I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC
Standard CE EMC Standard EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
CE LVD Standard EN61347-2-13:2014+A1:2017, EB61347-1:2015
ROHS Standard IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.

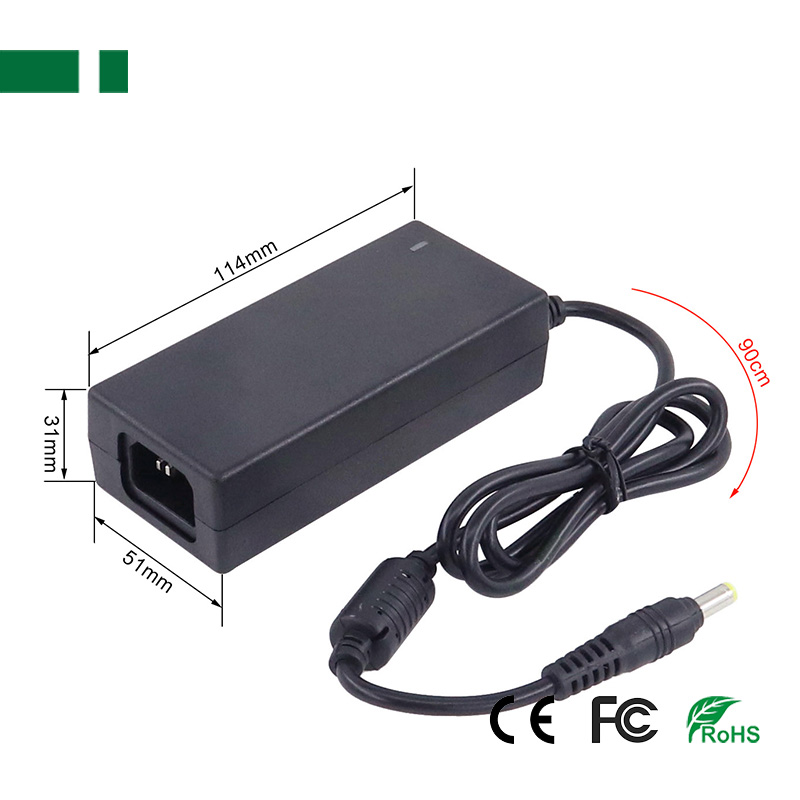

Other Dimension 51*114*31mm (L*W*H)
Weight 0.19kg
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. I/P-O/P: Input and output interval,  I/P-FG: Input and enclosure,  O/P-FG: Output and enclosure
