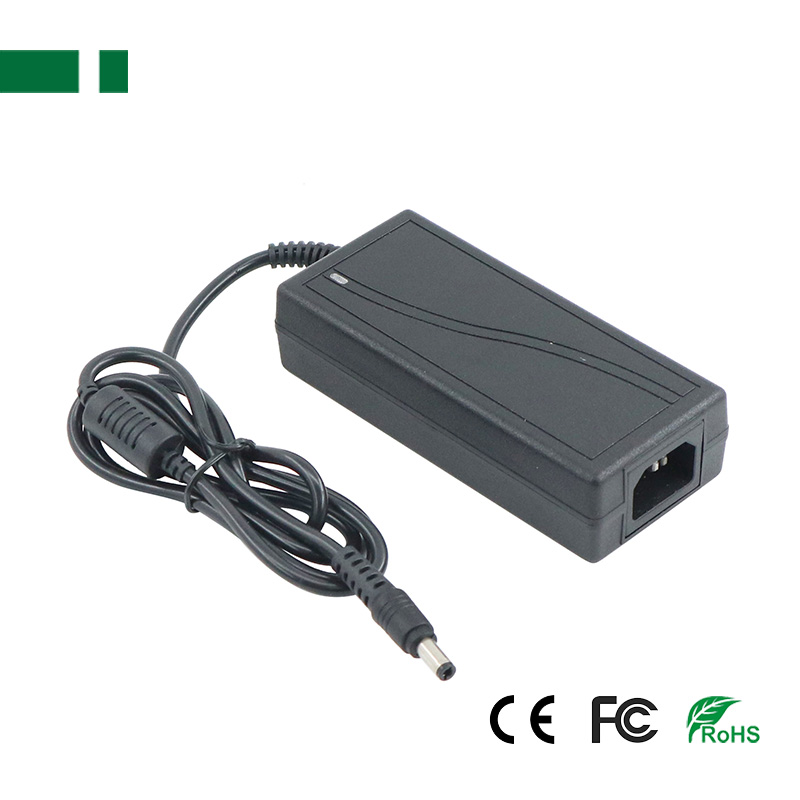

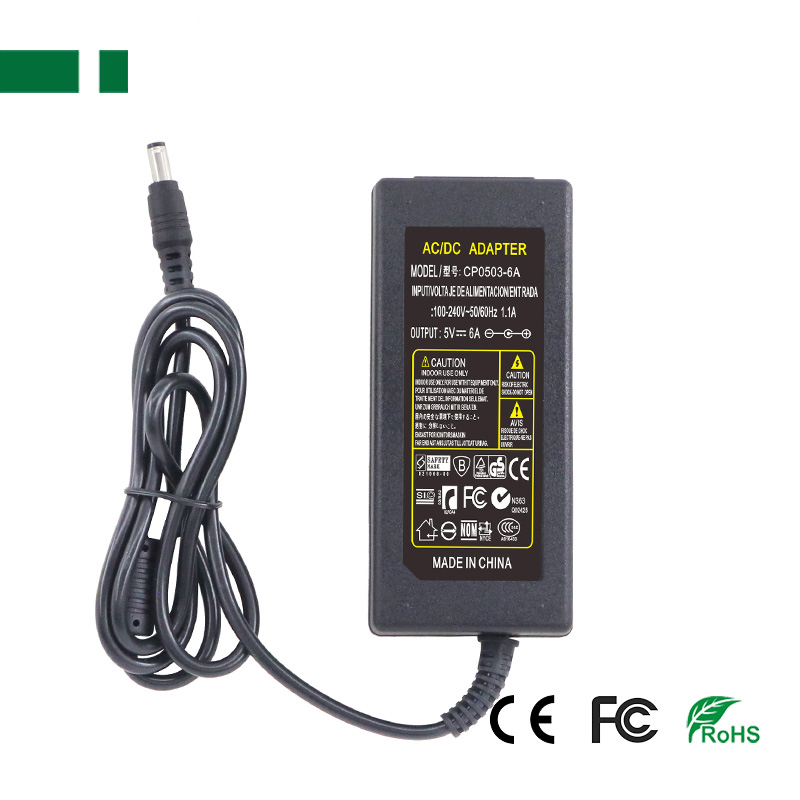

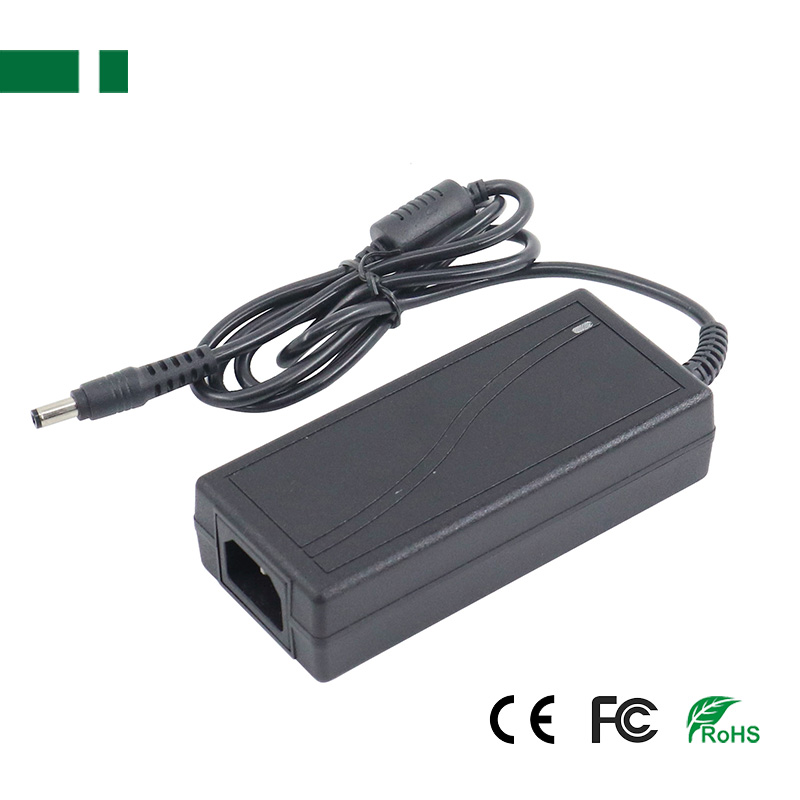

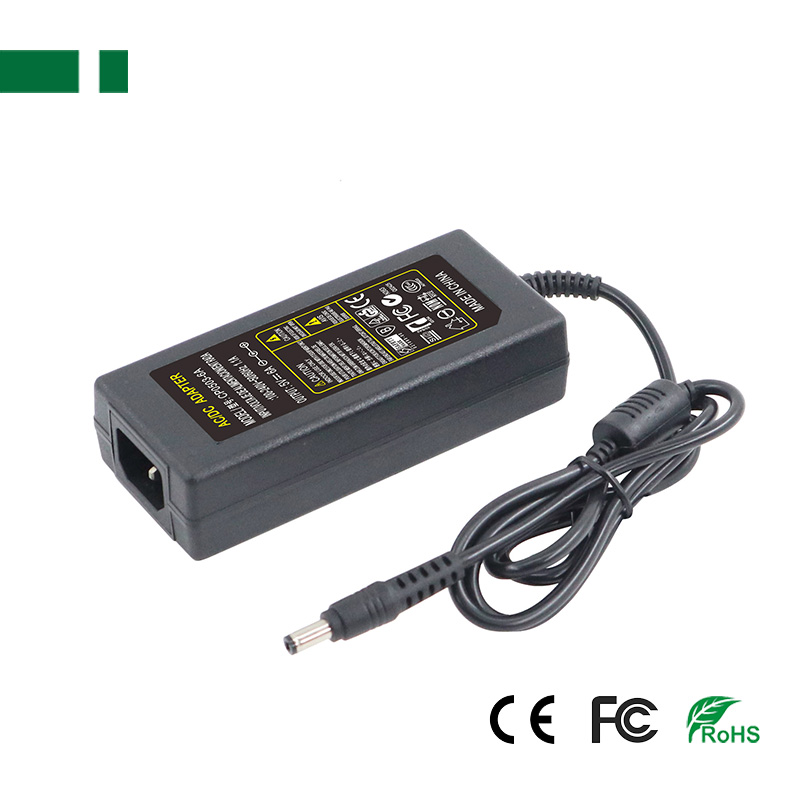

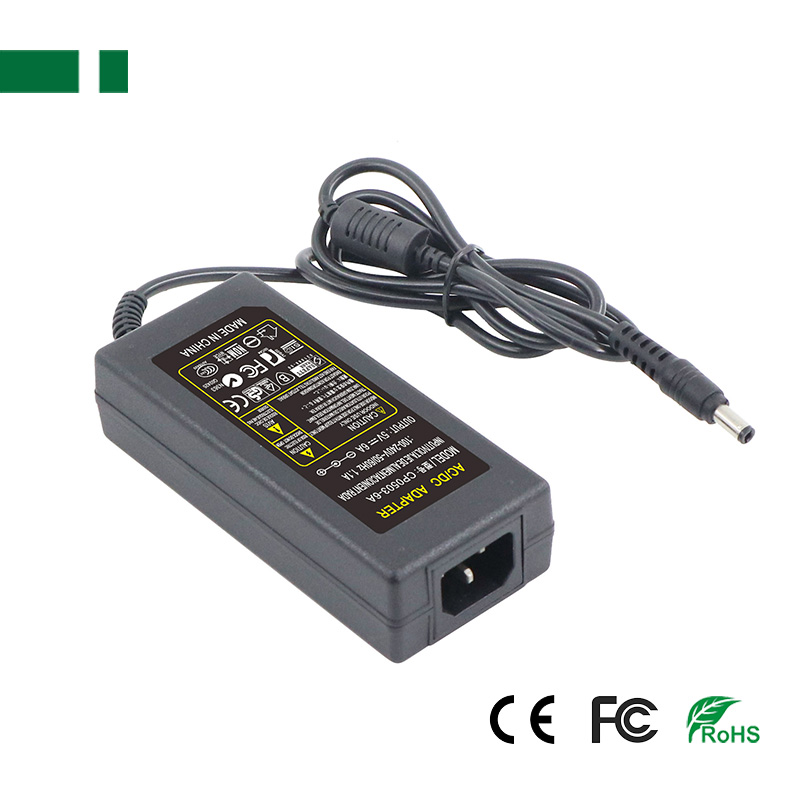

DC5V 30W Power Adapter
Output voltage & current: DC5V 6A
100% full load burn-in test
Input voltage range: 85~264VAC
An AC-DC power supply or adapter is an electrical device that obtains electricity from a grid-based power supply and converts it into a different current, frequency, and voltage. AC-DC power supplies are necessary to provide the right power that an electrical component needs.
Features:
1. 30W Output Power Adapter
2. Output voltage & current: DC5V 6A
3. Input voltage range: 85~264VAC
4. Built in EMI filter with tiny ripple
5. 100% full load burn-in test
6. Air Cooling
7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature
Specification:
| Model | CP0501-1A | CP0502-2A | CP0504-2A | CP0503-6A | |
| Output | DC output Voltage | DC5V±10% | |||
| Output Current Range | 0-1A | 0-2A | 0-2A | 0-6A | |
| Wave and Noise | 120mVp-p | ||||
| DC output Power | 5W | 12W | 12W | 30W | |
| Efficiency | 85% | ||||
| DC Voltage Adjustable Scope | （at full load）≦0.5% | ||||
| Input | Voltage Range | 100~240VAC 47-63Hz | |||
| Input Current | 0.07A/ 115V, 0.04A/ 230V | 0.14A/ 115V, 0.07A/ 230V | 0.14A/ 115V, 0.07A/ 230V | 0.36A/ 115V, 0.18A/ 230V | |
| Leakage Current | <1mA/ 240VAC | ||||
| Inrush Current | Cold start 20A/120VAC, 40A/230VAC | ||||

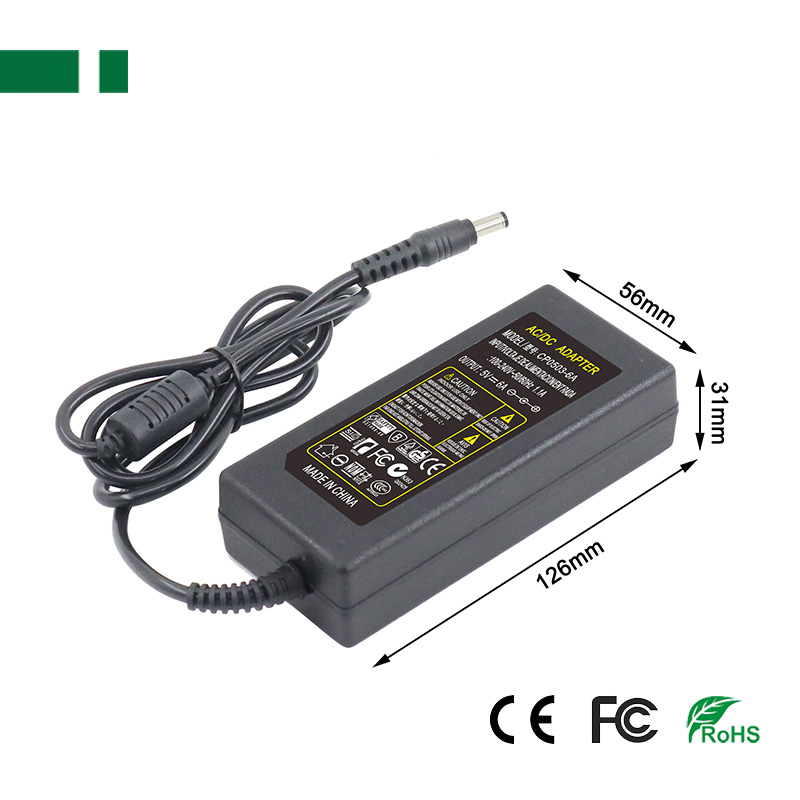

| Other | Dimension | 75*81*29mm(L*W*H) | 42*76*67mm(L*W*H) | 80*35*25mm(L*W*H) | 126*56*31mm(L*W*H) |
| Weight | 62g | 63g | 35g | 226g | |
| Protection | Over-load | 105%~135%, Protection type: Constant current limiting, recovers automatically after fault condition is removed | |||
| Over-voltage | 105%---150% Rated Voltage, Protection type: Shut off | ||||
| High-temperature | RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V) | ||||
| Environment | Working temperature and humidity | -10°C~+50°C, 20~90%RH | |||
| Store temperature and humidity | -20°C~+85°C, 10~95%RH | ||||
| Temperature coefficient | ±0.03%°C(0~50°C) | ||||
| Vibration | 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES | ||||
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC | |||
| Isolation resistance | I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC | ||||
| Standard | CE EMC Standard | EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013 | |||
| CE LVD Standard | EN61347-2-13:2014+A1:2017, EB61347-1:2015 | ||||
| ROHS Standard | IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc. | ||||
| Notes | 1. All parameters NOT specially mentioned are measured at
230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. I/P-O/P: Input and output interval, I/P-FG: Input and enclosure, O/P-FG: Output and enclosure | ||||
