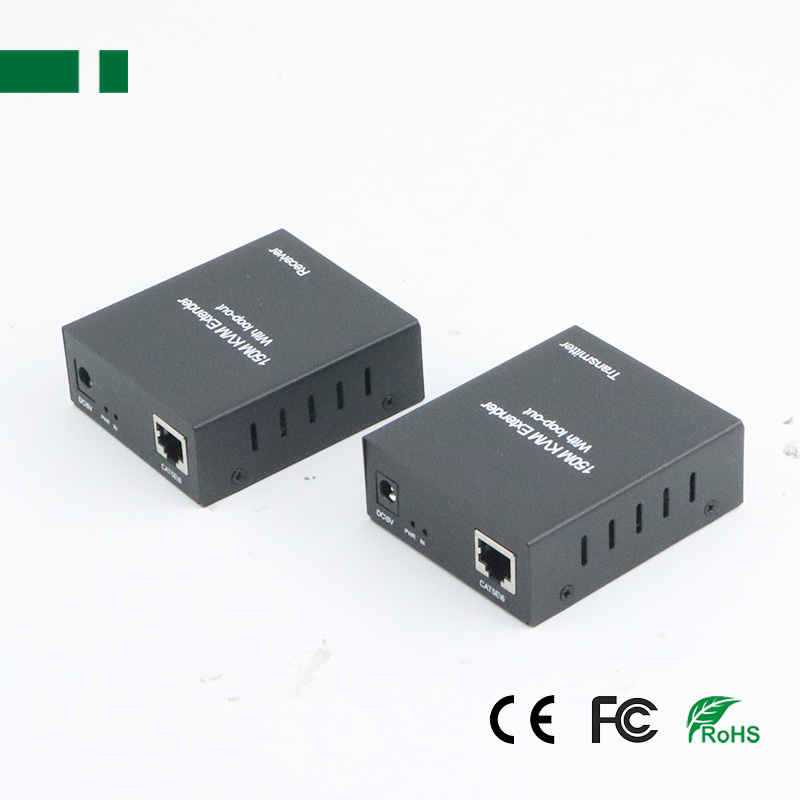

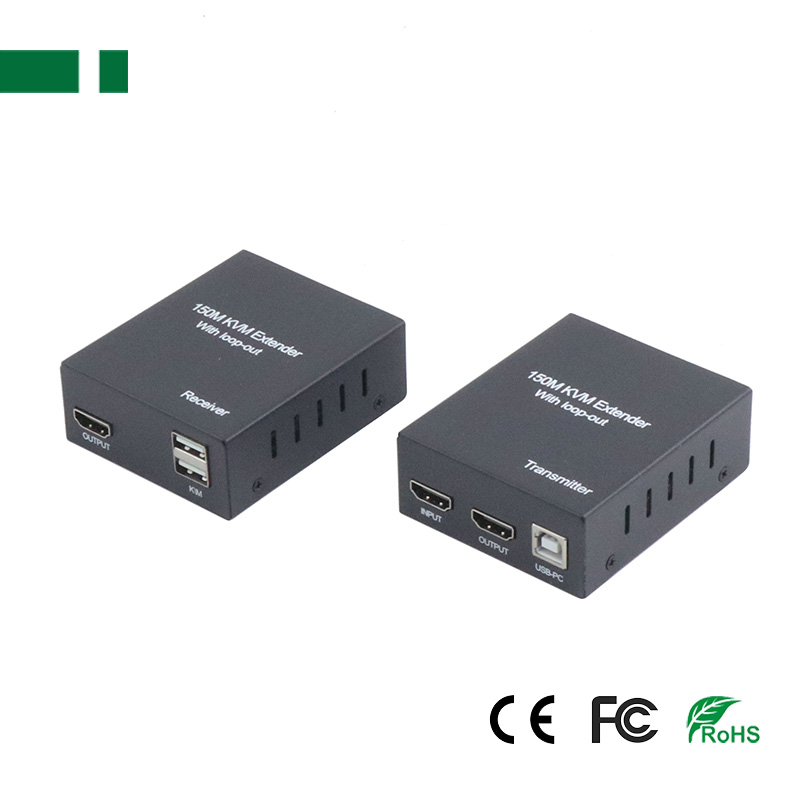

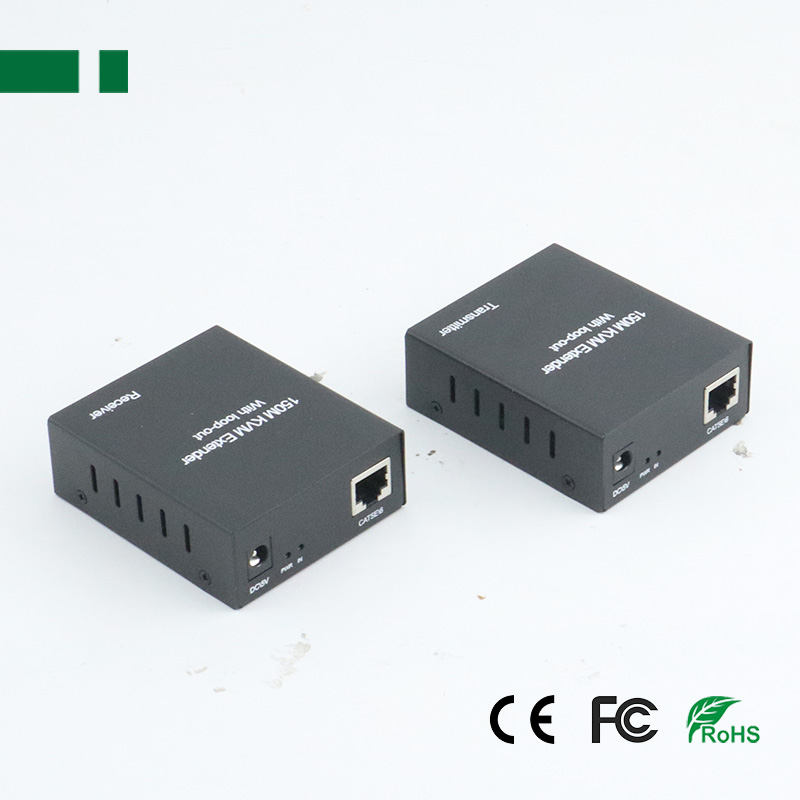

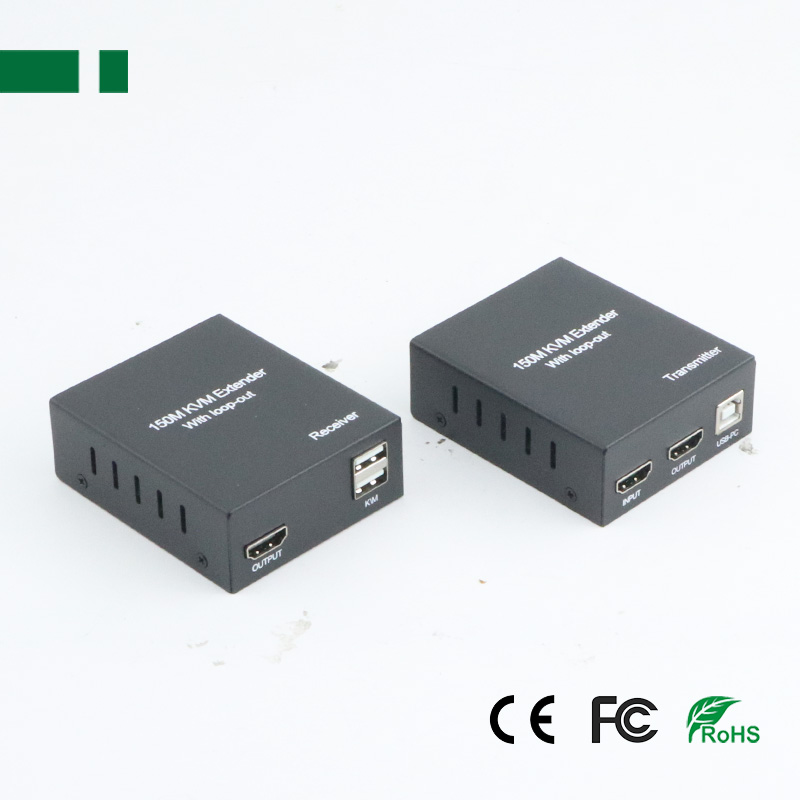

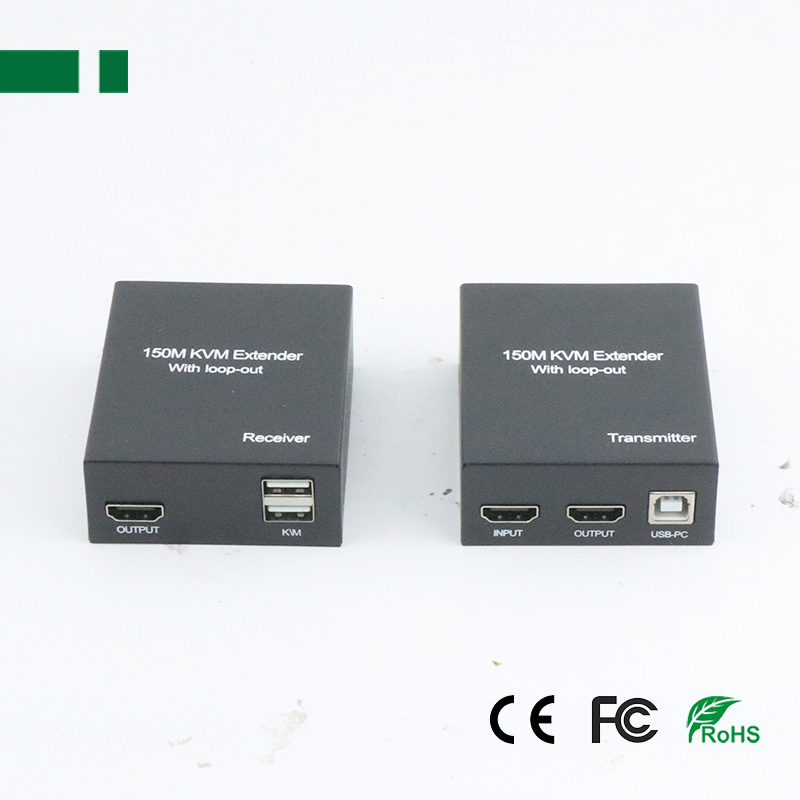

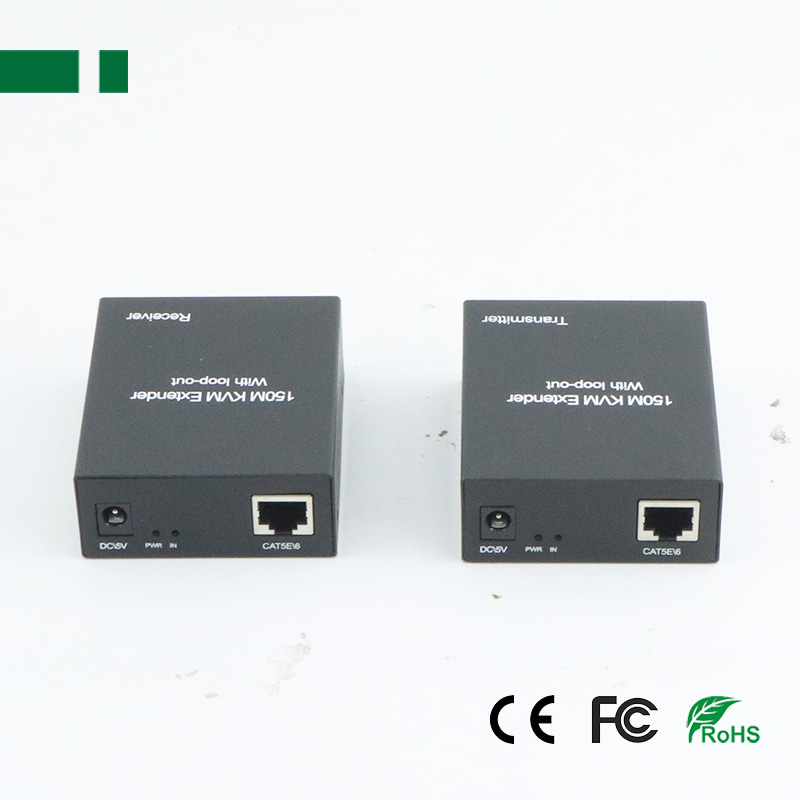

1080P@60Hz 150M HDMI KVM Extender
Support: 1920*1080P@60Hz
Transmission distance: 150M
Power supply interface: DC 5V
The Extender uses single cat6(recommended)cables instead of HDMI cable to transmit high definition signal up to 150 meters, cutting down the cost.
Introduction
The Extender uses single cat6(recommended)cables instead of HDMI Cable to transmit high definition signal up to 150 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
Features
1. Support 150m long distance transmission:
2. Low power consumption, low temperature and high safety;
3. Support USB mouse and keyboard extension;
4. Support local loop-out;
5. The design of pure hardware, plug and play, no need for additional software.
Specifications
| Model | CKM-B60 | CKM-B120 | CKM-B150 |
| Max. Distance | Up to 60 meters | Up to 120 meters | Up to 150 meters |
| HDMI Input | 1920*1080@60Hz | 4K*2K@30Hz | 1920*1080@60Hz |
| HDMI Output | 1920*1080@60Hz | 4K*2K@30Hz | 1920*1080@60Hz |
| Max band width | 148.5MHz | ||
| Max baud rate | 1Gbps | ||
| Input HDMI cable distance | 10m AWG26 HDMI standard cable | ||
| Output HDMI cable distance | 10m AWG26 HDMI standard cable | ||
| TX Max working current | 450mA | ||
| RX Max working current | 350mA | ||
| Power Supply | Input:AC(50HZ,60HZ) 100V-240V; Output: DC5V/1A Operating | ||
| Temperature range | (-15 to +55℃) | ||
| Operating Humidity range | 5 to 90%RH (No Condensation) | ||
| Dimension (L x W x H) | 79X67X28(mm) | ||
| TX Weight | 122g | ||
| RX Weight | 120g | ||
