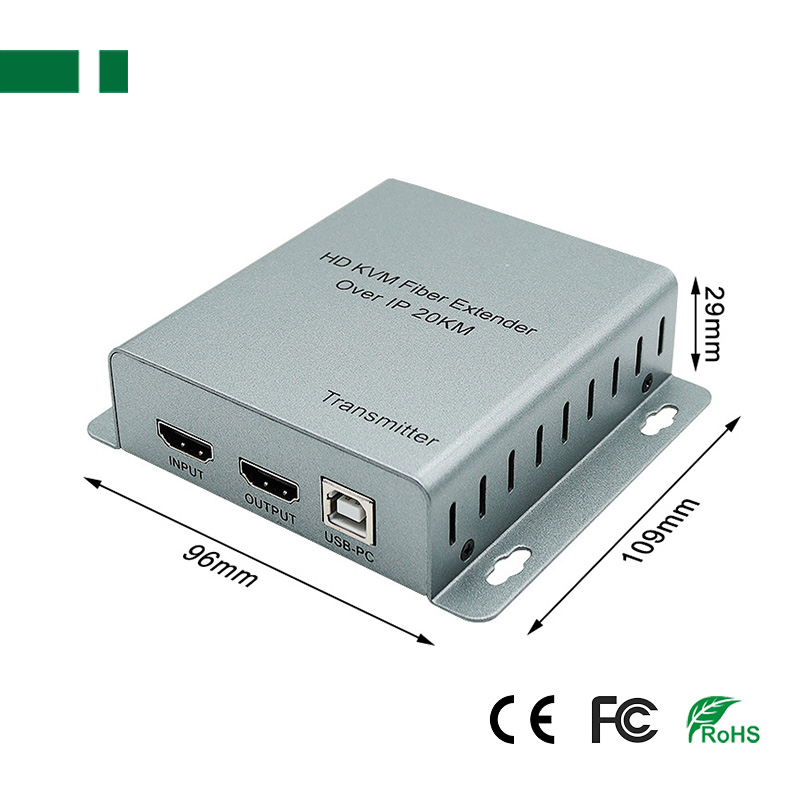

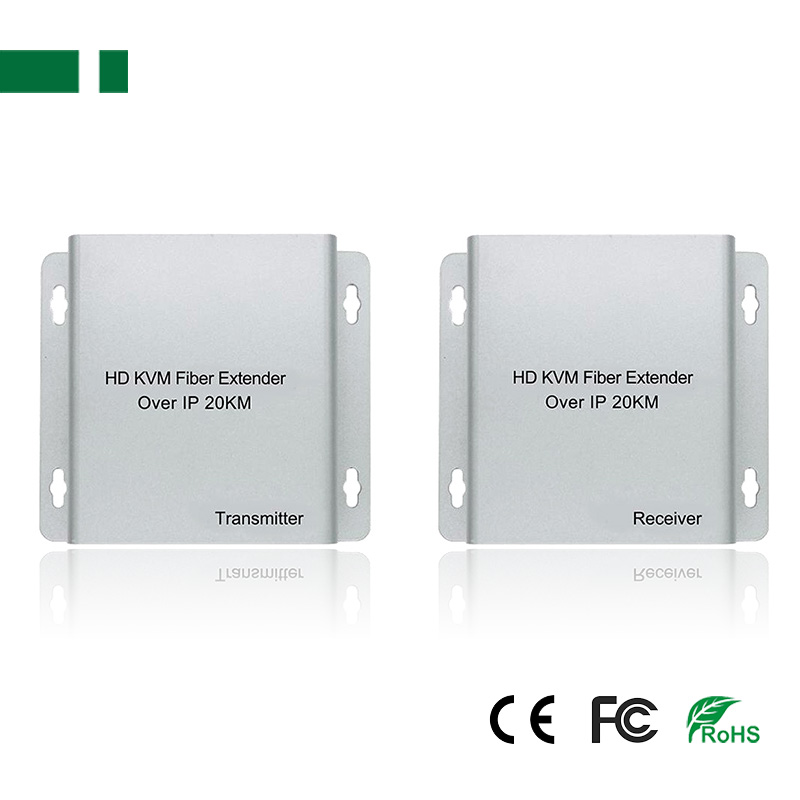

CKM-F20K-2 20KM 1080P HDMI KVM Fiber Extender over TCP/IP

20KM 1080P HDMI KVM Fiber Extender over TCP/IP, Support 1920*1080@60Hz HDMI Video Loop output

Introduction:

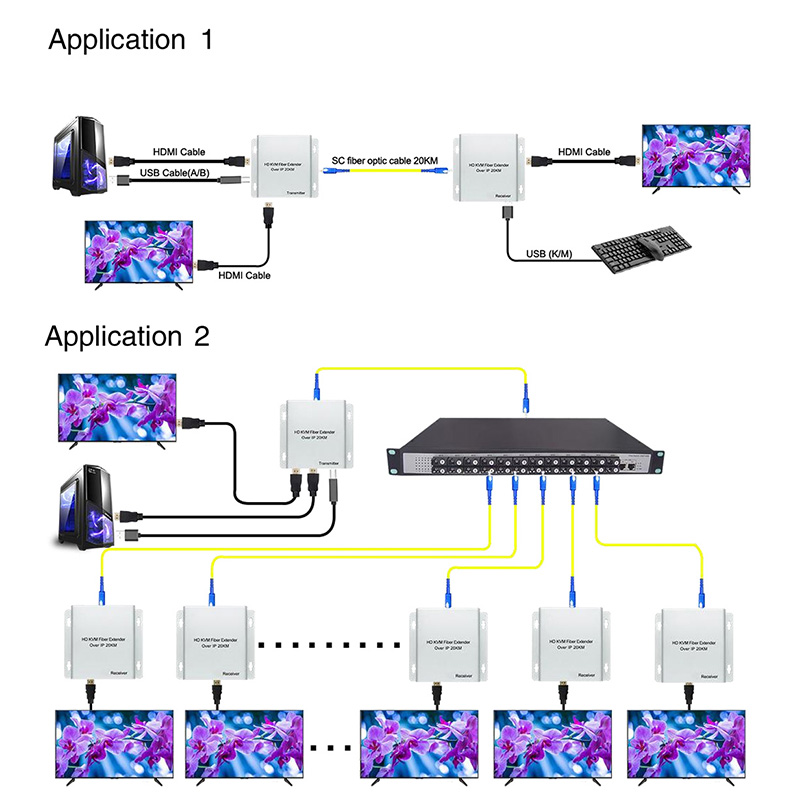

HDMI 20KM Extender over IP is based on TCP/IP standard. It transmits your HD display with the high resolution up to 20KM away from your DVD or computer source by using one optical cable. At the same time, it's convenient to transmit HDMI audio and video source by point-to-point mode, one point-to-many mode.

Feature:
1. One pair as a full functional module, no need of setting.
2. Fiber cable can substitute HDMI Cable to achieve long distance transmission.
3. The video resolution can be up to 1920*1080P@60Hz.
4. Signaling rates up to 1.65bps in support of 1920*1080P@60Hz display.
5. HDCP compliant
6. Support uncompressed audio such as LPCM
7. Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby

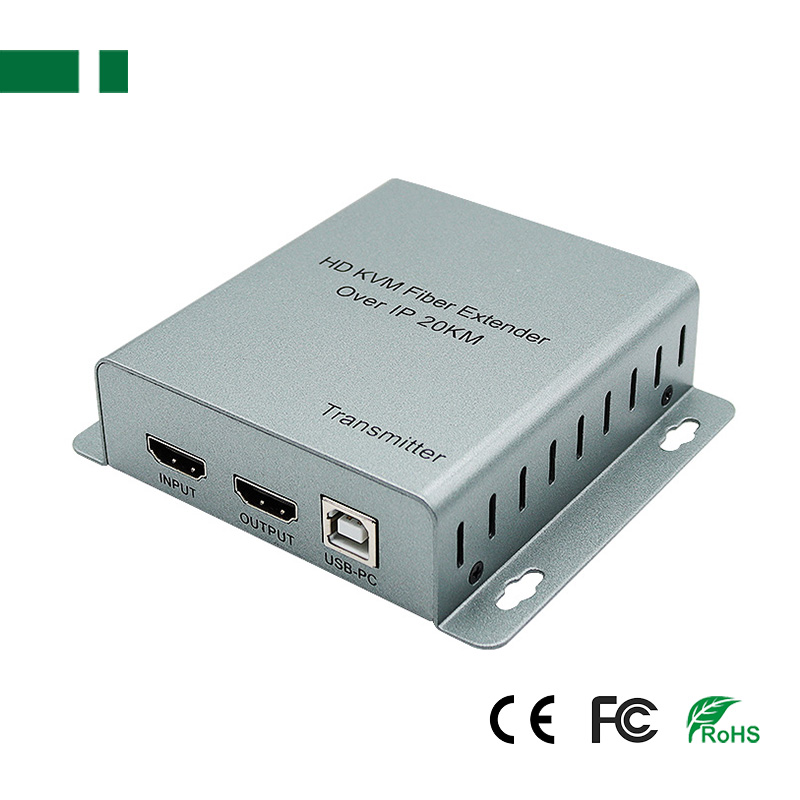

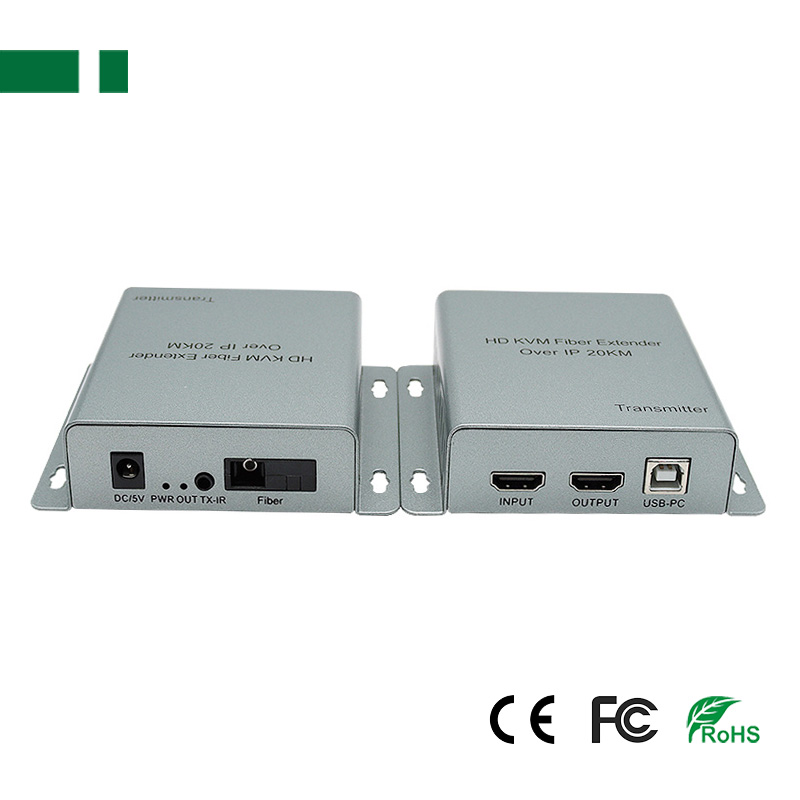

8. The sender with HDMI output, audio output and Ir output.

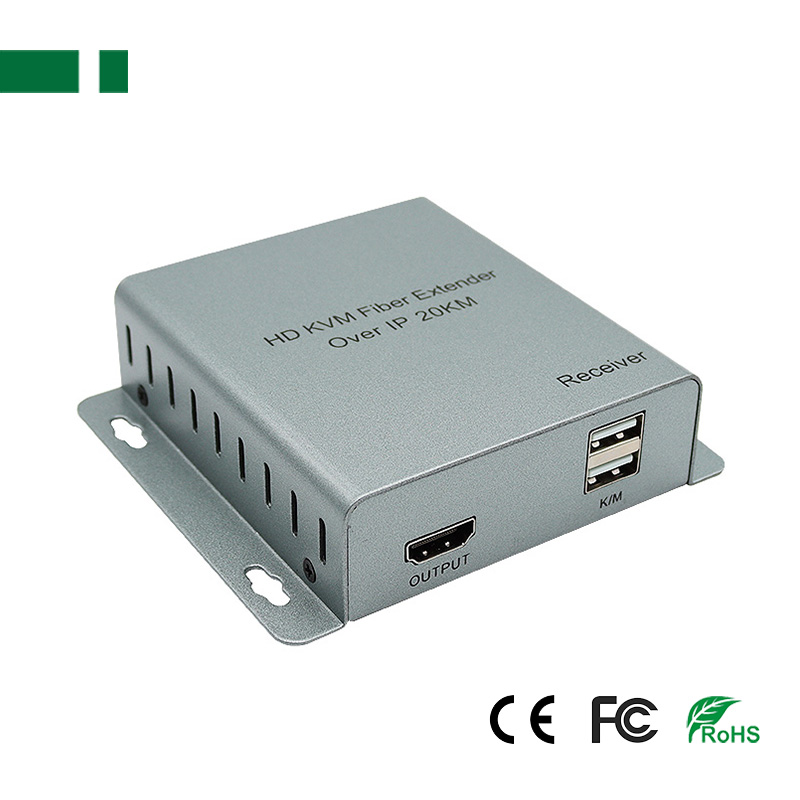

9. The Receiver with HDMI output, audio output and Ir input.

Specification:

Application:
HDMI 20KM extender over IP is used in audio-visual conference, command and control center, ticketing platform, home theater, multi-media teaching, conference system and so on.
