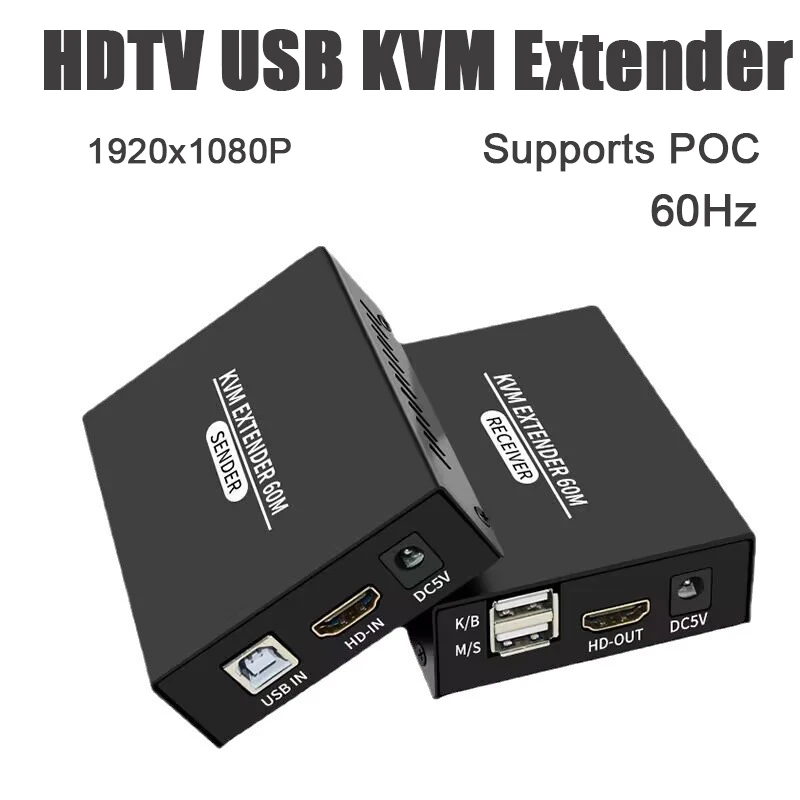

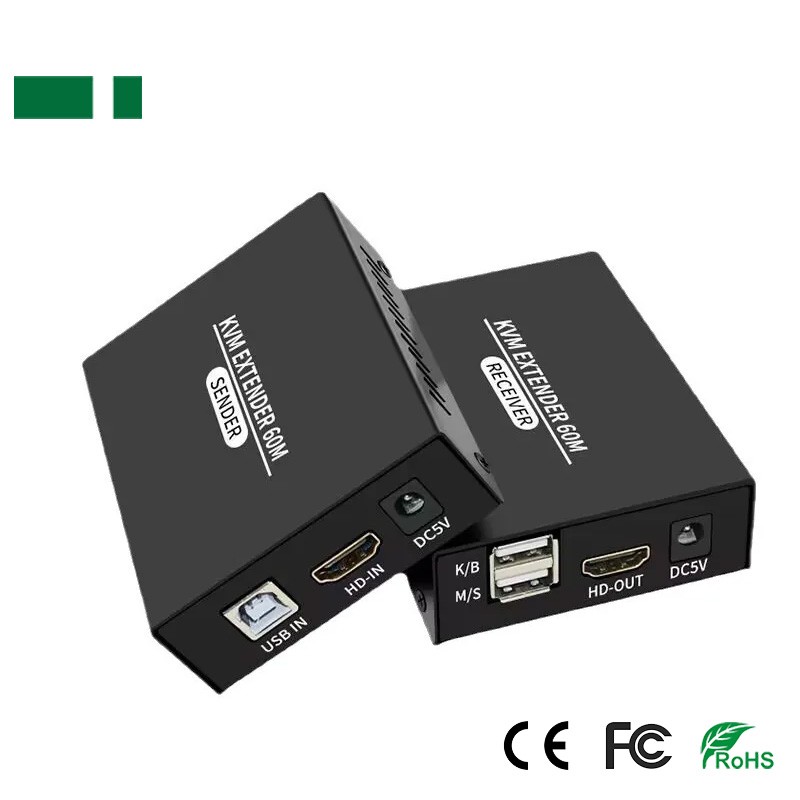

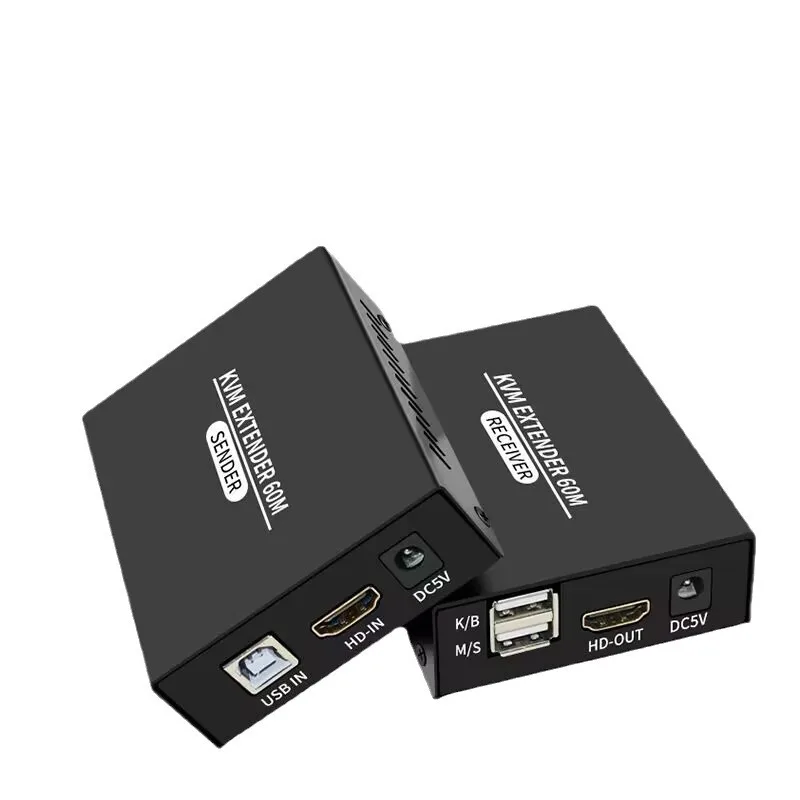

CKM-60A 1080P 60M HDMI KVM Extender

Introduction :

The KVM Extender uses single cat5e or cat6(recommended) cables instead of HDMI Cable to transmit high definition signal up to 60 meters, cutting down the cost.

The Extender is designed to supply for long distance transmission of high definition signal.

It offers solutions for residential consumers: HDTV retail and show site, HDTV,STB,DVD and projector factories,

space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features:

*One pair as a full functional module, no need of setting.

*Support 1080P/60Hz;

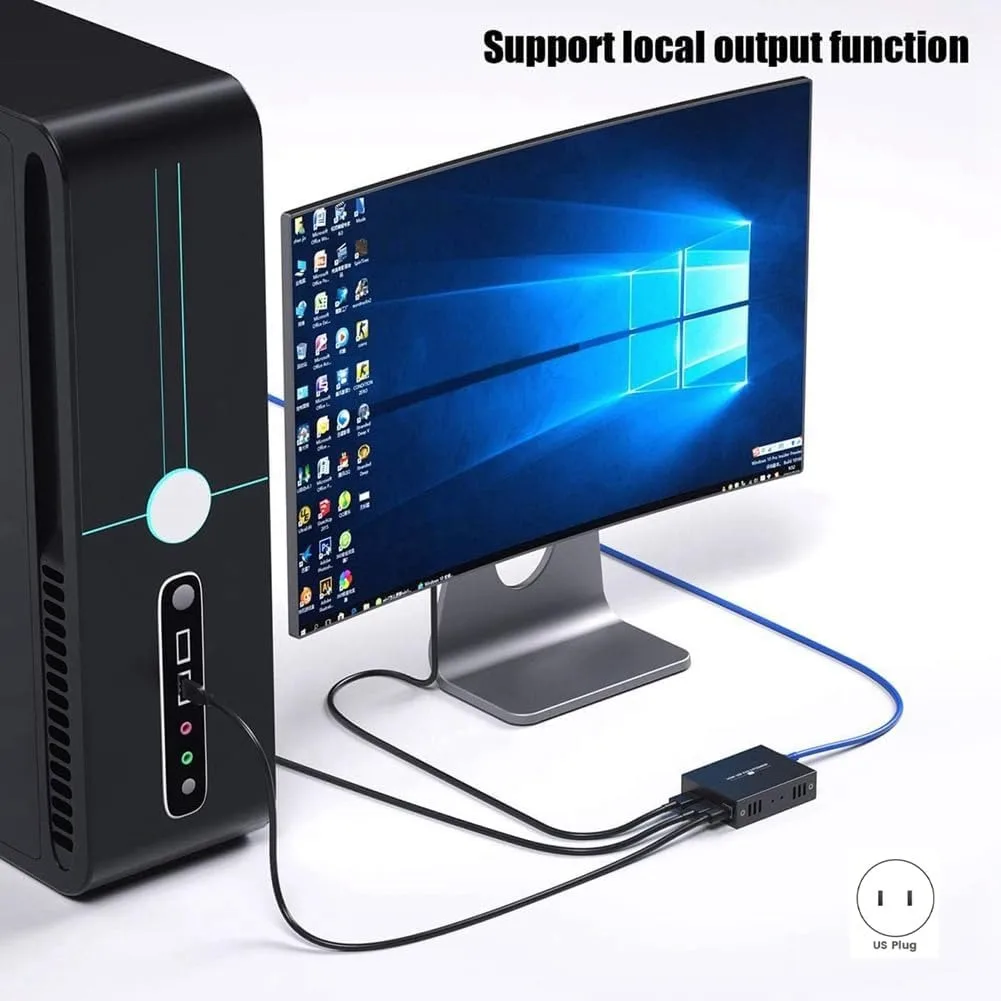

*Support local loop-out;

*Support 60m long distance transmission:

*Low power consumption, low temperature and high safety;

-Support mouse and keyboard extension;

*CAT-5e/6 follow the standard of IEEE-568B

Specifications:

Length of CAT-6/CAT-5E cable between Rx and TX ---------------------Up to 60 meters

HDMI Input 1080p/1080i/720p/576p/576i/480p/480i

HDMI Output-------------1080p/1080i/720p/576p/576i/480p/480i

Max bandwidth---------------150MHZ

Max baud rate--------------4.5Gbps

Input video signal-----------0.5~1.5Volts p-p

Output DDC signal---------5Volts p-p (TTL)

Input HDMI cable distance------------- ≤10m AWG26 HDMI standard cable

Output HDMI cable distance---------------------- ≤15m AWG26 HDMI standard cable

TX Max working current -------------450mA

RX Max working current-----------------------350mA

Power Adapter format----------------Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range (-15 to +45 C)

Operating Humidity range 5 to 90%RH (No Condensation)

Warm Tips :

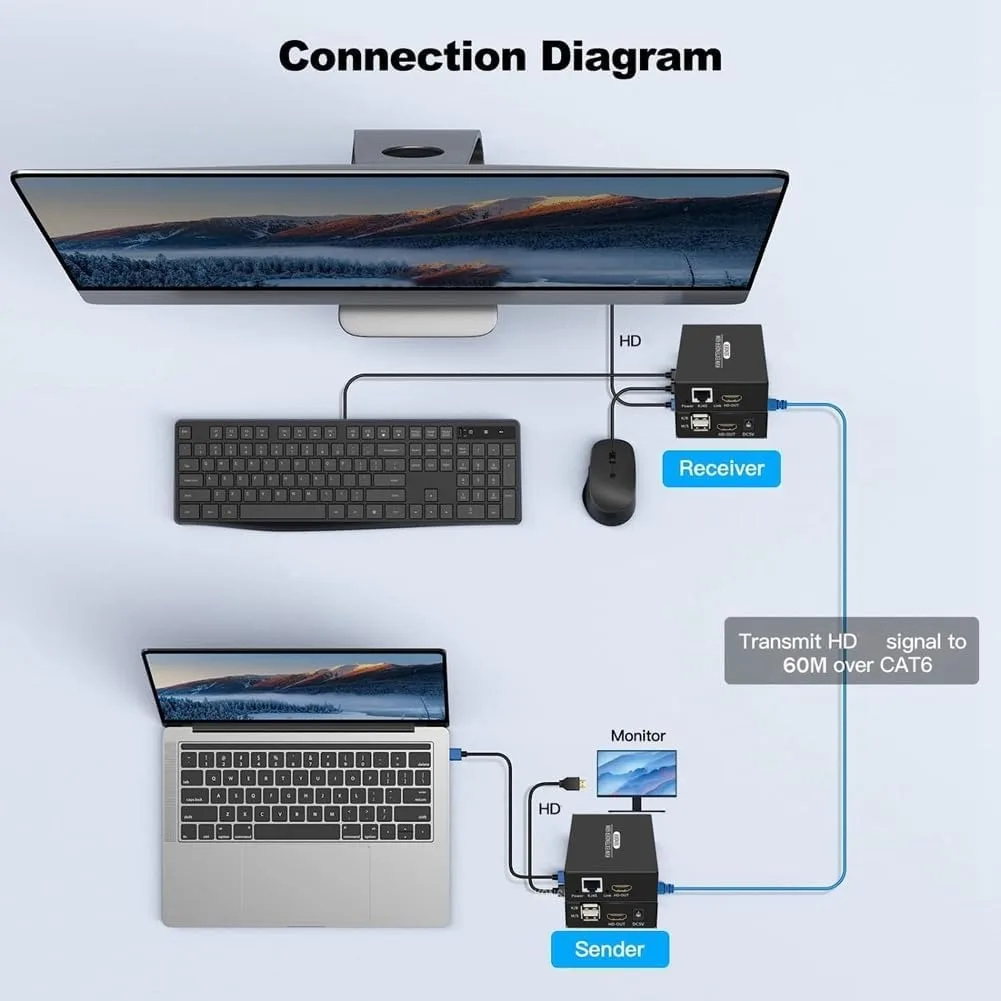

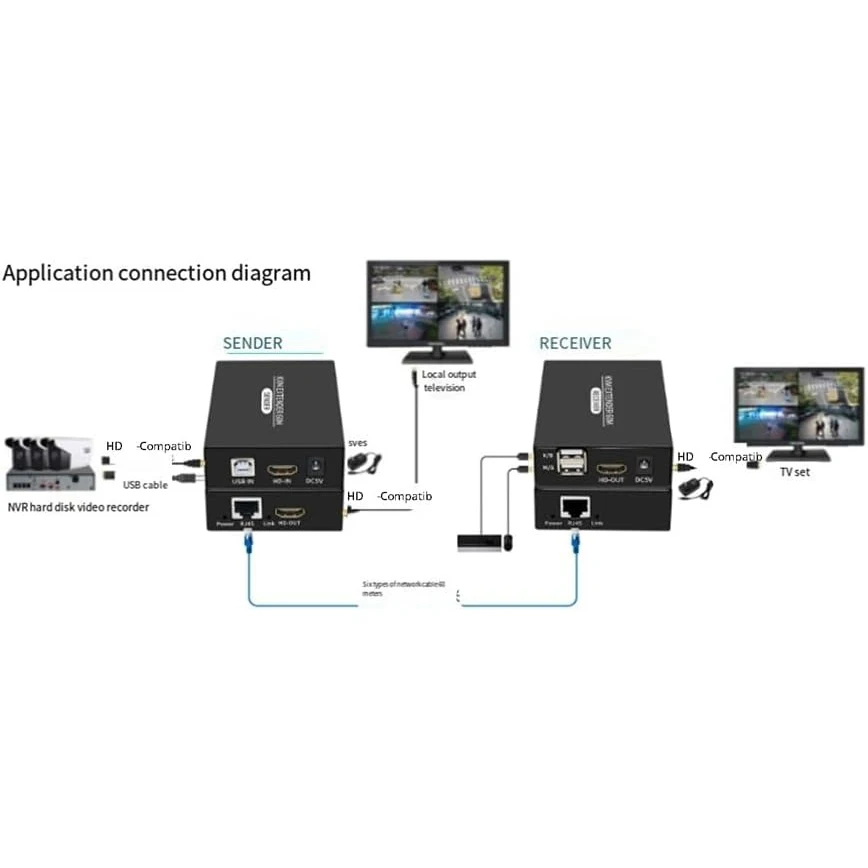

TX and RX only supports 1-to-1 direct connections, not support network switches.

Qualified cat6 cables are needed

Pls uses qualified cat6 T-568B cables to pair the TX and RX. A qualified Network Cable shall be of copper conductor.

The transmission distance is subjects to that of the cables connected. And the cable length cannot be less than 5 meters.

KVM Features:

KVM = keyboard, video, mouse,

The "Receive" USB interface only supports connecting USB wired mouse and wired standard 104 keyboards,

Package:

1* Sender

1* Receiver

2*DC5V power Plug

1* One USB A-B cable
