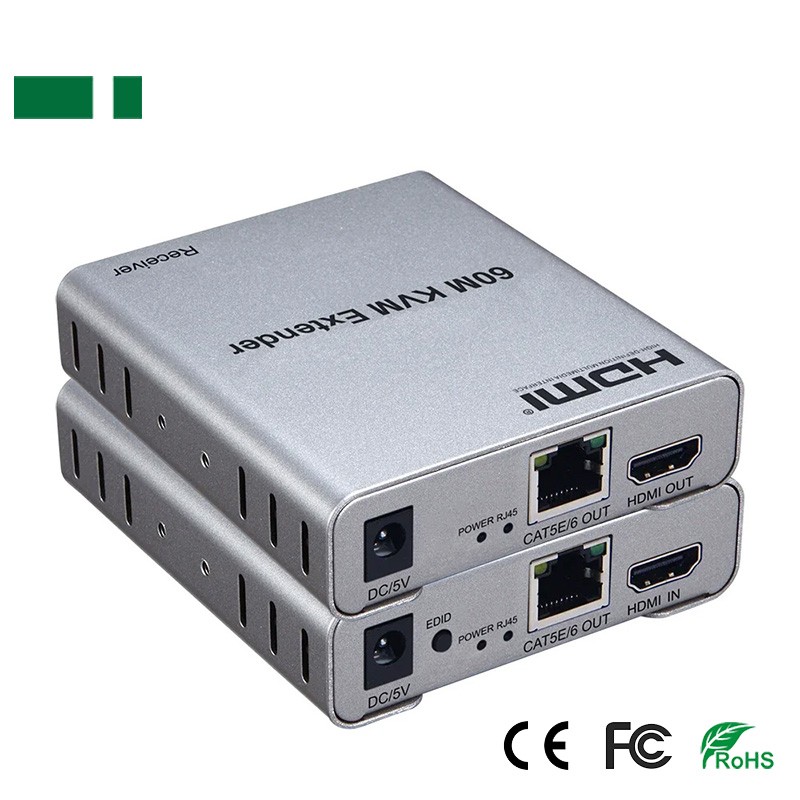

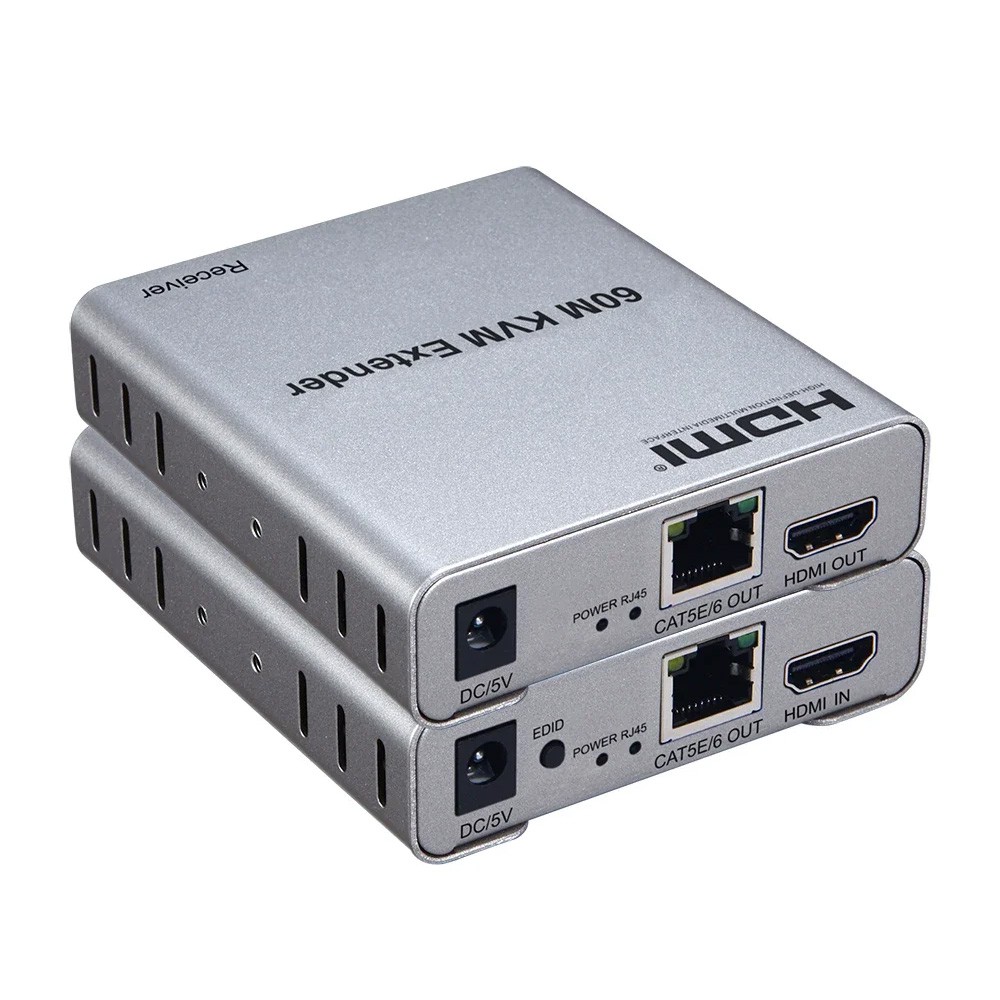

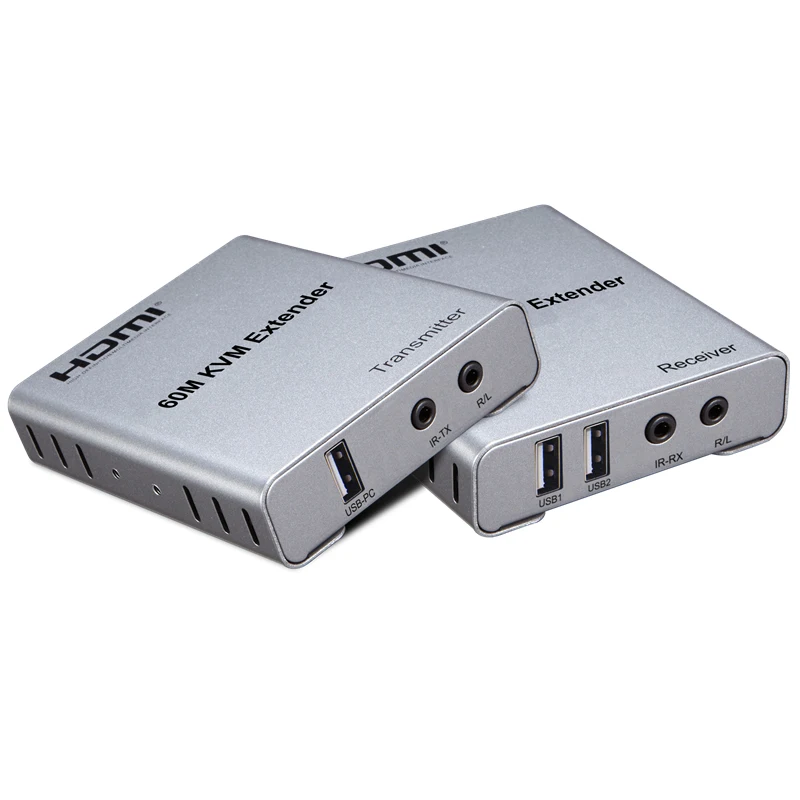

CKM-60 1080P 60M HDMI KVM Extender

1080P 60M KVM Extender

Descriptions:

This Extender uses single cat5e or cat6(recommended)cables instead of HD cable to transmit high definition signal up to 60 meters,cutting down the cost.

The Extender is designed to supply for long distance transmission of high definition signal.

Features:

Support highest video resolution 1080P/60Hz;

60M long distance transmission;

Both the TX and RX support 3.5MM audio output;

Low power consumption, low temperature and high safety;

Support IR remote control;

Support USB mouse and keyboard.

Specifications:

Length of CAT-6/CAT-5E cable between Rx and TX: Up to 60 meters

HDMI-compatible Input: 1080p/1080i720p/576p/576i/480p/480i

HDMI-compatible Output: 1080p/1080i720p/576p/576i/480p/480i

Max bandwidth: 150MHz

Max baud rate: 4.5Gbps

Input video signal: 0.5~1.5Volts p-p

Output DDC signal: 5Volts p-p (TTL)

Input/Output HDMI-compatiblecable distance: ≤10m AWG26 HDMI-compatible standard cable

TX Max working current: 300mA

RX Max working current: 300mA

Power Adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

KVM Features:

KVM = keyboard, video, mouse,

The "Receive" USB interface only supports connecting USB wired mouse and wired standard 104 keyboards, and does not support any other USB devices.

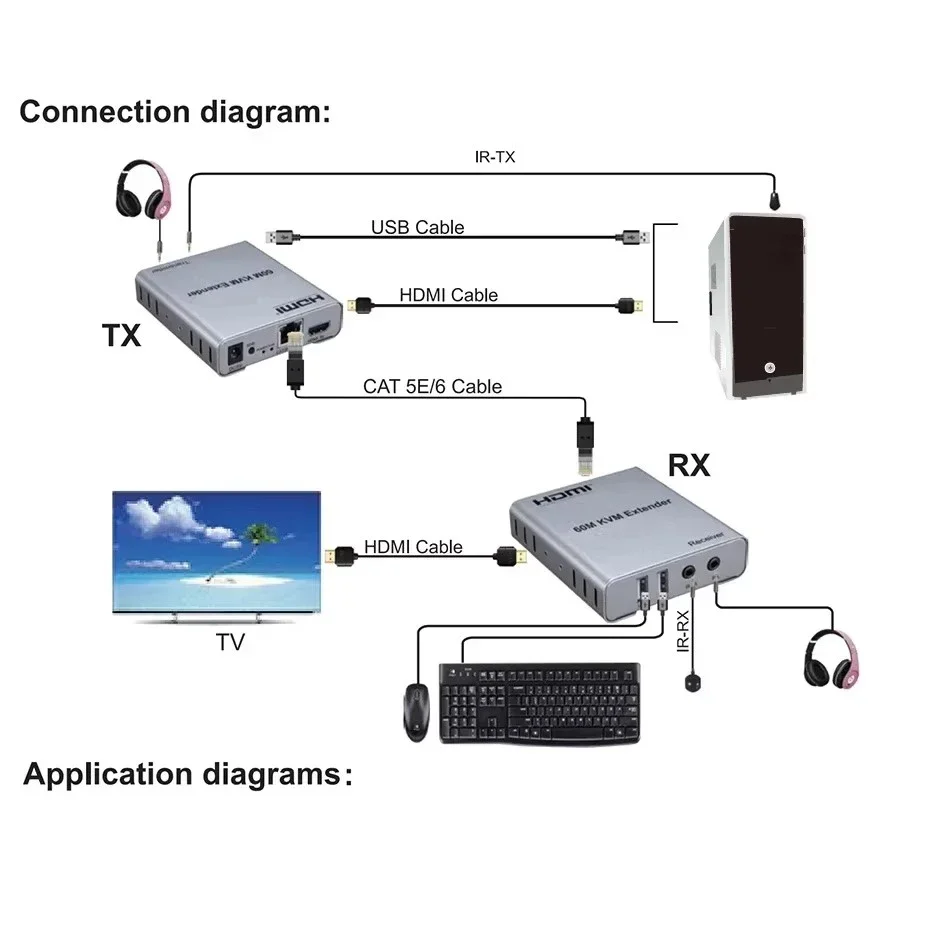

Qualified cat6 cables are needed

Pls uses qualified cat6 T-568B cables to pair the TX and RX. A qualified Network Cable shall be of copper conductor.

The transmission distance is subjects to that of the cables connected. And the cable length cannot be less than 5 meters.

Package Included:

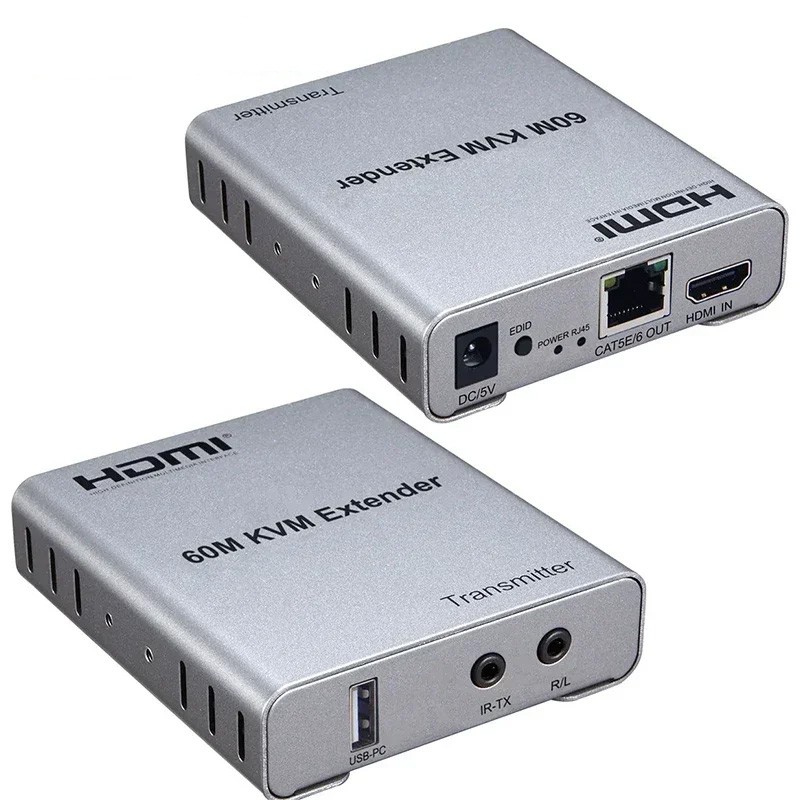

1 x Transmitter

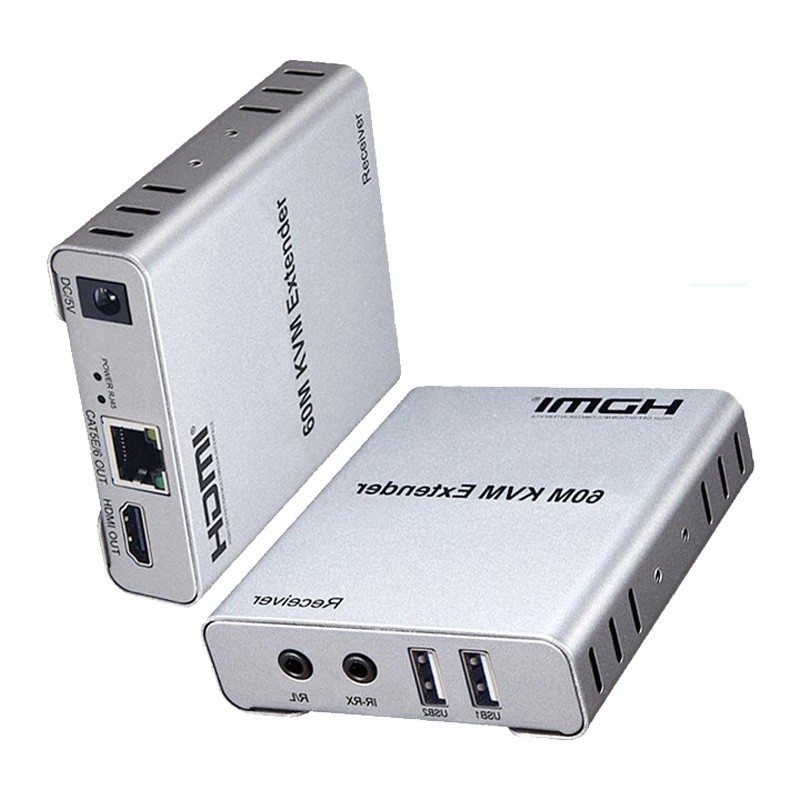

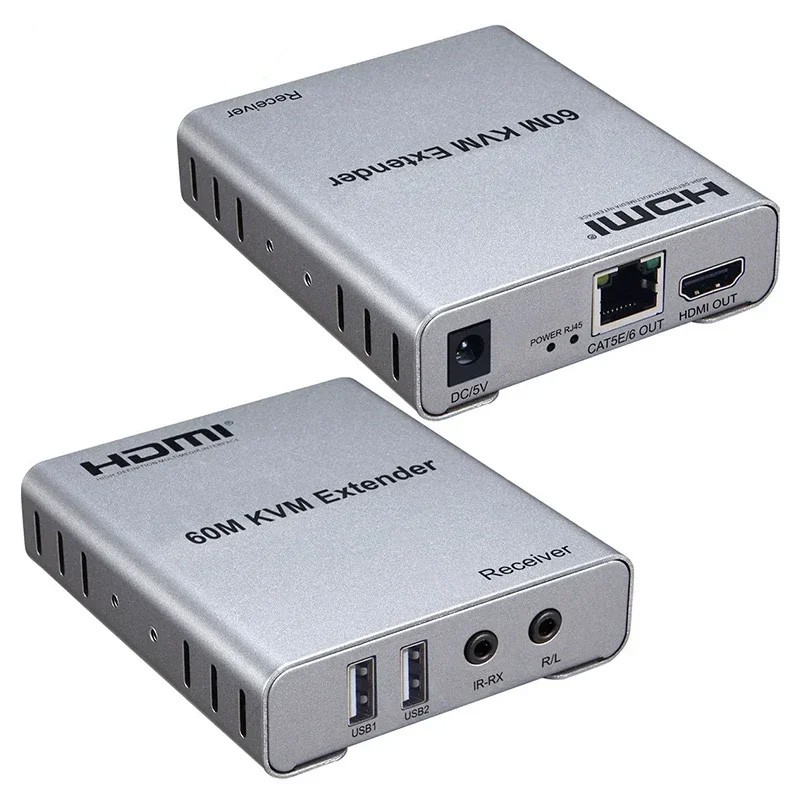

1 x Receiver

2 x 5V power adapter

1 x Manual
