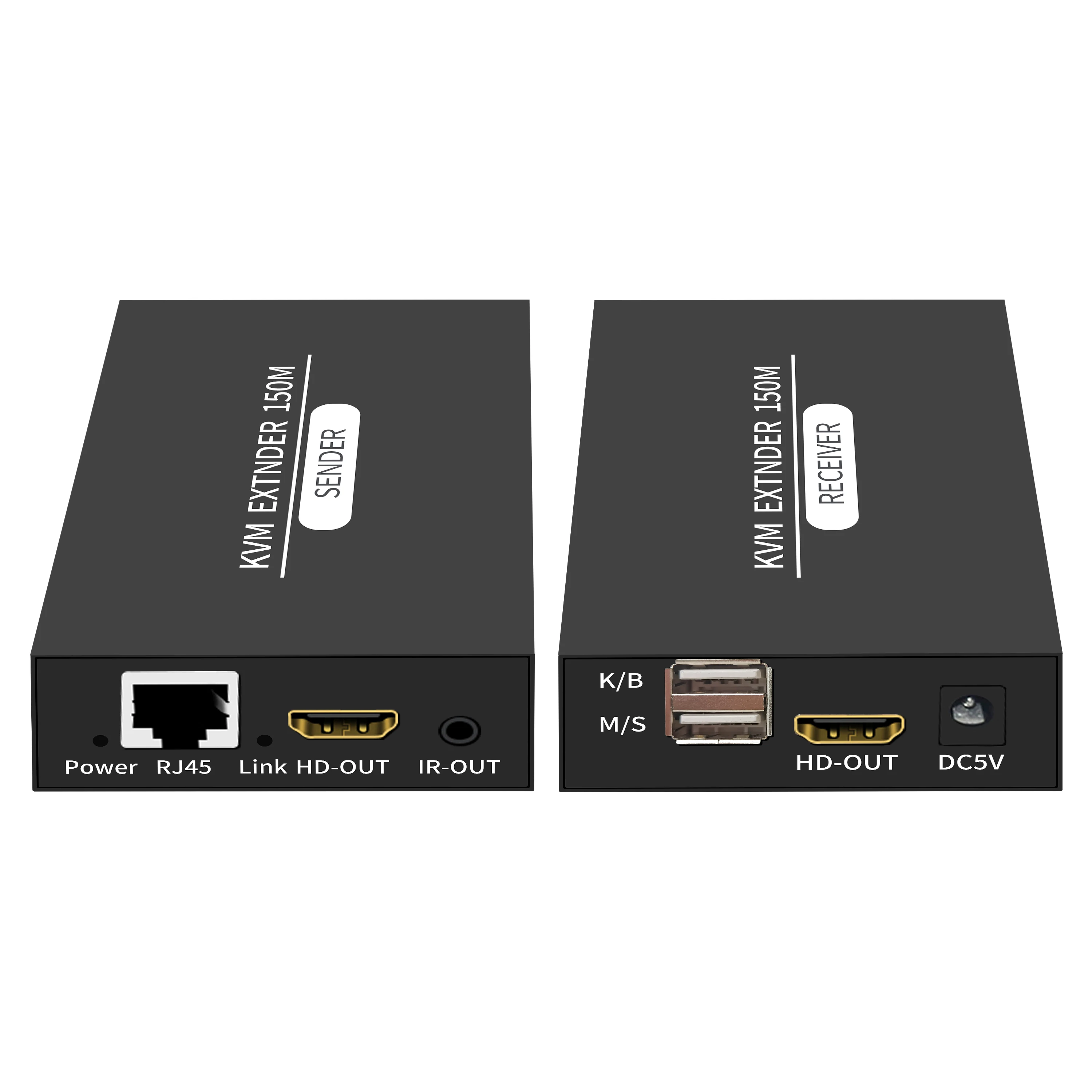

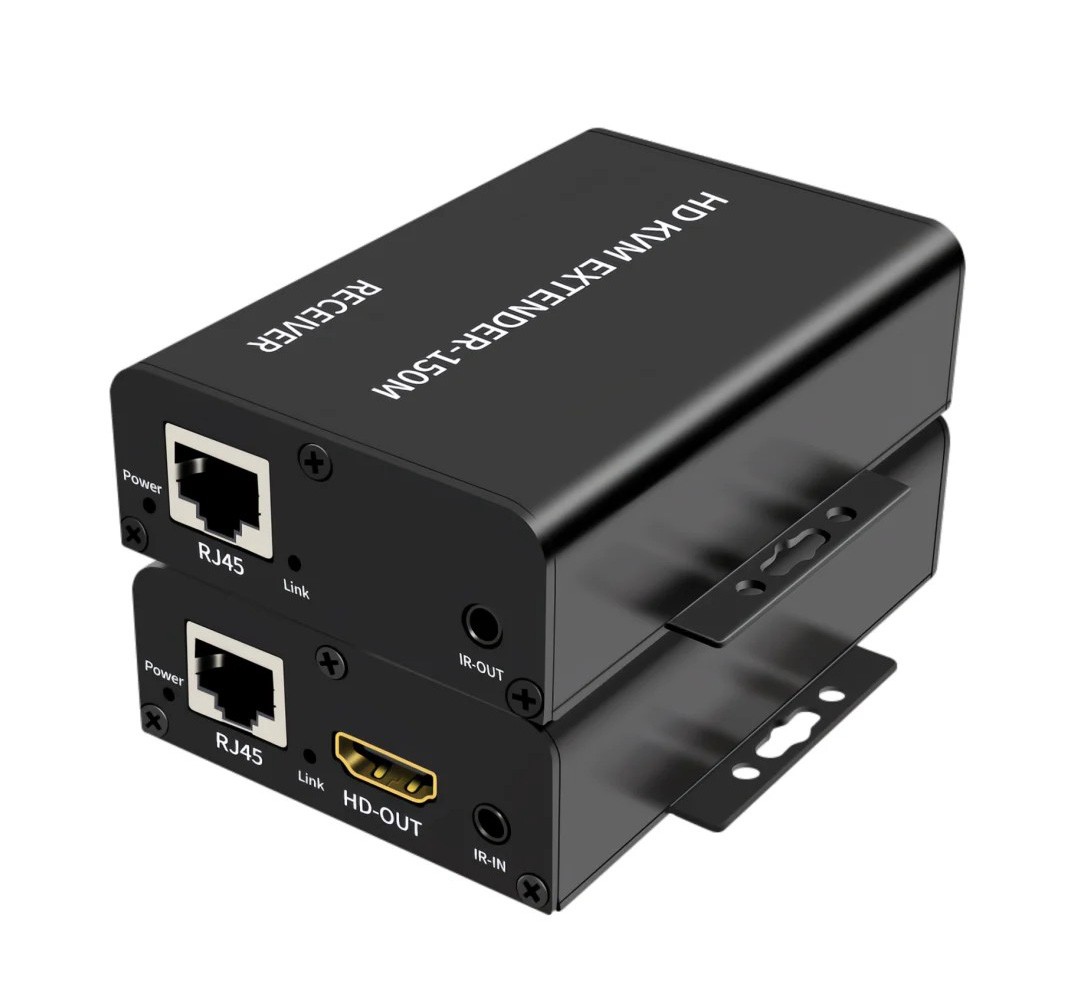

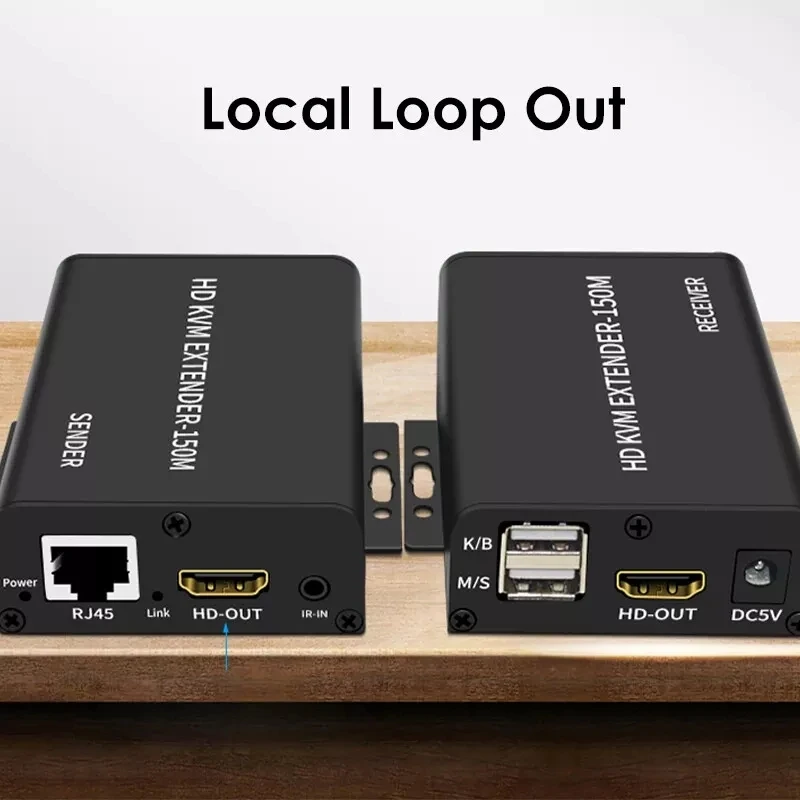

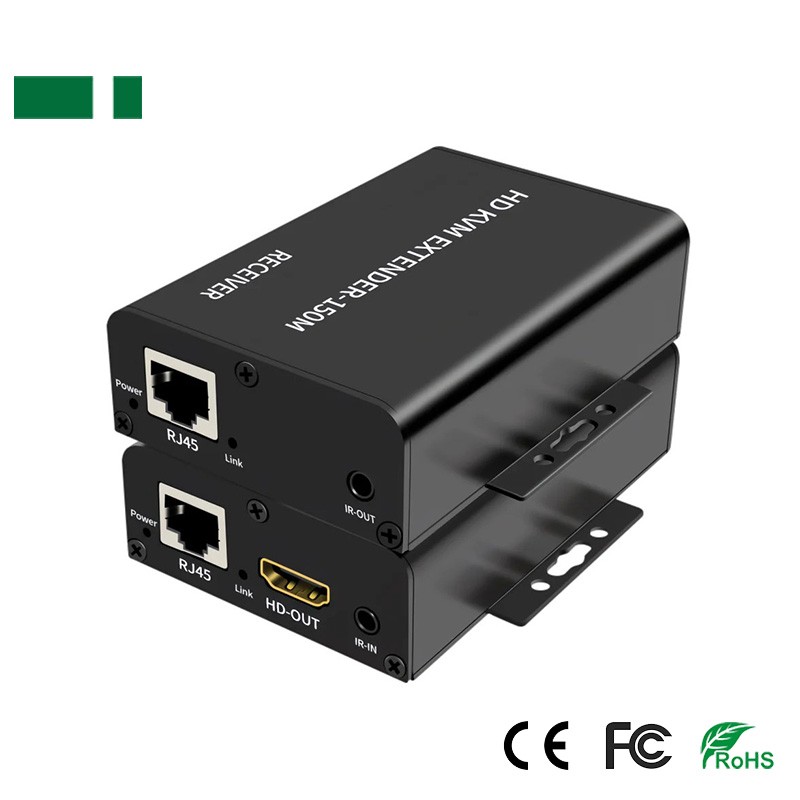

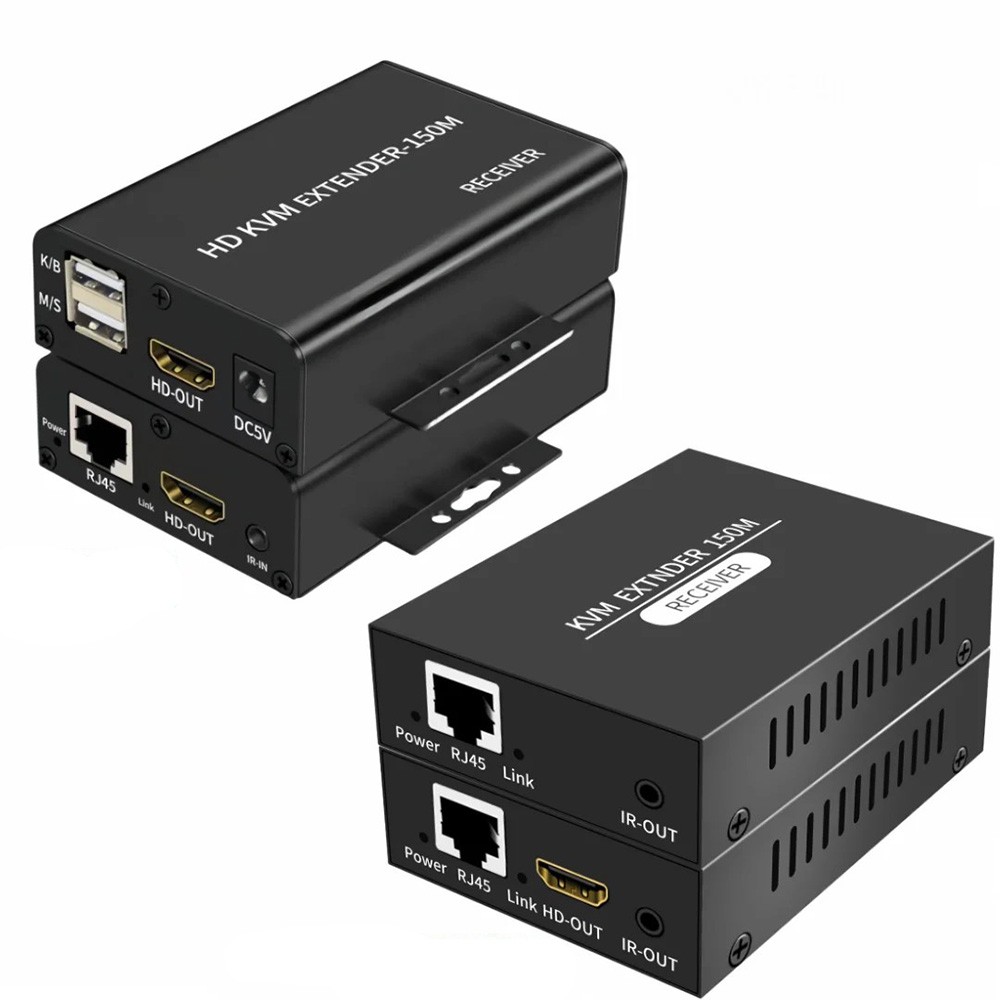

CKM-150B 1080P 150M HDMI KVM Extender

Introduction

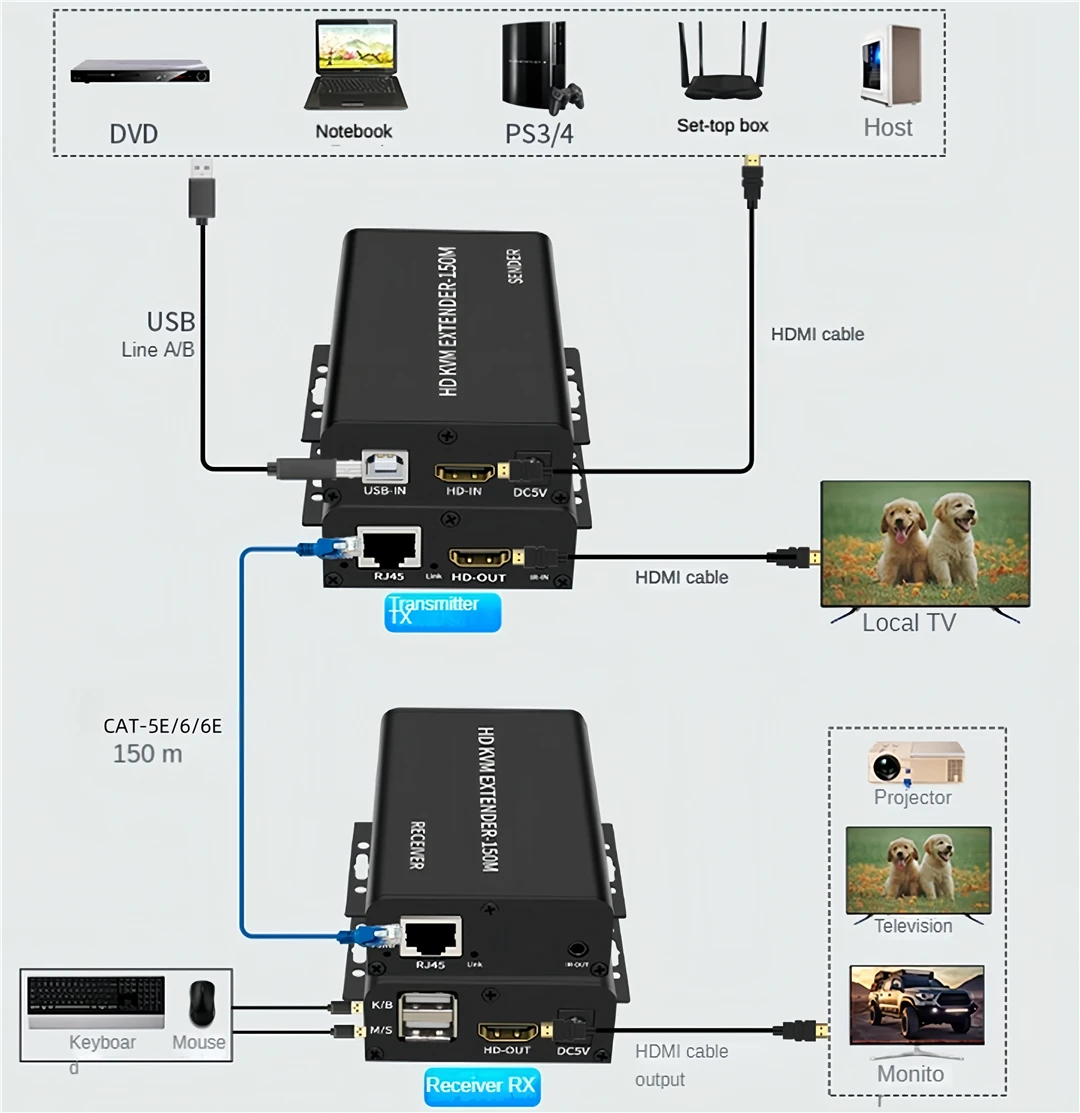

The extender, through a single CAT-5E/6, the HDTV signals and USB keyboard and mouse signals to extend the 150 m, the resolution up to 1080 P. It not only breaks the limitations of the transmission distance of the HDMI Cable, CAT-5E/6 also makes the wiring more flexible and more convenient. The HDMI Extender uses HDMI (High Definition Multimedia Interface) using HDMI connectors, if you use HDMI to DVI adapter, also supports DVI (Digital Display Interface) interface, which gives the home theatre system brings greater flexibility, and more selectivity. It brings a variety of solutions to home users, such as HDTV sales and displays, set-top boxes, DVDs, projectors and other devices, as well as in the field of space and security, data control centres, information dissemination centres, conference rooms, schools and corporate training.

Used in pairs, no setup required

Features

Replace HDMI cable with CAT-5E/6 cable for long distance transmission.

Compact structure

Signal transmission rate up to 1.65Gbps

Support lossless compressed audio, such as: LPCM

Supports compressed audio, such as DTS, Dolby (including DTS-HD, and full HD Dolby).

Input video signal: 0.5-1.0 volts p-p

Input DDC signal: 5 volts p-p (ttl)

Maximum single link video range: 1920*1080, 1080p

Output video: HDMI

Mouse and keyboard interface: USB

DTV/HDTV: 1080p/1080i/720p/576p/480p/576i/480i

Interlace (50&60Hz): 480i 576i 1080i

Progressive (50&60Hz): 480p 576p 720p 1080p

Power Consumption: 5w

Operating Temperature: 0 to+70°C

Power Adapter: DC5V 1A

Note:

1.the K/M USB port only support wired or wireless keyboard and mouse,not support Mechanical keyboard，USB camera,Scanner,USB flash driver ,printer etc.

2.For CAT cable,please you use AWG23 CAT5e/6 cable with IEEE-568B connection.

Each Set Package Include:

1x Transmitter

1x Receiver

1x USB cable

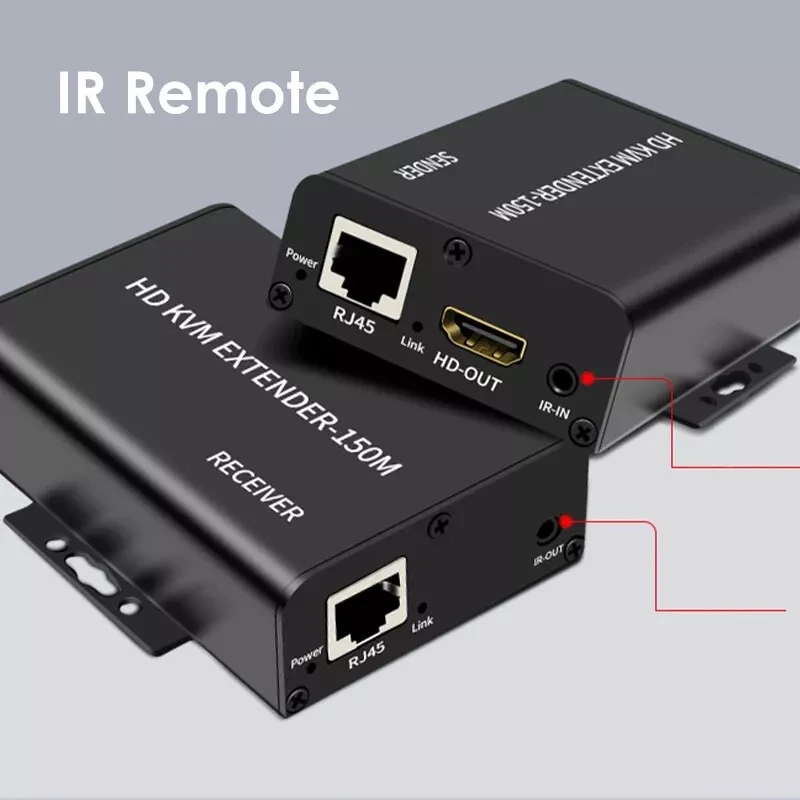

1x IR-RX cable

1x IR-TX cable

1x DC 5V/1A Power adapter

1x User manual
