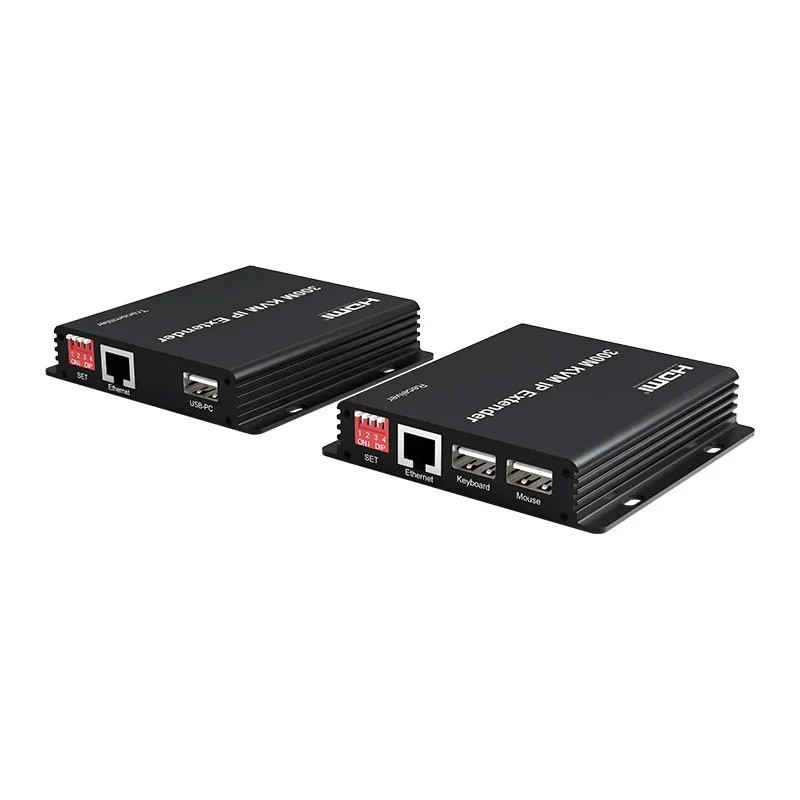

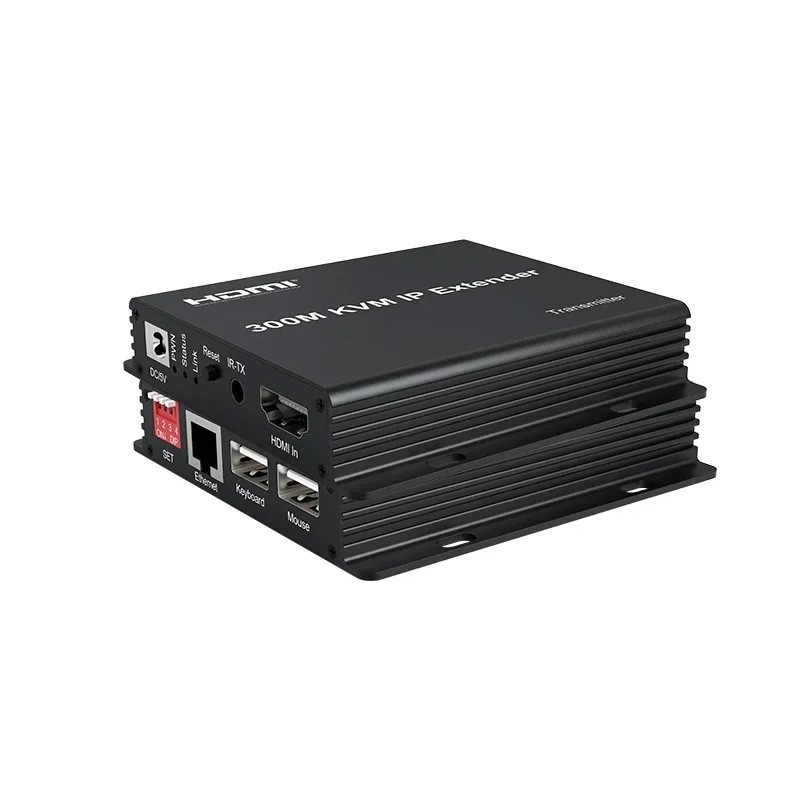

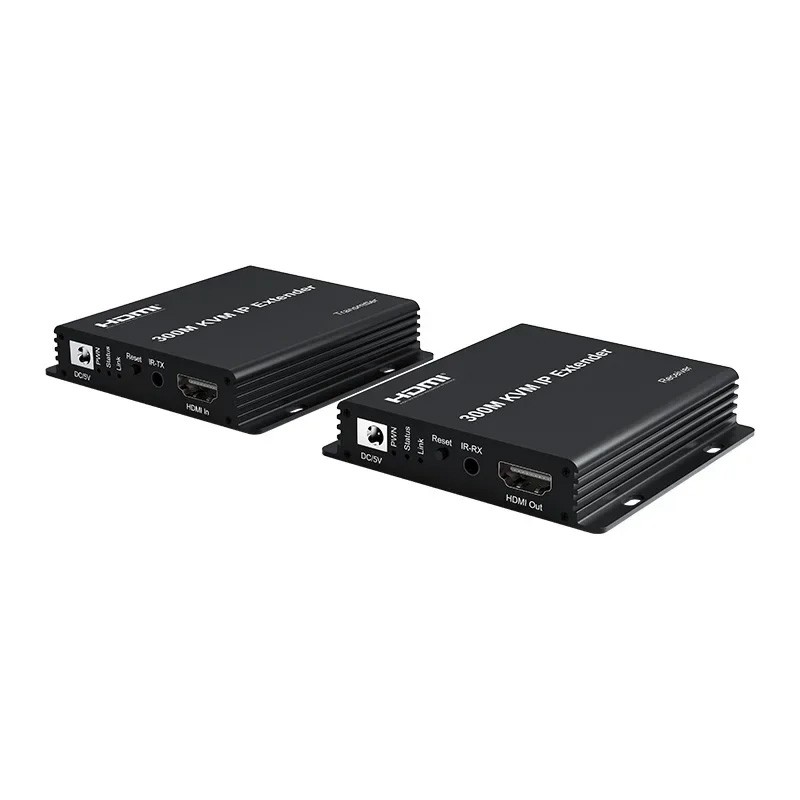

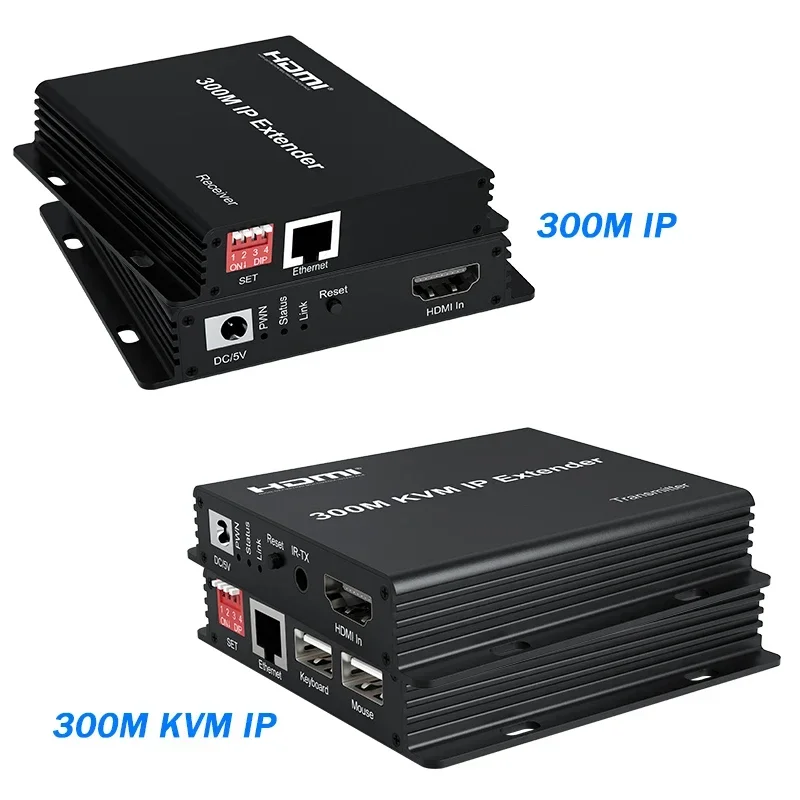

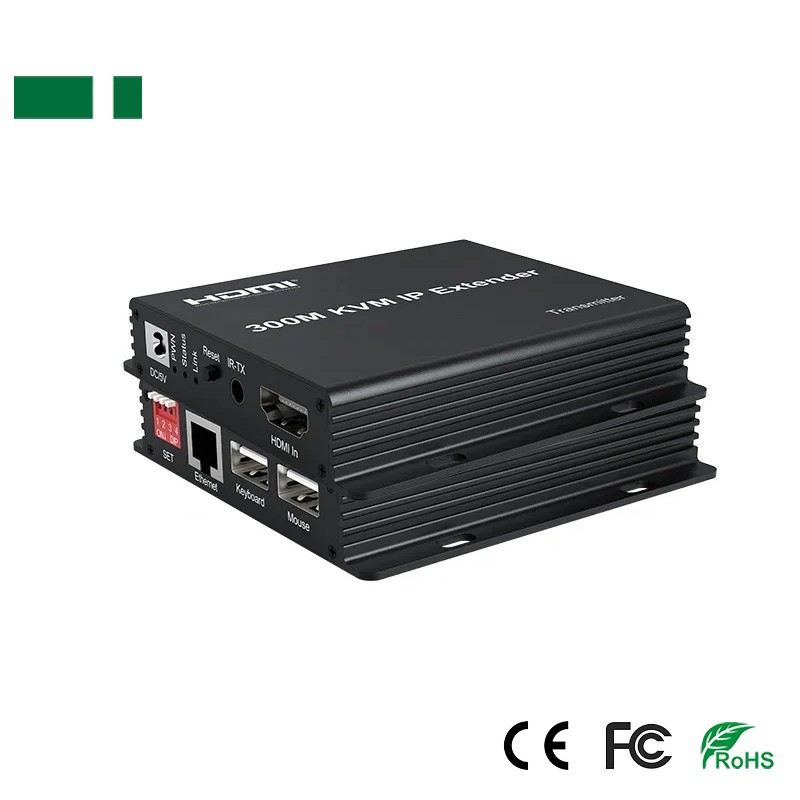

CKM-302 300M KVM IP Extender Transmitter+Receiver

Introduction:

300M KVM IP Extender is based on TCP/IP standard. It transmits your HD display with the high resolution up to

300 meters away from your DVD or computer source by using one CAT5e/6 cable.

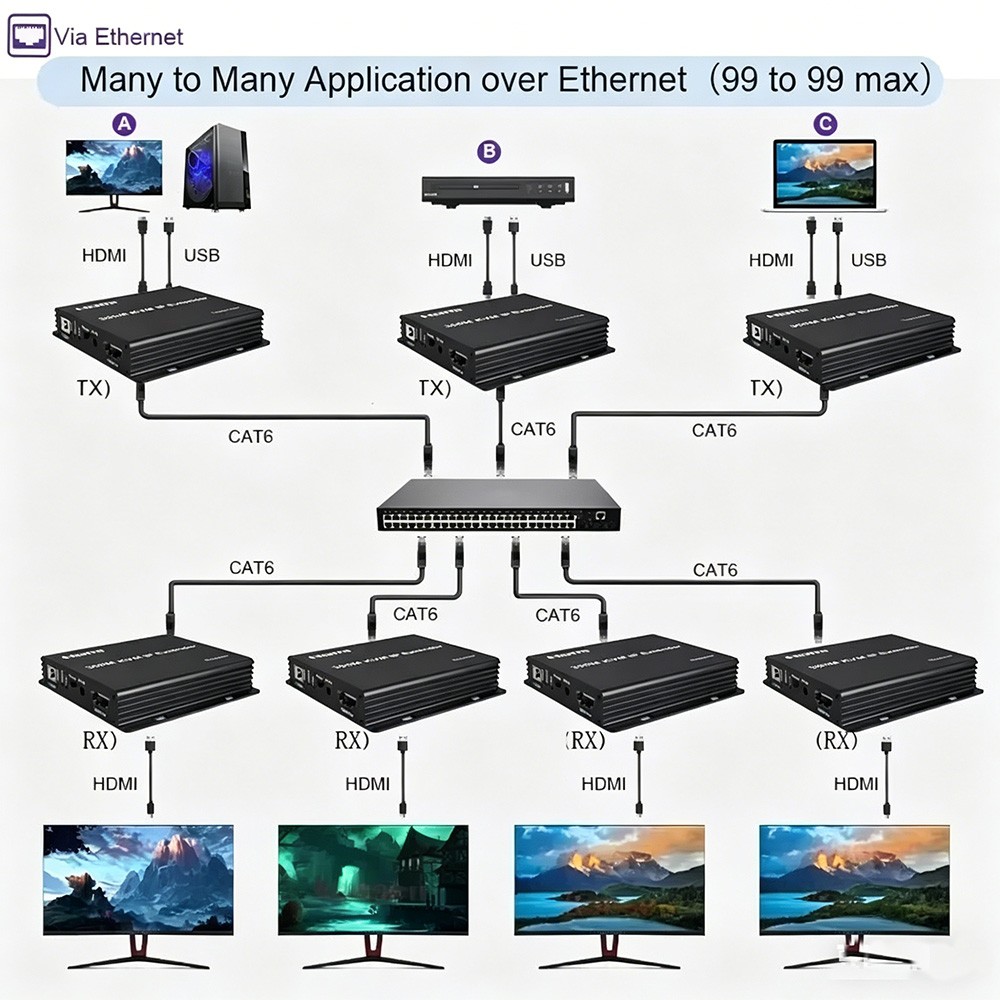

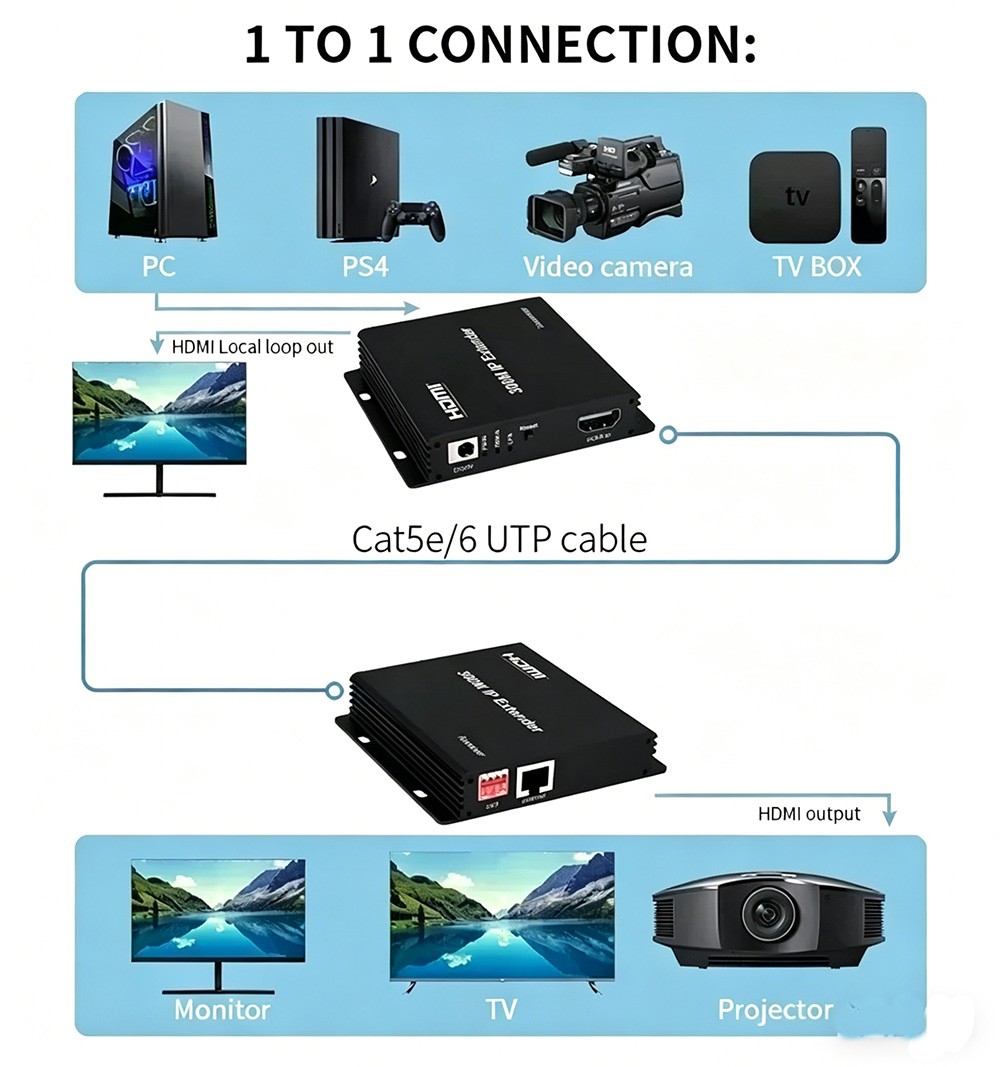

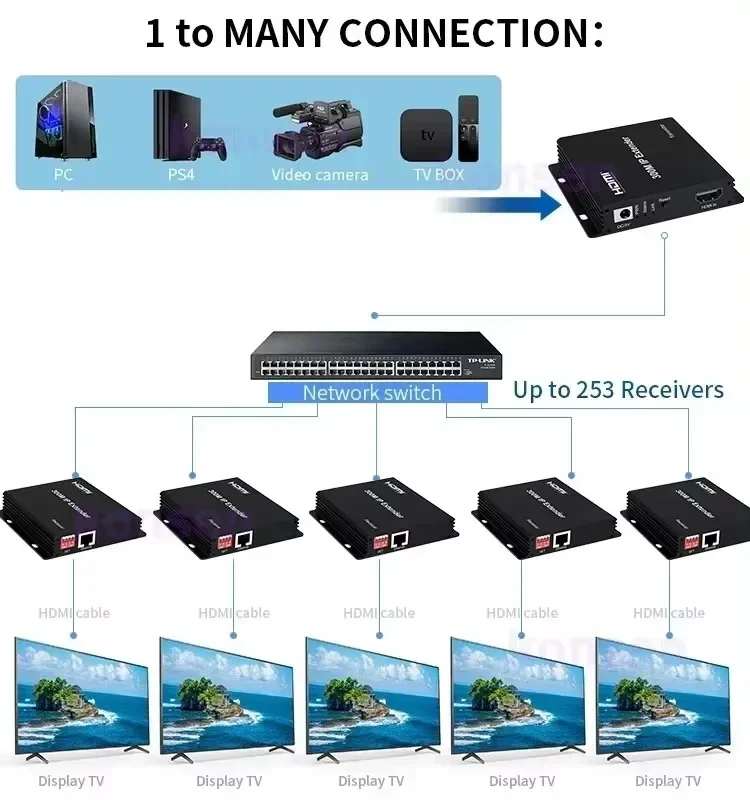

At the same time, it's convenient to transmit HDMI audio and video source by point-to-point mode, point-to-multipoint,

multipoint-to-multipoint mode and cascade connection mode .

Features :

* Support HDCP1.4

* Decoding Mode MJPEG

* Support point-to-point mode, point-to-multipoint mode, multipoint-to-multipoint mode

 and cascade connection mode;

* 802.3 Ethernet standard;

* The design of pure hardware, plug and play, no need for additional software.

* CAT-5e/6 follow the standard of IEEE-568B

Specifications:

Resolutions ......... 480P/720P/1080P

Audio ....... Sample rate:32kHz,44.1kHz and 48kHz

Power Adapter format ..... Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A

The max working current ..... TX 450mA,RX 400mA

Size(L-W-H) ........ 90*91*19mm

Weight ...... 120g x 2

Operating Temperature/Humidity ...... 0℃-45℃/10%-80%RH(no condensation)

Storage Temperature/Humidity ......... -10℃-70℃/5%-90%RH(no condensation)

Qualified cat5e/6 cables are needed

Pls uses qualified cat5e/6 cables follow the standard of IEEE-568B to pair the TX and RX. A qualified Network Cable shall be of copper conductor.

The transmission distance is subjects to that of the cables connected.

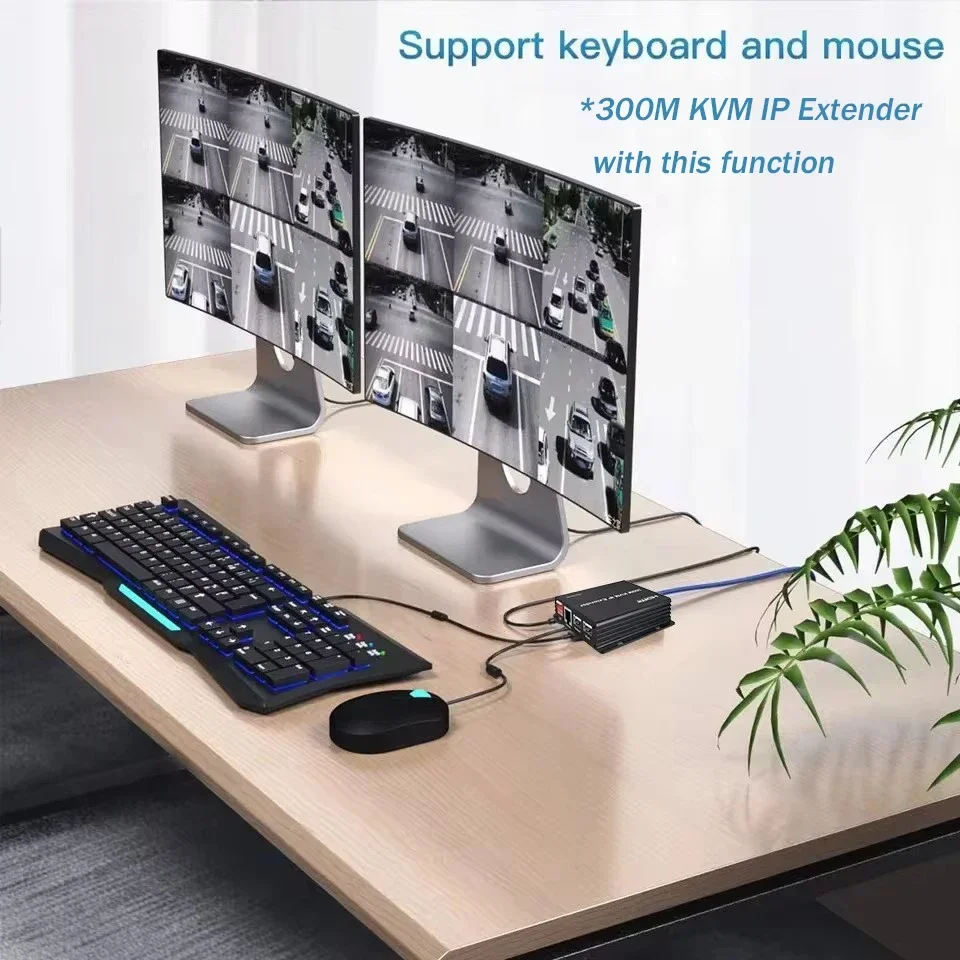

KVM Features:

KVM = keyboard, video, mouse,

The "Receive" USB interface only supports connecting USB wired mouse and wired standard 104 keyboards, and does not support any other USB devices.

Package Content For KVM IP Extender :

1 x 300M KVM IP Transmitter

1 x 300M KVM IP Receiver

2 x 5V Power supply

1 x USB cable

1 x User guide
