7 inch retina touch screen, 1920*1200 resolution
H.265/H.264, 4K video display via mainstream
HDMI input & output, support 1080P
Dahua, Hikvision, Axis etc ONVIF camera test
The 7 inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment.

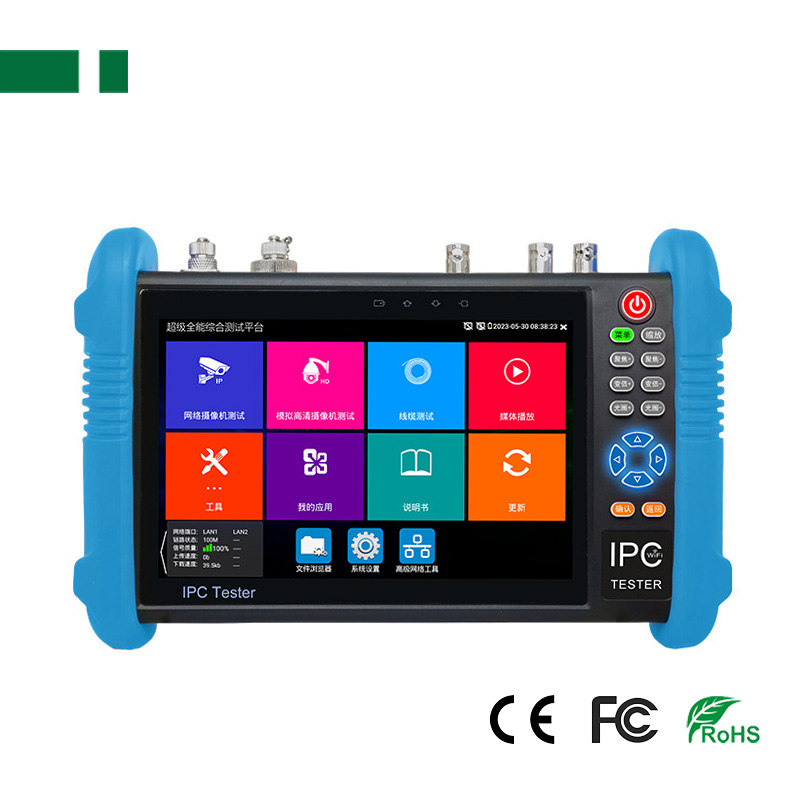

7 inch IPS touch screen 4K H.265 IP Full 4K All in One IPC Tester
The 7 inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1280x800 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF
PTZ and analog PTZ control. Additional, it with other functions TDR cable test, Digital multi-meter, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.
Feature:
◆ 7 inch retina touch screen, 1920*1200 resolution
◆ 8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI*
◆ H.265/H.264, 4K video display via mainstream
◆ Dahua, Hikvision, Axis etc ONVIF camera test
◆ Built in WIFI, create WIFI hotspot
◆ HDMI input & output, support 1080P
◆ DC12V 2A, DC48V PoE power output, max power 25.5W
◆ Rapid ONVIF, auto view video and create testing report
◆ UTP cable tester/RJ45 cable TDR test, cable quality test
◆ Tester Play: Tester, mobile phone, PC display at the same time
| CIPC-98 Plus | IPC+Analog + TDR |

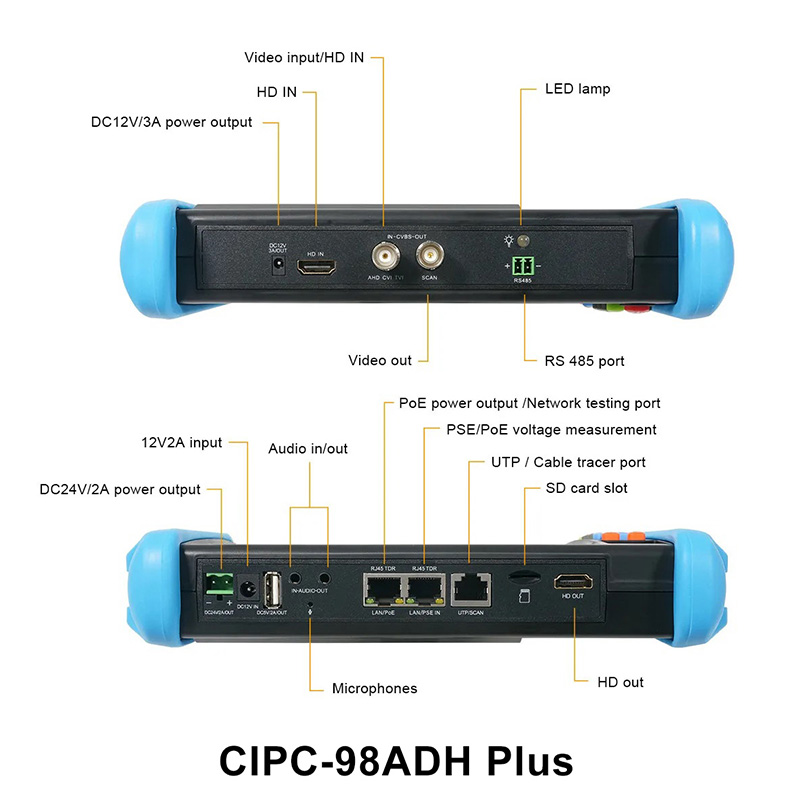

| CIPC-98ADH Plus | IPC+Analog+AHD+CVI+TVI+HDMI IN |

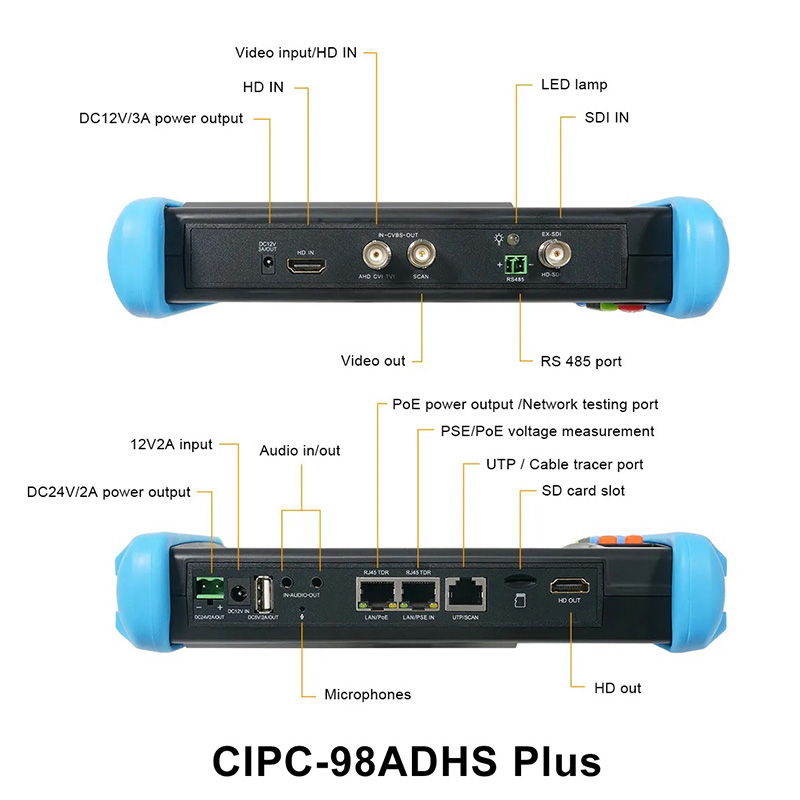

| CIPC-98ADHS Plus | IPC+Analog+AHD+CVI+TVI+SDI+HDMI IN |

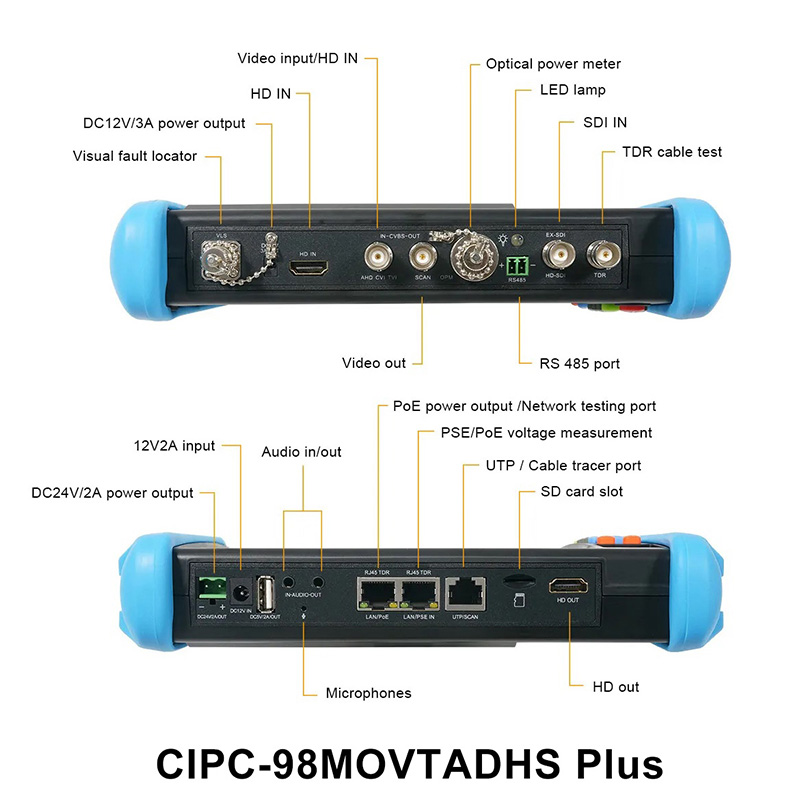

| CIPC-98MOVTADHS Plus | Fully Functions + IPC+Analog+AHD+CVI+TVI+SDI+HDMI IN |
Specification:
| LCD | Item series | CIPC-98 Plus series | |
| Display | New 7 inch IPS touch screen, 1280*800 resolution | ||
| Video Mode | CVBS | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) | |
| Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement * | |||
| PTZ control, RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | |||
| CVBS loop test | the tester send and receive color bar generator signal, check BNC cable | ||

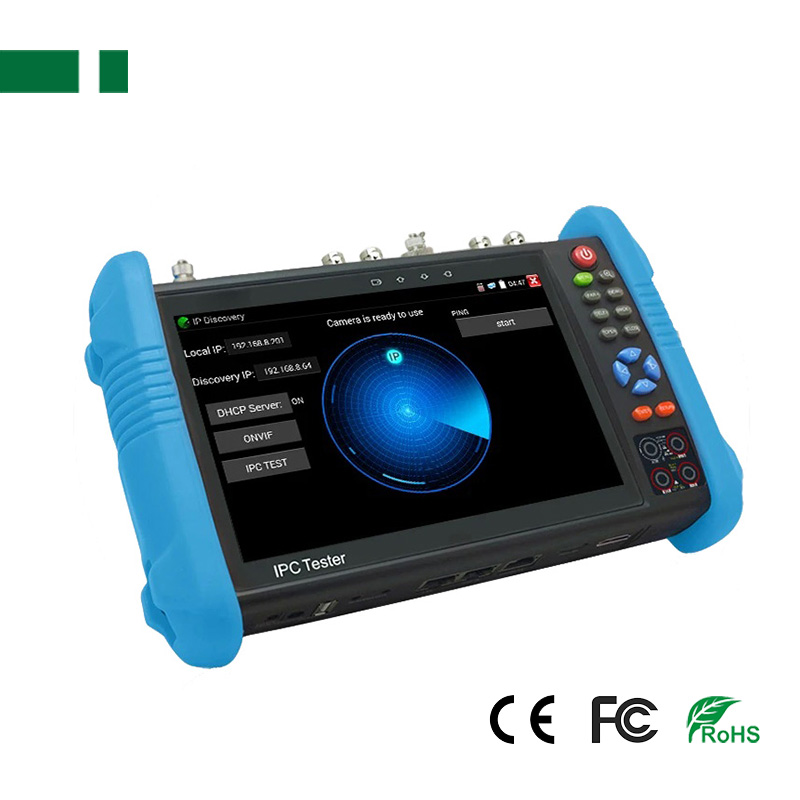

| IP camera test | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK | ||
| 4k/H.265/H.264 | Rapid Video | Auto view the video, create testing report | |
| Hik test tool | pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters | ||
| Dahua test tool | Dahua camera test, modify the user name, password and IP parameters | ||
| IP& CVBS test | IP& CVBS test at the same time, converter test from analog to digital with dual test window | ||
| Coaxial HD test* | 8MP TVI camera test, 3840 x 2160P 15FPS, UTC control/call OSD menu* | ||
| 8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu* | |||
| 8MP AHD camera test, 2560x1944P 15FPS, UTC control/call OSD menu* | |||
| 8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu* | |||
| HDMI input * | 1 channel HDMI input, support 1080P | ||
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back | ||
| Analog Video out | color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable | |
| HDMI output | 1 channel HDMI output, support 1920*1080P | ||
| Power output | 12V/2A power | Output DC12V/3A power out ,supply temporarily power for the camera | |
| PoE power output | 48V PoE power output, max power 25.5W | ||
| 5V/2A power output | USB 5V 2A power output, as a power bank | ||
| Cable test | TDR cable test * | BNC cable, Network Cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM | |
| Cable tracer | search BNC cable, network cable and telephone cable from the mess cables | ||
| UTP cable test | Test UTP cable connection status and display on the screen. Read the number on the screen | ||
| RJ45 cable TDR test | test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. | ||
| TesterPlay | screen projection：tester, mobile phone and PC display at the same time (For android version mobile phone) | ||
| Network test | Trace route, Link monitor, DHCP server, port flashing, Ping test | ||
| Wi-Fi | Built in WIFI,speeds150M,display wireless camera image | ||
| Audio test | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone | ||
| Data monitor | Captures and analyzes the command data from controlling device, also can send hexadecimal | ||
| PoE test | Measurement POE switch or PSE power supply voltage and cable connection status | ||
| Drop-down menu | You can select PoE power switch ,IP setting, WLAN switch , HDMI IN functions etc in any interface | ||
| External power supply | DC 12V 2A | ||
| Battery | Built-in 7.6V Lithium polymer battery,7500mAh | ||
| Rechargeable | After charging 3.5 hours, normal working time 16 hours | ||
| Operation setting | OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc | ||
| Auto off | 1-30 (mins) | ||
| Working Temperature | -10℃---+50℃ | ||
| Working Humidity | 30%-90% | ||
| Dimension/Weight | 240mm x 154mm x 46mm / 620g | ||
