CCTV Tester

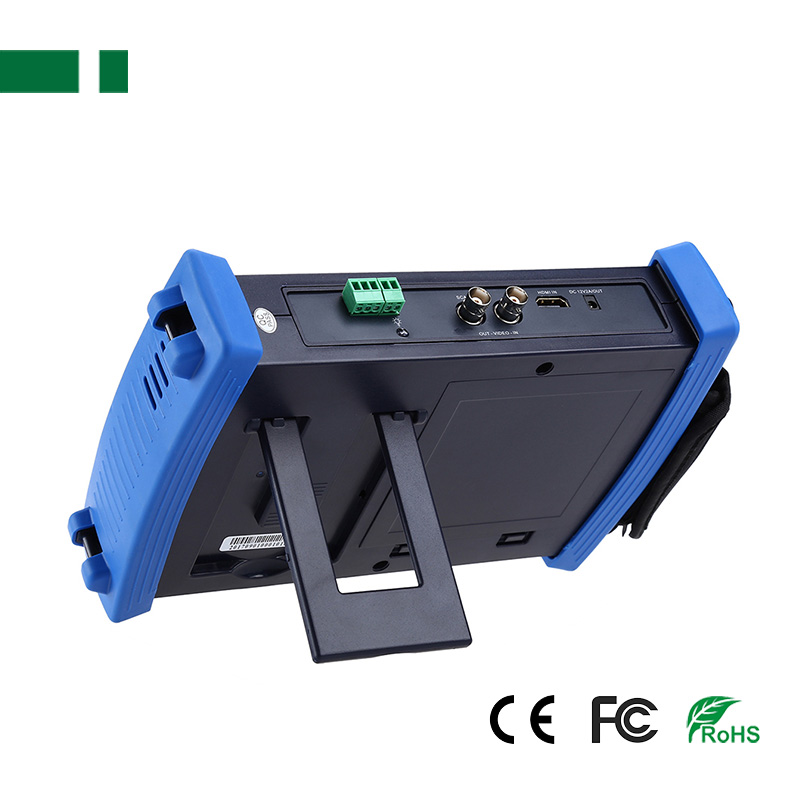

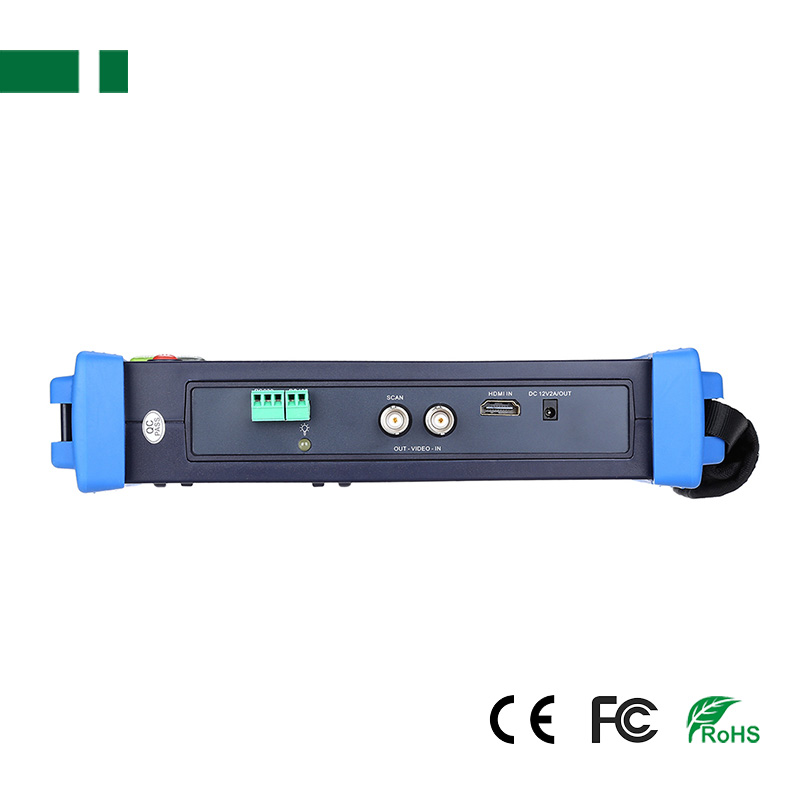

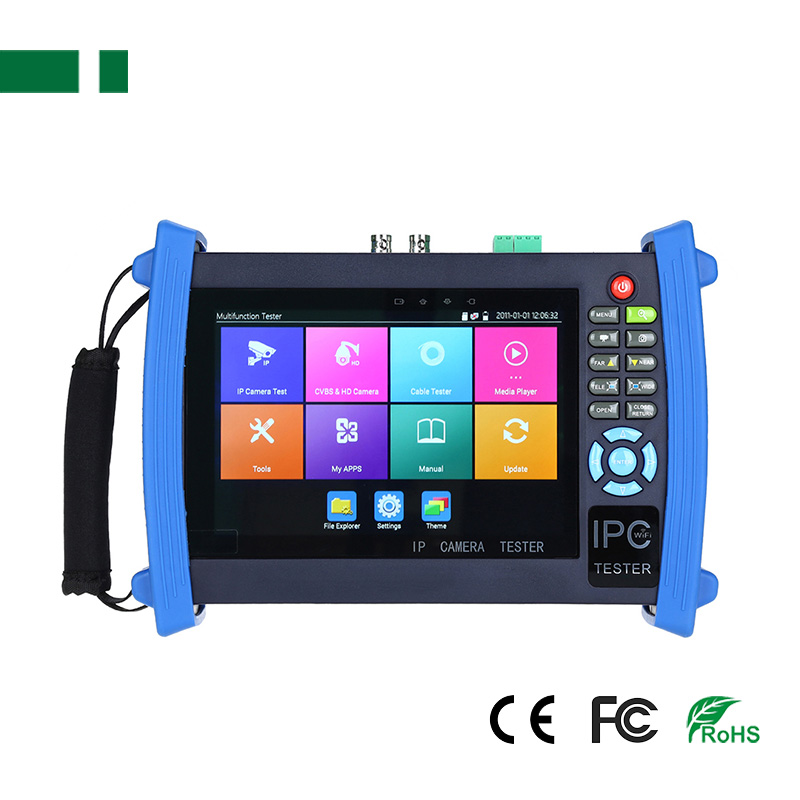

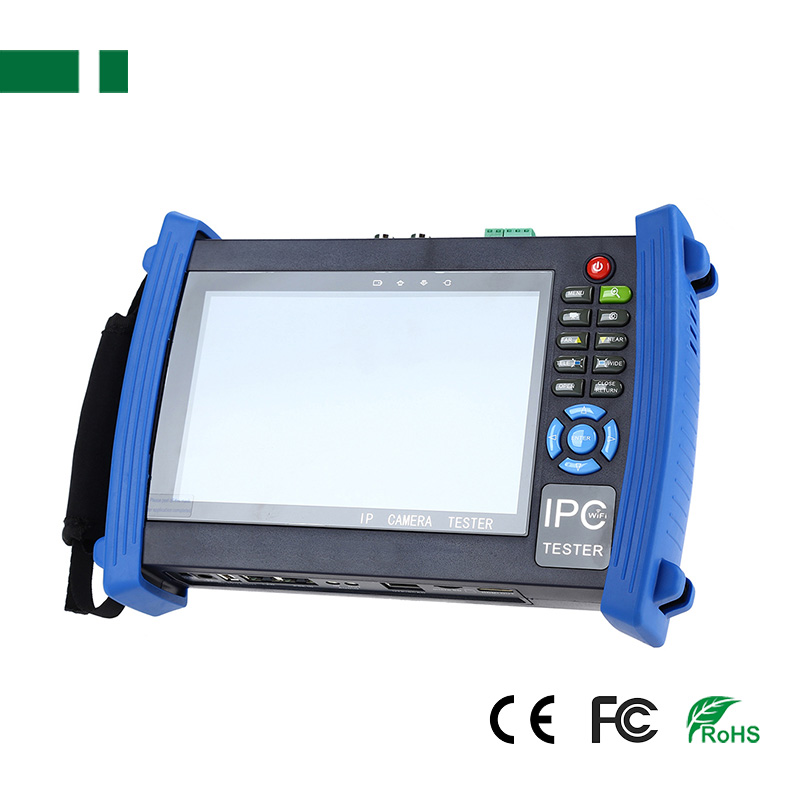

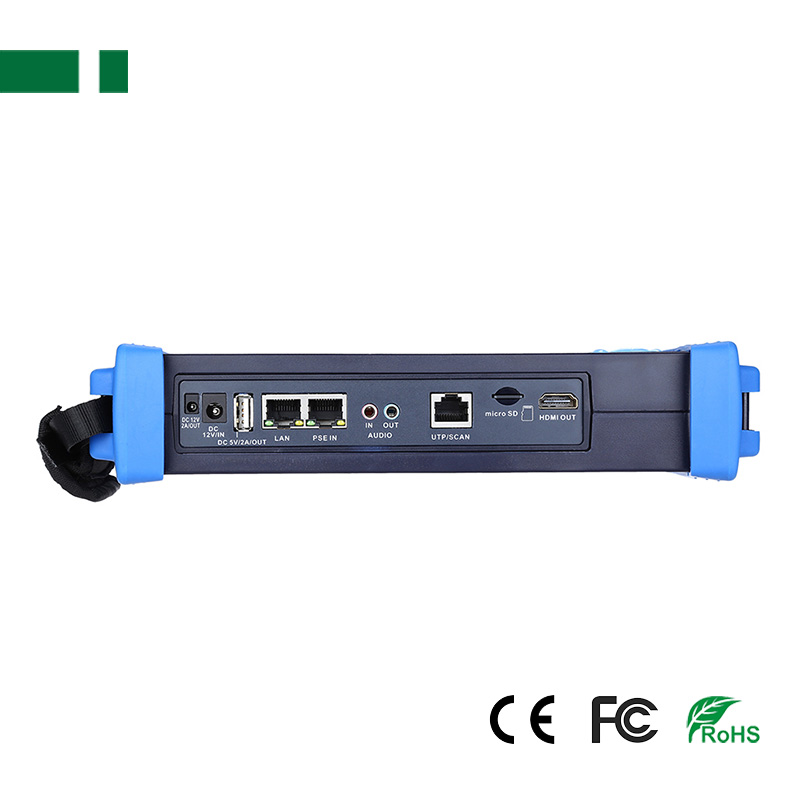

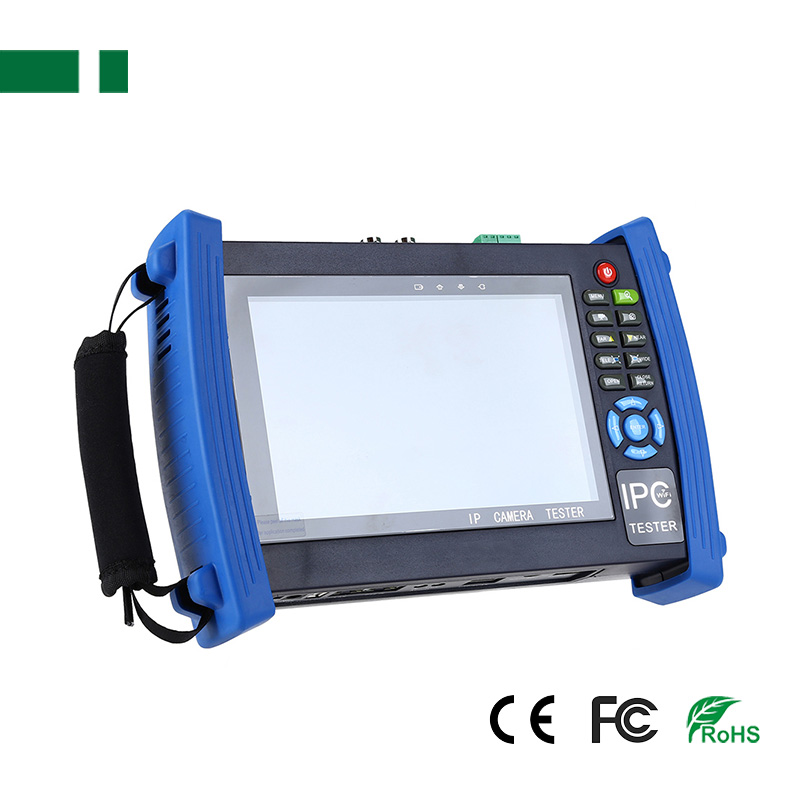

IPC-8600 Plus 7 inch Full 4K CCTV Camera Tester

IPC-8600 Plus 7 inch Full 4K CCTV Camera Tester

7 inch retina touch screen, 1920*1200 resolution
H.265/H.264, 4K video display via mainstream
HDMI input & output, support 1080P
DC12V 2A, DC48V PoE power output
Product description: The 7 inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment.
INQUIRY EMAIL

7" Android system CCTV Tester with WIFI,Browser,POE,cable test etc

The 7 inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920x1200 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions TDR cable test, Digital multi-meter, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing Tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

Features:
◆ 7 inch retina touch screen, 1920*1200 resolution
◆ 8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI*
◆ H.265/H.264, 4K video display via mainstream
◆ Dahua, Hikvision, Axis etc ONVIF camera test
◆ Chrome browser, set Axis etc cameras parameters
◆ Built in WIFI, create WIFI hotspot
◆ HDMI input & output, support 1080P
◆ DC12V 2A, DC48V PoE power output
◆ Rapid ONVIF, auto view video and create testing report
◆ UTP cable tester /RJ45 cable TDR test, cable quality test
◆ Cable tracer and video level meter
◆ Tester Play: Tester, mobile phone, PC display at the same time

Speicification:

LCD	Item series	IPC-8600 Plus series
	Display	New 7 inch IPS touch screen,1920*1200 resolution
Video Mode	CVBS	1 channel BNC input & 1 channel BNC looped output,NTSC/PAL (Auto adapt)
		Analog video level meter, peak video signal level,SYNC signal level, Color bar chroma level measurement
		PTZ control,RS485 control, Baud 600-115200bps,compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
		CVBS loop test	the tester send and receive color bar generator signal ,check BNC cable
	IP camera test	IP Discovery/Quick ONVIF/IPC test /RTSP play/Client APK
	4k/H.265/H.264	Rapid Video	Auto view the video, create testing report
		Hik test tool	Activate hikvision camera, modify the user name, password and IP parameters
		Dahua test tool	Dahua camera test, modify the user name, password and IP parameters
	IP& CVBS test	IP& CVBS test at the same time ,converter test from analog to digital with dual test window
	Coaxial HD test*	8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/ call OSD menu *
		8MP CVI camera test, 3840 x 2160P 12.5/15 FPS,UTC control call OSD menu *
		8MP AHD test, 3840 x 2160P 15FPS, UTC control & call OSD menu*
		8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu*
	HDMI input	1 channel HDMI input, support 1080P
	Zoom Image	4x zoom, to enlarge image, Screen snapshot,record ,save ,view and record and play back
Analog Video out	Color bar generator	Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
	PoE power output	48V PoE power output, max power 25.5W
Power output	DC12V power	DC12V /2A power output
Cable test	TDR cable test *	BNC cable, network cable, telephone cable, RVV cable and elevator cable,cat 5/6 cable’s length and short circuit. measurement range 1.2KM *
	Cable tracer	Search BNC cable, network cable and telephone cable from the mess cables
	UTP cable test	Test UTP cable connection status and display on the screen. Read the number on the screen
	RJ45 cable TDR test	Test cable pair status, length,attenuation, reflectivity, impedance, skew etc.measurement range 180M.
TesterPlay	Screen projection：tester, mobile phone and PC display at the same time (For android version mobile phone)
Network test	Trace route, Link monitor,DHCP server, port flashing,Ping test
Wi-Fi	Built in WIFI,speeds150M,display wireless camera image
Audio test	1 channel audio signal input, test whether sound normal,1 channel audio signal,to connect headphone
Data monitor	Captures and analyzes the command data from controlling device,also can send hexadecimal
PoE test	Measurement POE switch or PSE power supply voltage and cable connection status
Drop-down menu	You can select PoE power switch ,IP setting,CVBS, LAN info, HDMI IN functions etc in any interface
External power supply	DC12V 2A
Battery	Built-in 7.4V Lithium polymer battery, 7000mAh
Rechargeable	After charging 7~8 hours, normal working time 16 hours
Operation setting	OSD menu,select your desired language: English, Chinese, Korean,Russian, Italian, French, Polish, Spanish, Japanese etc
Auto off	1-30 (mins)
Working Temperature	-10℃---+50℃
Working Humidity	30%-90%
Dimension/ Weight	231mm x 172mm x 52mm / 1.26Kg
