CCTV Tester

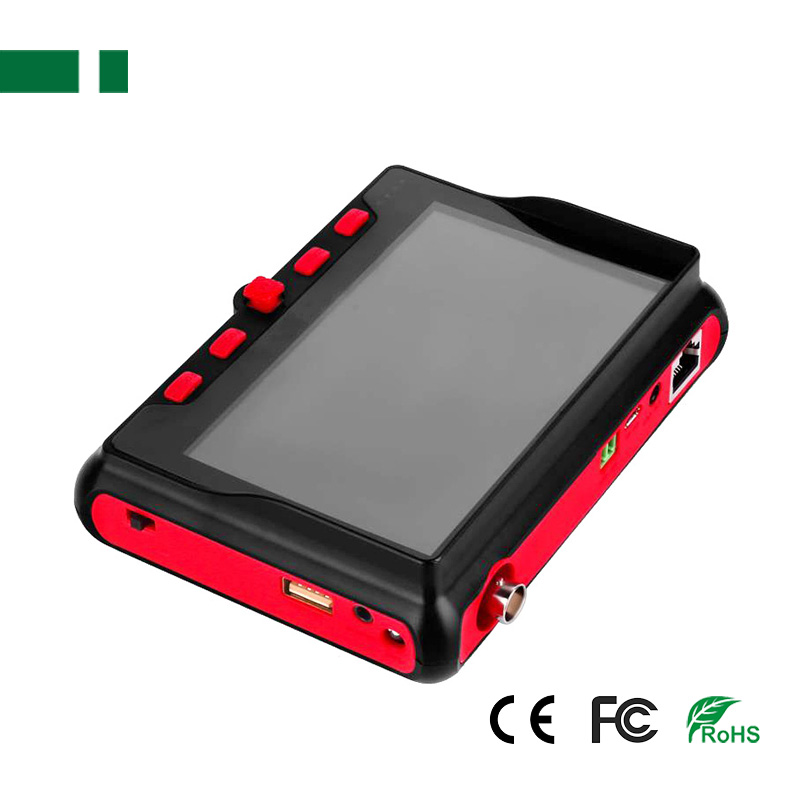

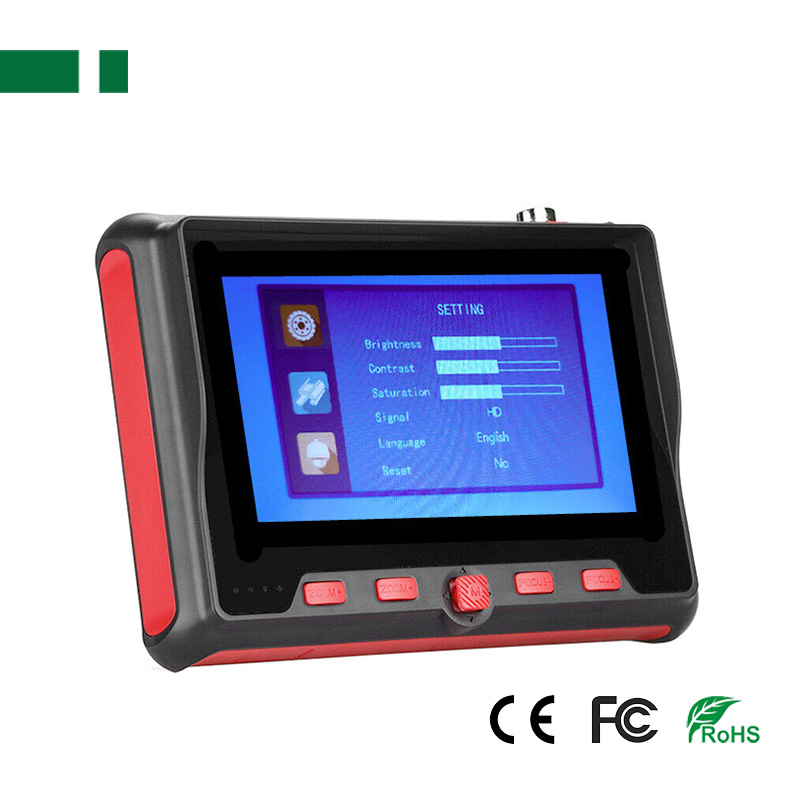

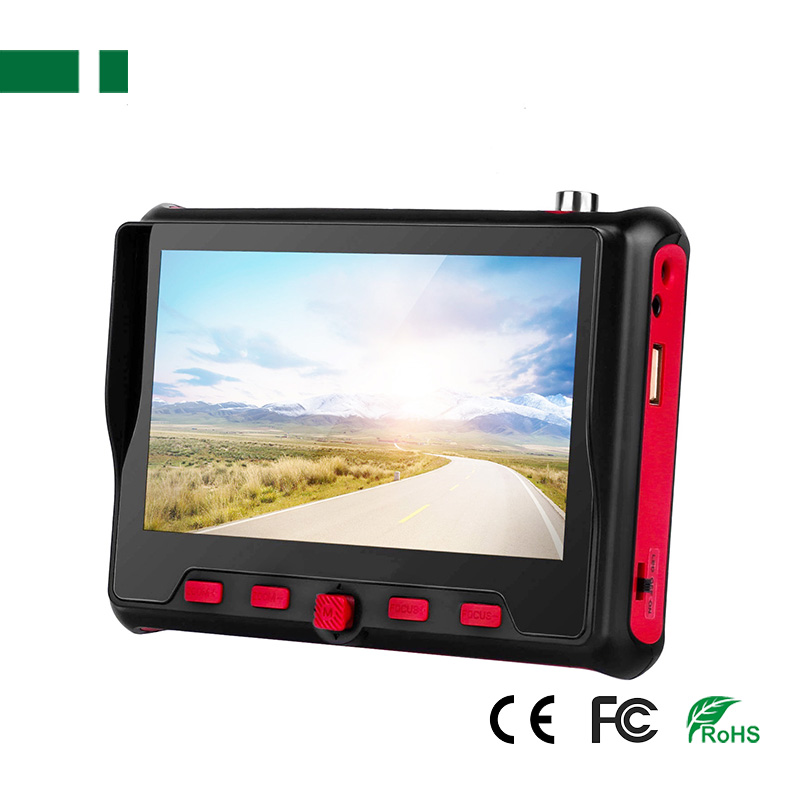

C-6800ACT 8MP AHD /TVI / CVI/ CVBS Camera Tester

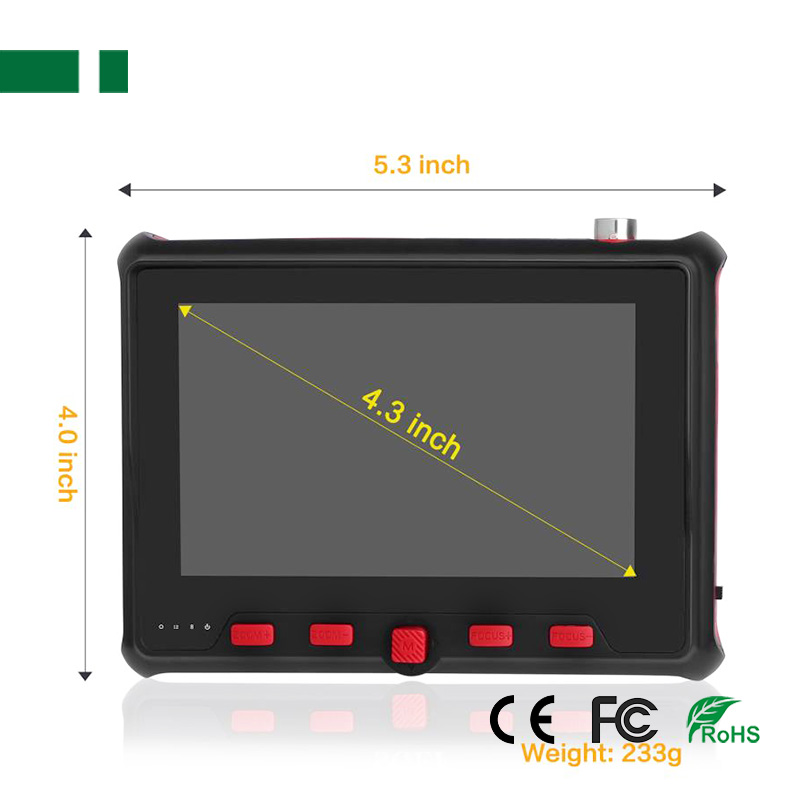

- 5 inch 800(RGB) x480 resolution
- PTZ control: RS485 Baud-Raud: 1200~115200bps
- Bulit-in 3.7V Lithium polymer battery, 3000mAh
- USB Power Supply:
- Product description: AHD /TVI / CVI/ CVBS Camera Tester (4 IN 1) Support 8MP Resolution Support HDMI &VGA
5 Inch 4K CCTV Tester 8MP AHD TVI CVI CVBS 4in1 Analog Portable CCTV Monitor UTP RS485 CFTV Camera Tester

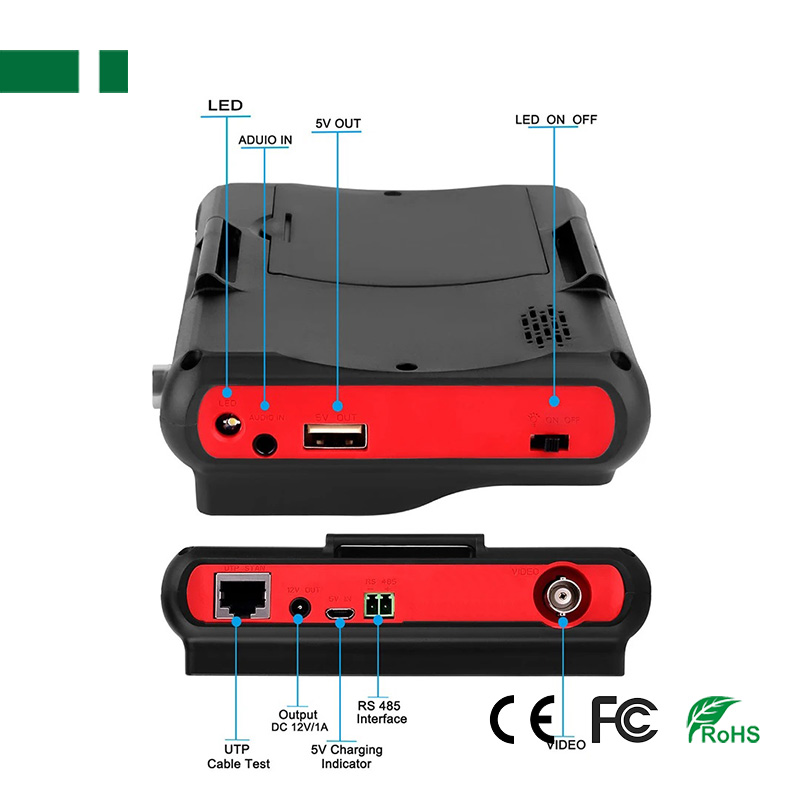

The new HDCCTV Test monitor support "4in1" (AHD/ TVI/ CVI/ CVBS) video format of up to 2MP~8MP resolution. lt also support PTZ control by RS485 and other special features such as DC12V/USB/5V output, audio test, UTP cable test, LED lighting etc. lt is designed to bring installer maximum conveniency during the installation.
Functions:
1. Video input: Compatible with AHD, TVI, CVI, CVBS signals of up to 2MP~8MP resolution.
2. 5 inch 800(RGB) x480 resolution. PAL/NTSC (Auto adapt).
3. PTZ control: RS485 Baud-Raud: 1200~115200bps, compatible with PELCO-D/P protocols.
4. Camera Power Supply: Power output of DC 12V/ 1A for temporarily powering on cameras for angle and zoom adjustment
5. USB Power Supply: USB2.0 interface provides 5V/1A power output.
6. Audio signal input
7. Enhanced UTP cable, with indicator lights. the cable test distance can reach 100-150 meters.
8. UTC control/call OSD menu
9. Coaxial HD test
AHD tester support 720P25F/30F/1080P/25F/3OF(4MP/5MP/BMP AHD camera tester is optional*)
TVI tester support 720P25F/30F 108OP25F/30F(3MP/4MP/5MP/8MP TVl camera tester is optional*)
CVI tester support 720P25F/30F 1080P 25F/30F(4MP/5MP/8MP Cvl camera tester is optional*)
10. LED emergency lighting
11. Bulit-in 3.7V Lithium polymer battery, 3000mAh
12. Languages
The new HDCCTV Test monitor support "4in1" (AHD/ TVI/ CVI/ CVBS) video format of up to 2MP~8MP resolution. lt also support PTZ control by RS485 and other special features such as DC12V/USB/5V output, audio test, UTP cable test, LED lighting etc. lt is designed to bring installer maximum conveniency during the installation.
Functions:
1. Video input: Compatible with AHD, TVI, CVI, CVBS signals of up to 2MP~8MP resolution.
2. 5 inch 800(RGB) x480 resolution. PAL/NTSC (Auto adapt).
3. PTZ control: RS485 Baud-Raud: 1200~115200bps, compatible with PELCO-D/P protocols.
4. Camera Power Supply: Power output of DC 12V/ 1A for temporarily powering on cameras for angle and zoom adjustment
5. USB Power Supply: USB2.0 interface provides 5V/1A power output.
6. Audio signal input
7. Enhanced UTP cable, with indicator lights. the cable test distance can reach 100-150 meters.
8. UTC control/call OSD menu
9. Coaxial HD test
AHD tester support 720P25F/30F/1080P/25F/3OF(4MP/5MP/BMP AHD camera tester is optional*)
TVI tester support 720P25F/30F 108OP25F/30F(3MP/4MP/5MP/8MP TVl camera tester is optional*)
CVI tester support 720P25F/30F 1080P 25F/30F(4MP/5MP/8MP Cvl camera tester is optional*)
10. LED emergency lighting
11. Bulit-in 3.7V Lithium polymer battery, 3000mAh
12. Languages
Chinese, Traditional Chinese, English, Russian, Italy, Poland, Portugal, Germany, Spain, Japan, Turkey, French

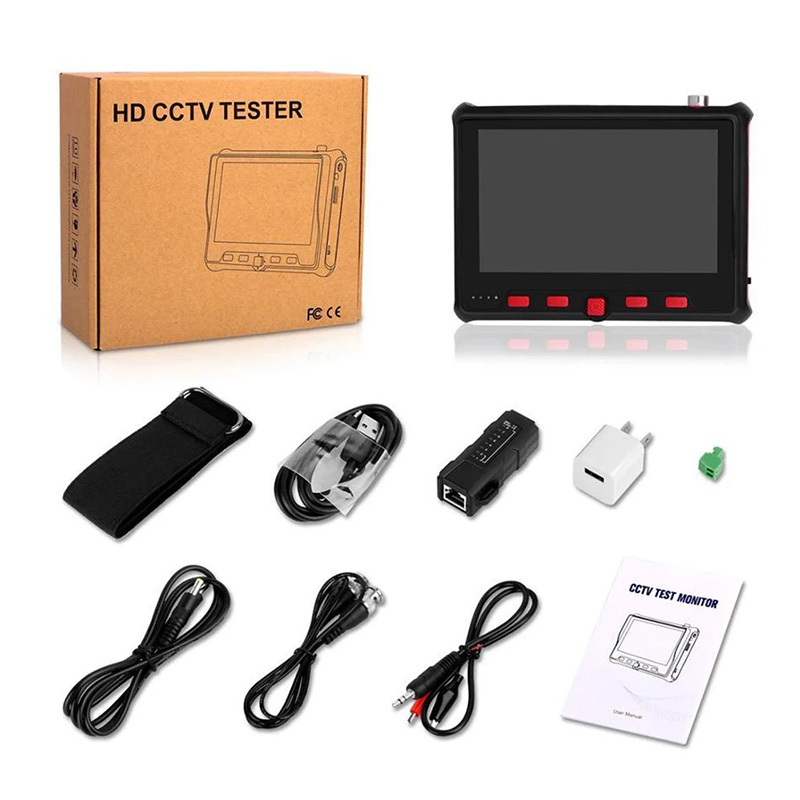

Product Accessories
1. Test monitor
2. Wrist band
3. DC output cable4.Audio test cable
5. Network cable test convertor6.USBcable
7. EU/US Power Adapter
8. User manual
