▪ 4K@60Hz 1x4 HDMI Video Splitter;
▪ Support HDMI 2.0/HDCP2.2;
▪ Support up to 3840x2160@60Hz;
▪ Support EDID Management;
▪ Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC;
▪ Dimension: 211*78*27mm (L*W*H).
▪ This 1x4 HDMI Splitter resolution can be up to 3840*2160/ 60Hz. It allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors.
Description:

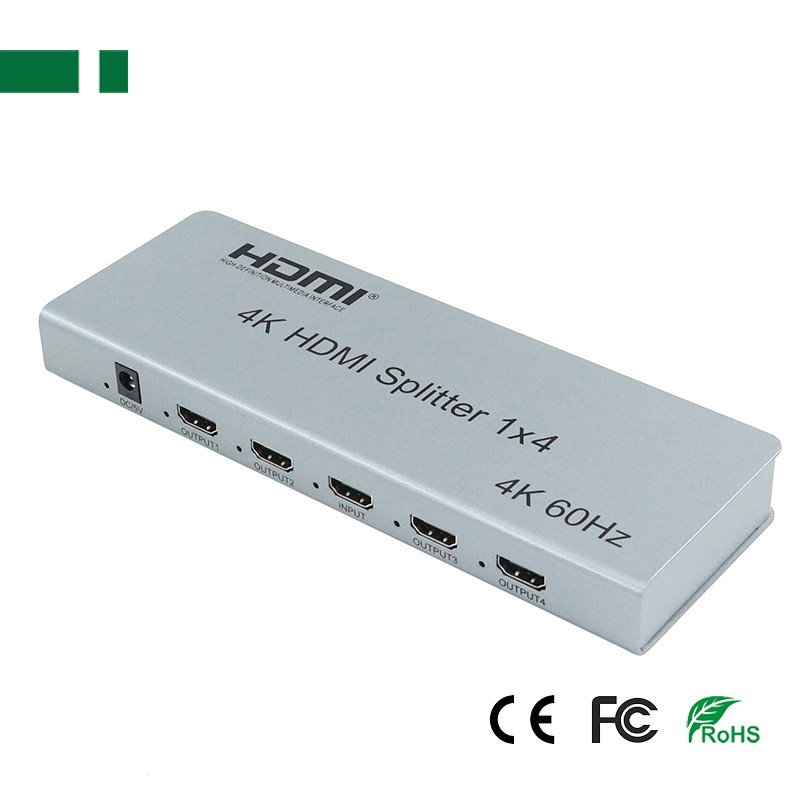

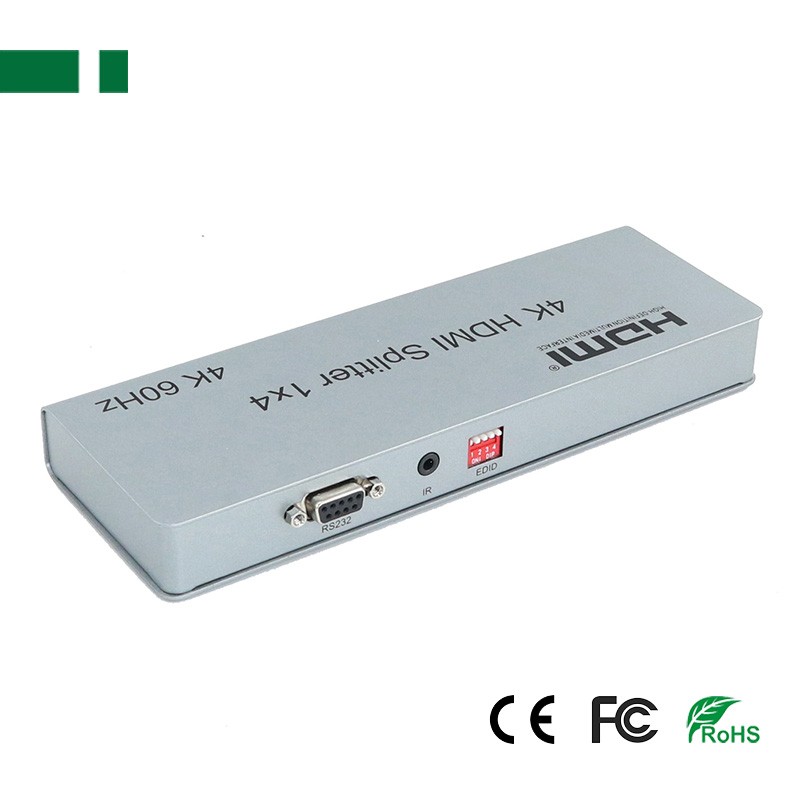

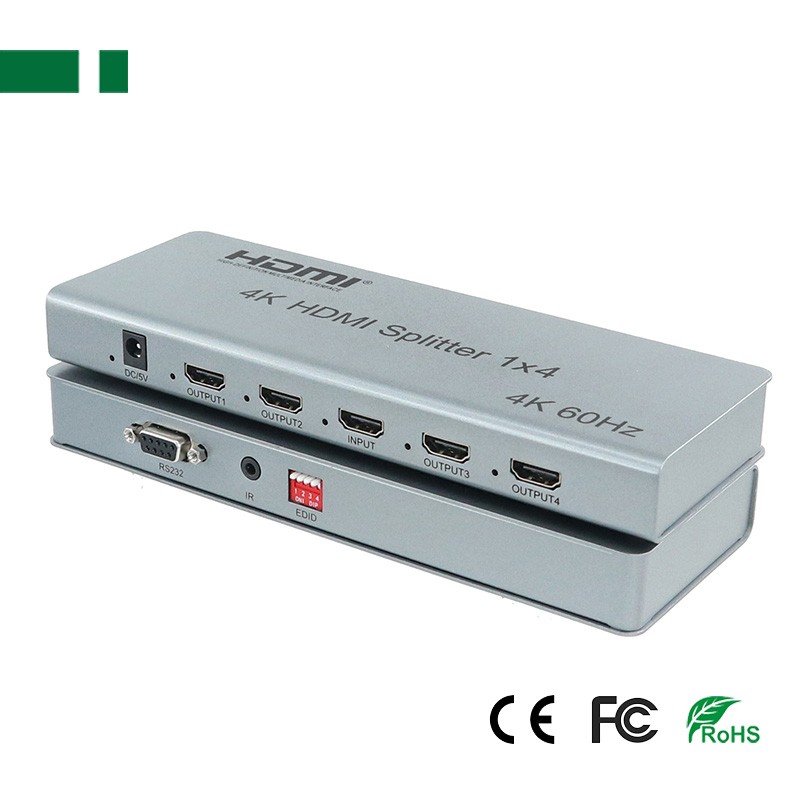

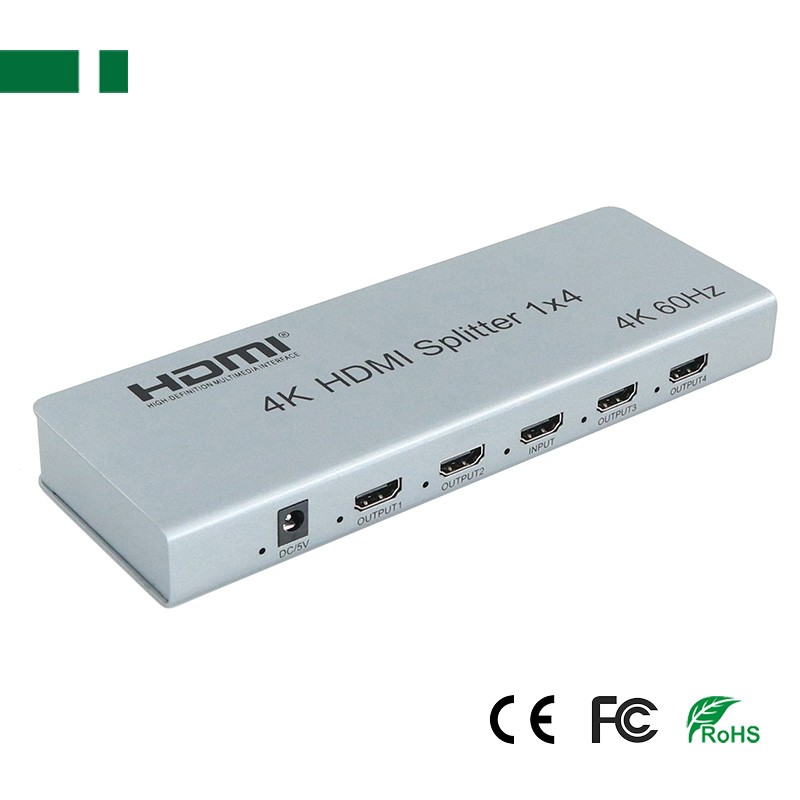

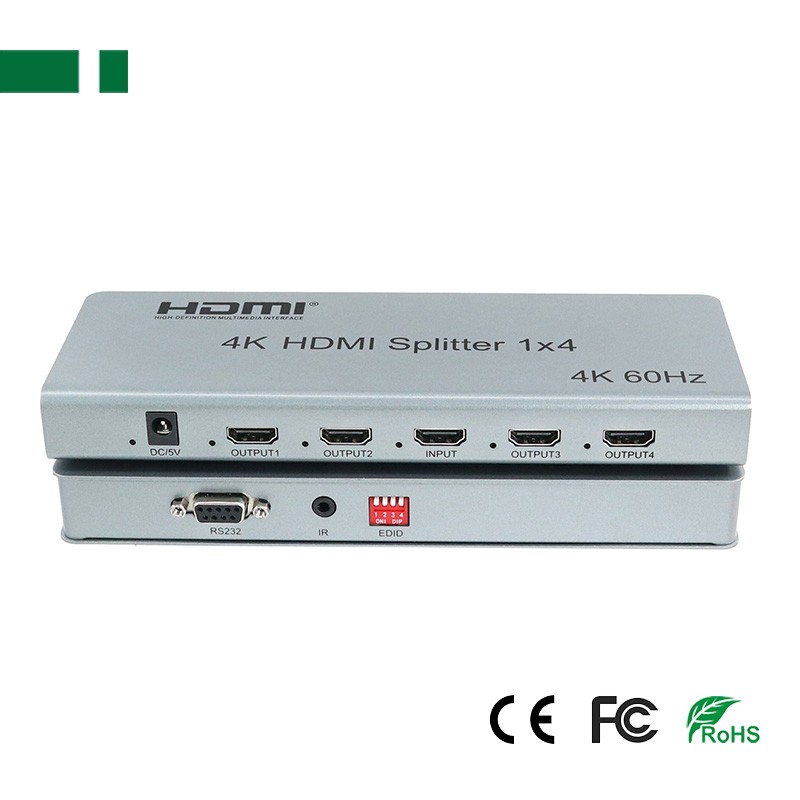

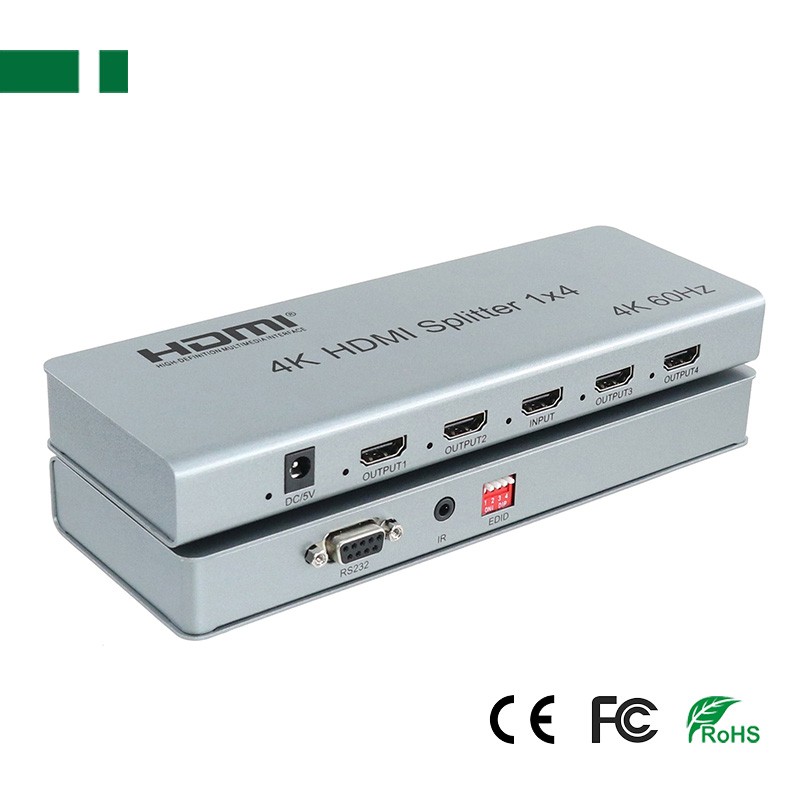

This 1x4 HDMI Splitter resolution can be up to 3840*2160/ 60Hz. It allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors.
This product can support EDID management function, the users can choose according to their own needs.
Feature:
▪ 4K@60Hz 1x4 HDMI Video Splitter;
▪ Support HDMI 2.0/HDCP2.2;
▪ Support up to 3840x2160@60Hz;
▪ Support EDID Management;
▪ Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC;
▪ Digital audio format, as DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/HD(HBR);
▪ Support Full HD, Full 3D (If your devices support 3D);
▪ Dimension: 211*78*27mm (L*W*H).
Specification:
| Model | CHM-2002-4K | CHM-2004-4K | CHM-2008-4K |
| HDMI Input | 1ch HDMI input | 1ch HDMI input | 1ch HDMI input |
| HDMI Output | 2chs HDMI output | 4chs HDMI output | 8chs HDMI output |
| HDMI Connector | 19-Pin HDMI Female Port | ||
| HDMI Version | HDMI 2.0 | ||
| HDCP Version | HDCP 2.2 | ||
| Support Video Format | up to 4K*2K (3840*2160) /60Hz | ||
| Max band width | 600MHz | ||
| Max baud rate | 6Gbps | ||
| EDID | Support EDID Management | ||
| Power Supply | Input: AC100V-240V (50Hz/ 60Hz); Output: DC5V Operating | ||
| Temperature | Operating: -15℃ to +55℃, Storage: -10℃ to +70℃ | ||
| Humidity | Operating: 10% to 80%RH (No Condensation), Storage: 5% to 90%RH (No Condensation) | ||
| Material | Polished iron | ||
| Dimension | 154*60*24mm (L*W*H) | 211*78*27mm (L*W*H) | 310*90*24mm (L*W*H) |
| Weight | 335g | 504g | 864g |
Package:
1. HDMI splitter *1pc
2. Power Adapter *1pc
3. User manual *1pc
