CHM-1014-4K 3D 4K@30Hz 1x4 HDMI Video Splitter

  • 3D 4K@30Hz 1x4 HDMI Video Splitter
  • Resolution: 4K 30Hz
  • Support for HDMI 1.4b
  • Support HDCP1.3
  • Product description: 4K*2k 1x4 HDMI 4 Port HDMI Video Splitter Audio Amplifier Repeater 3D 1080p 1 In to 4 Out 1x4 HDMI Splitter Converter HDTV
  • INQUIRY   EMAIL

Features:
Distributes HDMI input into 4 identical outputs, both outputs need to be the same pixels
The splitter supports 120HZ 3D projection conversion - only if your device supports 3D
Supports: 4K x 2K @30 Hz, 1080P @ 120 Hz and 1080P 3D @ 60Hz
The splitter supports compressed and uncompressed digital audio formats including DTS-HD/Dolby- true-HD/LPCM

7.1/DTS/Dolby-AC3/DSD.
The splitter supports: Xbox 360, Xbox One, PS3, PS4, HDTV, STB, Blu-Ray, DVD, Beamer, DVB Receiver, TFT Monitor, etc.
The splitter can achieve long distance transmission for up to 15 meters (45 feet)
Supports deep color 30 bit, 36bit, 48 bit pixel

Specifications:
Type: HDMI 4 connector splitter
Input Interface: 1 x 19Pin HDMI Female Port
Output interface: 4 x 19Pin HDMI female connectors
HDMI 1.4 version, compatible with V1.2 V1.1 V1.0
Supports Audio: LPCM, Dolby-AC3, DTS7.1, DSD / Dolby True HD / DTS-HD Master Audio
Supported video: 480i / 576i / 480p / 576p / 720p / 1080i / 1080P / 4k
Supports bandwidth up to 225Mhz
Vertical frequency range 85HZ
HDCP compliant: Yes

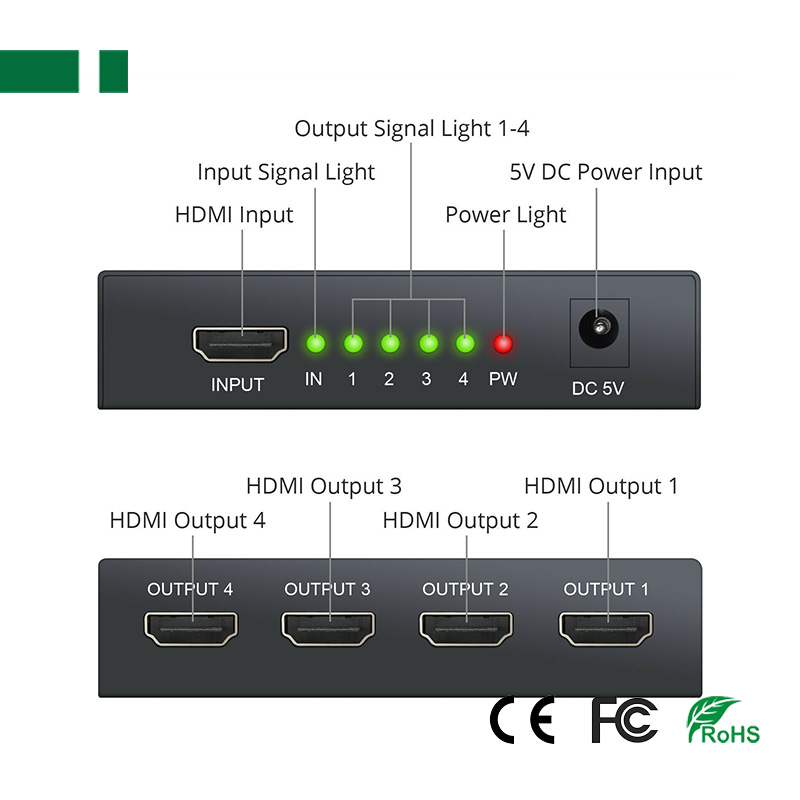

Device port LED: 6
Single link range: 3840 x 2160
Video band width: up to 4.95GHz
DC 5V power supply
Shell material: Polished iron

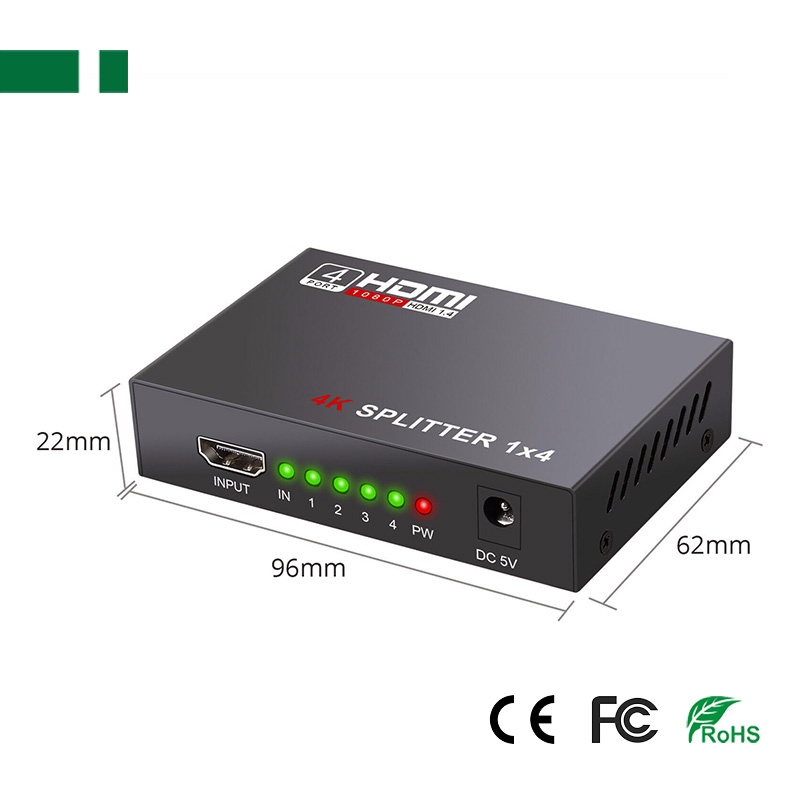

Dimensions: approx. 95 x 60 x 20mm

Included:
1 x HDMI Splitter
1 x Power Adapter
1 x Manual
