CDV-408 4 In 8 Out Analog BNC CCTV Video Distributor

CDV-408 4 In 8 Out Analog BNC CCTV Video Distributor

4 In 8 Out Analog BNC CCTV Video Distributor
Output distance 200~300m without loss
Power: AC110V / AC 220V ±10%
The video distributor supports CVBS analog camera input only
Product description: The video distributor is a video matching device suitable for entertainment, electrified education, CCTV systems, etc.
INQUIRY EMAIL

4 In 8 Out Analog CVBS BNC CCTV Security Camera Signal Video Distributor

Notice:
The video distributor supports CVBS analog camera input only, NOT for AHD/TVI/CVI camera use.

Product Description:
- The video distributor can divide 4 channel video input signal into 8-channel video output signals.
- Adopt special video operational amplifier, when the video signal are divided, it can realize definite phase correction and correct the phase distortion on the video transmission cable to a certain extent.
- The video distributor is a video matching device suitable for entertainment, electrified education, CCTV systems, etc.

Basic Functions:
- High fidelity circuit and high precision components to achieve almost 0dB loss of signal restoration;
- Lightning-proof design can effectively isolate the interfering signal which intrudes through video cable;
- When the video signal is divided, this can realize definite phase correction and correct the phase distortion on the video transmission cable to a certain extent;
- Easy to install. Elegant design.
- Each channel is with a separate IC for signal amplification and dividing into 2 channels
- Video signal regulation technology for dependable video/image
- Adopt the latest surface mount technology (SMT), without signal compression and delay

- Output distance 200~300m without loss.

Specification:

Model	CDV-408	CDV-H408
Support	4 input & 8 output Analog	4 in & 8 out AHD/TVI/CVI/Analog
Transmission distance	760P/960P: 200-300meters;	760P/960P/1080P: 300-600meters;

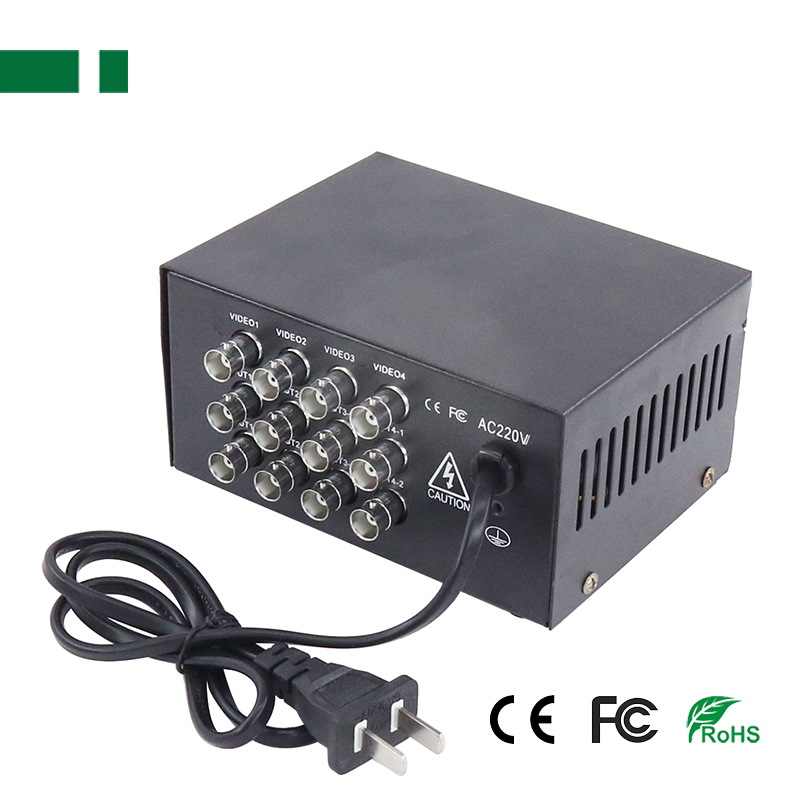

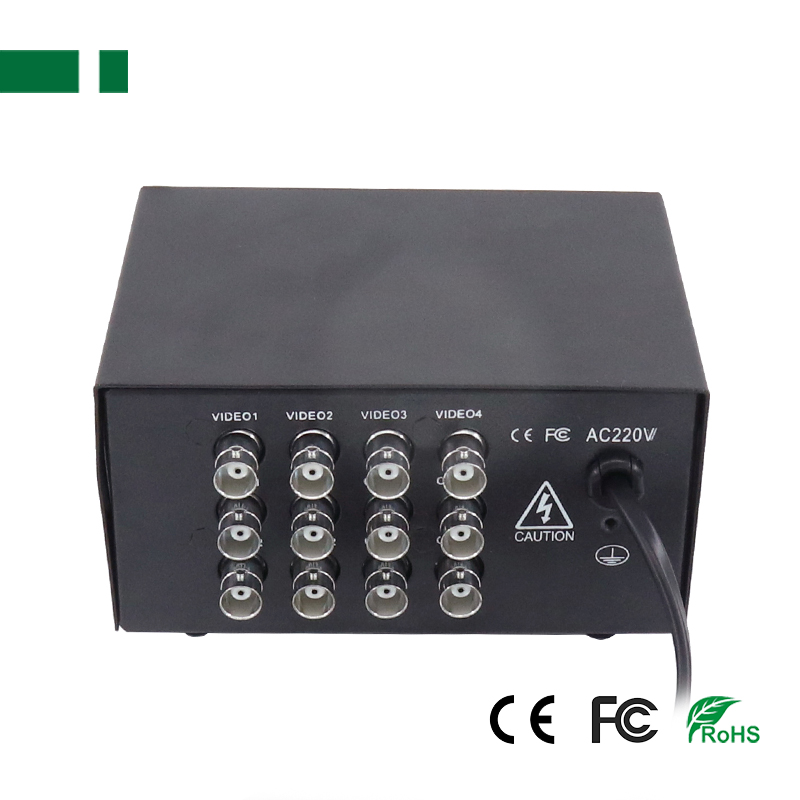

Connector	Female BNC and terminal Block
Housing	Aluminium alloy
CMRR	60dB
MTBF	≥ 100000Hours
Impedance	BNC: 75 ohms
Standard video input/output voltage	1.0Vp-p
Video Bandwidth	60MHz
Sampling Frequency	120MHz
Rise and Fall time	<0.8ns
Differential Gain	< ±1.5%
Differential Phase	< ±1°
Category type	Coaxial Cable, RG59/RG6 suggested
Working temperature	-10℃ to +70℃
Storage temperature	-30℃ to +70℃
Humidity	0-95%
Power	AC110V / AC 220V ±10% (Default US/CN type power plug only)
Power Consumption	≤3W

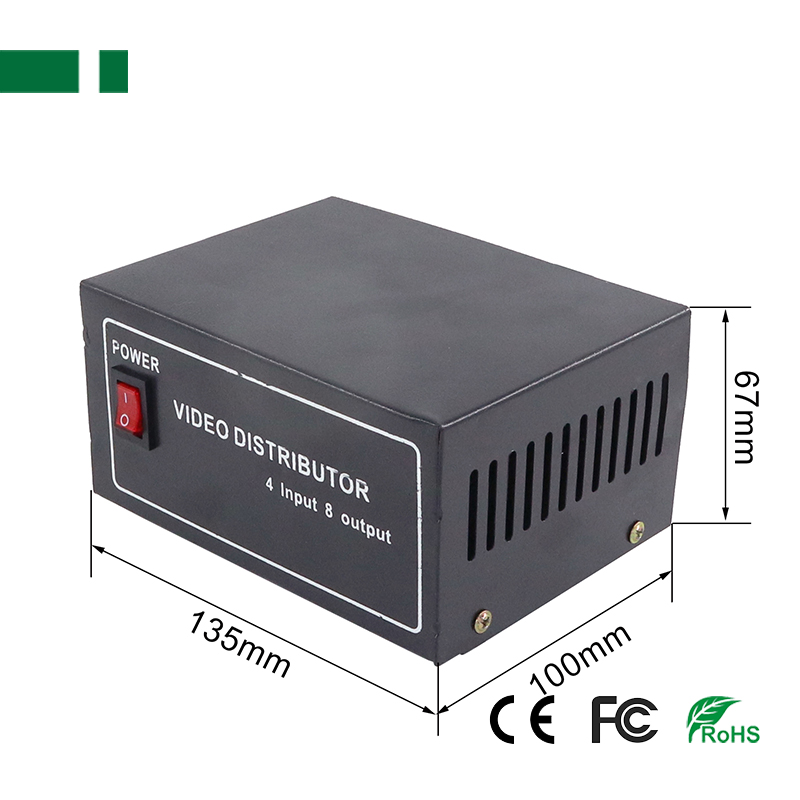

Dimension	100130100mm
Unit Weight	1.2kg
Warranty	12months

Cautions installation
"1). Do not attempt to disassemble the unit.
To prevent electric shock, do not attempt to disassemble this unit.There are no user serviceable parts inside.Ask qualified service person for servicing.
2). Handle the unit with care.
Do not abuse the unit.Avoid striking, shaking,etc.improper handling or storage could damage the unit.
3) Do not expose the unit to rain or moisture,or try to operate it in wet areas.
Turn the power off immediately and ask a qualified service person for servicing. Moisture can damage the unit and also create the danger of electric shock.
4). Do not use strong or abrasive detergents when cleaning the unit.
Use a soft cloth to clean the unit when dirty.In case the dirt is hard to remove,use a mild detergent and wipe gently.
5). Do not operate the unit beyond the specified temperature, humidity or power source ratings.
Use the unit under conditions where temperature is between –10 ℃ -+45 ℃ and humidity is below 90%.
The input power source is 220V AC.
