Material: aluminum alloy
Color: White
Tube: outer tube 35mm, inner tube 28mm, Outlet: 15*20mm
Length: 30-60cm, 60-120cm, 100-200cm, 150-300cm optional.

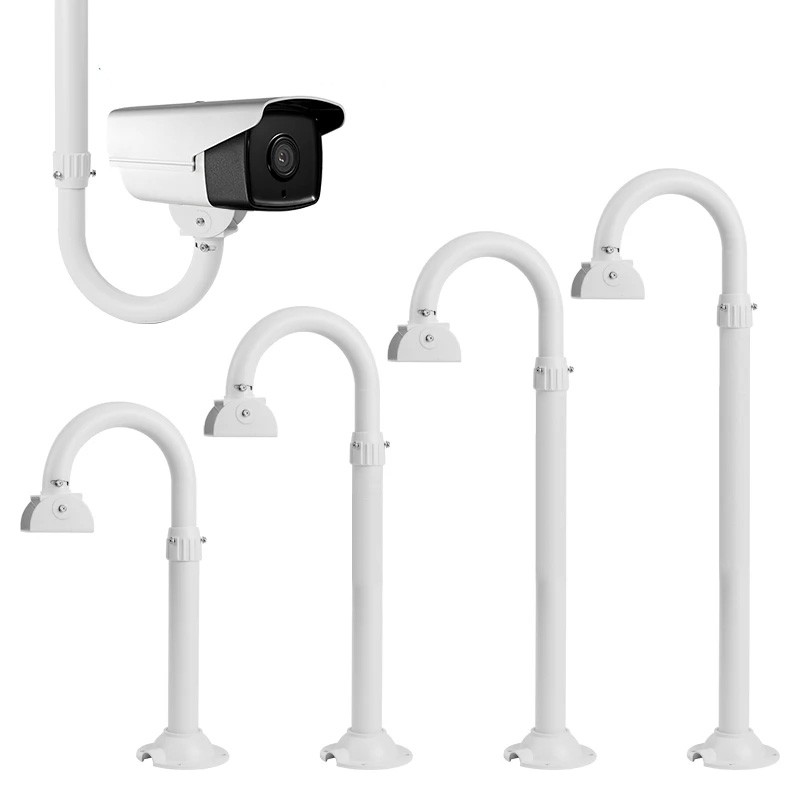

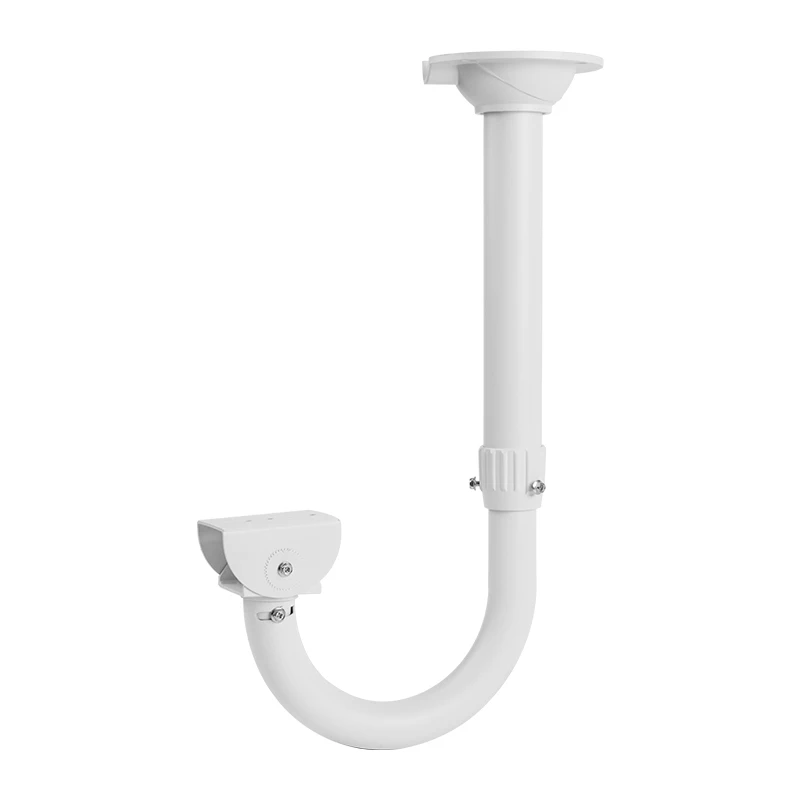

Product name: Monitoring enclosure bracket L-type wall-mounted aluminum alloy universal duckbill outdoor camera telescopic extension rod
Product name: Monitoring enclosure Bracket L-type Wall-Mounted aluminum alloy universal duckbill outdoor camera telescopic extension rod
Feature:
Product name: L type monitoring hoisting bracket
Material: aluminum alloy
Color: White

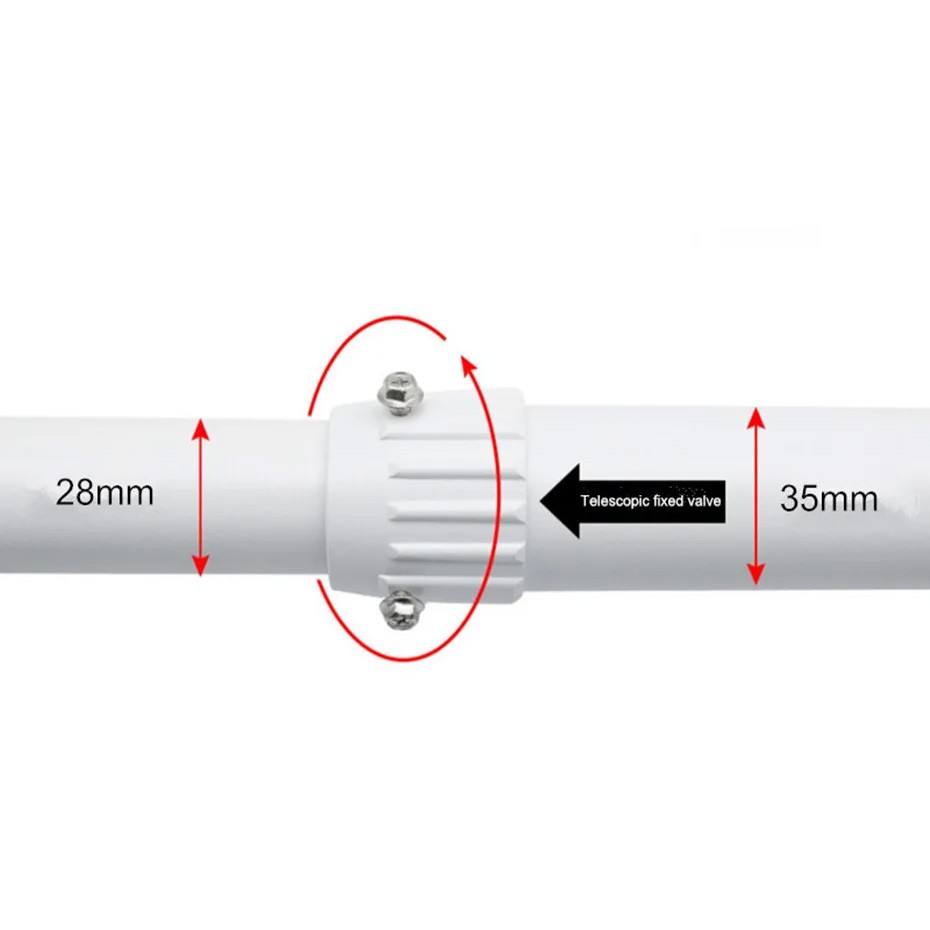

Tube: outer tube 35mm, inner tube 28mm, Outlet: 15*20mm
Installation method: wall-mounted, ceiling-mounted , hoisting, vertical installation
Installation Place: Outdoor & indoor. (Note: Wall mounting is not recommended for sizes above 60-120cm.)
Length: 30-60cm, 60-120cm, 100-200cm, 150-300cm optional.
It supports universal adjustment, thickened material, corrosion prevention and rust prevention, durability, high compatibility, and supports for HIKVISION Dahua camera.
Specification:
| Model | CB-235B | CB-235C | CB-235E | CB-235H |
| Name | "L" Shape Monitoring Hoisting Aluminum Bracket | |||
| Material | Aluminum alloy | |||
| Installation | Wall-mounted, Ceiling-mounted , Hoisting, Vertical installation | |||
| Applicable | Outdoor & Indoor | |||
| Rotation | Support up and down rotation 180°, left and right rotation 360°, the direction can be adjusted. | |||

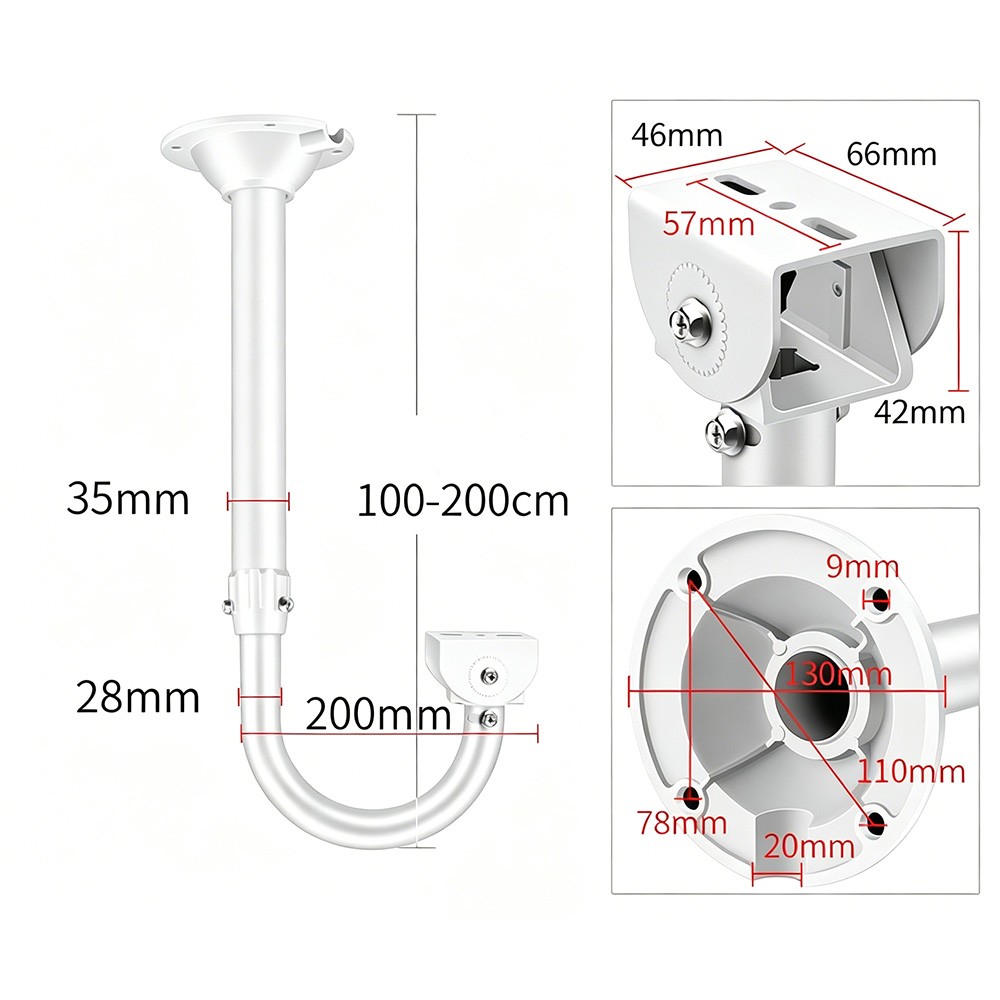

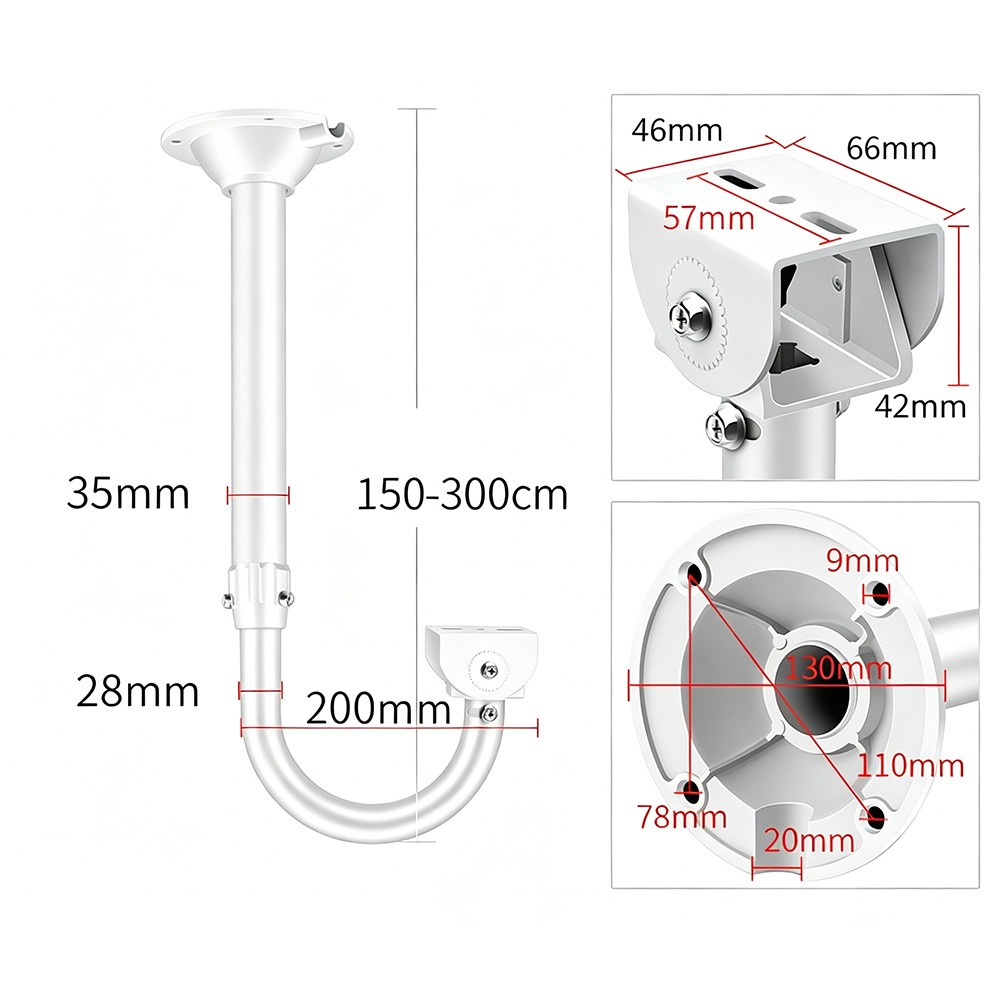

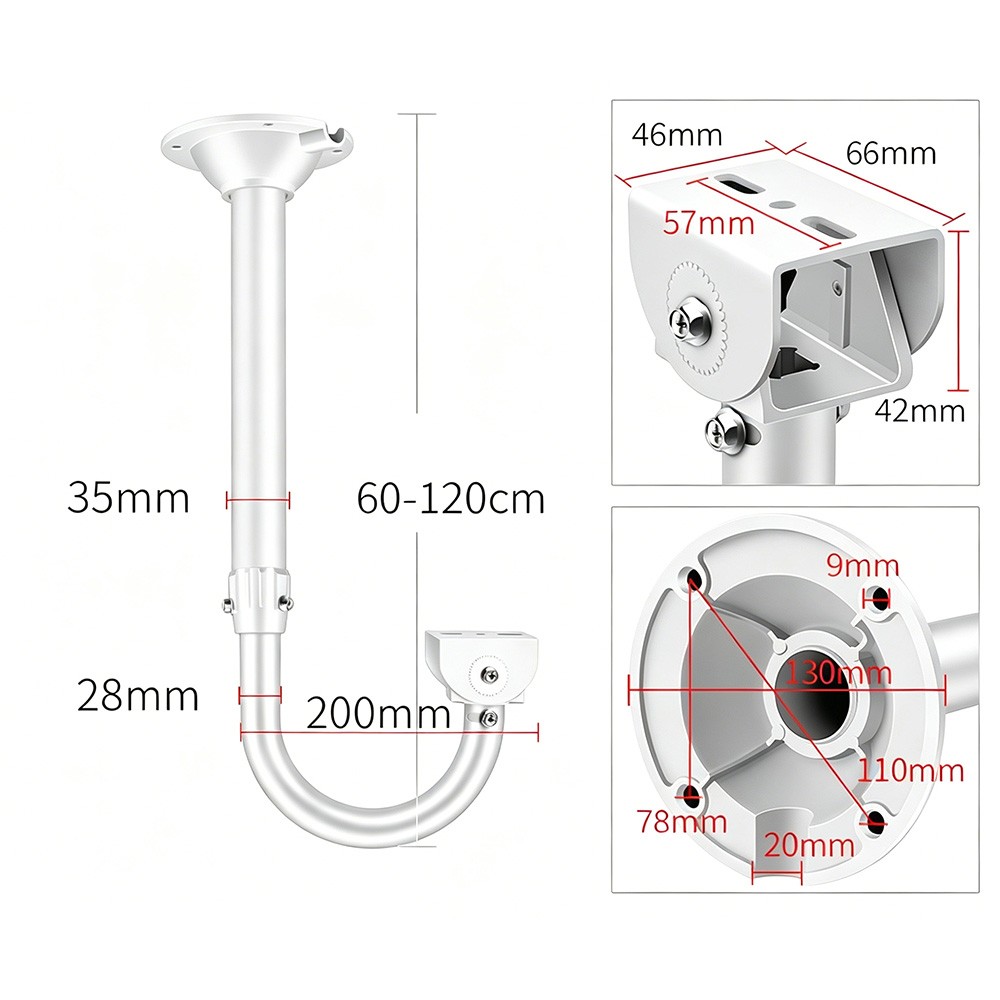

| Height | 30-60cm | 60-120cm | 100-200cm | 150-300cm |
| Fixed Base | 130(D)mm | |||
| Clamp size | 66(L)*46(W)mm | |||
| Inner Tube diameter | 28mm | |||
| Outer Tube diameter | 35mm | |||
Package Including:
1pcs camera bracket
Warm prompt: Camera is not included in the package.
