CLB-L400 32-55 Inch TV Wall Mount Bracket

32-55 Inch TV Wall Mount Bracket

Feature:

Universal Design:

Our TV bracket fits most 32-55 inch TVs weighing up to 27kgs.

Scope:

Fit for most HDTV flat panel TV, LCD TV, LED TV, Plasma TV. Suitable for family, entertainment, public places and commercial places such as living room, KTV, bars, airports, railway stations, bus stations, shopping malls, stores waiting hall, lounge, large conference rooms, classrooms, lobby and restaurants and etc.

Specification:

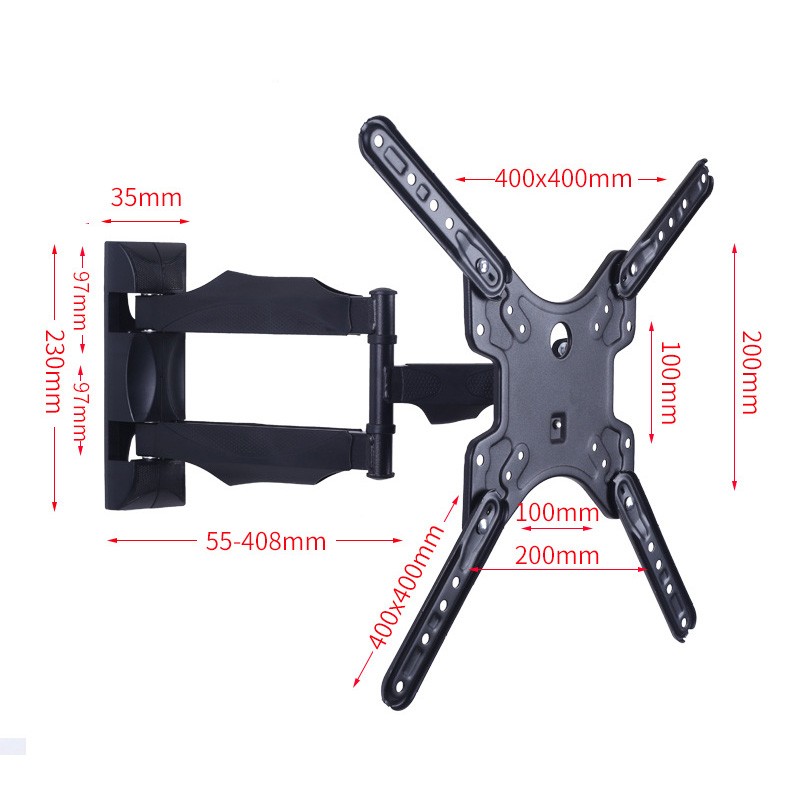

Type -------------------------------------------------------------TV Wall Mount Bracket

Color ------------------------------------------------------------Black

Applicable Size --------------------------------------------------32-55 inches

Material ----------------------------------------------------------SPCC

Distance From the Wall ------------------------------------------45-400mm

Max Capacity ----------------------------------------------------27KG

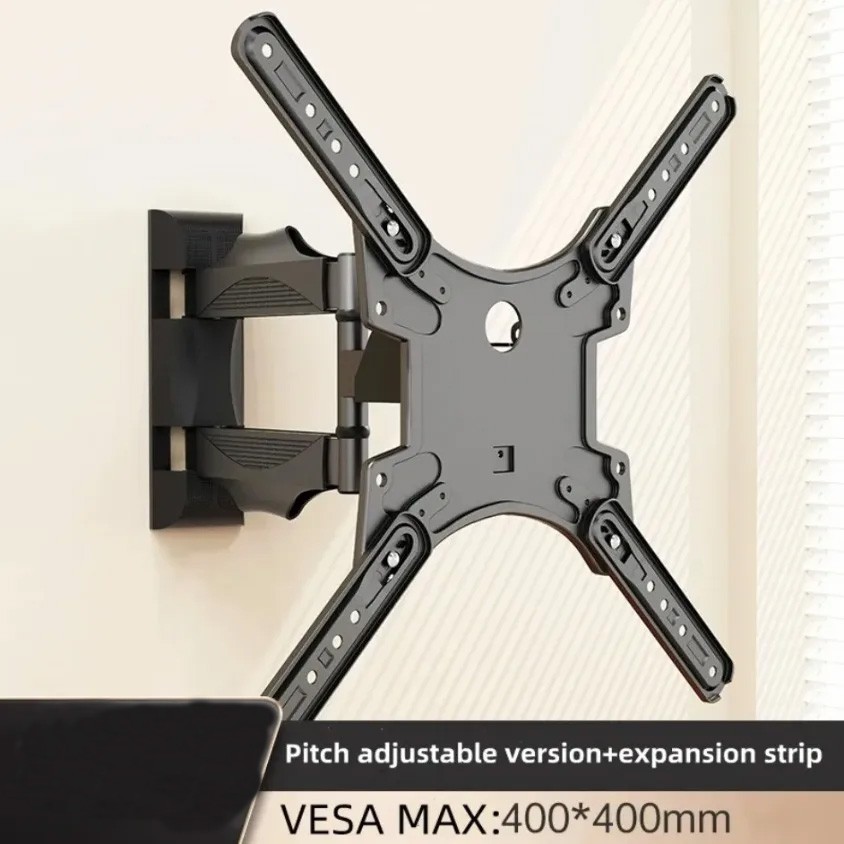

VESA Standard Pitch ---------------------------------------------100 * 100~400 * 400mm

Wall panel size: 75 * 235mm
Extension piece: 35 * 190mm
Panel size: 225 * 230mm
Forearm length: 130mm, posterior arm: 230mm, axial height: 150mm
Pitch adjustment: -8~+5 ° Horizontal adjustment: -3~+3 ° Riveted tube axis
Expansion screw: 7 * 80/3 Expansion tube: 10 * 60/3
TV screws: 4 * 25/4 5 * 25/4 6 * 25/4 8 * 25/4
Height increasing cylinder: 1 centimeter/4
