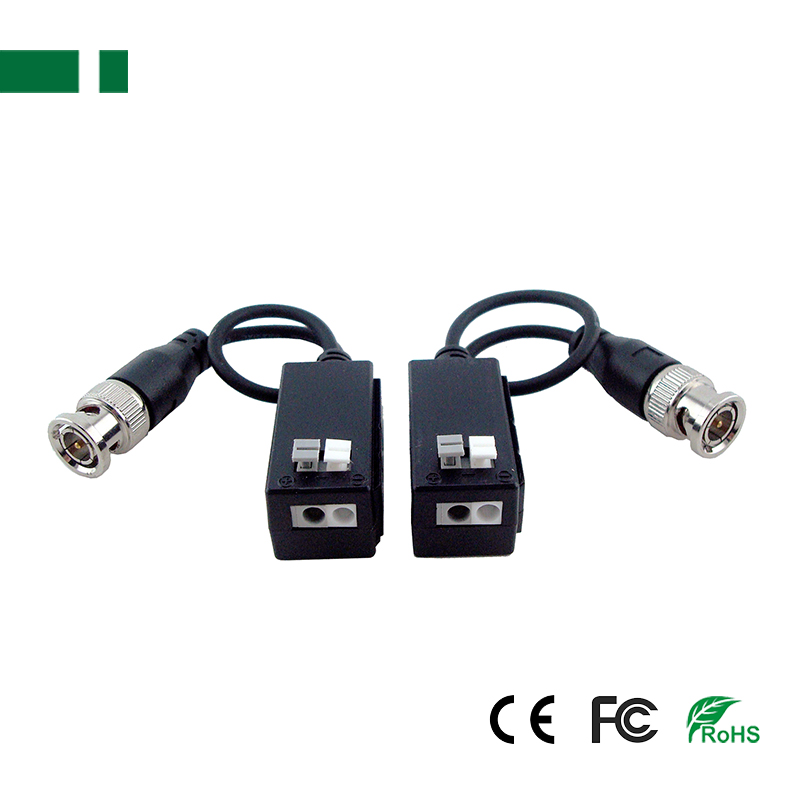

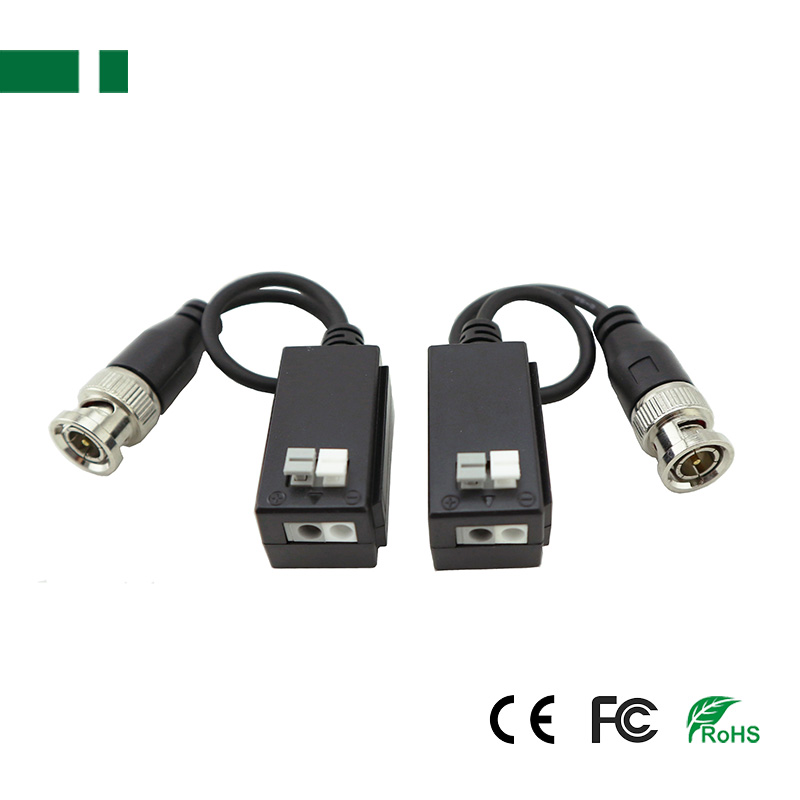

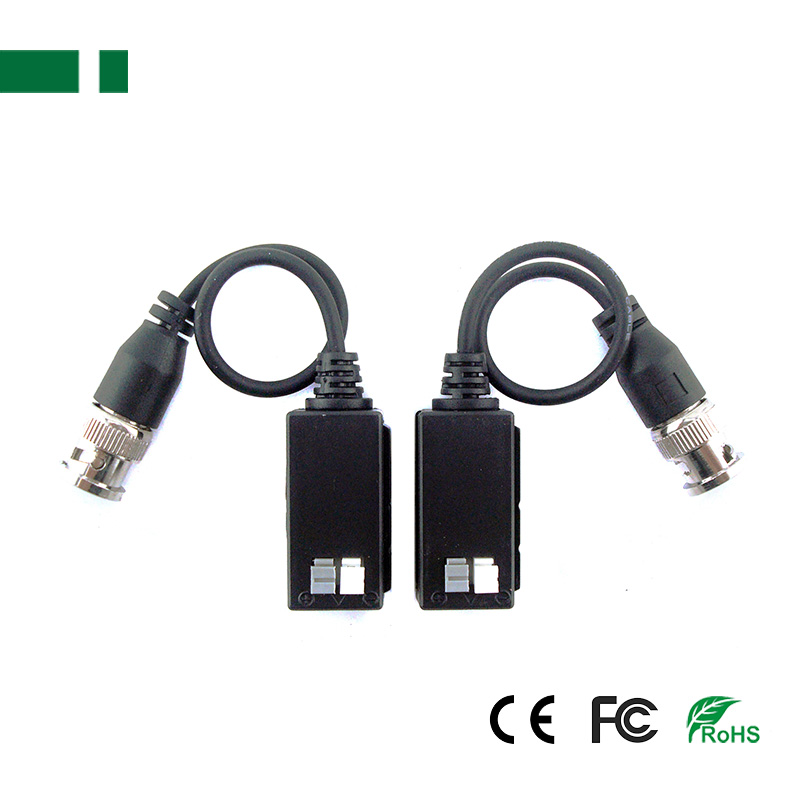

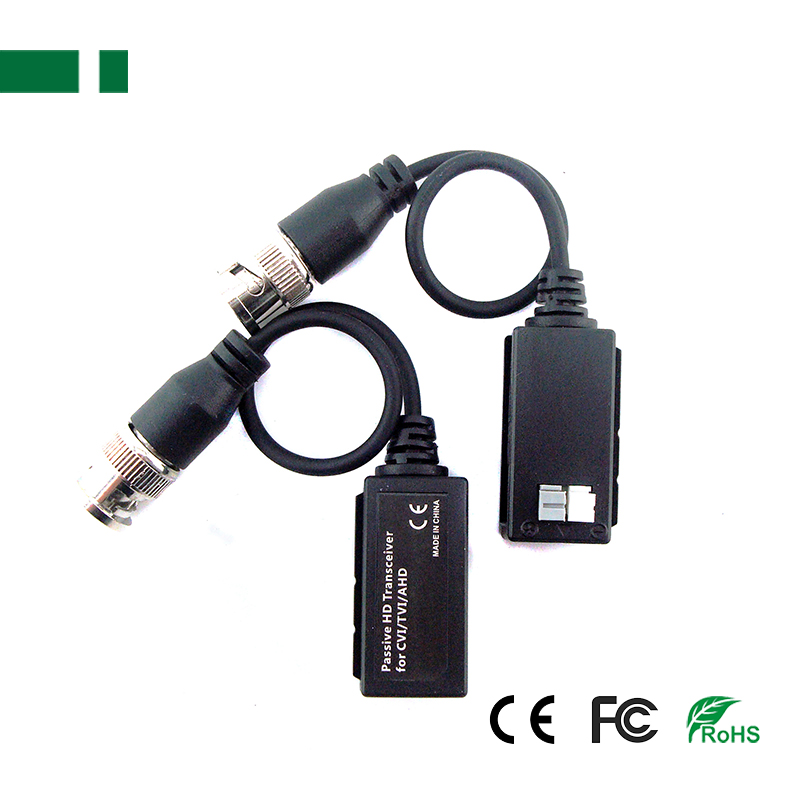

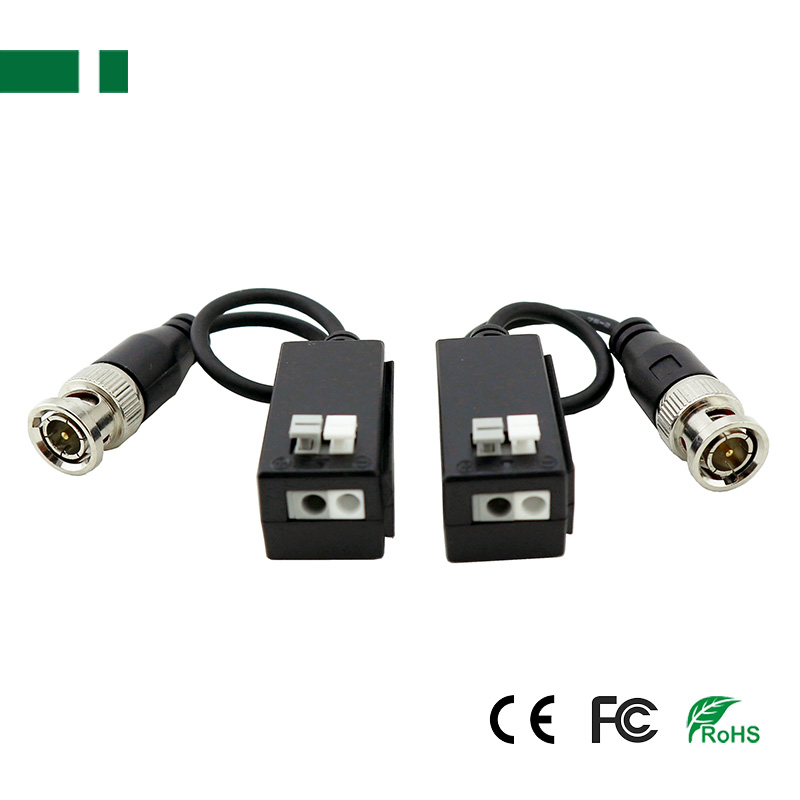

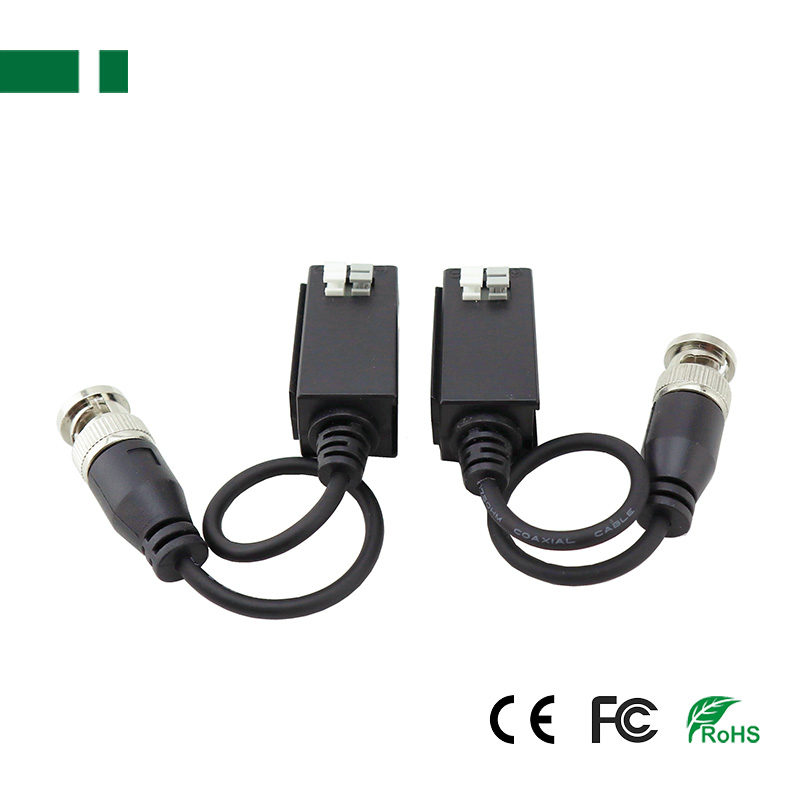

C-N101P-HD-S2 HD-CVI-TVI-AHD Video Balun

  • HD-CVI/TVI/AHD & CVBS
  • 1080P/3MP/4MP/5MP/8MP
  • Lightning protection design
  • Real-time transmission over UTP Cat5e/6
  • Product description: Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS, Built in solid state TVS (Transient voltage suppressor) for surge protection.
  • INQUIRY   EMAIL
Features:
1. Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS
2. Compatible with 720P/960P/1080P/3MP/4MP/5MP/8MP
3. Built in solid state TVS (Transient voltage suppressor) for surge protection
4. No power required
5. stackable  for Neat installtion
6. ABS engineering plastic Housing
7. 60dB crosstalk and noise immunity
8. Lightning protection design grade:III
9. Wave Filter design, Anti-statit design

10. Real-time transmission over UTP Cat5e/6


Specification:

Model

C-N101P-HD-S2

Balun Type

Passive

Video transmitting distance

Up to 450m for 720P CVI Cameras
Up to 250m for 1080P/ 3MP/ 4MP/ 5MP CVI Cameras
Up to 250m for 720P/ 1080P/ 3MP/ 4MP/ 5MP TVI Cameras
Up to 350m for 720P/ 960P AHD Cameras
Up to 250m for 1080P/ 3MP/ 4MP/ 5MP AHD Cameras

Video Formats

NTSC, PAL, SECAM

Crosstalk & noise immunity

60dB

Surge protection

4KV, ESD:8KV

Frequency Response

DC to 60Mhz

Wire Type

Unshielded Cat-5 or above twisted pair wire

Impedance

BNC:75 ohms; Terminal: 100 ohms

Working temperature

-10°C to +70°C

Storage Temperature

-10°C to +70°C

Humidity

0 to 95%

Material

ABS engineering plastic
