Single-mode Single-core Optical Fiber Patch Cord SC/APC-SC/APC-1M SC/APC-SC/APC-2M SC/APC-SC/APC-3M SC/APC-SC/APC-5M SC/APC-SC/APC-10M SC/APC-SC/APC-15M SC/APC-SC/APC-20M SC/APC-SC/APC-25M SC/APC-SC/A

Description:

Fiber Optic Patch cords are made from fiber optic cables with connectors at both ends, allowing for the transmission of data over long distances. These cables are commonly used in networking, telecommunications, and audio/video applications.

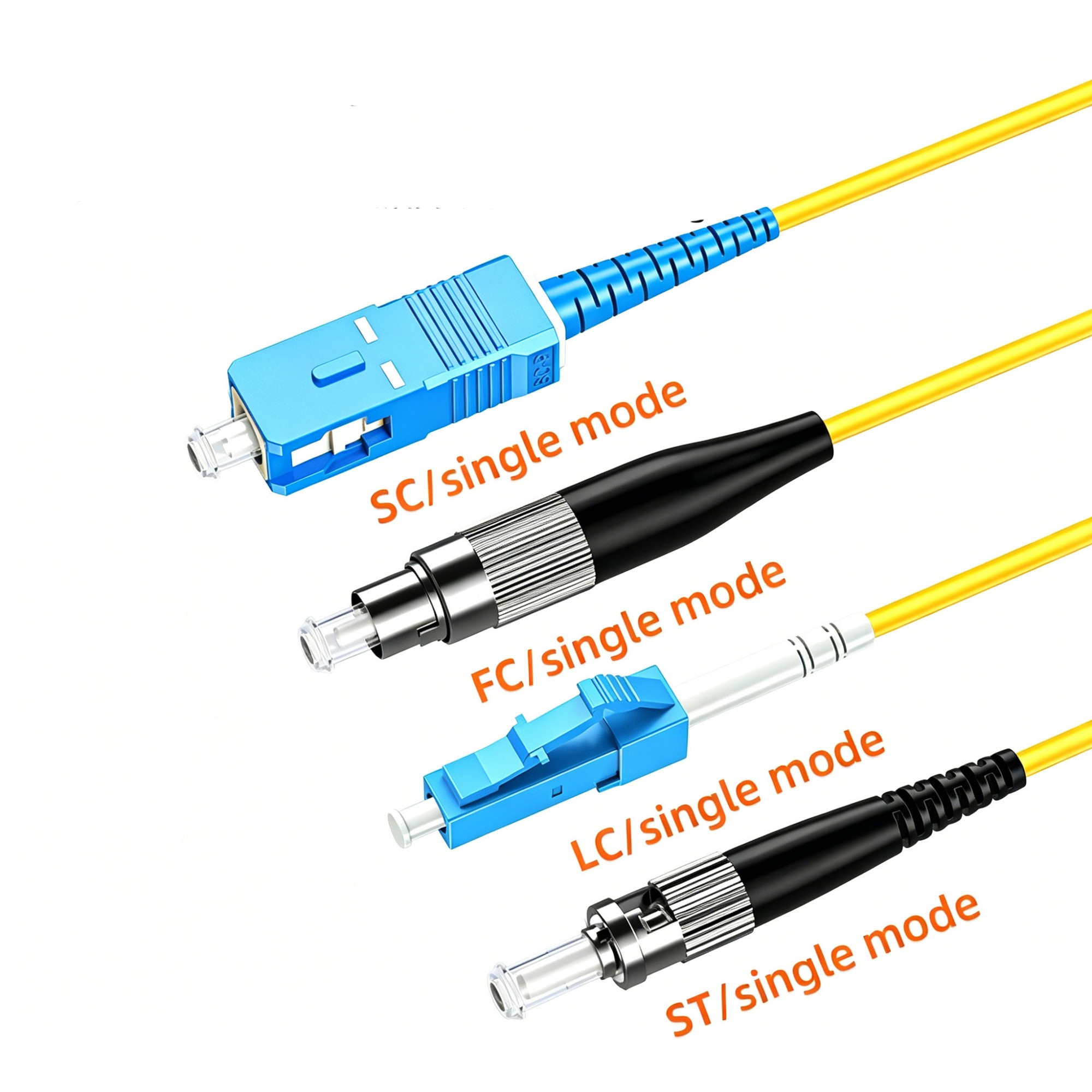

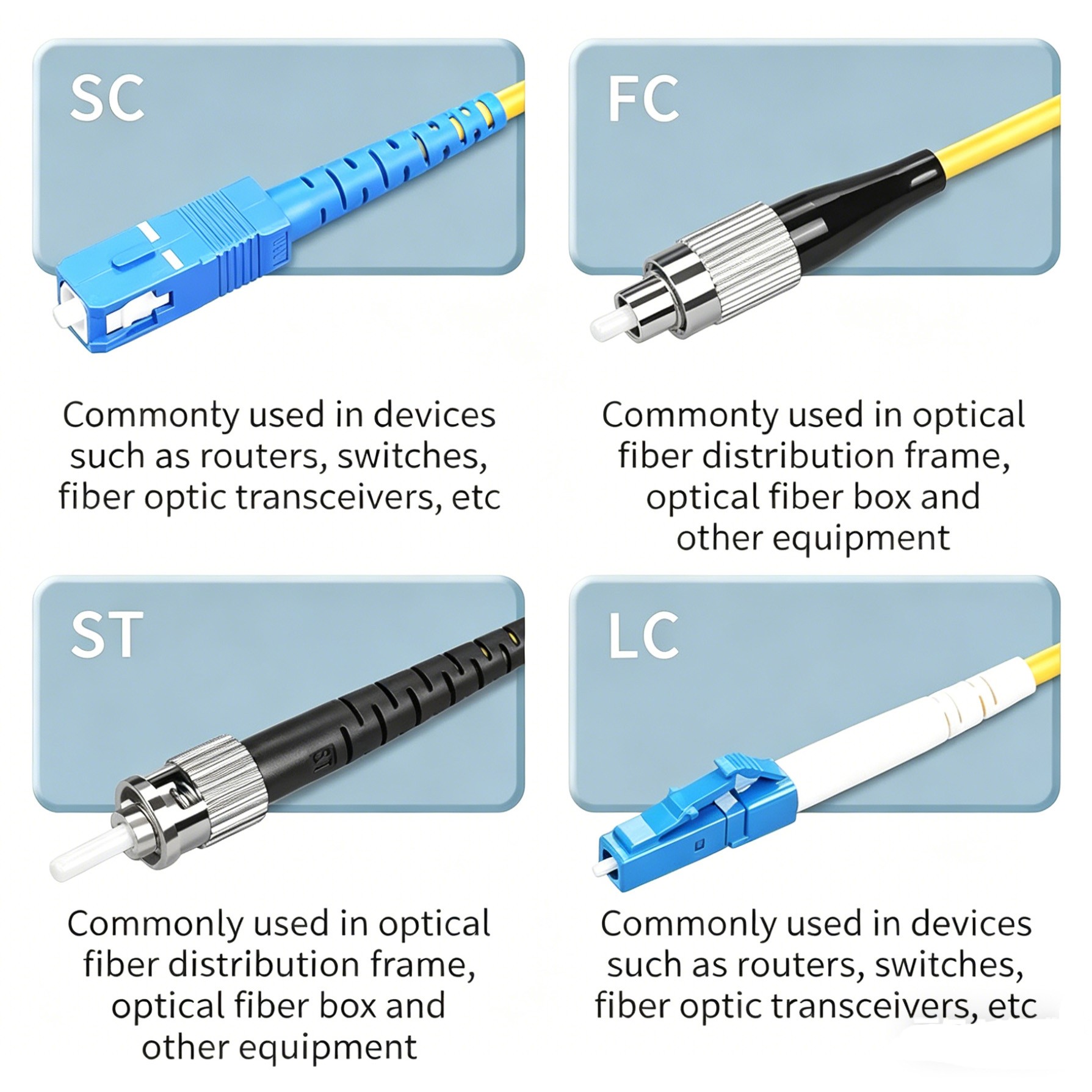

Fiber Optic Patch cords are classified by connectors at both ends,there are SC, FC, LC, ST, MU, DIN, D4, E2000, LX.5, MTRJ, VF-45 and SC-FC etc. hybrid patch cords.

Features:

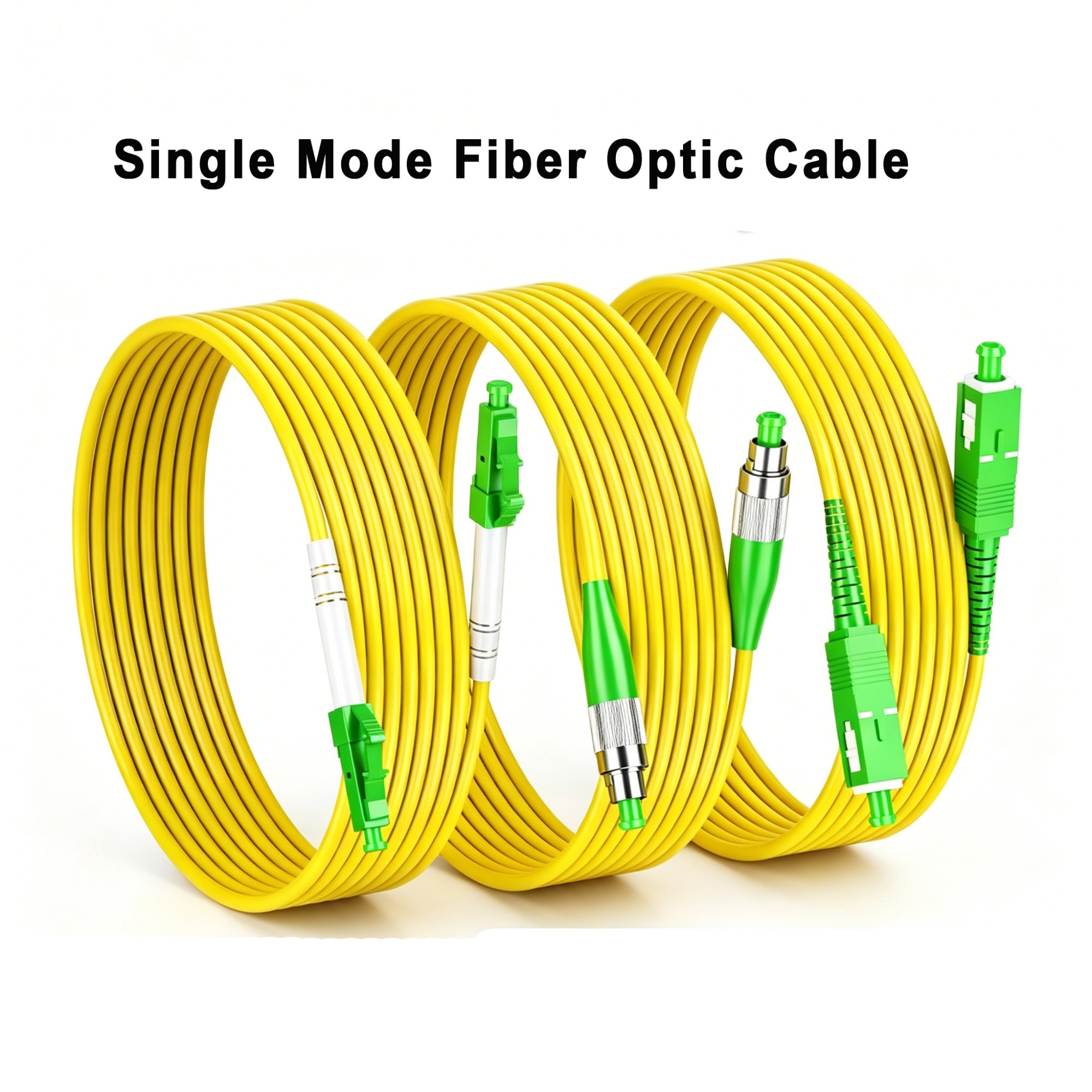

▪ Single-mode Single-core Optical Fiber Patch Cord;

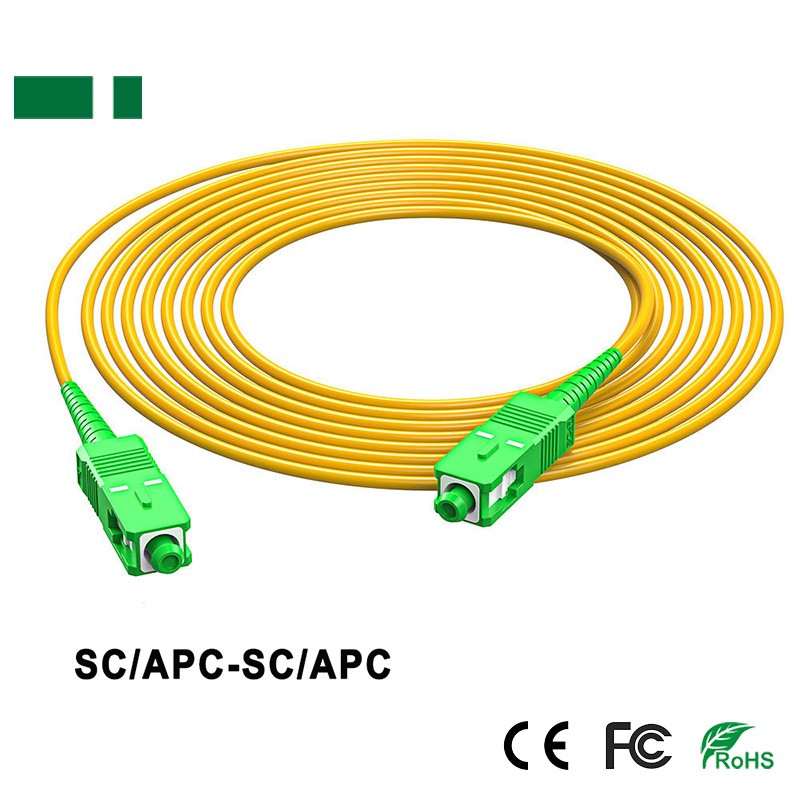

▪ Connector Type: SC/APC-SC/APC

▪ Length: 1M/ 2M/ 3M/ 5M/ 10M/ 15M/ 20M/ 25M/ 30M;

Insertion loss: ≤0.2dB

Return loss: ≈50dB

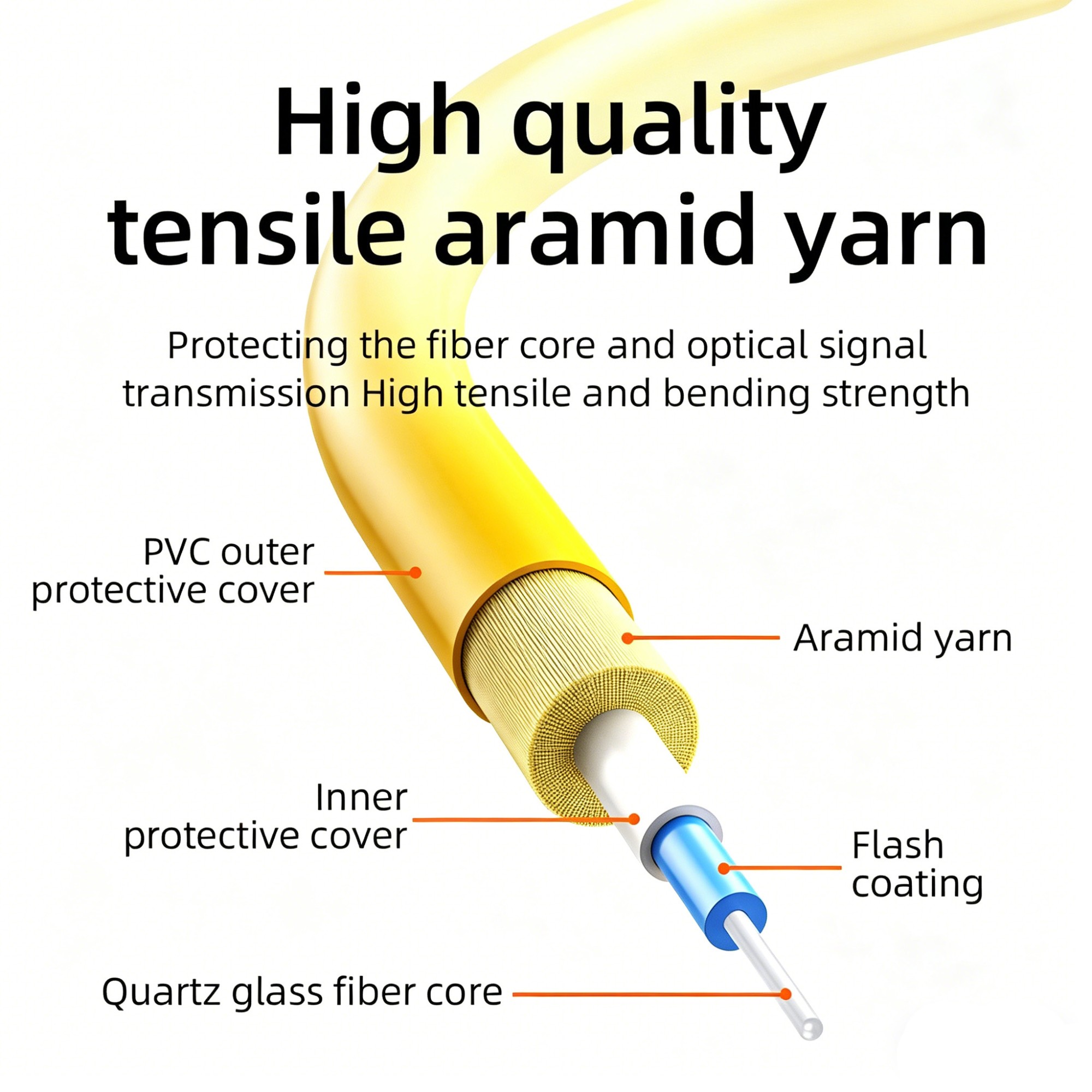

Exterior Material: Polyethylene PVC

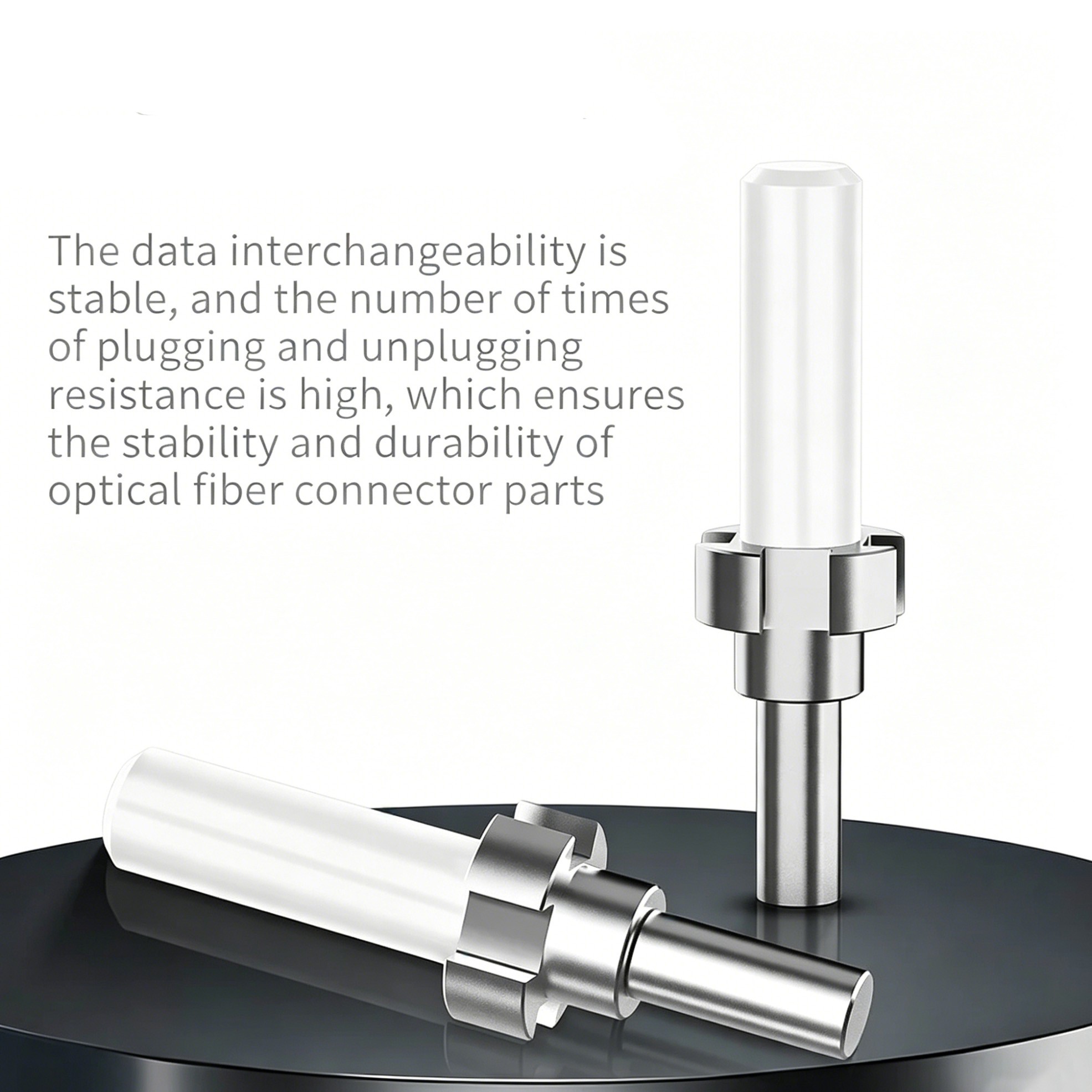

Plug in specifications: Three ring A-classceramic plug core

Plug and unplug times: >1000 times

Operating Temperature: -40°C~85°C

FTTH Compatible:  Perfect for fiber-to-the-home installations, telecom networks, and CATV systems

Optional Models:
