AC input: 110-230VAC 47-63Hz;
DC output mode optional (Each channel 1A):
Normal: DC12V; Long: DC13.5V; Ex-long: DC15V
EU/ US AC Cable.
◆ Built in EMI filter with tiny ripple ◆ 100% full load burn-in test ◆ Protection: Short circuit/ Overload/ Over voltage/ Over temperature

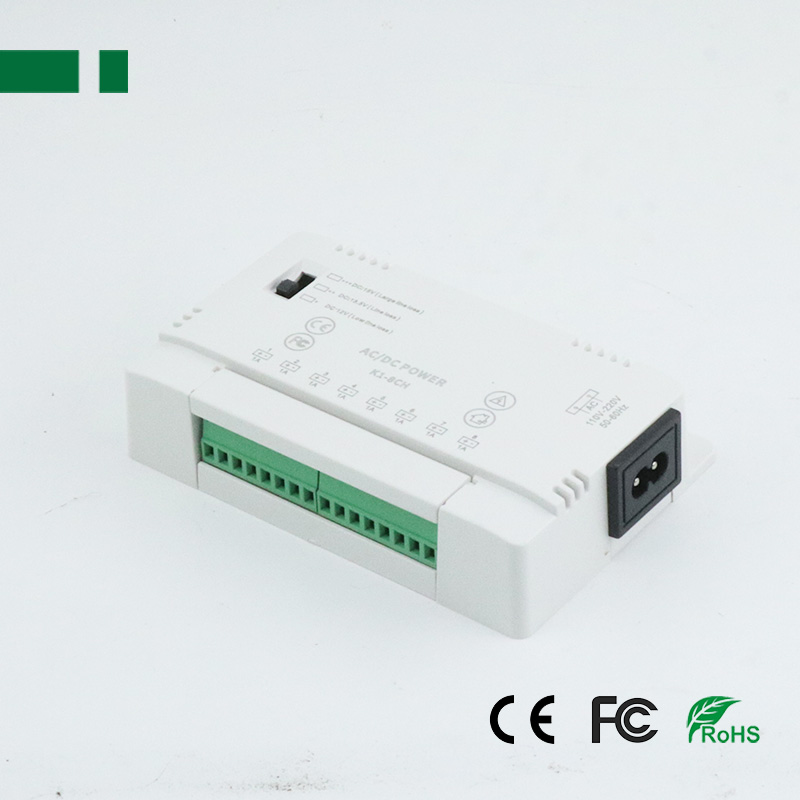

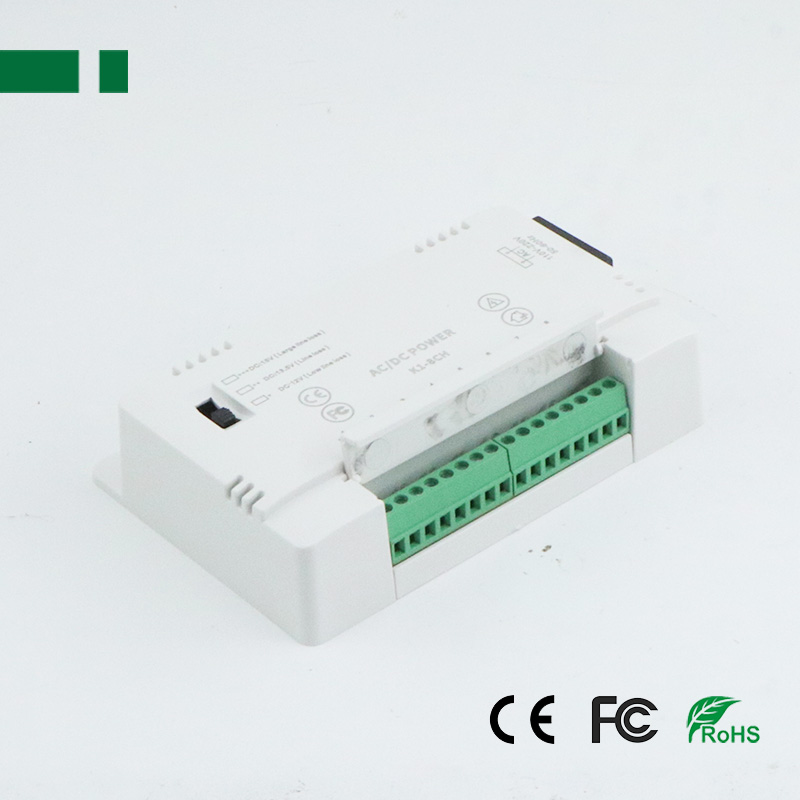

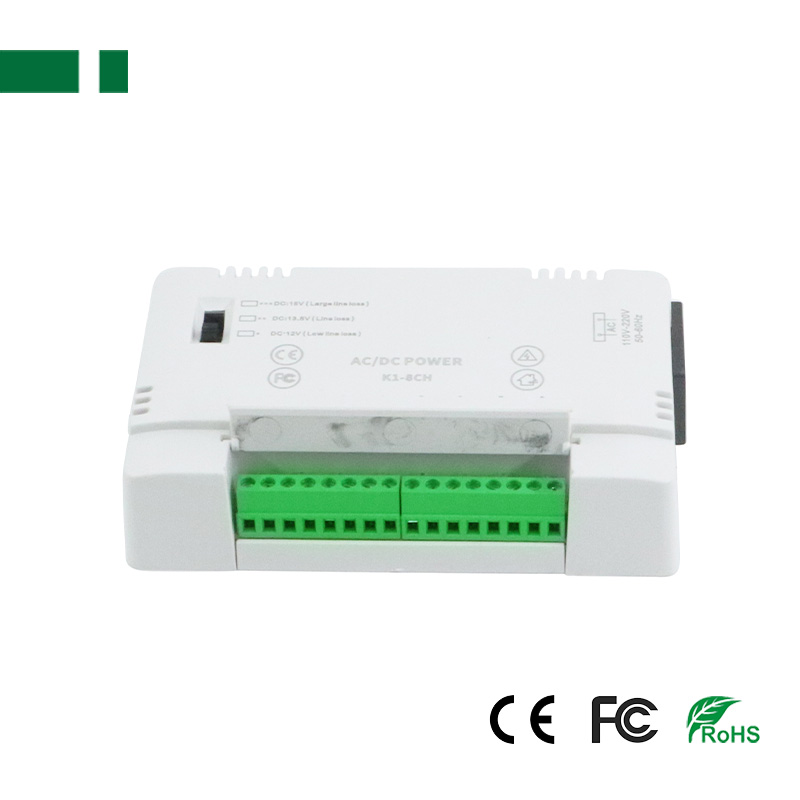

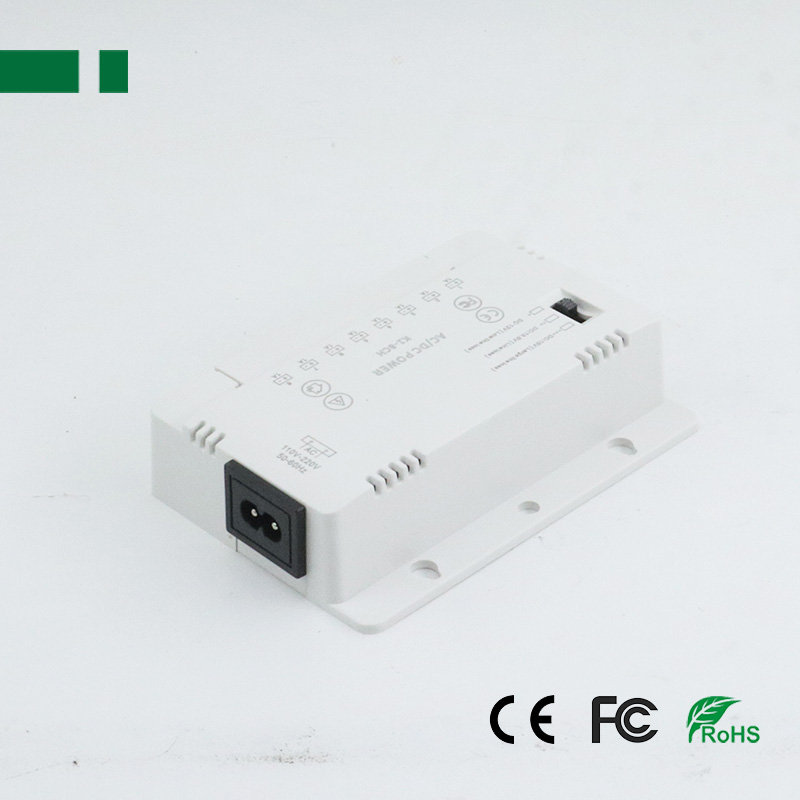

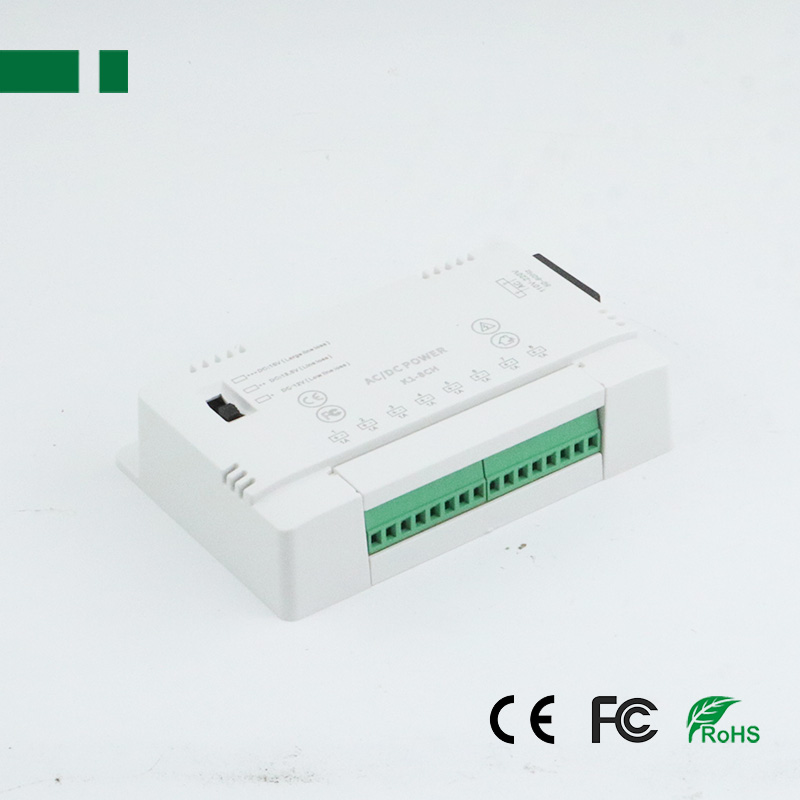

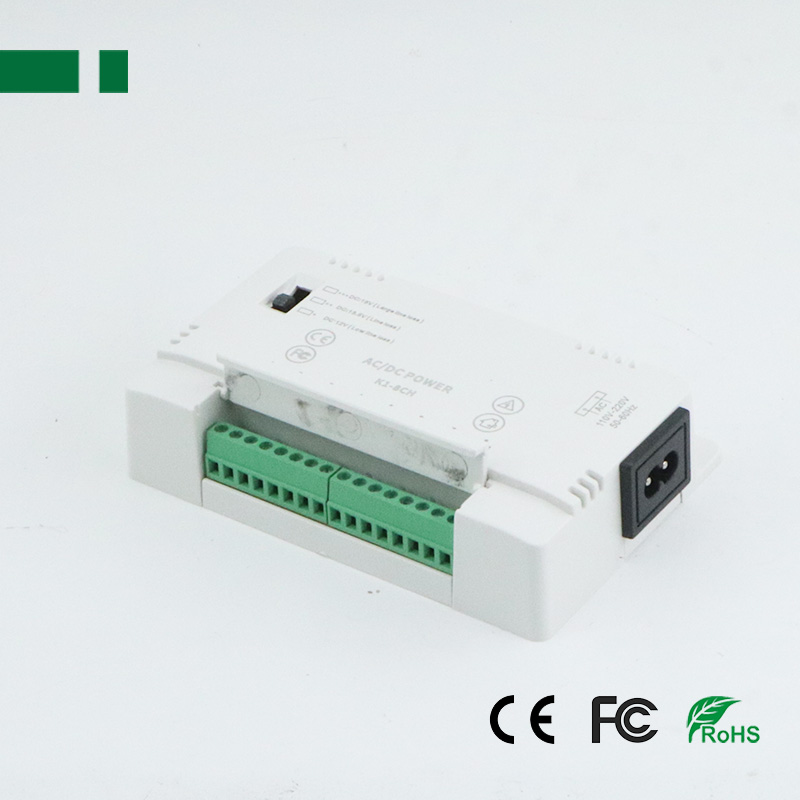

8chs 120W DC12V SMPS Power Adapter;
Feature:
1. AC input: 110-230VAC 47-63Hz;
2. DC output mode optional (Each channel 1A):
Normal: DC12V; Long: DC13.5V; Ex-long: DC15V
3. Over current/short circuit/over voltage protection
4. Complies with certification standards of information technology products; good EMC performance
5. Compact size; applicable to cameras.
6. Size: 137*93*35mm(L*W*H).
7. EU/ US AC Cable.
Specification:
| Model | K1-4CH | K1-8CH |
| Parameters | Switching Mode Power Supply | |
| Appearance | White | |
| Input | 110-230VAC 47-63Hz | |
| Output | 12 VDC/1 A per channel | |
| Cable Length Compensation | Normal: DC12V; Long: DC13.5V; Ex-long: DC15V | |
| Ripple & Noise | 0.15 Vp-p (150 mV) | |
| AC Input Connector | C4 | C8 |
| DC Output Connector | DC Plug: grid terminal | |
| LED Indicator | Green | |
| Operating Conditions | 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing) | |
| Storage Conditions | B-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing) | |
| Dimension | 137*93*35mm(L*W*H) | |
