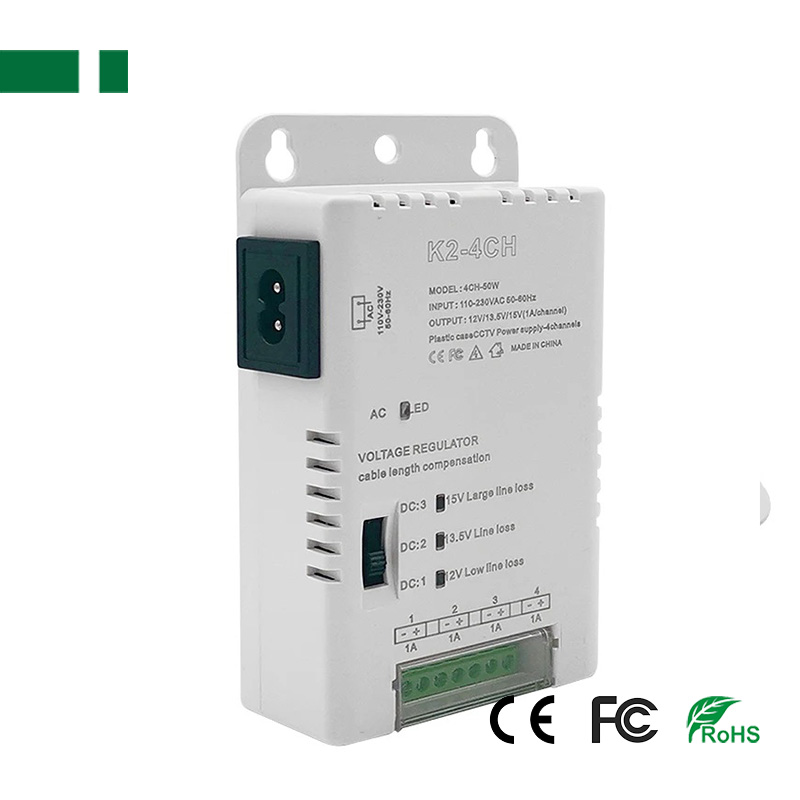

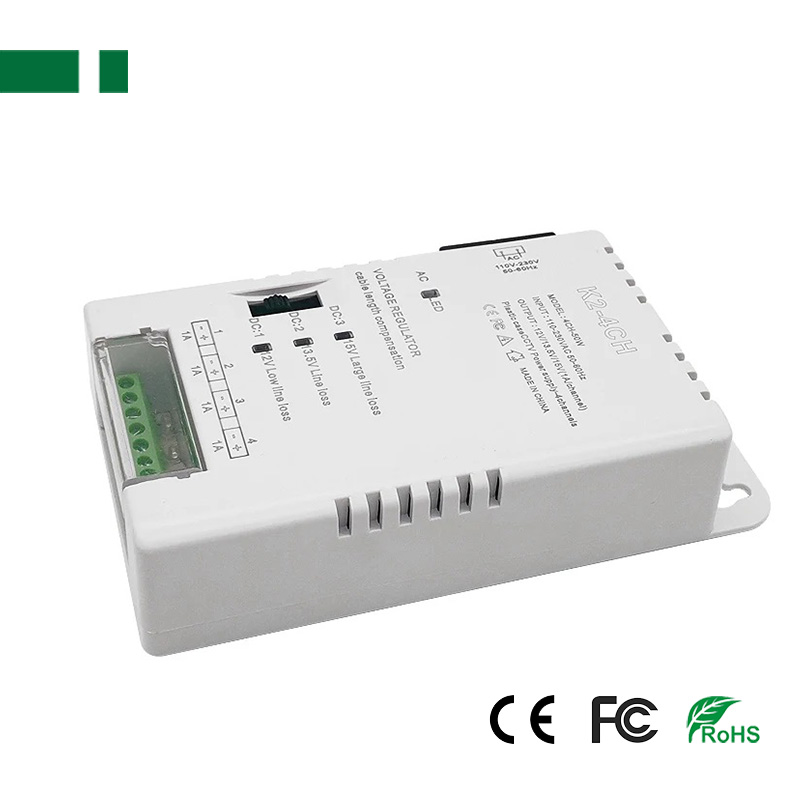

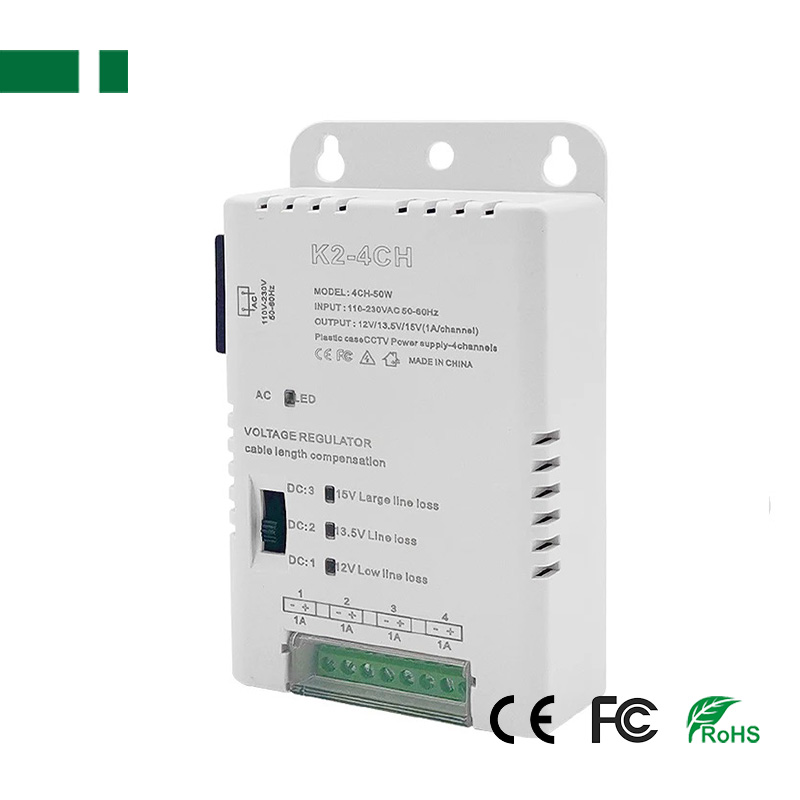

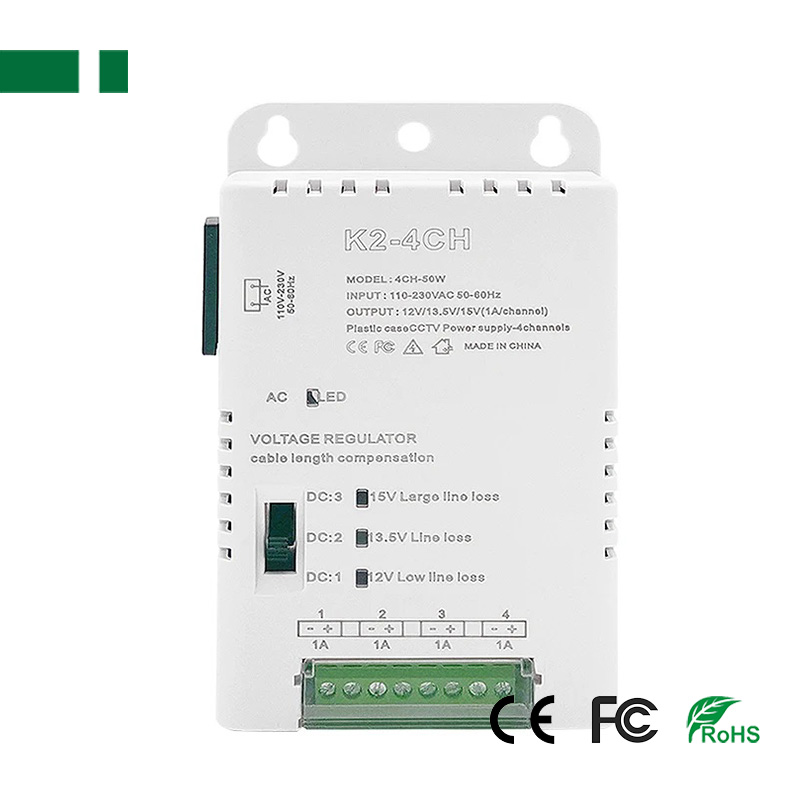

4CH Centralized Power Supply Suitable for Multi-input Surveillance Camera
DC output mode optional (Each channel 1A):
Normal: DC12V; Long: DC13.5V; Ex-long: DC15V
EU/ US AC Cable.
◆ Built in EMI filter with tiny ripple ◆ 100% full load burn-in test ◆ Protection: Short circuit/ Overload/ Over voltage/ Over temperature
4CH Centralized Power Supply Suitable for Multi-input Surveillance Camera ;
Feature:
1. AC input: 110-230VAC 47-63Hz;
2. DC output mode optional (Each channel 1A):
Normal: DC12V; Long: DC13.5V; Ex-long: DC15V
3. Over current/short circuit/over voltage protection
4. Complies with certification standards of information technology products; good EMC performance
5. Compact size; applicable to cameras.
6. Size: 80*32*143mm(L*W*H).
7. EU/ US AC Cable.
Specification:
| Model | K2-4CH | K2-8CH | K2-16CH |
| Parameters | Switching Mode Power Supply | ||
| Appearance | White | ||
| Input | 110-230VAC 47-63Hz | ||
| Output | 12 VDC/1 A per channel | ||
| Cable Length Compensation | Normal: DC12V; Long: DC13.5V; Ex-long: DC15V | ||
| Ripple & Noise | 0.15 Vp-p (150 mV) | ||
| AC Input Connector | C4 | C8 | C16 |

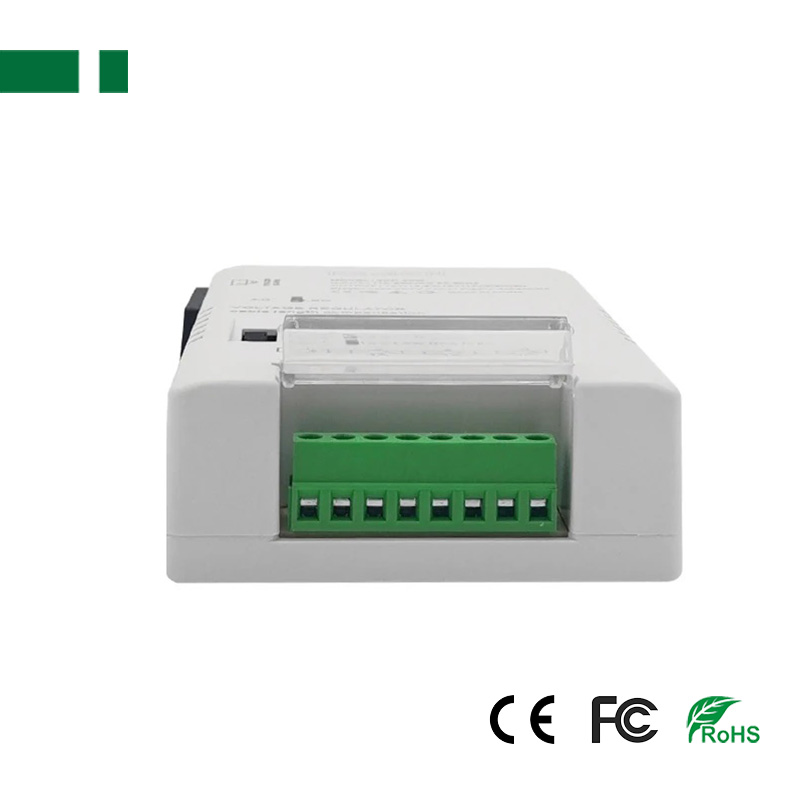

| DC Output Connector | DC Plug: grid terminal | ||
| LED Indicator | Green | ||
| Operating Conditions | 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing) | ||
| Storage Conditions | B-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing) | ||
| Dimension | 80*32*143mm(L*W*H) | 110*32*143mm(L*W*H) | 130*37*188mm(L*W*H) |
