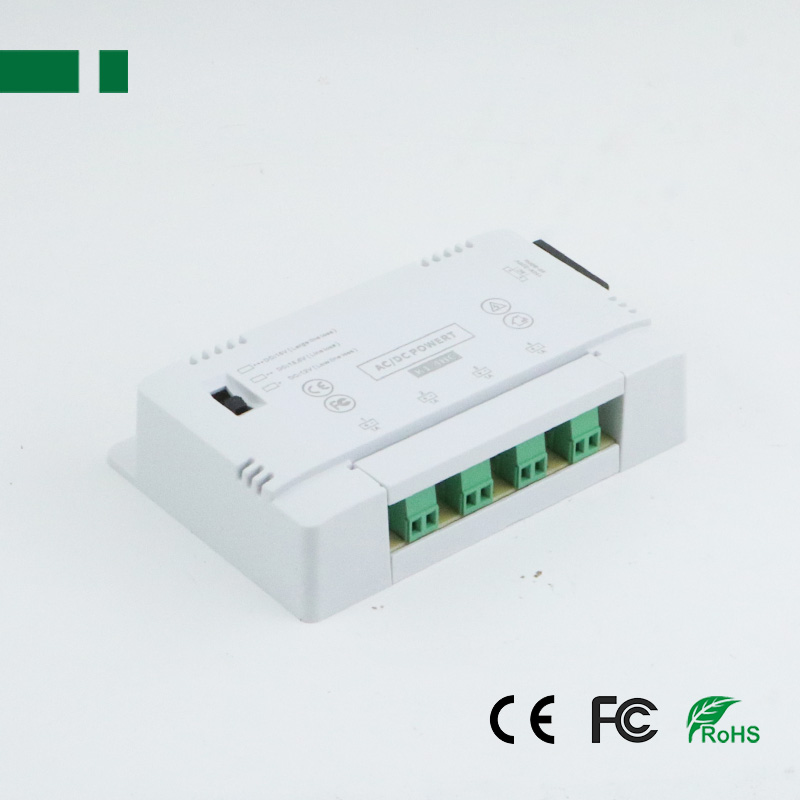

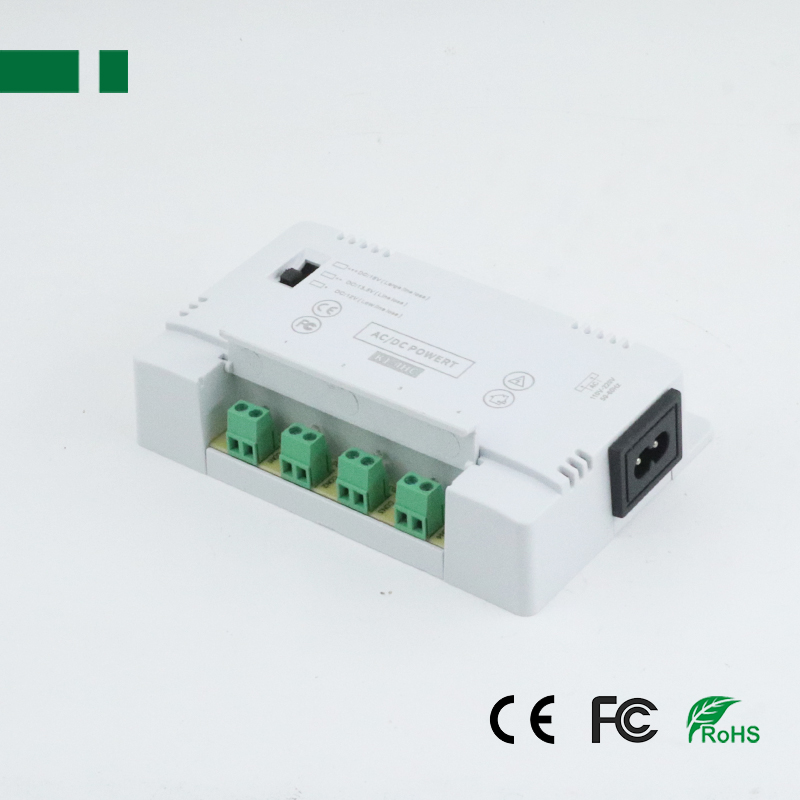

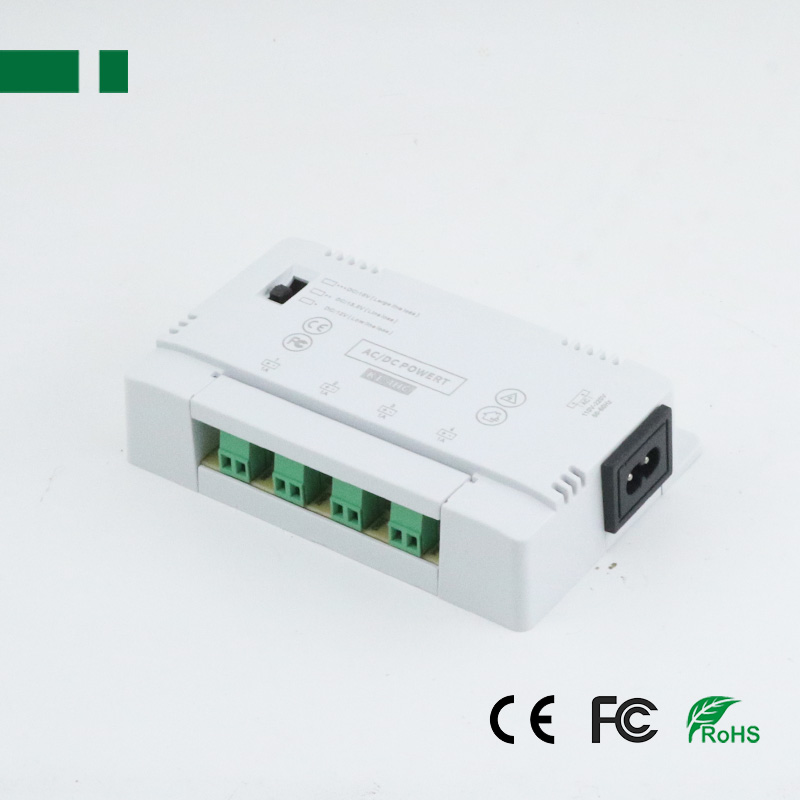

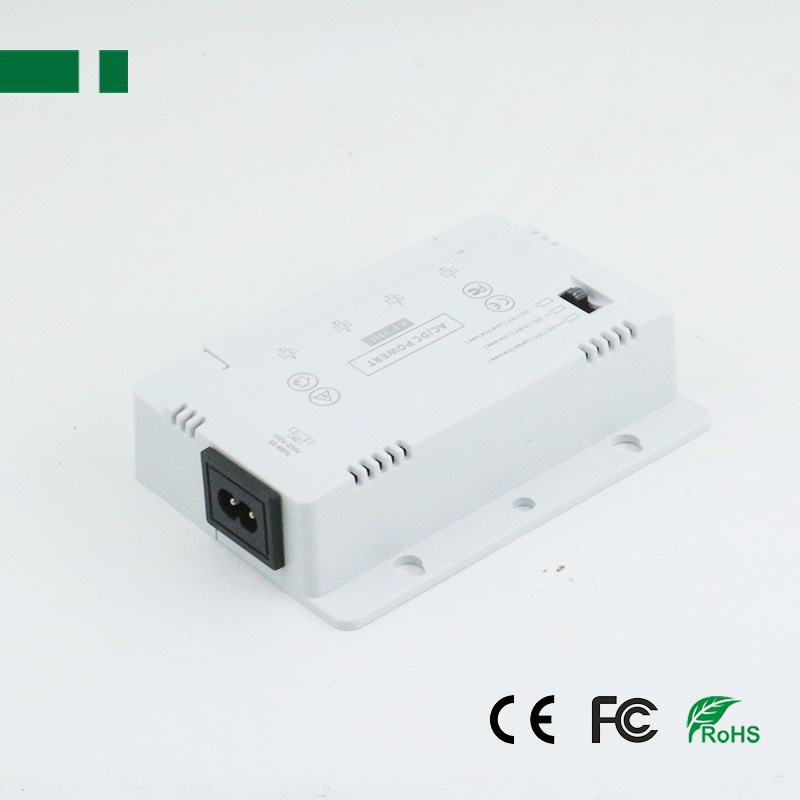

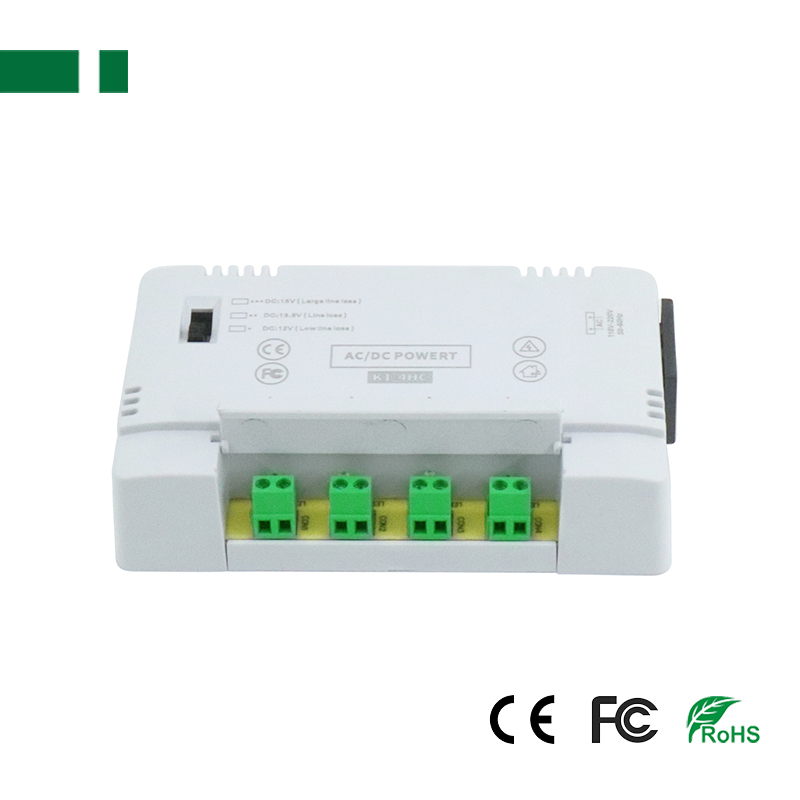

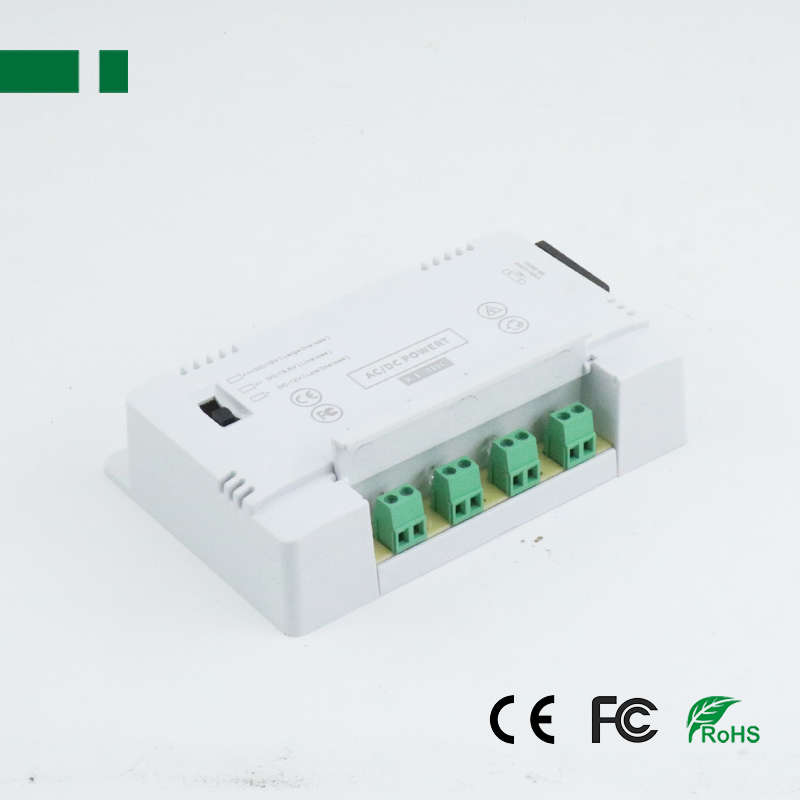

▪ 4CH 60W Centralized Power Supply;
▪ AC input: 110-230VAC 47-63Hz;
▪ DC output mode optional (Each channel 1A):
▪ Normal: DC12V; Long: DC13.5V; Ex-long: DC15V
EU/ US AC Cable.
▪ The Centralized Power Supply is primarily designed for CCTV system, access, building/house control, intrude alarm & other light-current.
4chs 60W DC12V SMPS Power Adapter;
Feature:
1. AC input: 110-230VAC 47-63Hz;
2. DC output mode optional (Each channel 1A):
Normal: DC12V; Long: DC13.5V; Ex-long: DC15V
3. Over current/short circuit/over voltage protection
4. Complies with certification standards of information technology products; good EMC performance
5. Compact size; applicable to cameras.
6. Size: 137*93*35mm(L*W*H).
7. EU/ US AC Cable.
Specification:
| Model | K1-4CH | K2-4CH | K1-8CH | K2-8CH | K2-16CH |
| Parameters | Switching Mode Power Supply | ||||
| Appearance | White | ||||
| Input | 110-230VAC 47-63Hz | ||||
| Output | DC12V 5A | DC12V 10A | DC12V 10A | ||
| Cable Length Compensation | Normal: DC12V; Long: DC13.5V; Ex-long: DC15V | ||||
| Ripple & Noise | 0.15 Vp-p (150 mV) | ||||
| Channels | 4-Channel | 8-Channel | 16-Channel | ||
| DC Output Connector | DC Plug: Grid Terminal | ||||
| LED Indicator | Green | ||||
| Temperature | Operating: 0°C to 40°C (32°F to 104°F), Storage: -40°C to 80°C (-40°F to 176°F) | ||||
| Humidity | Operating: 10% to 95% (non-condensing), Storage: 5% to 95% (non-condensing) | ||||
| Dimension | 137*93*35mm(L*W*H) | 80*32*143mm(L*W*H) | 137*93*35mm(L*W*H) | 110*32*143mm(L*W*H) | 130*37*188mm(L*W*H) |
