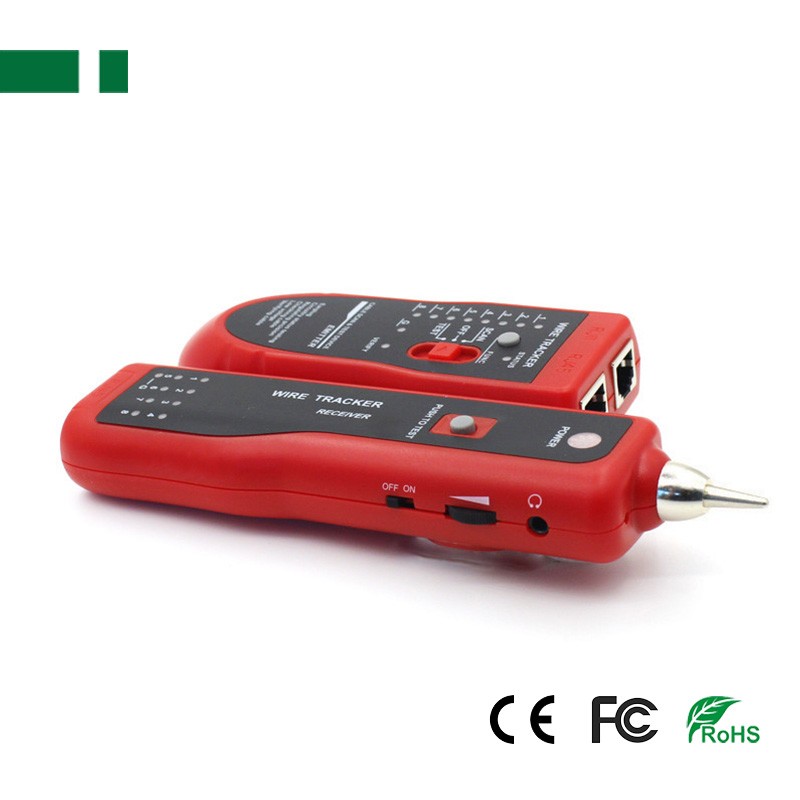

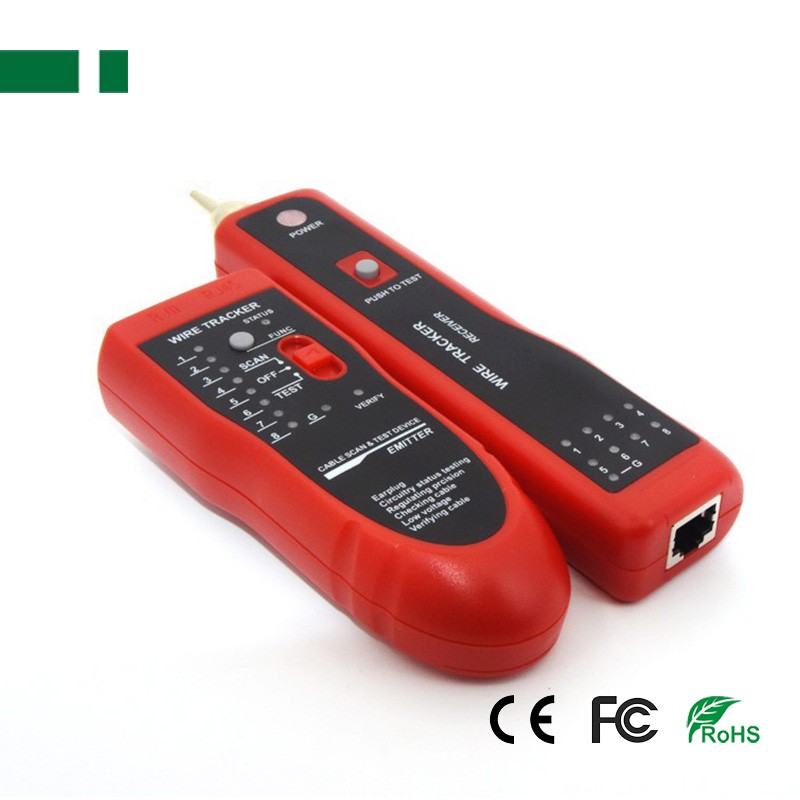

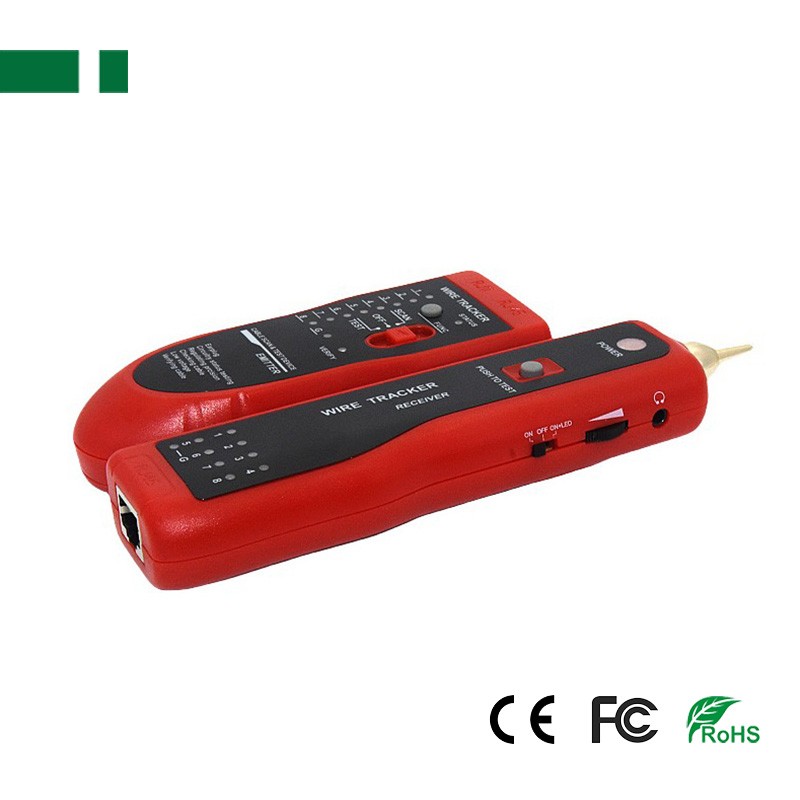

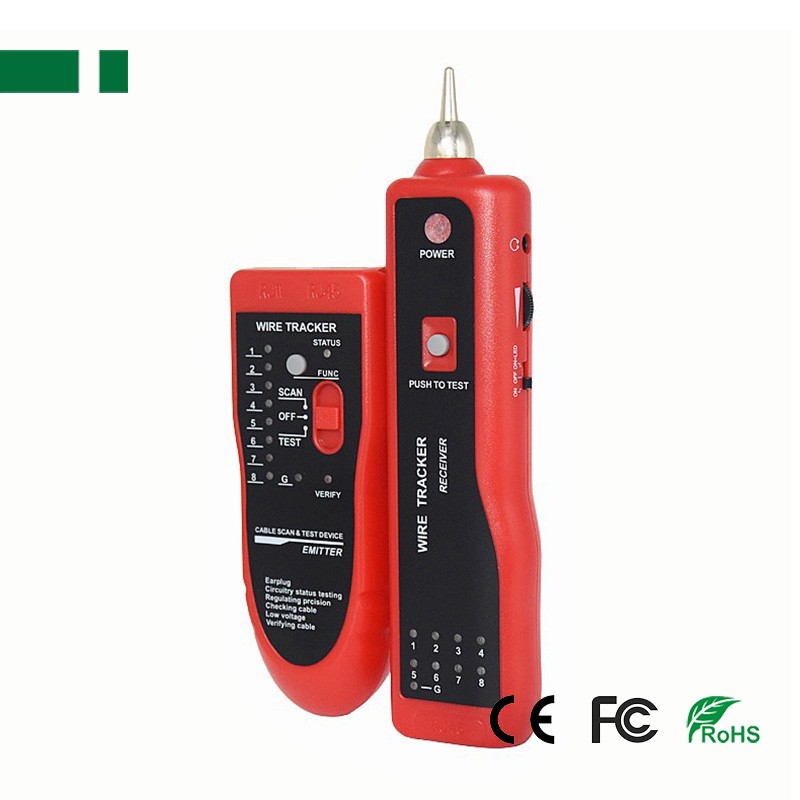

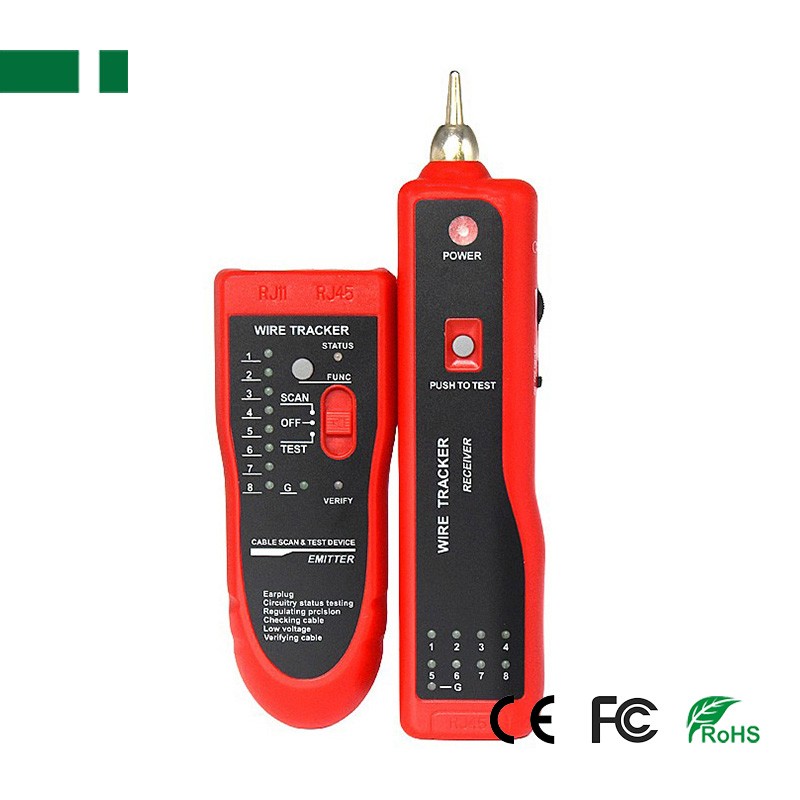

CST-2106 Multi-function Wire Tracker

Description:

Multi-function Wire Tracker, locating a short or breakage in a non-powered cable, and mapping RJ45 wire. Essential for cable installers or anyone in the telecom or LAN environments.

Wire finder adopts a developed frequency generator, which can generate an alarm sound at the audio sounding end, the closer the sound is, the louder the sound is, which is convenient for users to find the line quickly and accurately. In addition to the basic wire locating function, it also has a variety of functions such as direct current level test, battery low voltage indication, headphone function, backlight function, open or short circuit test, volumes adjustment, and power saving, etc., to meet a variety of user needs.

Feature:

▪ Working current: Tester: 10mA Razer: 30mA;

▪ Signal transfer mode: Digital signal;

▪ Signal output level: 8Vp-p;

▪ Signal transfer distance: 3Km;

▪ Dimension: Tranter: 126*49*34mm, Razer: 175*42*25mm.

Specification:

Package:

1 x Cable Emitter

1 x Cable Receiver

1 x RJ11 Cable

1 x Earphone

1 x Cable with Crocodile Clamp

1 x Instruction Manual
